1/72 HMM Geno Breaker Raven Ver English Manual & Color Guide

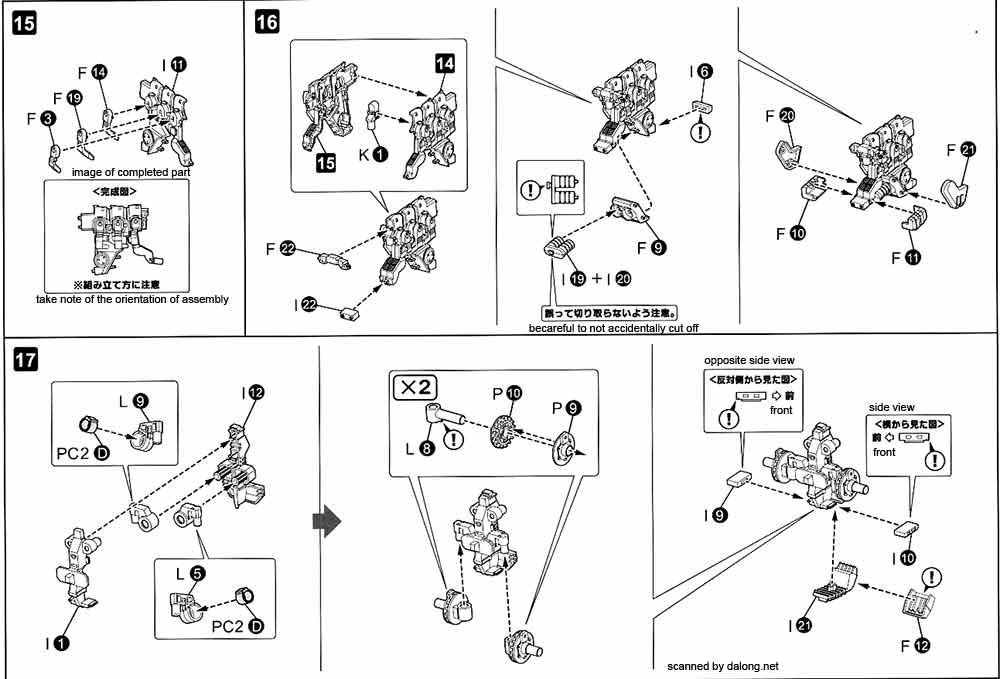

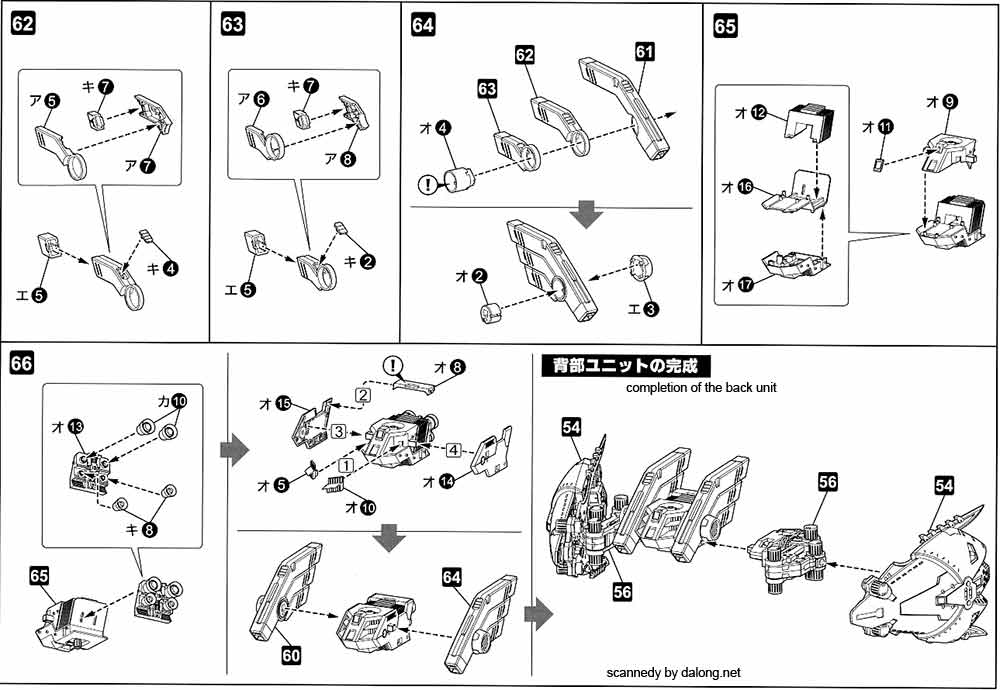

1/72 HMM Geno Breaker Raven Ver Construction Manual & Color Guide

Released last November by Kotobukiya was the 1/72 scale Highend Master Model rendition of Raven's Geno Breaker from the Zoids anime series. Prior to this, Kotobukiya had already released a 1/72 HMM Geno Breaker.

The 1/72 HMM Geno Breaker Raven Ver is selling for $ at Amazon, 9200 yen at HobbyLink Japan, 7820 yen at Hobby Search

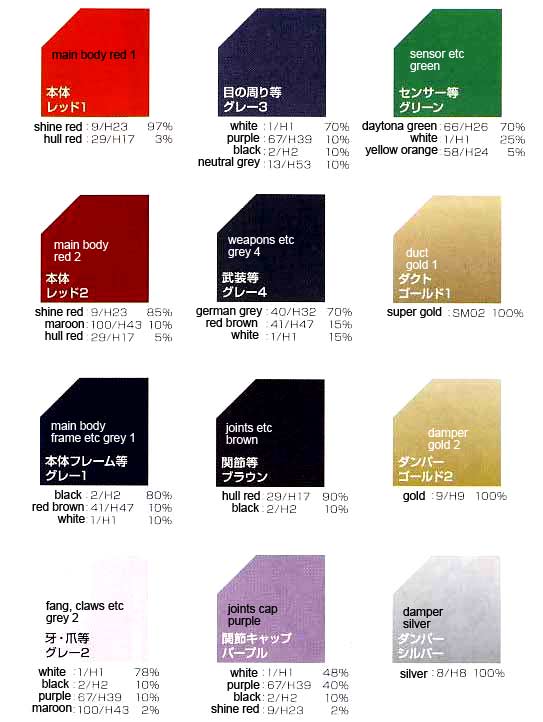

Color Guide DescriptionPaint Ratios
main body red 1Shine Red (H23)(97%) + Cocoa Brown (H17)(3%)
main body red 2Shine Red (H23)(85%) + Wine Red/Maroon (H43)(10%) + Cocoa Brown (H17)(5%)
main body frame etc gray 1Black (H2)(80%) + Red Brown (H47)(10%) + White (H1)(10%)
fang, claws etc gray 2White (H1)(78%) + Black (H2)(10%) + Purple (H39)(10%) + Wine Red/Maroon (H43)(2%)
around the eyes etc gray 3White (H1)(70%) + Purple (H39)(10%) + Black (H2)(10%) + Neutral Gray (H53)(10%)
weapons etc gray 4Field Gray (1)/Dark Gray (H32)(70%) + Red Brown (H47)(15%) + White (H1)(15%)
joints etc brown partCocoa Brown (H17)(90%) + Black (H2)(10%)
joints cap purple partWhite (H1)(48%) + Purple (H39)(40%) + Black (H2)(10%) + Shine Red (H23)(2%)
sensor etc green partBright Green/Daytona Green (H26)(70%) + White (H1)(25%) + Orange Yellow (H24)(5%)
duct gold 1Super Metallic Super Gold (SM02)(100%)
damper gold 2Gold (H9)(100%)
damper silverSilver (H8)(100%)
Disclaimer





Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.
