1/100 Metal Gear Rex English Manual & Color Guide

1/100 Metal Gear Rex Construction Manual & Color Guide

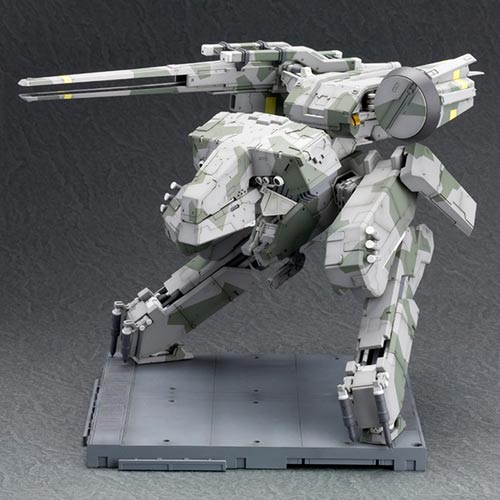

From Kotobukiya comes the 1/100 Metal Gear Rex scale model kit from the Metal Gear franchise. You have to give it to the makers of the first nintendo game of this to come out with such a direct but simultaneously veiled name for the main antagonist.

Missed completing this game but found a walkthrough that just put me in nostalgic bliss. I didn't get to play the Play Station version of this but I remember being blown away by the graphics of this when I passed by a friends house and watched him play this game.

The 1/100 Metal Gear Rex is selling for $$$ at Amazon, 6240 yen at HobbyLink Japan, 6630 yen at Hobby Search.

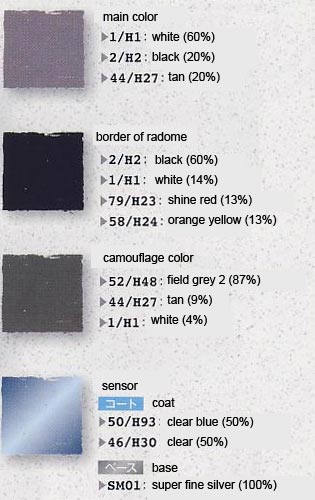

Color Guide DescriptionPaint Ratios
main colorWhite (H1)(60%) + Black (H2)(20%) + Light Brown/Tan (H27)(20%)
border of radomeBlack (H2)(60%) + White (H1)(14%) + Shine Red (H23)(13%) + Orange Yellow (H24)(13%)
camouflage colorField Gray (2)/Olive Gray (H48)(87%) + Light Brown/Tan (H27)(9%) + White (H1)(4%)
sensor top coatClear Blue (H93)(50%) + Clear (H30)(50%)
sensor base coatSuper Metallic Super Fine Silver (SM01)(100%)

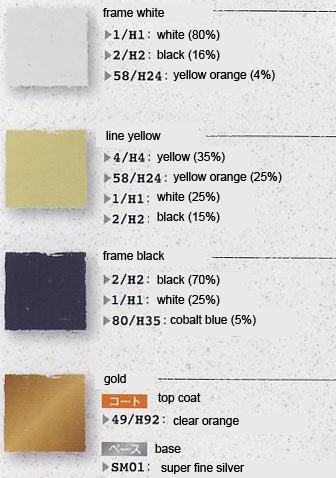

frame white partWhite (H1)(80%) + Black (H2)(16%) + Orange Yellow (H24)(4%)
line yellow partYellow (H4)(35%) + Orange Yellow (H24)(25%) + White (H1)(25%) + Black (H2)(15%)
frame black partBlack (H2)(70%) + White (H1)(25%) + Cobalt Blue (H35)(5%)
gold part top coatClear Orange (H92)(100%)
gold part base colorSuper Metallic Super Fine Silver (SM01)(100%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products

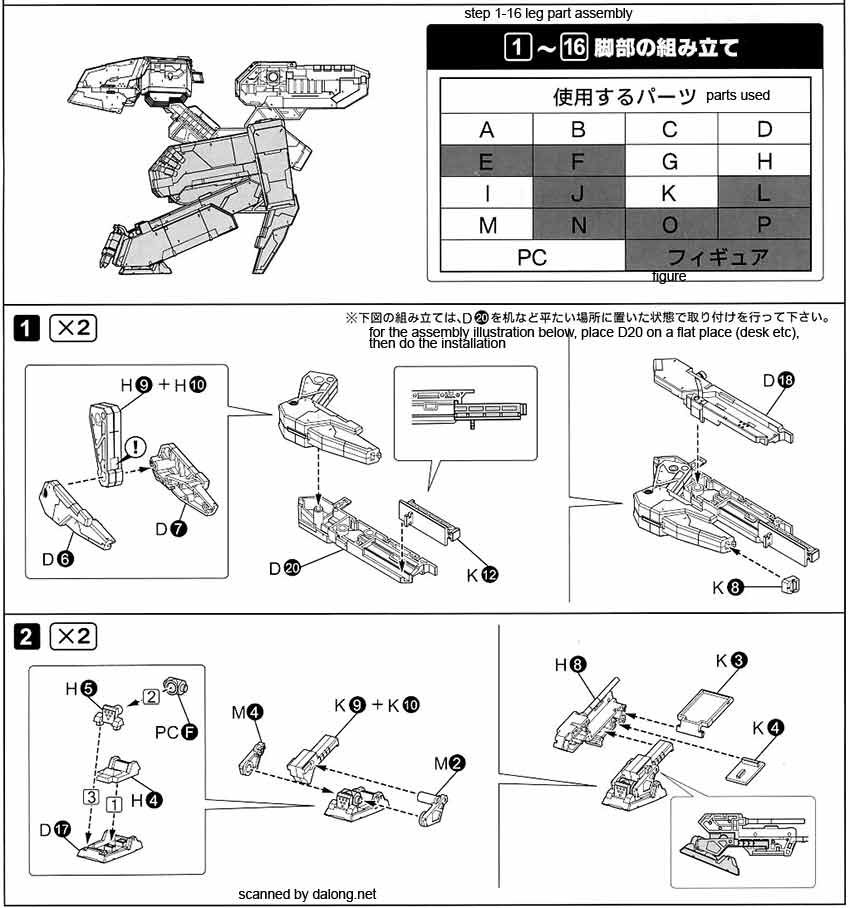

Construction Manual & Color Guide for the Metal Gear Rex by Kotobukiya was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide

1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide

1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide 1/100 Metal Gear Rex Construction Manual & Color Guide

1/100 Metal Gear Rex Construction Manual & Color Guide

Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Shine Red
(H23)
Aqueous Hobby Color
Shine Red
(C79)
Mr. Color
Red
(X7)
Tamiya Color Acrylic Paint
Scarlet
(70.817)
Vallejo Model Color
Red RLM23
(71.003)
Vallejo Model Air
Bright Red (Gloss)
(19)
Humbrol Enamel
Scarlet (Matte)
(60)
Humbrol Acrylic
Fiery Red (Gloss)
(36131)
Revell Aqua Color Acrylic
fiery red (solid matt)
(32131)
Revell Email Enamel
RED
(A.MIG-0049)
Ammo Acrylics
Signal Red
(RC005)
AK Real Color
Traffic Red
(HTK-_103)
Hataka
Shine Red
(N23)
Acrysion
Red
(69.008)
Vallejo Mecha Color
Signal Red (Satin)
(174)
Humbrol Enamel
Scarlet (Matte)
(60)
Humbrol Enamel
Arrow Red
(238)
Humbrol Enamel
Red Arrows Red BS537
(X014)
Xtracolor
BS Signal Red
(HTK-_276)
Hataka
MS Red(Federation Mobile Suit Red)
(UG04)
Gundam Color

Orange Yellow
(H24)
Aqueous Hobby Color
Orange Yellow
(C58)
Mr. Color
Light Orange
(70.911)
Vallejo Model Color
Orange Rust
(71.130)
Vallejo Model Air
LIGHT RUST
(A.MIG-0039)
Ammo Acrylics
Signal Orange
(HTK-_133)
Hataka

Light Brown/Tan
(H27)
Aqueous Hobby Color
Tan
(C44)
Mr. Color
Buff
(XF57)
Tamiya Color Acrylic Paints (Flat)
Green Brown
(70.879)
Vallejo Model Color
German Yellow Brown
(71.272)
Vallejo Model Air
Brown Yellow (Matte)
(94)
Humbrol Enamel
Ochre Brown (solid matt)
(36188)
Revell Aqua Color Acrylic
Ochre Brown (solid matt)
(32188)
Revell Email Enamel
Africa Grunbraun RAL 8000 (F)
(2099)
Testors Model Master Enamel
Grunbraun/Gelbbraun RAL 8000
(UA203)
Lifecolor
GELBBRAUN
(A.MIG-0013)
Ammo Acrylics
Gelbraun – Yellow Brown
(RC063)
AK Real Color
Green Brown
(HTK-_303)
Hataka
RAL8000 Grunbraun
(X803)
Xtracolor
Flat US Army/Mar.Gulf Arm Sand
(4812AP)
Italeri
Tan (Gloss)
(9)
Humbrol Enamel

Clear
(H30)
Aqueous Hobby Color
Clear
(C46)
Mr. Color
Clear
(X22)
Tamiya Color Acrylic Paint
Glossy Varnish
(70.510)
Vallejo Model Color
Varnish (Gloss)
(35)
Humbrol Enamel
Varnish (Gloss)
(35)
Humbrol Acrylic
Clear (Gloss)
(36101)
Revell Aqua Color Acrylic
Clear (solid gloss)
(32101)
Revell Email Enamel
Gloss Clear Acrylic
(4638)
Testors Model Master Acrylic
Gloss Clear Acrylic
(2017)
Testors Model Master Enamel
Gloss Clear
(LC73)
Lifecolor
GLOSSY VARNISH
(A.MIG-0091)
Ammo Acrylics
Gloss Varnish
(RC502)
AK Real Color
Gloss Lacquer Clear Coat
(HTK-XP09)
Hataka
Gloss Clear Acryl 35 ml
(4638AP)
Italeri
Clear
(X-22)
Tamiya Enamel
Clear (Lacquer Paint)
(LP9)
Tamiya Lacquer Paint
Clear
(TS13)
Tamiya Color Spray Paints

Cobalt Blue
(H35)
Aqueous Hobby Color
Cobalt Blue
(C80)
Mr. Color

Field Gray (2)/Olive Gray
(H48)
Aqueous Hobby Color
Field Gray (2)
(C52)
Mr. Color
Field Gray
(XF65)
Tamiya Color Acrylic Paints (Flat)
Retractive Green
(70.890)
Vallejo Model Color
Medium Olive
(71.092)
Vallejo Model Air
OLIVGRÜN OPT.2
(A.MIG-0002)
Ammo Acrylics

Clear Orange
(H92)
Aqueous Hobby Color
Clear Orange
(C49)
Mr. Color
Clear Orange
(X26)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange (Clear)
(1322)
Humbrol Enamel
Orange (Clear)
(36730)
Revell Aqua Color Acrylic
Orange (clear)
(32730)
Revell Email Enamel
Transparent Orange (G)
(4625)
Testors Model Master Acrylic
CRYSTAL ORANGE
(A.MIG-0097)
Ammo Acrylics
Clear Orange
(RC506)
AK Real Color
Clear Orange
(X-26)
Tamiya Enamel
clear orange (Lacquer Paint)
(LP53)
Tamiya Lacquer Paint
Transparent Orange (Transparent)
(70.935)
Vallejo Model Color
Clear Orange
(TS73)
Tamiya Color Spray Paints

Clear Blue
(H93)
Aqueous Hobby Color
Clear Blue
(C50)
Mr. Color
Clear Blue
(X23)
Tamiya Color Acrylic Paint
Transparent Blue (Transparent)
(70.938)
Vallejo Model Color
Blue (clear)
(36752)
Revell Aqua Color Acrylic
blue (clear)
(32752)
Revell Email Enamel
Transparent Blue (G)
(4658)
Testors Model Master Acrylic
CRYSTAL LIGHT BLUE
(A.MIG-0098)
Ammo Acrylics
Clear Blue
(RC504)
AK Real Color
Gloss Light Blue
(4650AP)
Italeri
Clear Blue
(X-23)
Tamiya Enamel
Clear Blue (Lacquer Paint)
(LP68)
Tamiya Lacquer Paint
CRYSTAL BLACK BLUE (AND TAIL LIGHT OFF)
(A.MIG-0099)
Ammo Acrylics
Clear Blue
(TS72)
Tamiya Color Spray Paints

Super Metallic Super Fine Silver
(SM01)
Mr. Color Super Metallic
