1/72 HMM Liger Zero Panzer English Translation Construction Manual & Color Guide

From Kotobukiya comes the 1/72 scale Highend Master Model Liger Zero Panzer from Zoids New Century Zero Anime series. Its basically the Liger Zero mounted with the Panzer Pack which is used for bombardment as its equipped with a mean load of missiles and cannons.

Other variants of the Liger Zero released by Kotobukiya were the Jager and the Schneider. If you already have the 1/72 HMM Liger Zero and don't want to buy the Panzer anymore, you can always buy the stand alone Panzer unit that Kotobukiya also sells separately without the Liger Zero included..

The 1/72 HMM Liger Zero Panzer is selling for $ at Amazon, 5150 yen at Amiami, 5840 yen at HobbyLink Japan

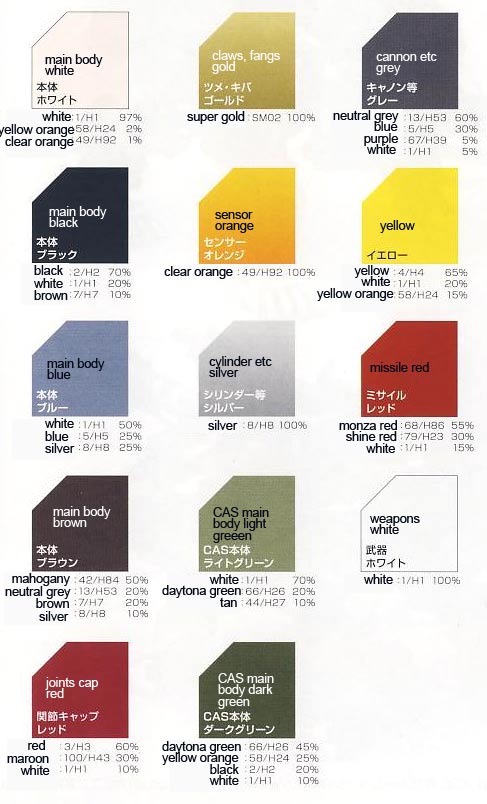

Color Guide DescriptionPaint Ratios
main body white partWhite (H1)(97%) + Orange Yellow (H24)(2%) + Clear Orange (H92)(1%)
main body black partBlack (H2)(70%) + White (H1)(20%) + Brown (H7)(10%)
main body blue partWhite (H1)(50%) + Blue (H5)(25%) + Silver (H8)(25%)
main body brown partMahogany (H84)(50%) + Neutral Gray (H53)(20%) + Brown (H7)(20%) + Silver (H8)(10%)
claws, fangs gold partSuper Metallic Super Gold (SM02)(100%)
sensor orange partClear Orange (H92)(100%)
cylinder etc silver partSilver (H8)(100%)
CAS main body light green partWhite (H1)(70%) + Bright Green/Daytona Green (H26)(20%) + Light Brown/Tan (H27)(10%)
cannone etc gray partNeutral Gray (H53)(60%) + Blue (H5)(30%) + Purple (H39)(5%) + White (H1)(5%)
yellow partYellow (H4)(65%) + White (H1)(20%) + Orange Yellow (H24)(15%)
missile red partMonza Red/Red Madder (H86)(55%) + Shine Red (H23)(30%) + White (H1)(15%)
weapons white partWhite (H1)(100%)
joints cap red partRed (H3)(60%) + Wine Red/Maroon (H43)(30%) + White (H1)(10%)
CAS main body dark green partBright Green/Daytona Green (H26)(45%) + Orange Yellow (H24)(25%) + Black (H2)(20%) + White (H1)(10%)
Disclaimer

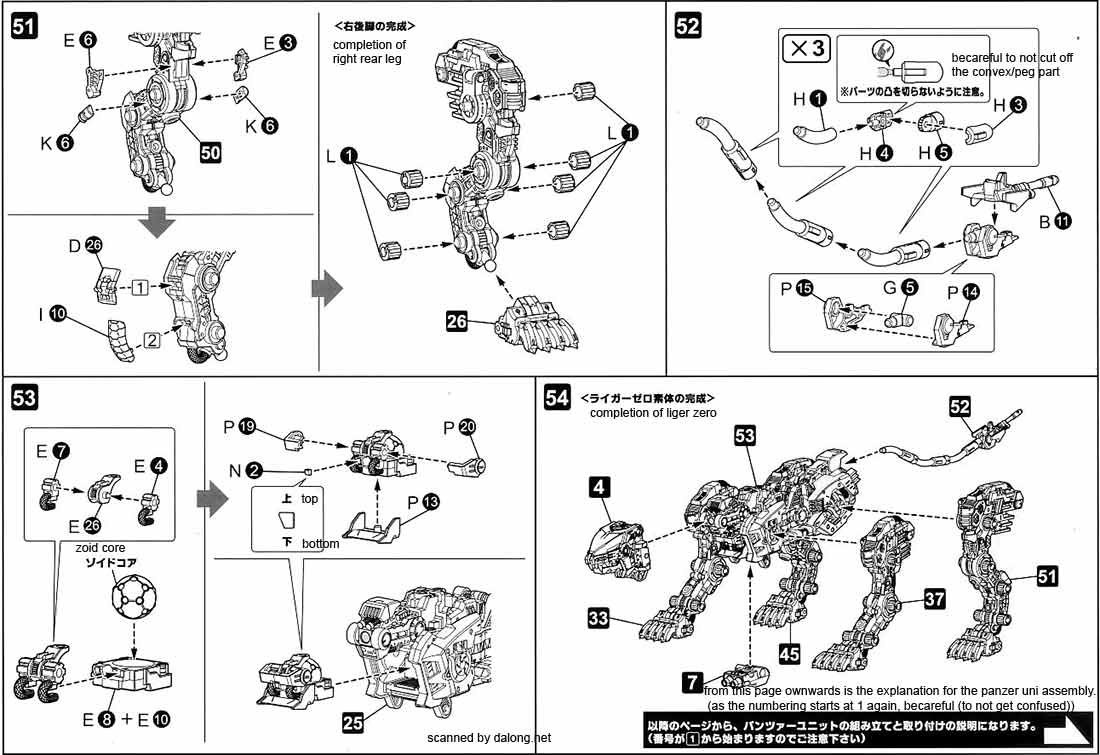

Construction Manual & Color Guide for the 1/72 Liger Zero Panzer was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide

1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide

1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide

1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide

1/72 HMM Liger Zero Panzer Construction Manual & Color Guide 1/72 HMM Liger Zero Panzer Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
--Super Metallic Super Gold (SM02)------------------------
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Light Brown/Tan (H27)Tan (C44)Buff (XF57)Green Brown (70.879)German Yellow Brown (71.272)GELBBRAUN (A.MIG-0013)Gelbraun – Yellow Brown (RC063)Green Brown (HTK-_303)Ochre Brown (solid matt) (32188)Brown Yellow (Matte) (94)Africa Grunbraun RAL 8000 (F) (2099)RAL8000 Grunbraun (X803)Grunbraun/Gelbbraun RAL 8000 (UA203)Flat US Army/Mar.Gulf Arm Sand (4812AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
