MG Delta Plus English Manual & Color Guide

MG MSN-001A1 Delta Plus Color English Translation Guide & Manual

Riddhe Marcenas' Delta Plus from the Gundam Unicorn OVA made into a 1/100 Master Grade model kit by Bandai. Riddhe transitioned from the ReZel into the Delta Plus. Prior to the Master Grade version, Bandai already released a High Grade version of the Delta Plus.

Looking at the complexity of the parts and the manual I realized that this model kit is truly an amazing kit because it captures very well the details of the Delta Plus. One reason why I like the Delta Plus is because it captures the design of Char Aznable's Hyaku Shiki. The difference being that the Delta Plus can transform to Wave Rider mode that allows it to re-enter the atmosphere and of course, fight as a mobile armor.

The 1/100 MG MSN-001A1 Delta Plus is selling for $$$ at Amazon, 3270 yen at Amiami, 3600 yen at HobbyLink Japan, 3825 yen at Hobby Search

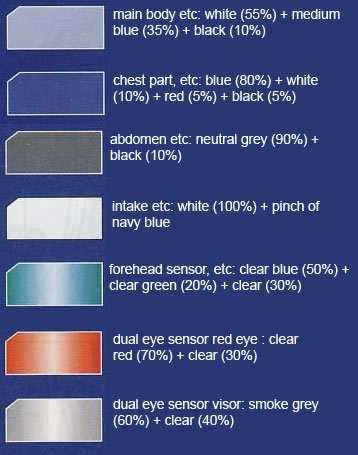

Color Guide DescriptionPaint Ratios
MG Delta Plus main body etcWhite (H1)(55%) + Medium Blue/Intermediate Blue (H56)(35%) + Black (H2)(10%)
MG Delta Plus chest part etcBlue (H5)(80%) + White (H1)(10%) + Red (H3)(5%) + Black (H2)(5%)
MG Delta Plus abdomen etcNeutral Gray (H53)(90%) + Black (H2)(10%)
MG Delta Plus intake etcWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG Delta Plus forehead sensor etcClear Blue (H93)(50%) + Clear Green (H94)(20%) + Clear (H30)(30%)
MG Delta Plus dual eye sensor red eyeClear Red (H90)(70%) + Clear (H30)(30%)
MG Delta Plus dual eye sensor visorSmoke Gray (H95)(60%) + Clear (H30)(40%)

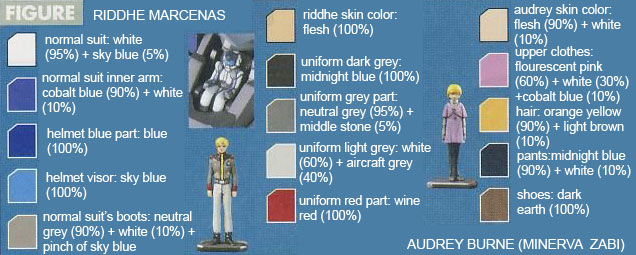

Riddhe Marcenas normal suitWhite (H1)(95%) + Sky Blue (H25)(5%)
Riddhe Marcenas normal suit inner armCobalt Blue (H35)(90%) + White (H1)(10%)
Riddhe Marcenas helmet blue partBlue (H5)(100%)
Riddhe Marcenas helmet visorSky Blue (H25)(100%)
Riddhe Marcenas normal suit's bootsSky Blue (H25)(small dose) + White (H1)(10%) + Neutral Gray (H53)(90%)
Riddhe Marcenas skin colorFlesh/Pale Brown (H44)(100%)
Riddhe Marcenas uniform dark gray partMidnight Blue (H55)(100%)
Riddhe Marcenas uniform gray partMiddle Stone (H71)(5%) + Neutral Gray (H53)(95%)
Riddhe Marcenas uniform light gray partWhite (H1)(60%) + Aircraft Gray (H57)(40%)
Riddhe Marcenas uniform red partWine Red/Maroon (H43)(100%)
Audrey skin colorWhite (H1)(10%) + Flesh/Pale Brown (H44)(90%)
Audrey upper clothesFlourescent Pink (C174)(60%) + White (C1)(30%) + Cobalt Blue (C80)(10%)
Audrey hairOrange Yellow (H24)(90%) + Light Brown (H321)(10%)
Audrey pantsMidnight Blue (H55)(90%) + White (H1)(10%)
Audrey shoesDark Earth (H72)(100%)
Disclaimer





Construction Manual and Color Guide for the Master Grade MSN-001A1 Delta Plus was translated to English from the Japanese manual posted at Dalong's Gunpla Review Site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

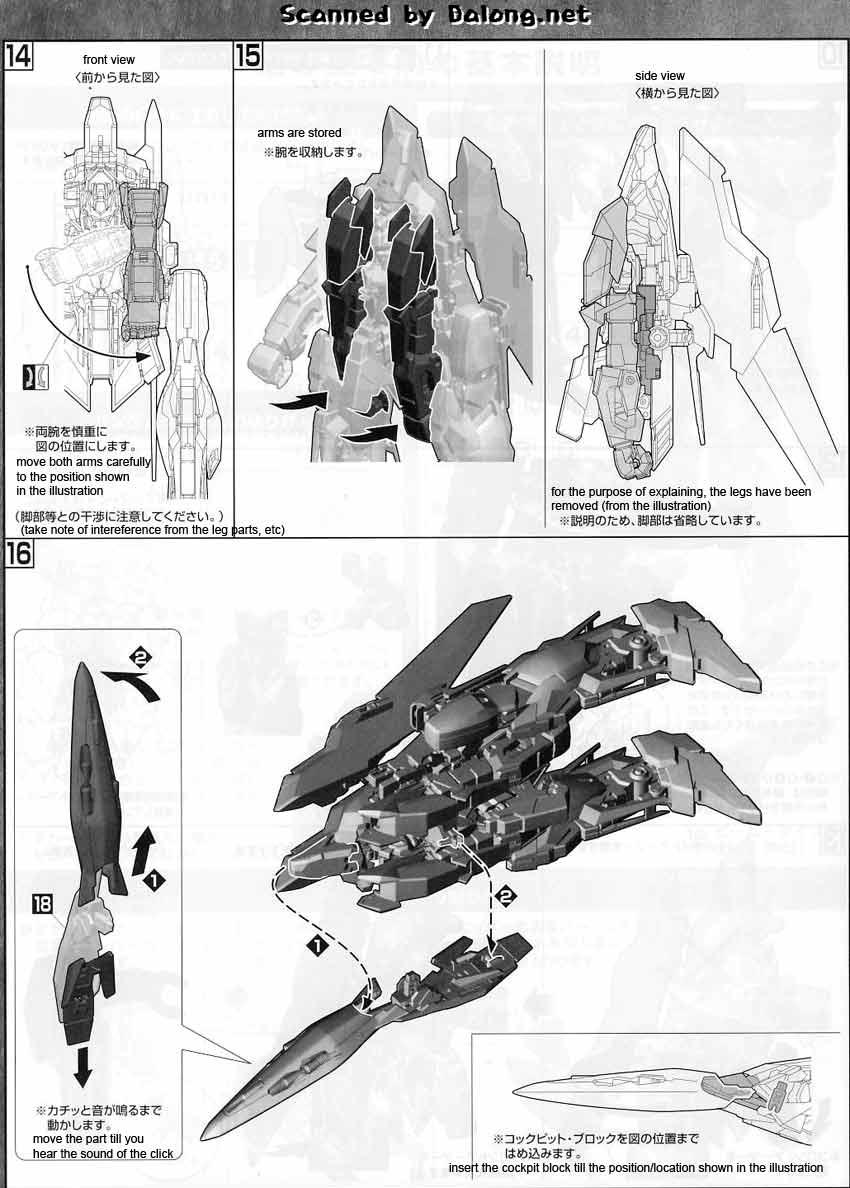

I'll apologize before hand if there are some mistakes made in the translation of the transformation sequence to wave rider mode, because this is really a complicated kit to build and transform as based on the manual. It's difficult on my part to try and understand what the guy who made the manual is actually trying to say without the actual kit before me. Not so easy really when a single word can have 10 or more meanings, plus the context of use has to be factored in. Can't blame the writer either, as on the part of the writer, he/she is trying to maximize the sentence to the space available so he/she will have to combine sentences that complicates it. My fallback is that as an "experienced" *snicker* model kit builder I have more or less an idea of what is trying to be said. So as always, please proceed with care and caution when building this or any other model kit.

MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual

MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual

MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual

MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual MG MSN-001A1 Delta Plus Color English Translation Guide & Manual

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Smoke Gray (H95)Smoke Gray (C101)Smoke (X19)----CRYSTAL SMOKE (A.MIG-0095)Clear Smoke (RC508)--------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Middle Stone (H71)Middle Stone (C21)--Middle Stone (70.882)Middlestone (71.031)DUNKELGELB BASE (A.MIG-0902)RAF Middle Stone (RC292)Mid Stone (HTK-_013)--Mid Stone (Matte) (84)RAF Middlestone ANA615 (F) (2052)--Middle Stone FS30266 (UA097)--
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
--Flourescent Pink (C174)------------------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Light Brown (H321)Light Brown (C321)Deck Tan (XF55)--Light Brown (71.027)SANDGRAU (A.MIG-0009)Deck Tan (RC019)--beige (solid silk matt) (32314)Oak (Satin) (71)--------
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
