MG Figurerise Son Gokou English Manual & Color Guide

1/8 MG Figurerise Son Gokou English Translation Color Guide & Manual

Dragon Ball Z protagonist, Son Gokou. One of the first MG Figurerise characters made by Bandai, owing most likely to the world wide popularity of the Dragon Ball Z Franchise. I got to watch the first few episodes of DragonBall Z. Sadly I don't remember which episode it was because from what my friend told me there were a lot of series' made by the franchise.

Dragon Ball Z was already a few years old when I watched some of the episodes but owing to my college course being hectic I begged off from my friend to watch the episodes. Instead I asked him to just relate to me the story *snicker* I think we lost about 2 hours of our lives as he explained to me the details of the Dragon Ball Z saga.

Aside from the story, what made Dragon Ball Z great for me were the fight scenes. Boom!, power to destroy a planet at your finger tips. Fueled by all that pent up rage that went uncounseled, hehehe....Kinda cool watching those action scenes animated for you.

In case anybody is interested, there also was a Super Saiyan Son Gokou made into a MG Figurerise kit by Bandai.

The 1/8 MG Figurerise Son Gokou from Bandai is selling for 2560 yen at Amiami, 2800 yen at HobbyLink Japan

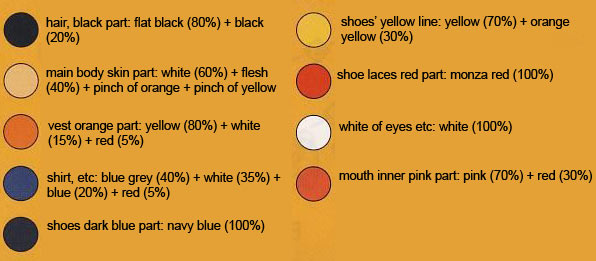

Color Guide DescriptionPaint Ratios
hair, black partFlat Black (H12)(80%) + Black (H2)(20%)
main body skin partWhite (H1)(60%) + Flesh/Pale Brown (H44)(40%) + Orange (H14)(small dose) + Yellow (H4)(small dose)
vest orange partYellow (H4)(80%) + White (H1)(15%) + Red (H3)(5%)
shirt etcBlue Gray (H42)(40%) + White (H1)(35%) + Blue (H5)(20%) + Red (H3)(5%)
shoes dark blue partNavy Blue (H54)(100%)
shoe's yellow lineYellow (H4)(70%) + Orange Yellow (H24)(30%)
shoe laces red partMonza Red/Red Madder (H86)(100%)
white of the eyes etcWhite (H1)(100%)
mouth inner pink partPink (H19)(70%) + Red (H3)(30%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Flat Black (H12)Flat Black (C33)Flat Black (XF1)Black (70.950)Black (71.057)MATT BLACK (A.MIG-0046)Flat Black (RC001)Jet Black (HTK-_100)black (solid silk matt) (32108)Black (Matte) (33)Black FS 37038 (F) (1749)Night Black BS642 (X012)Black FS37038 (LC02)Flat Black (4768AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)--------

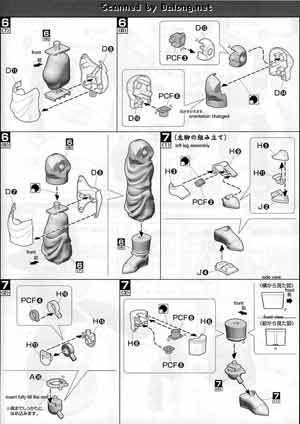

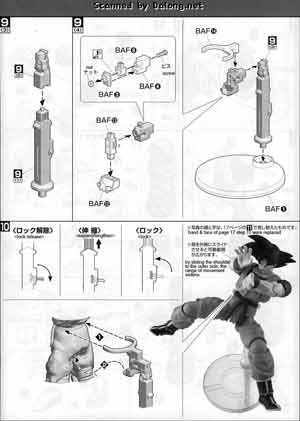

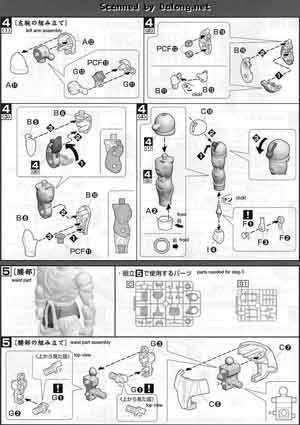

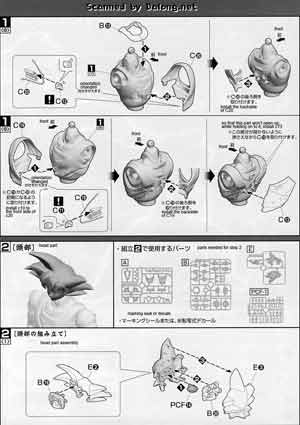

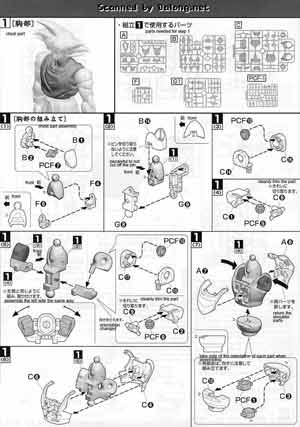

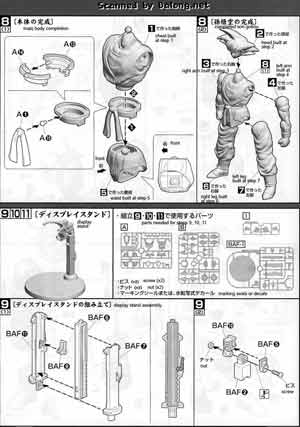

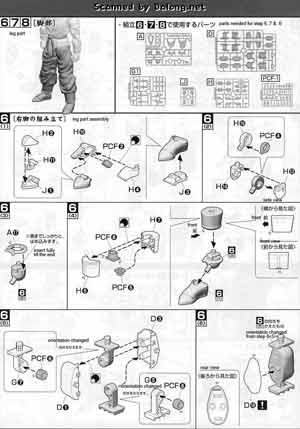

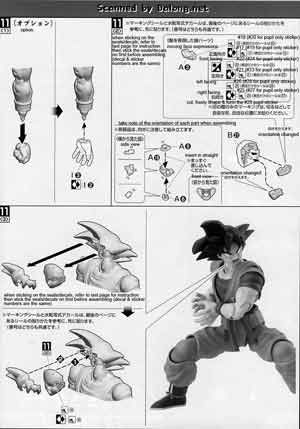

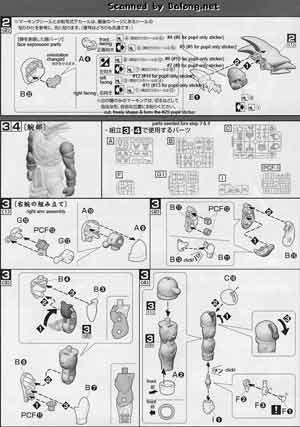

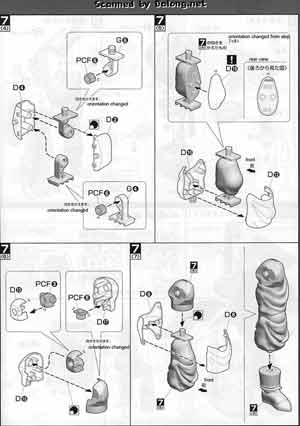

Construction Manual for the 1/8 MG Figurerise Son Gokou was translated to English from the Japanese manual posted at Dalong's Model kit Review site. For the meaning of symbols found in the construction manual, kindly refer to this older post
