MG RGZ-95 ReZEL English Manual and Color Guide

MG RGZ-95 ReZEL Construction Manual and Color Guide

Available this month is Riddhe Marcenas' RGZ-95 ReZEL made into a Master Grade kit by Bandai. This particular mobile suit came from Gundam Unicorn. According to literature from the Gundam Unicorn English site, the RGZ (Refined Gundam Zeta) was developed for the purpose of mass producing the Zeta Gundam. Eight units of the RGZ-ReZEL have been made and they are operating off the Nahel Argama.

Next month will be the release of episode 2 of the Gundam Unicorn OVA where the Sinanju of Full Frontal will be first seen. Looking forward to that. I enjoyed Episode 1 of the OVA where the Gundam Unicorn and Marida Cruz's Kshatriya were first seen.

The MG RGZ-95 ReZEL is selling for 3480 yen at Amiami, 4800 yen at HobbyLink Japan.

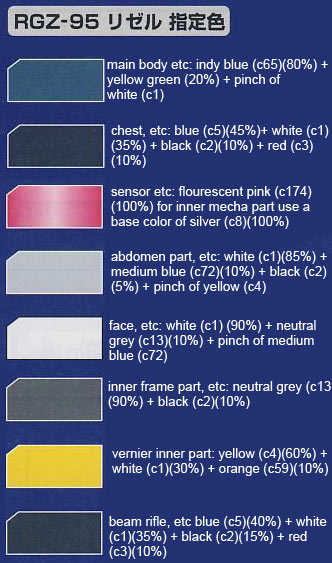

Color Guide DescriptionPaint Ratios
MG ReZEL main body etcBright Blue/Indy Blue (H15)(80%) + Yellow Green/Roman Green/Le Mans Green (H16)(20%) + White (H1)(small dose)
MG ReZEL chest etcBlue (H5)(45%) + White (H1)(35%) + Black (H2)(10%) + Red (H3)(10%)
MG ReZEL sensor etcFlourescent Pink (C174)(100%) for inner mecha parts use a base color of Silver (C8)(100%)
MG ReZEL abdomen etc partWhite (H1)(85%) + Medium Blue/Intermediate Blue (H56)(10%) + Black (H2)(5%) + Yellow (H4)(small dose)
MG ReZEL face etcWhite (H1)(90%) + Neutral Gray (H53)(10%) + Medium Blue/Intermediate Blue (H56)(small dose)
MG ReZEL inner frame partNeutral Gray (H53)(90%) + Black (H2)(10%)
MG ReZEL vernier inner partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG ReZEL beam rifle etcWhite (H1)(35%) + Black (H2)(15%) + Red (H3)(10%) + Blue (H5)(40%)

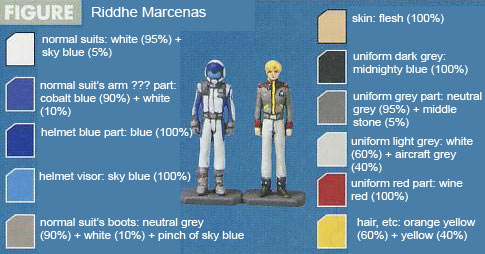

Riddhe Marcenas normal suitsWhite (H1)(95%) + Sky Blue (H25)(5%)
Riddhe Marcenas normal suit's armCobalt Blue (H35)(90%) + White (H1)(10%)
Riddhe Marcenas helmet blue partBlue (H5)(100%)
Riddhe Marcenas helmet visorSky Blue (H25)(100%)
Riddhe Marcenas normal suit's bootsNeutral Gray (H53)(90%) + White (H1)(10%) + Sky Blue (H25)(small dose)
Riddhe Marcenas skinFlesh/Pale Brown (H44)(100%)
Riddhe Marcenas uniform dark gray partMidnight Blue (H55)(100%)
Riddhe Marcenas uniform gray partNeutral Gray (H53)(95%) + Middle Stone (H71)(5%)
Riddhe Marcenas uniform light gray partWhite (H1)(60%) + Aircraft Gray (H57)(40%)
Riddhe Marcenas uniform red partWine Red/Maroon (H43)(100%)
Riddhe Marcenas hair etcOrange Yellow (H24)(60%) + Yellow (H4)(40%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
--Flourescent Pink (C174)------------------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Middle Stone (H71)Middle Stone (C21)--Middle Stone (70.882)Middlestone (71.031)DUNKELGELB BASE (A.MIG-0902)RAF Middle Stone (RC292)Mid Stone (HTK-_013)--Mid Stone (Matte) (84)RAF Middlestone ANA615 (F) (2052)--Middle Stone FS30266 (UA097)--
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------

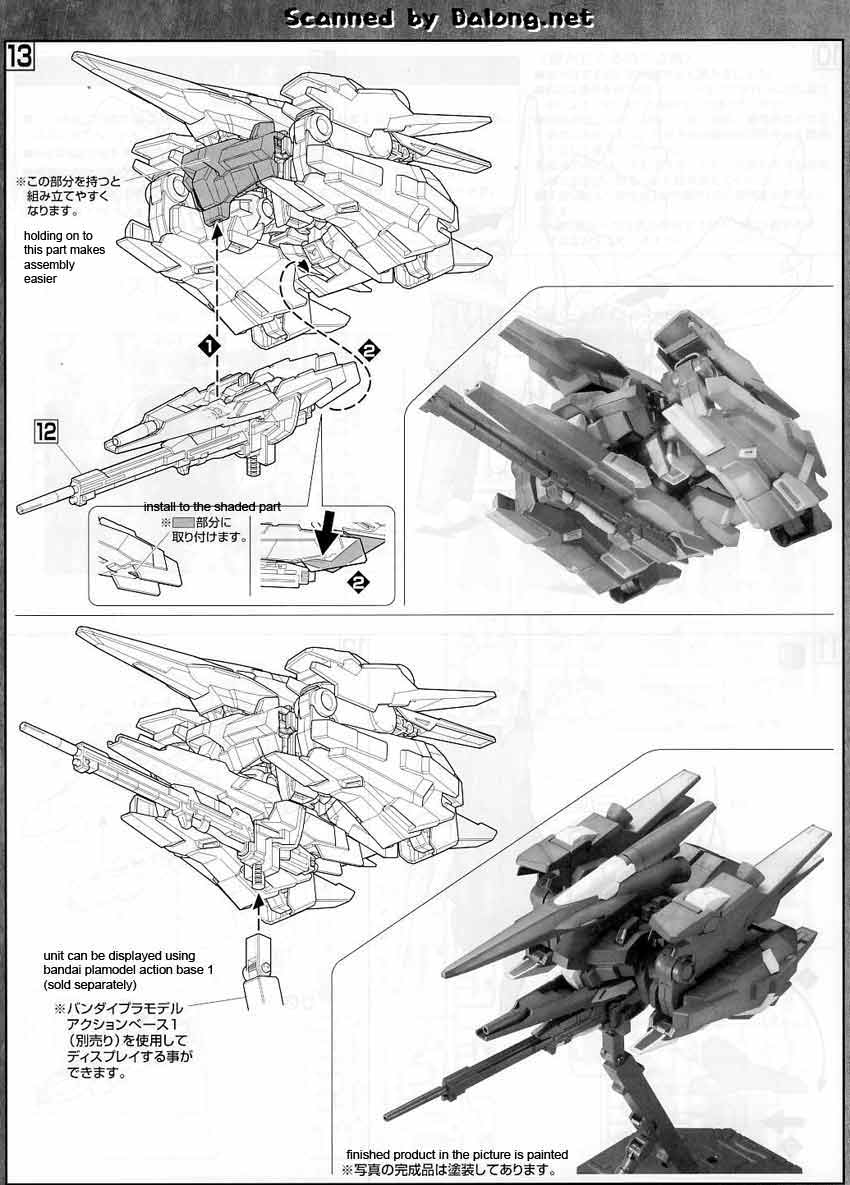

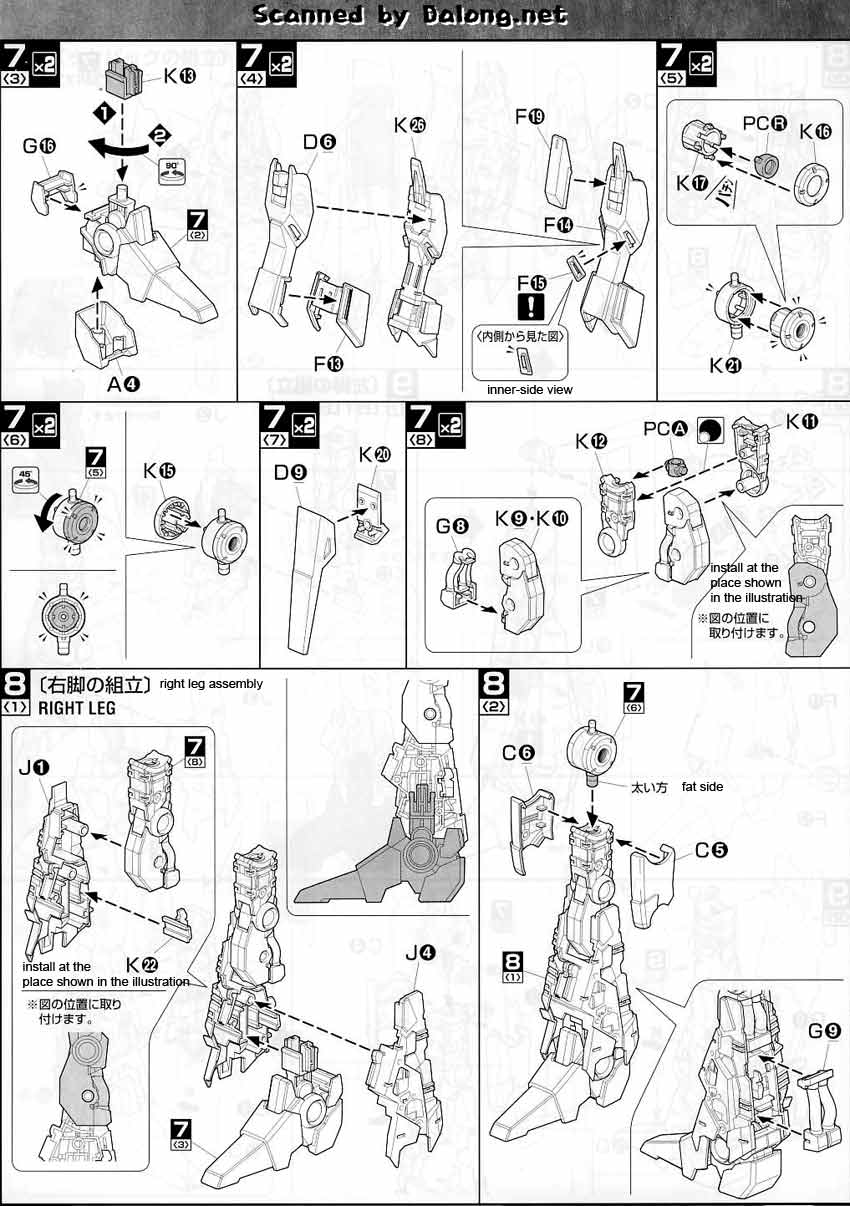

Construction manual and color guide for the MG RGZ-95 ReZEL was translated to English from the Japanese manual posted at Dalong's Gunpla Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.
