MG Core Booster Ver.Ka English Manual and Color Guide

Bandai Master Grade MG LM312V04(B-part) + SD-VB03A Core Booster Ver.Ka English Construction Manual and Color Guide

Core Booster from Mobile Suit V Gundam anime series. One in the great line of support mecha's for a Gundam Mobile suit following the tradition in previous Gundam Mobile Suit anime series. According to the instruction manual, this can be assembled as the V Gundam or as Hexa. If you have already the Master Grade V Gundam on hand, this unit can be attached to the said mobile suit because it had been designed that way. This allows you to recreate how it appeared in the anime series.

The MG Core Booster is selling for 1600 yen at Amiami, 2200 yen at HobbyLink Japan, 1760 yen at Hobby Search.

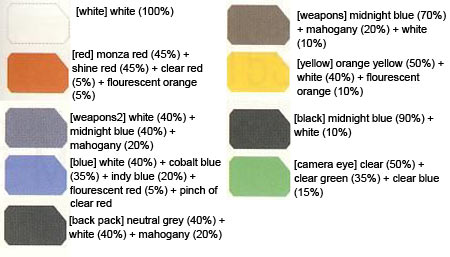

Color Guide DescriptionPaint Ratios
MG Core Booster Ver. Ka white partWhite (C1)(100%)
MG Core Booster Ver. Ka red partShine Red (C79)(45%) + Clear Red (C47)(5%) + Flourescent Orange (C173)(5%) + Monza Red/Red Madder (C68)(45%)
MG Core Booster Ver. Ka weapons2 partWhite (C1)(40%) + Midnight Blue (C71)(40%) + Mahogany (C42)(20%)
MG Core Booster Ver. Ka blue partWhite (C1)(40%) + Cobalt Blue (C80)(35%) + Bright Blue/Indy Blue (C65)(20%) + Flourescent Red (C171)(5%) + Clear Red (C47)(small dose)
MG Core Booster Ver. Ka back pack partNeutral Gray (C13)(40%) + White (C1)(40%) + Mahogany (C42)(20%)
MG Core Booster Ver. Ka weapons partMidnight Blue (C71)(70%) + Mahogany (C42)(20%) + White (C1)(10%)
MG Core Booster Ver. Ka yellow partOrange Yellow (C58)(50%) + White (C1)(40%) + Flourescent Orange (C173)(10%)
MG Core Booster Ver. Ka black partMidnight Blue (C71)(90%) + White (C1)(10%)
MG Core Booster Ver. Ka camera eye partClear (C46)(50%) + Clear Green (C138)(35%) + Clear Blue (C50)(15%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)----Gloss Red (4605AP)
--Flourescent Orange (C173)----------------------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)----Flat Rust (4675AP)
Cobalt Blue (H35)Cobalt Blue (C80)----------------------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
--Flourescent Red (C171)----------------------
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)------Gloss Light Blue (4650AP)

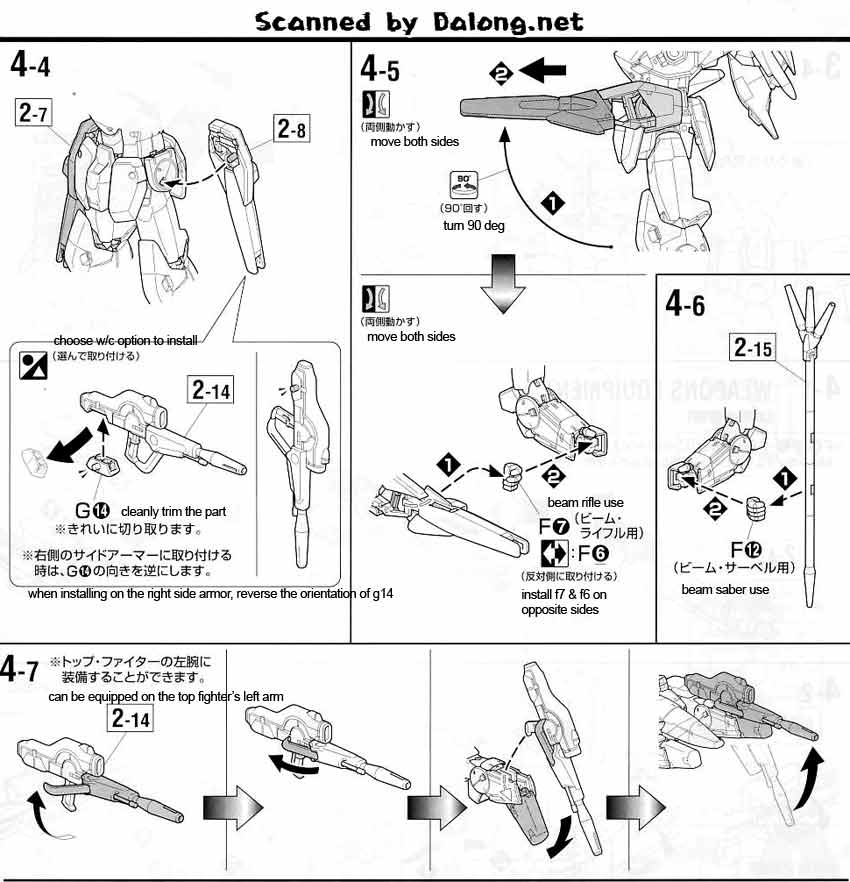

Construction Manual and Color Guide was tranlated to English from the Japanese manual posted at Dalong's Gunpla review site. Great review of the MG Core Booster can be found at Dalong's site.
