Friday, July 9, 2010

MG Destiny Gundam Extreme Blast Mode English Manual and Color Guide

MG ZGFM-X42S Destiny Gundam Extreme Blast Mode Construction Manual and Color Guidepg

Shinn Asuka's ZGFM-X42S Destiny Gundam from Gundam Seed Destiny Anime. This time re-packaged as Extreme Blast Mode. This was already released before as a Master Grade version.

The Extreme Blast Mode version differs from the regular version with the inclusion of wing and beam effect parts, plus some parts are molded in metallic gray color. This kit also includes 1/20 scale clear figures of Shinn Asuka and Kira Yamato.

The MG ZGFM-X42S Destiny Gundam Extreme Blast Mode is selling for 5137 yen at Amiami, 7000 yen at HobbyLink Japan, 4900 yen at HWJapan, $$$$ at Amazon 3rd party sellers.

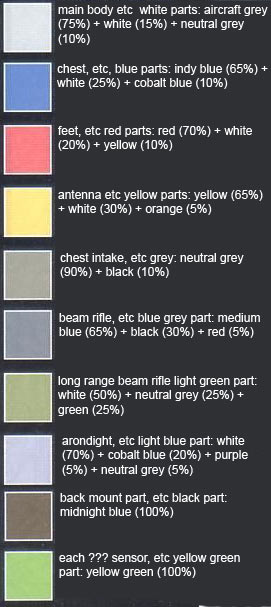

Color Guide DescriptionPaint Ratios
MG Destiny Gundam Extreme Blast Mode main body etc white partsAircraft Gray (H57)(75%) + White (H1)(15%) + Neutral Gray (H53)(10%)
MG Destiny Gundam Extreme Blast Mode chest etcBright Blue/Indy Blue (H15)(65%) + White (H1)(25%) + Cobalt Blue (H35)(10%)
MG Destiny Gundam Extreme Blast Mode feet etc red partsRed (H3)(70%) + White (H1)(20%) + Yellow (H4)(10%)
MG Destiny Gundam Extreme Blast Mode antenna etc yellow partsYellow (H4)(65%) + White (H1)(30%) + Orange (H14)(5%)
MG Destiny Gundam Extreme Blast Mode chest intake etc gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
MG Destiny Gundam Extreme Blast Mode beam rifle etc blue gray partMedium Blue/Intermediate Blue (H56)(65%) + Black (H2)(30%) + Red (H3)(5%)
MG Destiny Gundam Extreme Blast Mode long range beam rifle light green partWhite (H1)(50%) + Neutral Gray (H53)(25%) + Green (H6)(25%)
MG Destiny Gundam Extreme Blast Mode arondight, etc light blue partWhite (H1)(70%) + Cobalt Blue (H35)(20%) + Purple (H39)(5%) + Neutral Gray (H53)(5%)
MG Destiny Gundam Extreme Blast Mode back mount part etc black partMidnight Blue (H55)(100%)
MG Destiny Gundam Extreme Blast Mode sensor etc yellow green partYellow Green/Roman Green/Le Mans Green (H16)(100%)

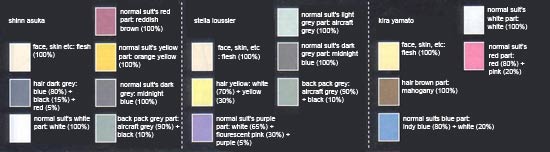

Shinn Asuka face, skin etcFlesh/Pale Brown (H44)(100%)
Shinn Asuka hair dark gray partBlue (H5)(80%) + Black (H2)(15%) + Red (H3)(5%)
Shinn Asuka normal suit's whtie partWhite (H1)(100%)
Shinn Asuka normal suit's red partRusset / Azuki (H33)(100%)
Shinn Asuka normal suit's yellow partOrange Yellow (H24)(100%)
Shinn Asuka normal suit's dark gray partMidnight Blue (H55)(100%)
Shinn Asuka backpack gray partAircraft Gray (H57)(90%) + Black (H2)(10%)
Stella Loussier face skin etcFlesh/Pale Brown (H44)(100%)
Stella Loussier hair yellow partWhite (H1)(70%) + Yellow (H4)(30%)
Stella Loussier normal suit's purple partWhite (C1)(65%) + Flourescent Pink (C174)(30%) + Purple (C67)(5%)
Stella Loussier normal suit's light gray partAircraft Gray (H57)(100%)
Stella Loussier normal suit's dark gray partMidnight Blue (H55)(100%)
Stella Loussier back gray partAircraft Gray (H57)(90%) + Black (H2)(10%)
Kira Yamato face, skin etcFlesh/Pale Brown (H44)(100%)
Kira Yamato hair brown partMahogany (H84)(100%)
Kira Yamato normal suit's blue partBright Blue/Indy Blue (H15)(80%) + White (H1)(20%)
Kira Yamato normal suit's white partWhite (H1)(100%)
Kira Yamato normal suit's red partRed (H3)(80%) + Pink (H19)(20%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
--Flourescent Pink (C174)------------------------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)--------

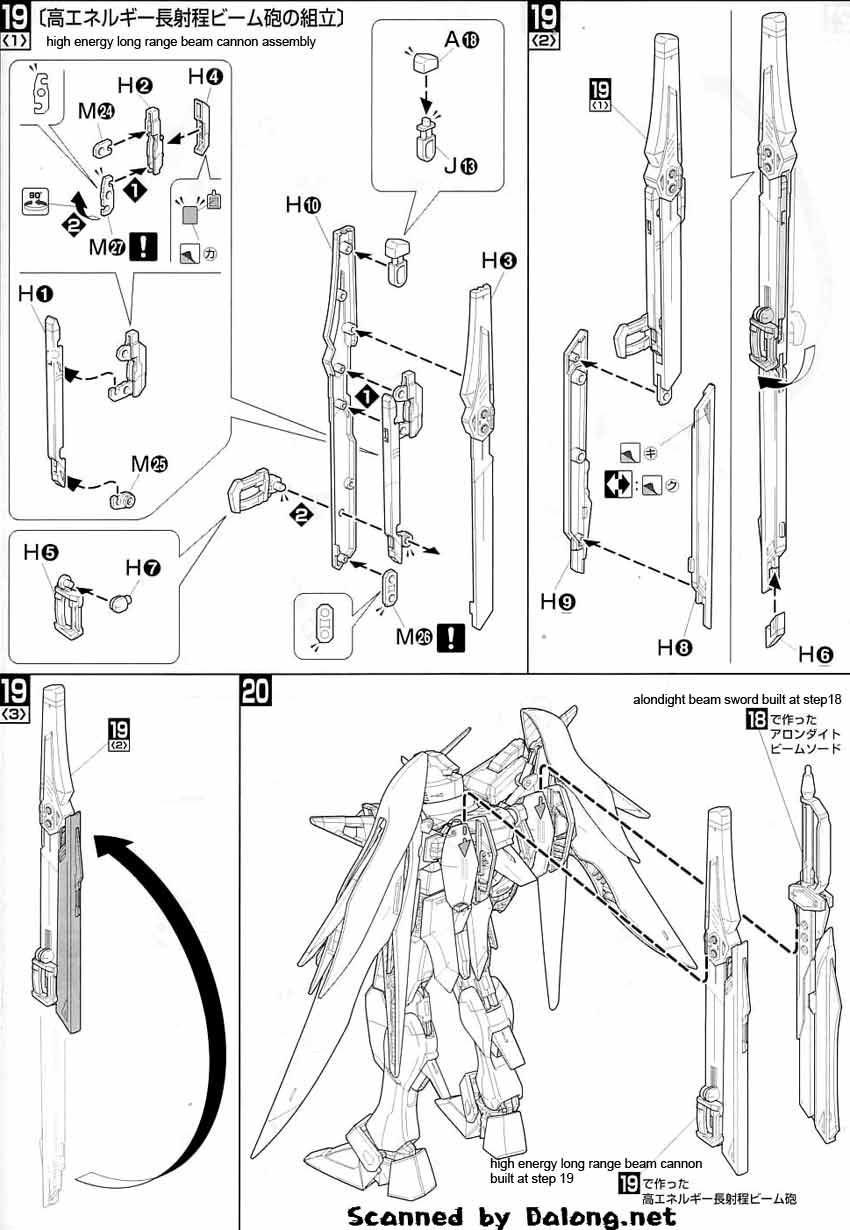

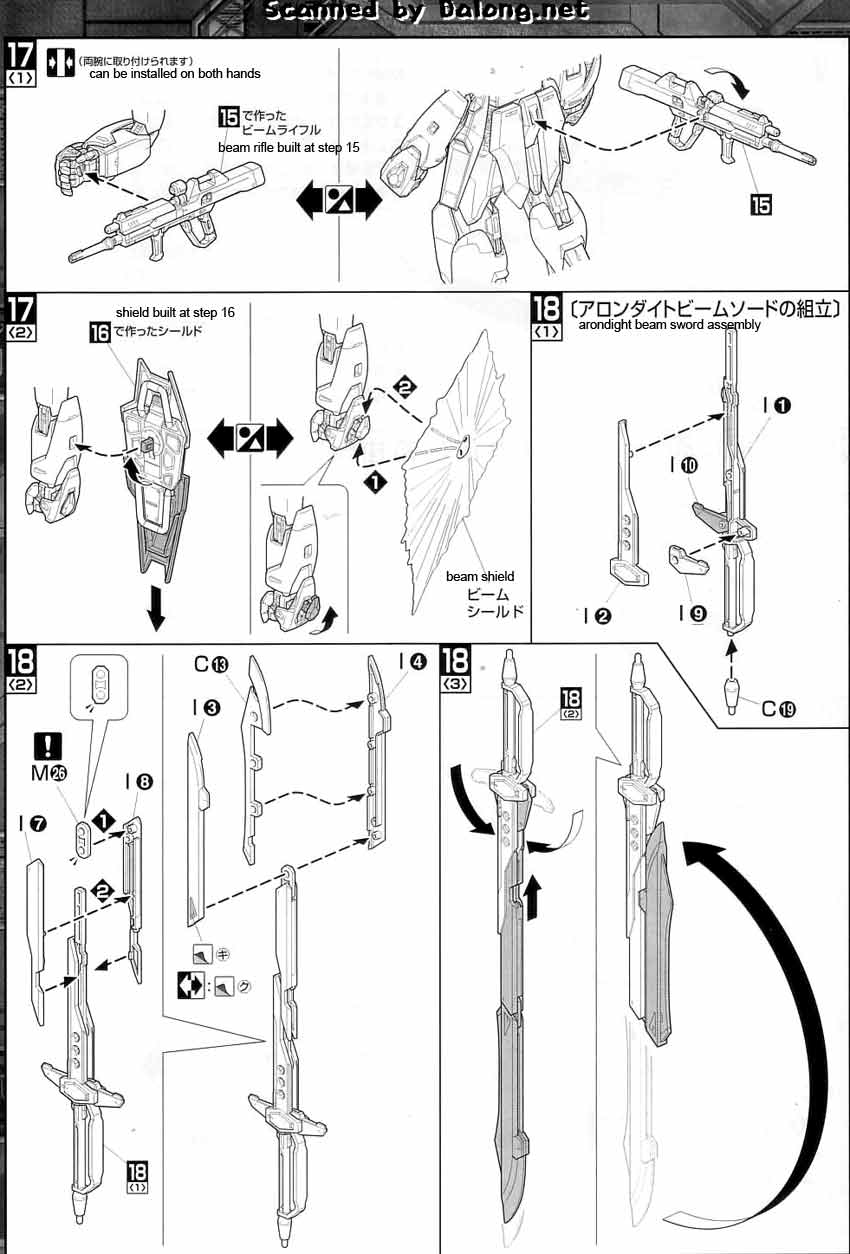

Construction Manual and Color Guide was translated to English from the Japanese manual posted at Dalong's Model Kit review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.
