MG RB-79 Ball “Shark Mouth” English Manual & Color Guide

MG RB-79 Ball “Shark Mouth” Construction Manual

The RB-79 Ball from MS IGLOO CGI anime. Just recently finished watching all MS IGLOO episodes. I have to say that that was really a very entertaining anime to watch. Each episode of MS IGLOO basically revolves around a prototype mobile suit or unit taking the protagonist role.

Of course the RB-79 Ball played more like a supporting cast in the anime so I was wondering why it garnered the distinction of being made into a Master Grade kit by Bandai. Ok so that's just me being guilty again of nitpicking, but hey!, that's what true fans really do... hehehe. If ever you get a chance to watch the MS IGLOO series don't pass up on it, I can guarantee that you will be entertained.

The Master Grade RB-79 Ball "Shark Mouth" version is selling for 2200 yen at Hobby Link Japan, 1613 yen at Amiami

Color Guide DescriptionPaint Ratios
MG RB-79 Ball “Shark Mouth” main body light blue partsWhite (H1)(65%) + Medium Blue/Intermediate Blue (H56)(25%) + Neutral Gray (H53)(10%) + Red (H3)(small dose)
MG RB-79 Ball “Shark Mouth” cockpit hatch, shark mouth, etc red partsMonza Red/Red Madder (H86)(90%) + Brown (H7)(10%) + Black (H2)(small dose)
MG RB-79 Ball “Shark Mouth” inner frame, etc dark gray partsMidnight Blue (H55)(100%)
MG RB-79 Ball “Shark Mouth” 180mm cannon etc gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
pilot suit yellow partWhite (H1)(50%) + Yellow (H4)(40%) + Orange Yellow (H24)(10%)
pilot hands, shoulders etc white partsWhite (H1)(100%) + Navy Blue (H54)(small dose)
pilot visor sky blue partSky Blue (H25)(100%)
pilot neck black partMidnight Blue (H55)(100%)
mechanic/crew normal suits yellow partOrange Yellow (H24)(80%) + White (H1)(20%)
mechanic/crew feet, etc orange partOrange (H14)(100%)
mechanic/crew skin colorFlesh/Pale Brown (H44)(100%)
mechanic/crew backpack blue gray partAircraft Gray (H57)(70%) + Medium Blue/Intermediate Blue (H56)(30%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------

Color Guide for the MG RB-79 Ball can be found here. RB-79 Ball Construction manual was translated to English from the original Japanese manual posted at Dalong.

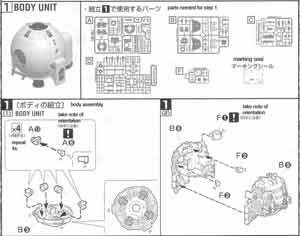

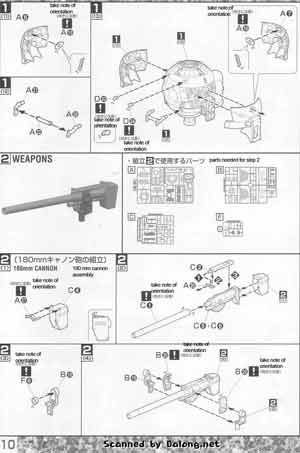

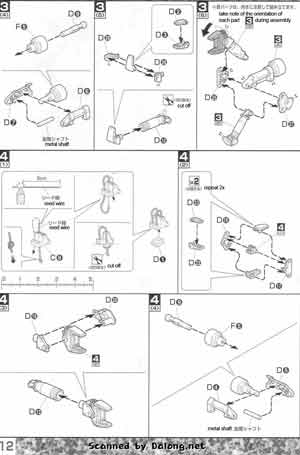

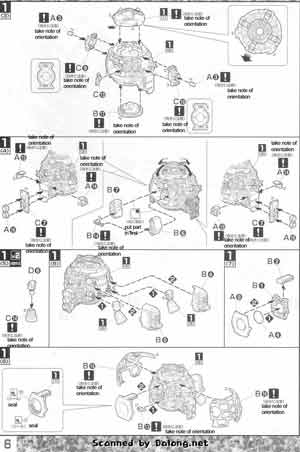

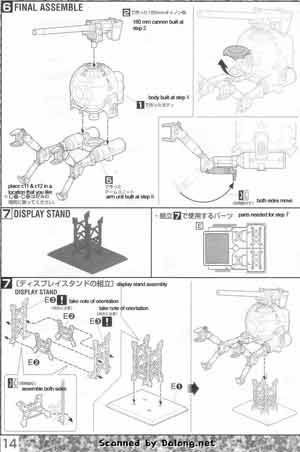

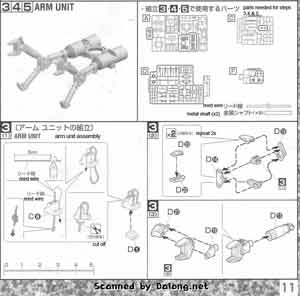

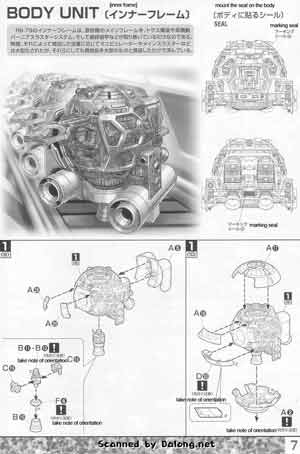

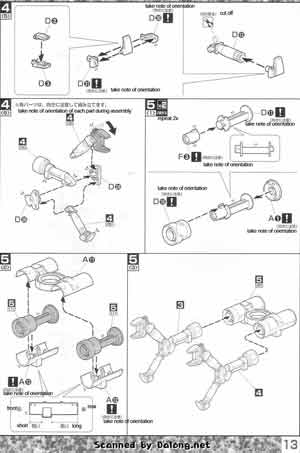

MG RB-79 Ball Shark Mouth English Construction Manual MG RB-79 Ball Shark Mouth English Construction Manual MG RB-79 Ball Shark Mouth English Construction Manual MG RB-79 Ball Shark Mouth English Construction Manual MG RB-79 Ball Shark Mouth English Construction Manual

MG RB-79 Ball Shark Mouth English Construction Manual MG RB-79 Ball Shark Mouth English Construction Manual MG RB-79 Ball Shark Mouth English Construction Manual
