MG MSA-003 Nemo English Color Guide and Manual

MG MSA-003 Nemo Color Guide and Construction Manual

The MSA-003 Nemo was the mass production mobile suit of the AEUG forces in the Zeta Gundam Anime series. When you say Mass Production of course, its just a polite way of saying "Cannon Fodder", hehehe. You could say that cannon fodders are the window dressing of any anime series and gives the hero a venue to display his "heroic" skills of shooting down enemy forces.

Manual and Color Guide was translated to English from the original manual posted at Dalong.

The MG MSA-003 Nemo is selling for 2800 yen at Hobby Link Japan, 2051 yen at Amiami, 2800 yen at Hobby Search, 1960 yen at HWJapan.

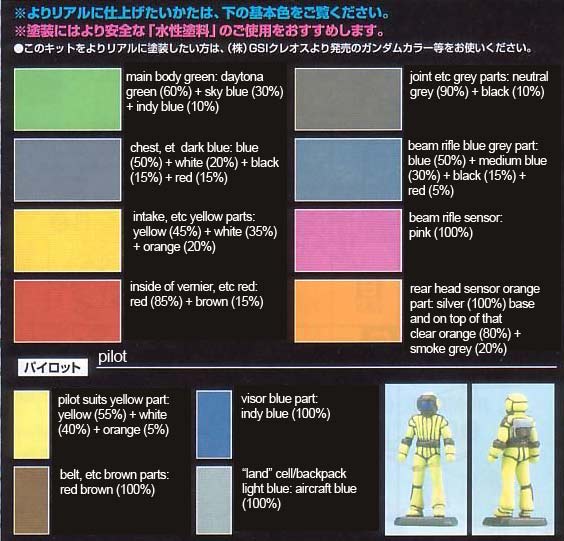

Color Guide


More translated model kit color guides can be found here.
Color Guide DescriptionPaint Ratios
MG MSA-003 Nemo main body green partBright Green/Daytona Green (H26)(60%) + Sky Blue (H25)(30%) + Bright Blue/Indy Blue (H15)(10%)
MG MSA-003 Nemo chest etc dark blue partBlue (H5)(50%) + White (H1)(20%) + Black (H2)(15%) + Red (H3)(15%)
MG MSA-003 Nemo intake etc yellow partYellow (H4)(45%) + White (H1)(35%) + Orange (H14)(20%)
MG MSA-003 Nemo inside of vernier etcRed (H3)(85%) + Brown (H7)(15%)
MG MSA-003 Nemo joints etc gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
MG MSA-003 Nemo beam rifle blue gray partsBlue (H5)(50%) + Medium Blue/Intermediate Blue (H56)(30%) + Black (H2)(15%) + Red (H3)(5%)
MG MSA-003 Nemo beam rifle sensorPink (H19)(100%)
MG MSA-003 Nemo rear head sensor orange partSilver (H8)(100%) as a base and on top of that Clear Orange (H92)(80%) + Smoke Gray (H95)(20%)
pilot suit's yellow partYellow (H4)(55%) + White (H1)(40%) + Orange (H14)(5%)
pilot belt, etc brown partsRed Brown (H47)(100%)
pilot visor blue partBright Blue/Indy Blue (H15)(100%)
pilot ransel(backpack) light blue partAircraft Gray (H57)(100%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)--------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Smoke Gray (H95)Smoke Gray (C101)Smoke (X19)----CRYSTAL SMOKE (A.MIG-0095)Clear Smoke (RC508)--------------
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------

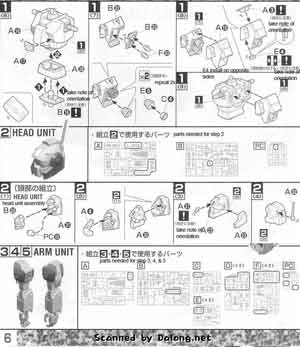

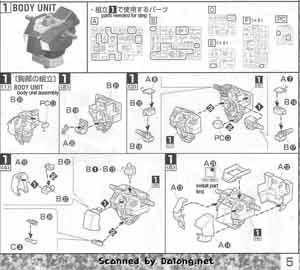

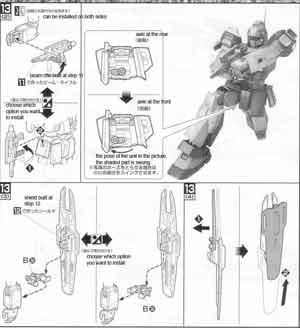

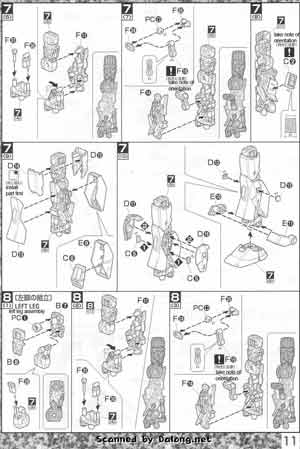

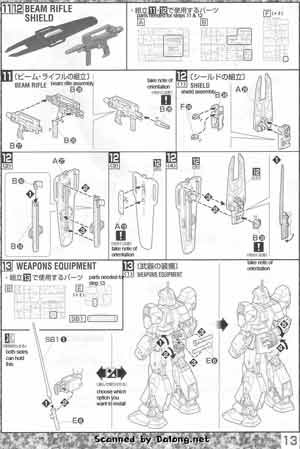

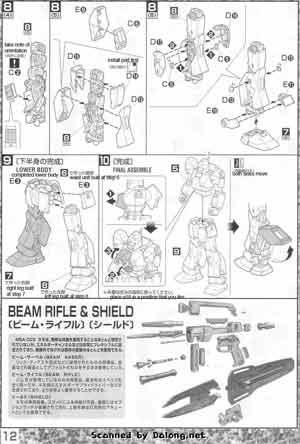

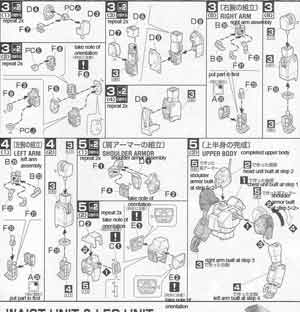

Construction Manual


MG MSA-003 Nemo Color Guide and Construction Manual MG MSA-003 Nemo Color Guide and Construction Manual MG MSA-003 Nemo Color Guide and Construction Manual MG MSA-003 Nemo Color Guide and Construction Manual MG MSA-003 Nemo Color Guide and Construction Manual

MG MSA-003 Nemo Color Guide and Construction Manual MG MSA-003 Nemo Color Guide and Construction Manual MG MSA-003 Nemo Color Guide and Construction Manual
