1/72 Zoids RZ-013 Buster Tortoise English Color Guide & Manual

1/72 Zoids RZ-013 Buster Tortoise Color Guide

The 1/72 Buster Tortoise from Kotobukiya. Not really fond of this design because these types of zoids are not really frontline-edge-of-the-sword type of mechas. These are mostly back-end-in-the-rear-with-the-gear types. But they do pack a wallop with the weaponry they carry. More like mobile artillery pieces in the sphere of mech warfare which provide blanket support during an offensive maneuver.

Color Guide was translated from the manual posted over at Dalong's Model Kit Review site.

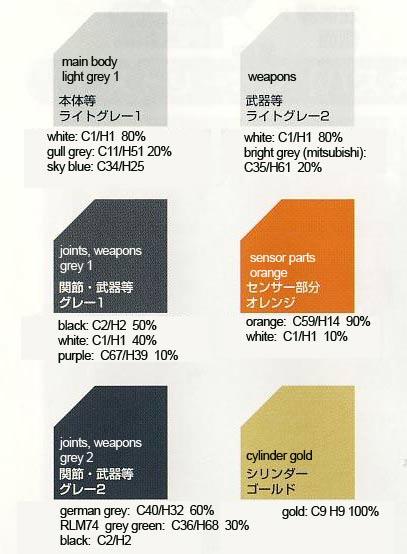

Color Guide DescriptionPaint Ratios
main body light gray 1White (H1)(80%) + Gull Gray/Light Gull Gray (H51)(20%) + Sky Blue (H25)(small dose)
weapons light gray 2White (H1)(80%) + IJN Gray (H61)(20%)
joints, weapons gray 1Black (H2)(50%) + White (H1)(40%) + Purple (H39)(10%)
sensor parts orangeOrange (H14)(90%) + White (H1)(10%)
joints, weapons gray2Field Gray (1)/Dark Gray (H32)(60%) + RLM74 Dark Gray (H68)(30%) + Black (H2)(10%)
cylinder goldGold (H9)(100%)
main body etc blueBright Blue/Indy Blue (H15)(40%) + Purple (H39)(40%) + Midnight Blue (H55)(10%) + Neutral Gray (H53)(10%)
joints cap orangeOrange (H14)(60%) + Orange Yellow (H24)(40%)
cylinder silverSilver (H8)(100%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Gull Gray/Light Gull Gray (H51)Light Gull Gray/Gull Gray (C11)----USAF Light Gray (71.276)LIGHT GRAY (A.MIG-0209)----------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
IJN Gray (H61)IJN Gray(Mitsubishi) (C35)J.N. Gray (XF12)Medium Sea Grey (70.870)Light Gray (71.050)--IJN J3 Hai-Iro (Grey) (RC302)--stone grey (solid matt) (32175)Light Grey (Matte) (64)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Field Gray (1)/Dark Gray (H32)German Gray/Field Gray (1) (C40)German Gray (XF63)German Grey Dark (70.995)Engine Grey (71.048)GRAUGRÜN (A.MIG-0253)Dark Eggplant Grey (RC242)Dark Grey (HTK-_230)Tank Grey (solid matt) (32178)Tank Grey (Matte) (67)Engine Gray FS36076 (2034)FS16076 Engine Grey (X128)----
RLM74 Dark Gray (H68)RLM74 Gray Green (C36)German Gray (XF63)Dark Bluegrey (70.867)Engine Grey (71.048)GRAUGRÜN (A.MIG-0253)Dark Eggplant Grey (RC242)Dark Grey (HTK-_230)Tank Grey (solid matt) (32178)Tank Grey (Matte) (67)Engine Gray FS36076 (2034)FS16076 Engine Grey (X128)Graugrun RLM74 (UA507)Graugrün RLM 74 (4784AP)
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)------Metal. Gloss Gold (4671AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
More model kit color guides can be found here.
