Monday, February 7, 2011

Bandai 1/20 Scopedog English Manual & Color Guide Armored Trooper Votoms

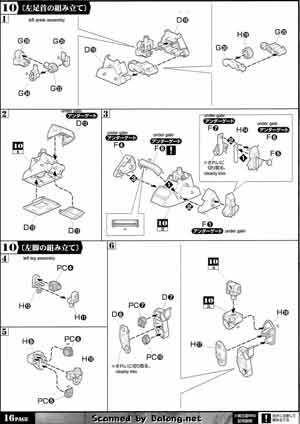

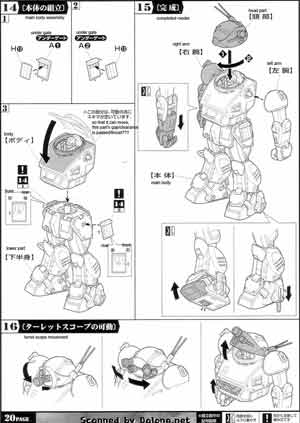

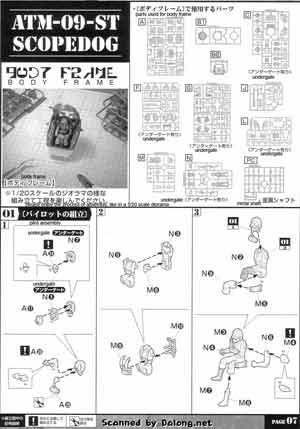

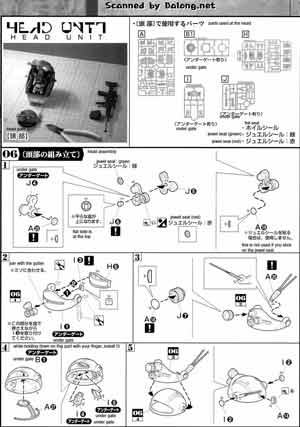

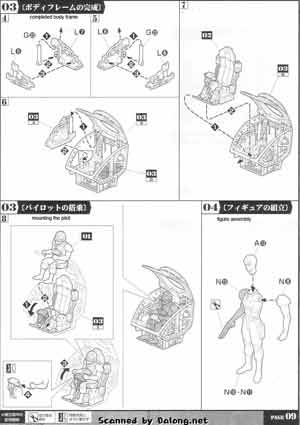

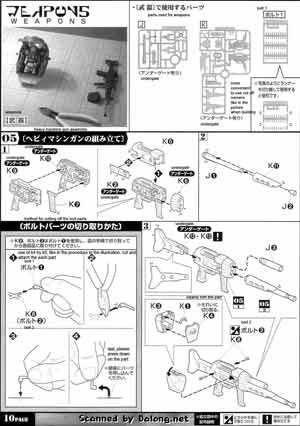

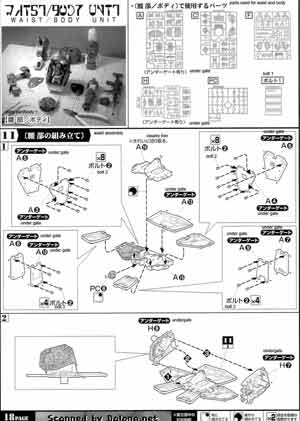

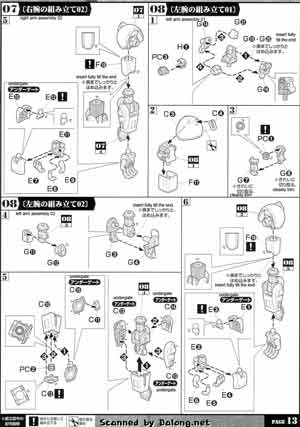

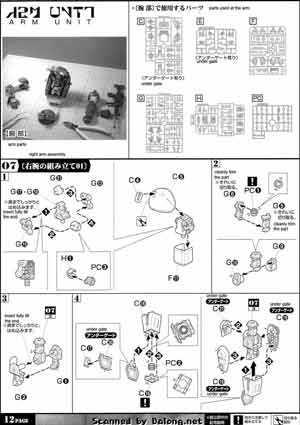

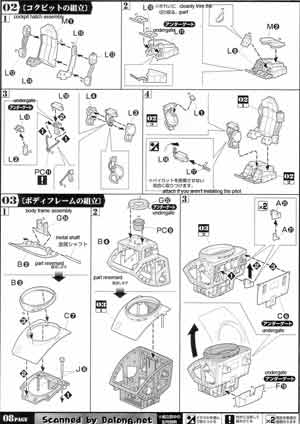

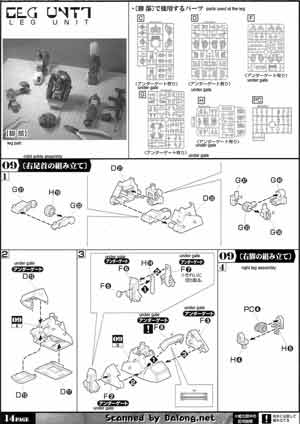

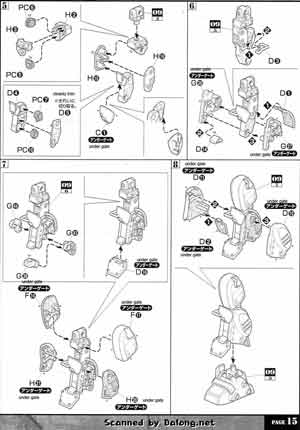

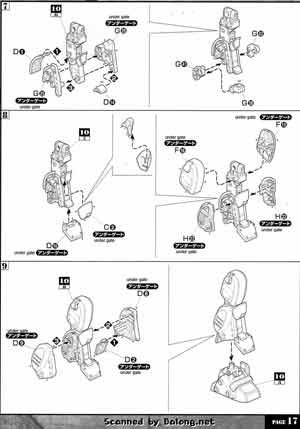

1/20 Armored Trooper Votoms ATM-09-ST Scopedog Color Guide & Manual
Gilgamesh Confedaration's ATM-09-ST Scopedog from the Armored Trooper Votoms anime franchise. So now I admit that I am a fan of the franchise after watching a few episodes of Pailsen Files. Haven't finished it yet though but I'm already sold with the exploits of Chirico Cuvie.

ATM-09-ST Scopedog is the main battle suit used by the Gilgamesh Confederation and series protagonist Chirico Cuvie. The anime is definitely one for the masses. Aside from the protagonists "high survival" talent, there is nothing to differentiate him from the common grunt. In short he is one with the cannon fodder. No special suit for him, just your average Scopedog will do. But hey, everybody loves the underdog so this series found a good formula in this that made it successful.

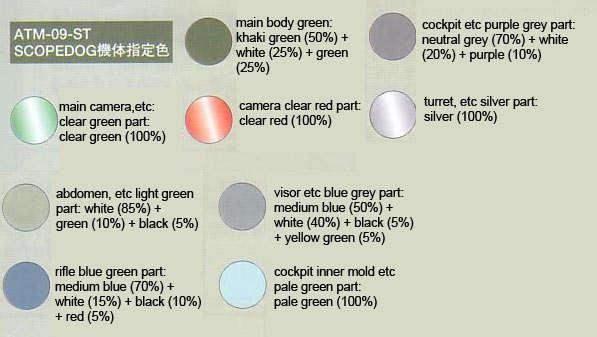

Color Guide


Color Guide DescriptionPaint Ratios
main camera etc clear green partClear Green (H94)(100%)
abdomen etc light green partWhite (H1)(85%) + Green (H6)(10%) + Black (H2)(5%)
rifle blue green partMedium Blue/Intermediate Blue (H56)(70%) + White (H1)(15%) + Black (H2)(10%) + Red (H3)(5%)
main body green partKhaki Green (H80)(50%) + White (H1)(25%) + Green (H6)(25%)
camera clear red partClear Red (H90)(100%)
visor etc blue gray partMedium Blue/Intermediate Blue (H56)(50%) + White (H1)(40%) + Black (H2)(5%) + Yellow Green/Roman Green/Le Mans Green (H16)(5%)
cockpit inner mold etc pale green partPale Green (H41)(100%)
cockpit etc purple gray partNeutral Gray (H53)(70%) + White (H1)(20%) + Purple (H39)(10%)
turret, etc silver partSilver (H8)(100%)
Disclaimer
