HG IO Frame Shiden English Color Guide & Paint Conversion

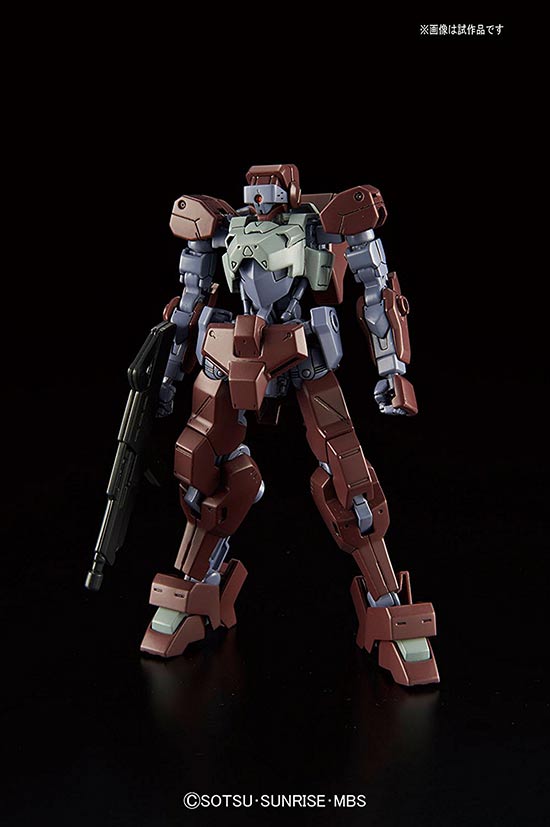

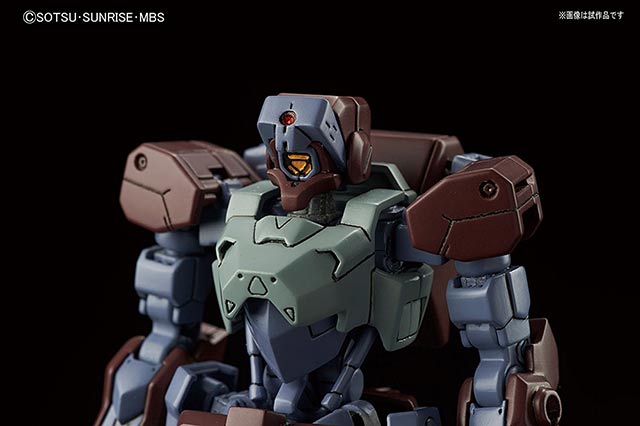

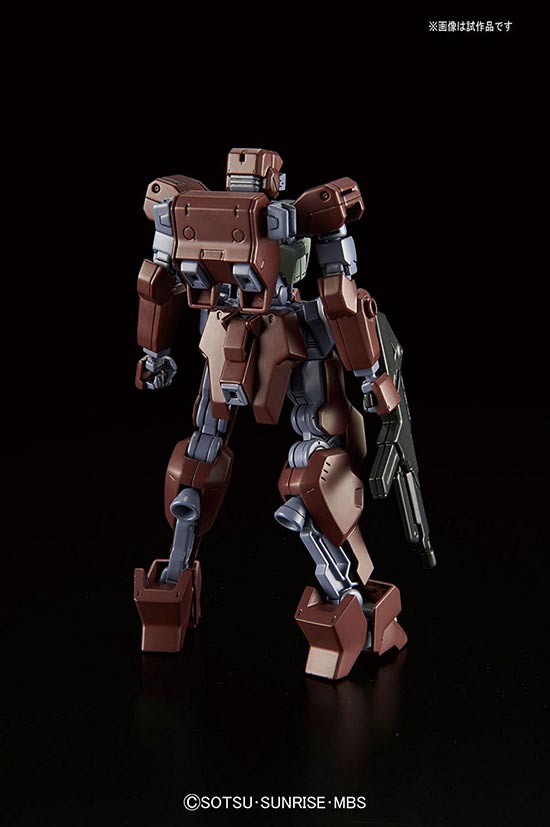

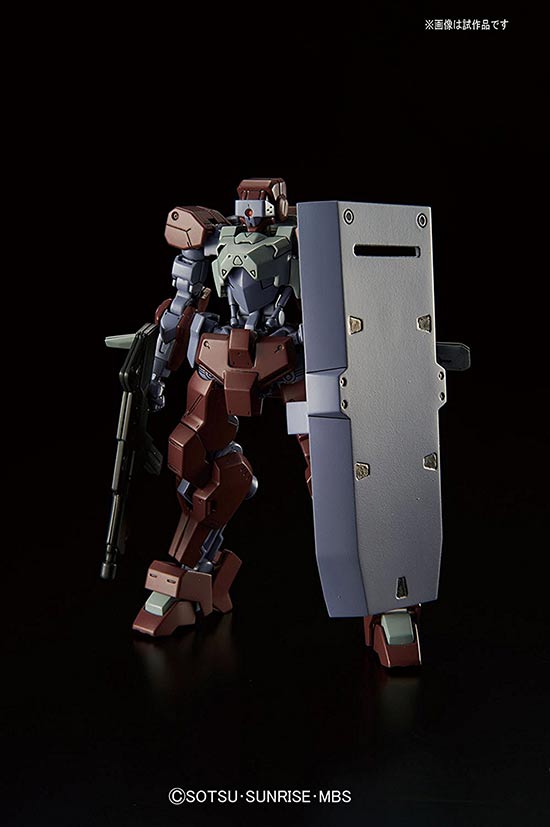

HG IO Frame Shiden English Color Guide & Paint Conversion 1/144 High Grade Gundam Iron Blooded Orphans

HG IO Frame Shiden English Color Guide & Paint Conversion 1/144 High Grade Gundam Iron Blooded Orphans

HG IO Frame Shiden English Color Guide & Paint Conversion 1/144 High Grade Gundam Iron Blooded Orphans

HG IO Frame Shiden English Color Guide & Paint Conversion 1/144 High Grade Gundam Iron Blooded Orphans

HG IO Frame Shiden English Color Guide & Paint Conversion 1/144 High Grade Gundam Iron Blooded Orphans

Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.
Color Guide DescriptionPaint Ratios
io frame shiden body etc red partCocoa Brown (H17)(50%) + Wine Red/Maroon (H43)(50%)
io frame shiden chest/partisan etc gray partIJA Gray (H62)(100%) + White (H1)(small dose)
io frame shiden visor red partSilver (H8)(100%0 as a base and on top Clear Red (H90)(90%) + Smoke Gray (H95)(10%)
io frame shiden frame etc light gray purple partRLM65 Light Blue (H67)(80%) + Purple (H39)(20%)
io frame shiden sensor yellow partSilver (H8)(100%) as a base and on top Clear Yellow (H91)(70%) + Clear Orange (H92)(30%)
Disclaimer



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirRevell EnamelRevell AcrylicHumbrol EnamelHumbrol AcrylicAMMO by Mig Jimenez
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)reddish brown (solid matt) (32137)reddish brown (solid matt) (36137)Wine (Matte) (73)[73]RED BROWN SHADOW (A.MIG-0912)
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--[32132][36132]Crimson (Gloss) (20)----
IJA Gray (H62)IJN Gray Green (Nakajima) (C56)J.A. Gray (XF14)--IJA Light Grey Green (71.321)----Light Grey (Matte) (147)--RUSSIAN SHINE (A.MIG-0935)
White (H1)White (C1)White (X2)Gloss White (70.842)--white (solid gloss) (32104)white (Gloss) (36104)White (Gloss) (22)White (Gloss) (22)SATIN WHITE (A.MIG-0047)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)sliver (solid metallic) (32190)Silver (solid metallic) (36190)Silver (metallic) (11)Silver (metallic) (11)MATT ALUMINUM (A.MIG-0194)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--red (clear) (32731)Red (Clear) (36731)Red (Clear) (1321)--CRYSTAL RED (A.MIG-0093)
Smoke Gray (H95)Smoke Gray (C101)--------------CRYSTAL SMOKE (A.MIG-0095)
RLM65 Light Blue (H67)RLM65 Light Blue (C115)Light Blue (XF23)Pale Blue (70.906)Light Blue RLM65 (71.255)----Aircraft Blue (Matte) (65)Aircraft Blue (Matte) (65)PALE GREY (A.MIG-0063)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)------Purple (Gloss) (68)--PURPLE (A.MIG-0127)
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)--------------
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--Orange (clear) (32730)Orange (Clear) (36730)Orange (Clear) (1322)--CRYSTAL ORANGE (A.MIG-0097)
