HG Hyakuren Amida Ver English Manual & Color Guide

HG Hyakuren Amida Ver Construction Manual & Color Guide

HG Hyakuren Amida Ver Construction Manual & Color Guide

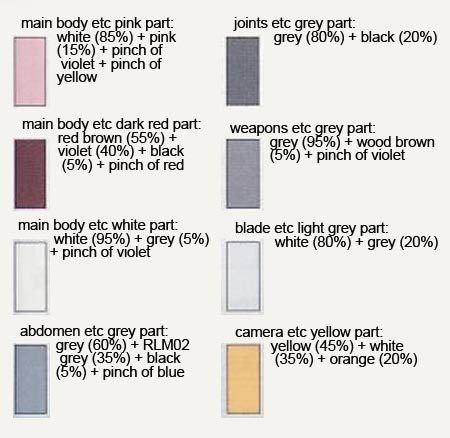

Color Guide DescriptionPaint Ratios
main body etc pink partWhite (H1)(85%) + Pink (H19)(15%) + Violet (H49)(small dose) + Yellow (H4)(small dose)
main body etc dark red partRed Brown (H47)(55%) + Violet (H49)(40%) + Black (H2)(5%) + Red (H3)(small dose)
main body etc white partWhite (H1)(95%) + Gray/Nezumi (H22)(5%) + Violet (H49)(small dose)
abdomen etc gray partGray/Nezumi (H22)(60%) + RLM02 Gray (H70)(35%) + Black (H2)(5%) + Blue (H5)(small dose)
joints etc gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
weapons etc gray partGray/Nezumi (H22)(95%) + Wood Brown (H37)(5%) + Violet (H49)(small dose)
blade etc light gray partWhite (H1)(80%) + Gray/Nezumi (H22)(20%)
camera etc yellow partYellow (H4)(45%) + White (H1)(35%) + Orange (H14)(20%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG Hyakuren Amida Ver Construction Manual & Color GuideHG Hyakuren Amida Ver Construction Manual & Color GuideHG Hyakuren Amida Ver Construction Manual & Color GuideHG Hyakuren Amida Ver Construction Manual & Color Guide
HG Hyakuren Amida Ver Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)------
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
RLM02 Gray (H70)RLM02 Gray (C60)RLM Gray (XF22)Green Grey (70.886)Grey RLM02 (71.044)GREEN SLATE (A.MIG-0217)RLM 02 RLM-Grau (1938) (RC265)Grey (HTK-_023)--RLM 02 Grau Matt (240)Grau RLM 02 (SG) (2071)Grau RLM 02 (UA504)Grau RLM 02 (4770AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)------
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)Earth Red FS30117 (UA306)Flat Wood (4673AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)Matt Orange FS32246 (LC05)Flat Orange (4302AP)
