1/144 Bandai Slave 1 English Manual & Color Guide

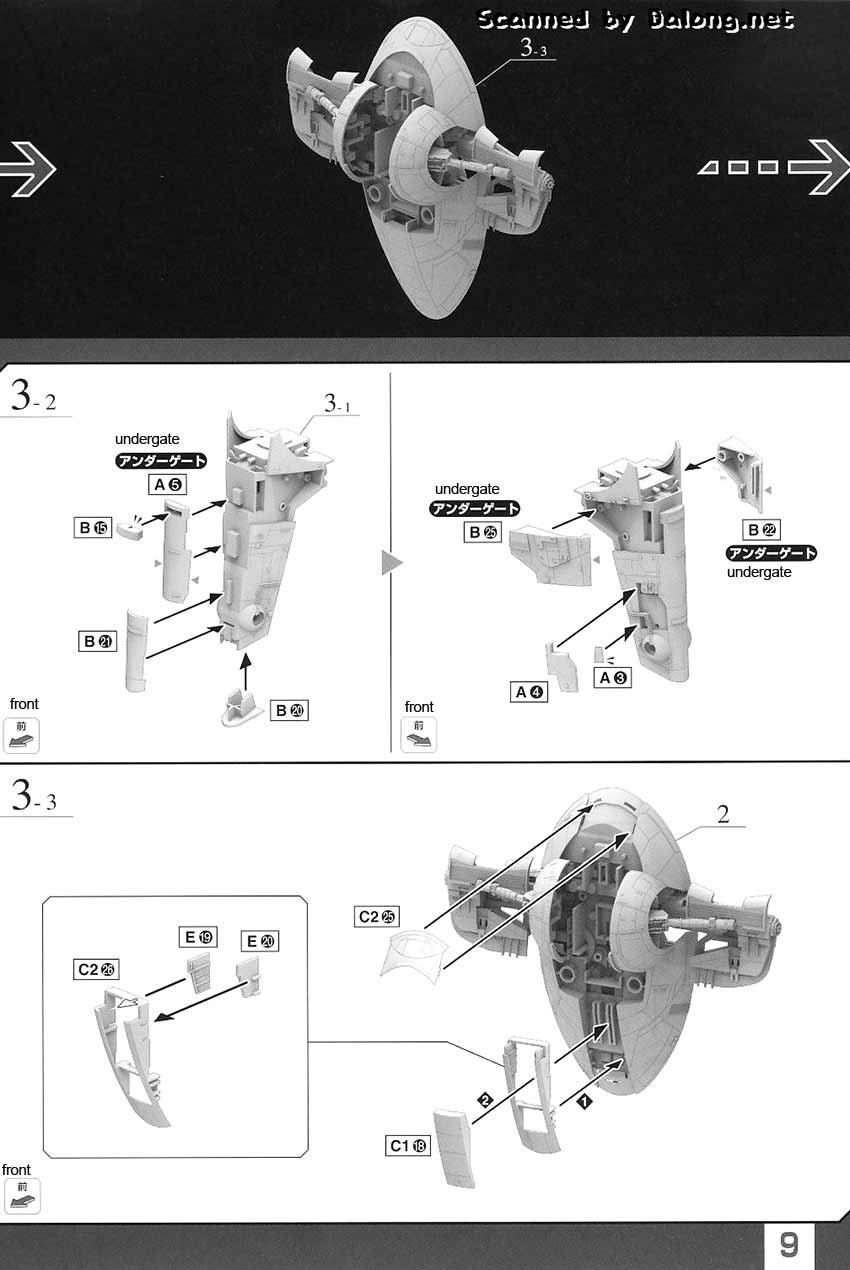

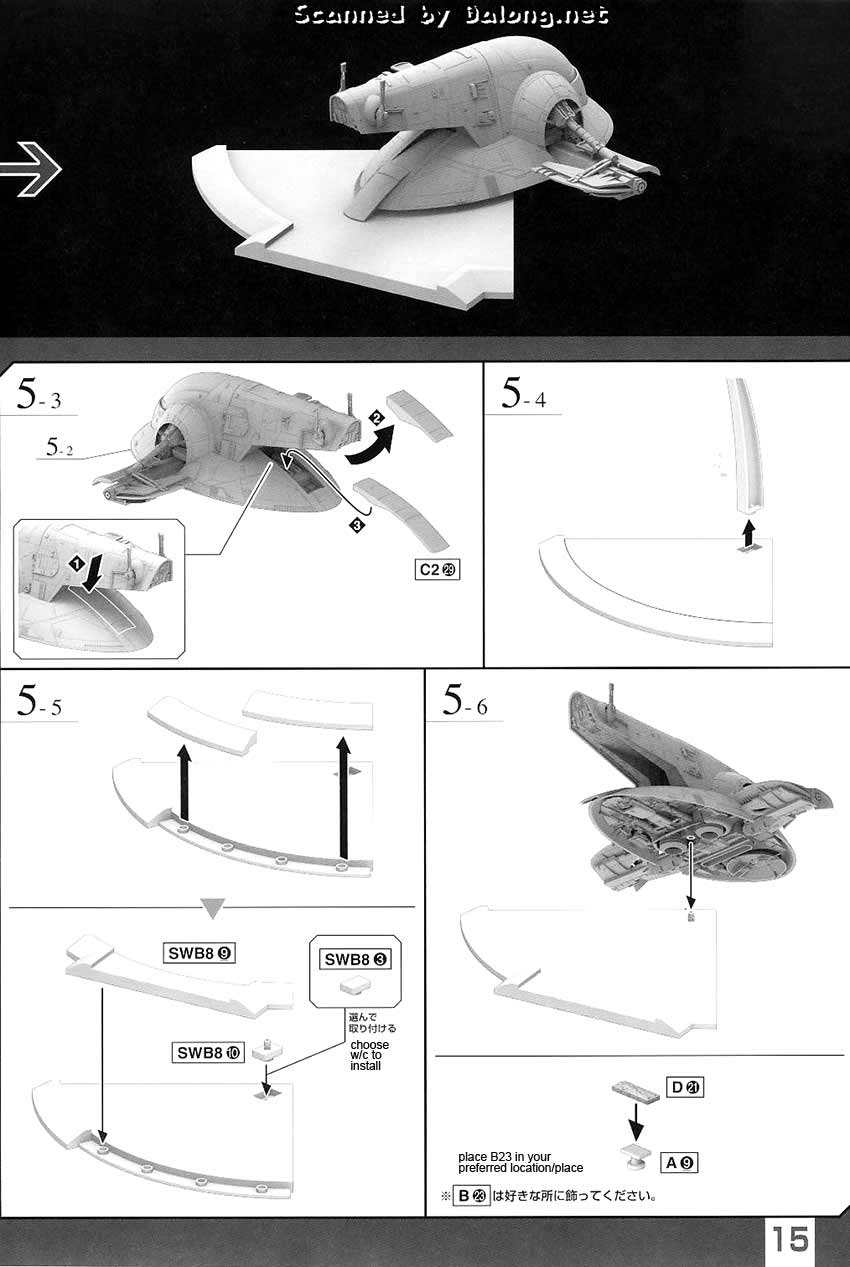

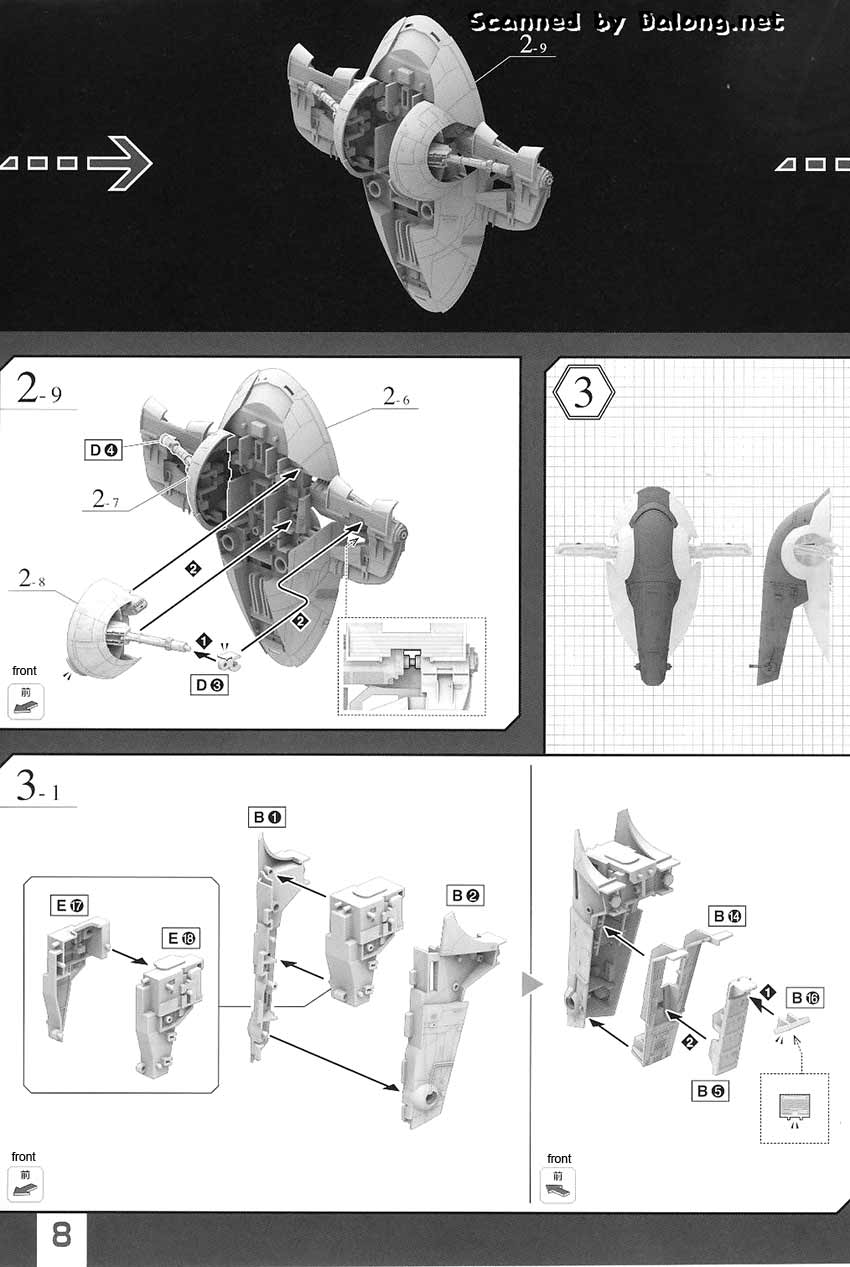

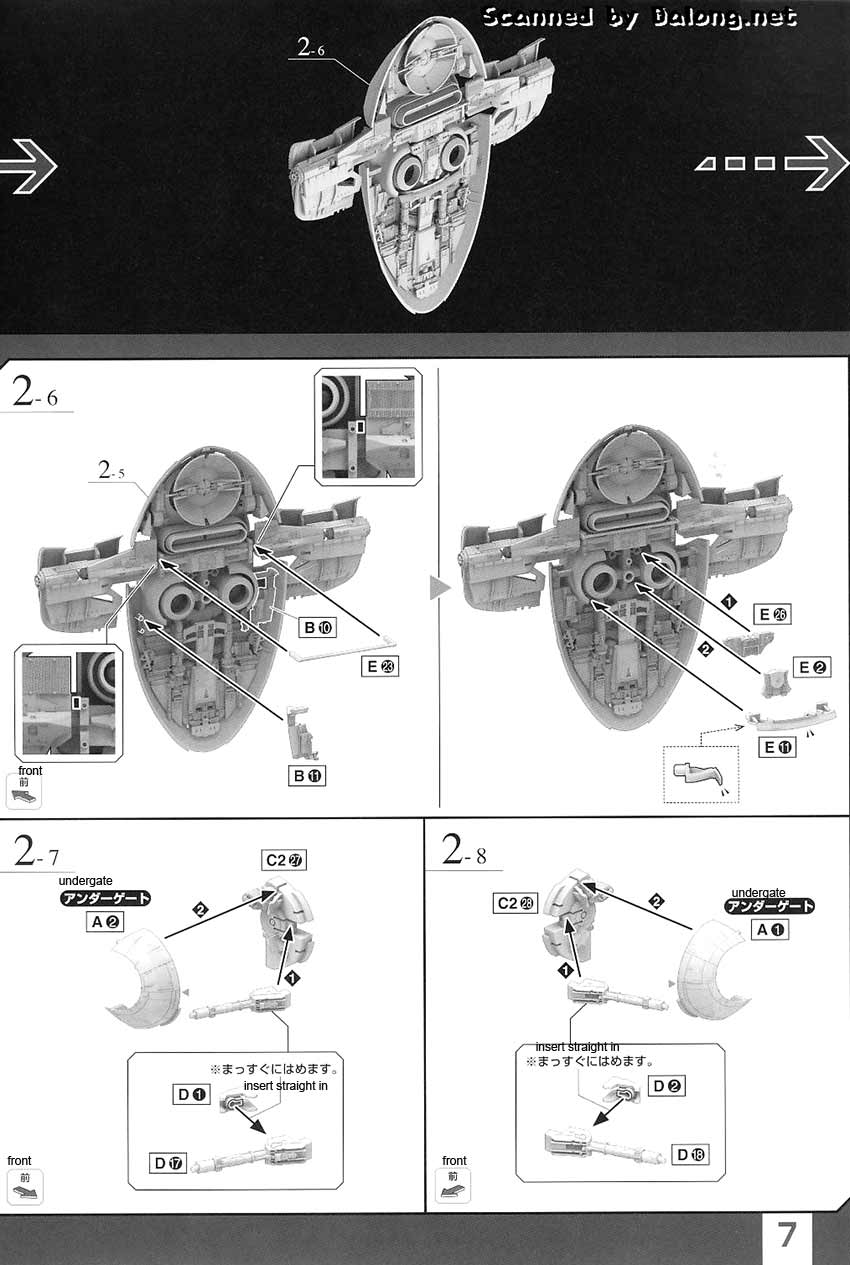

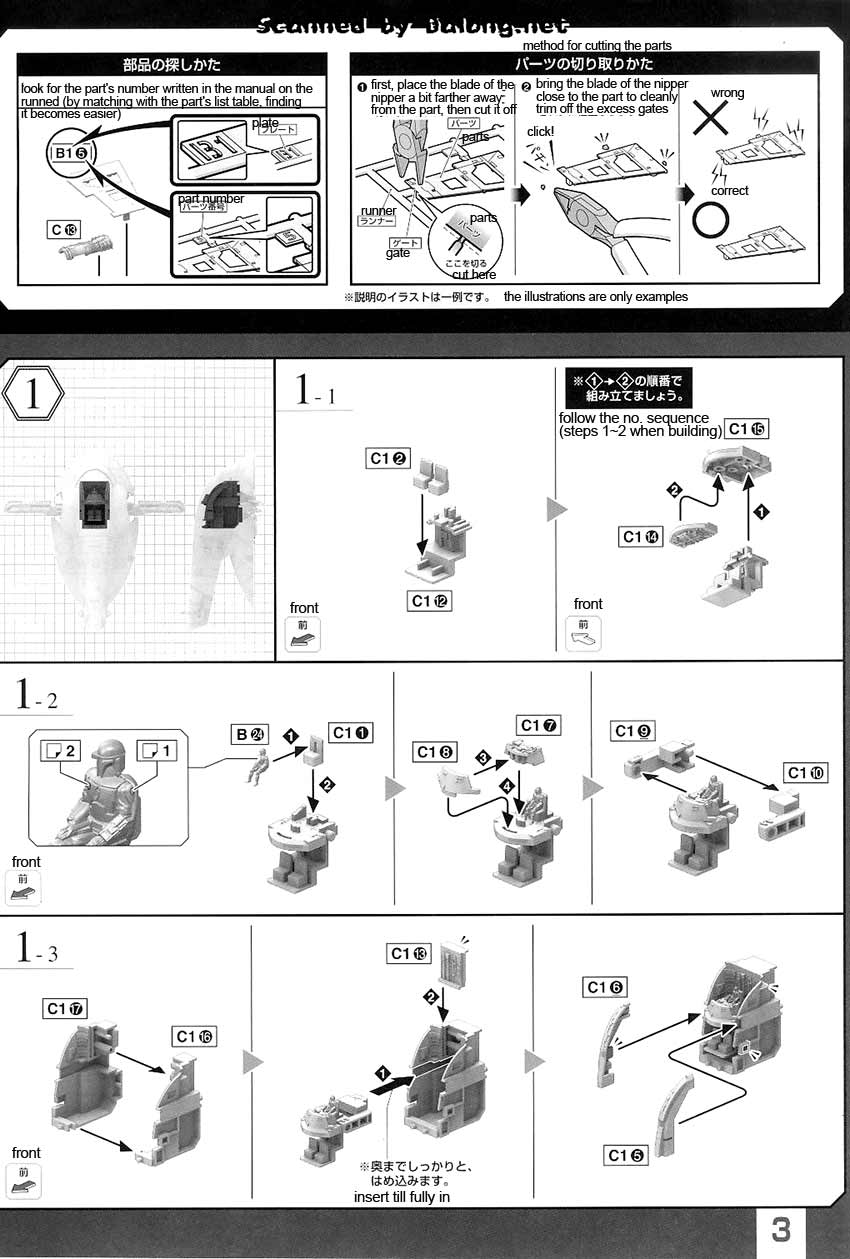

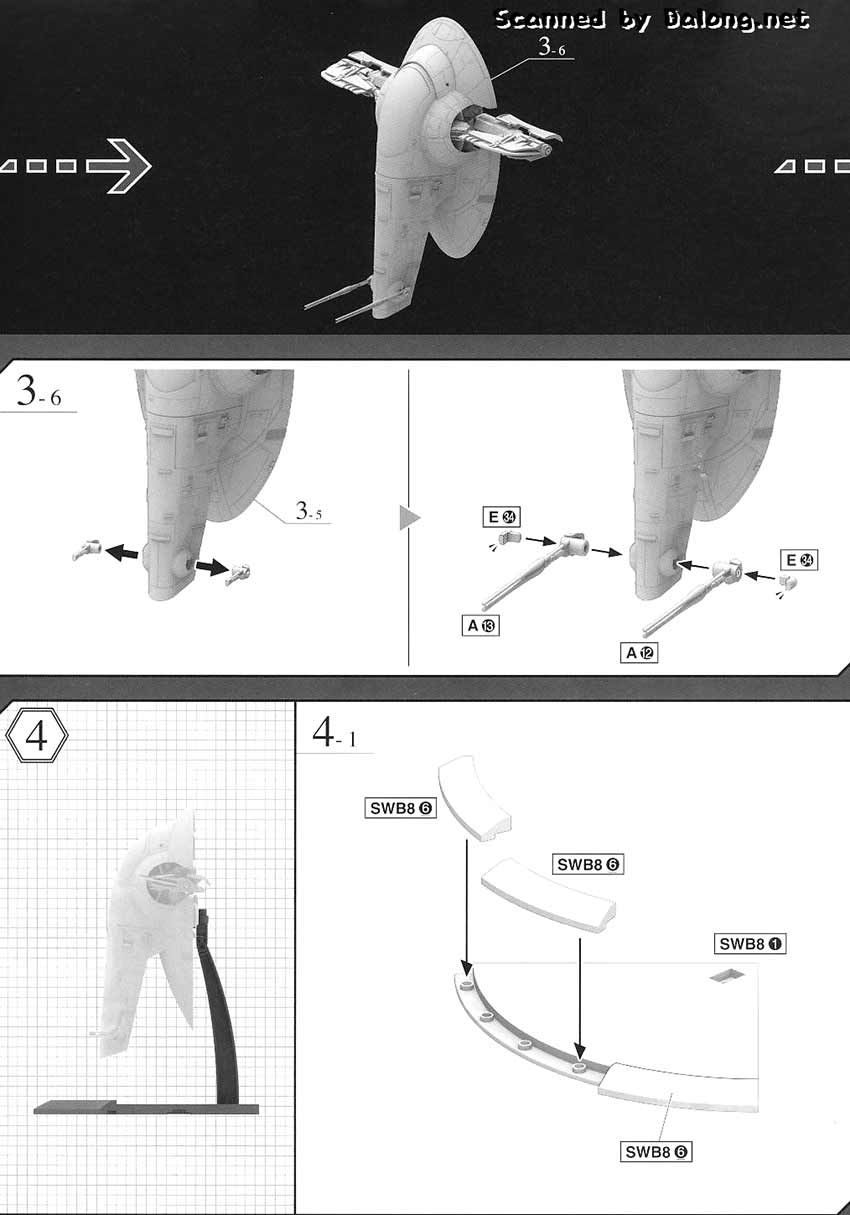

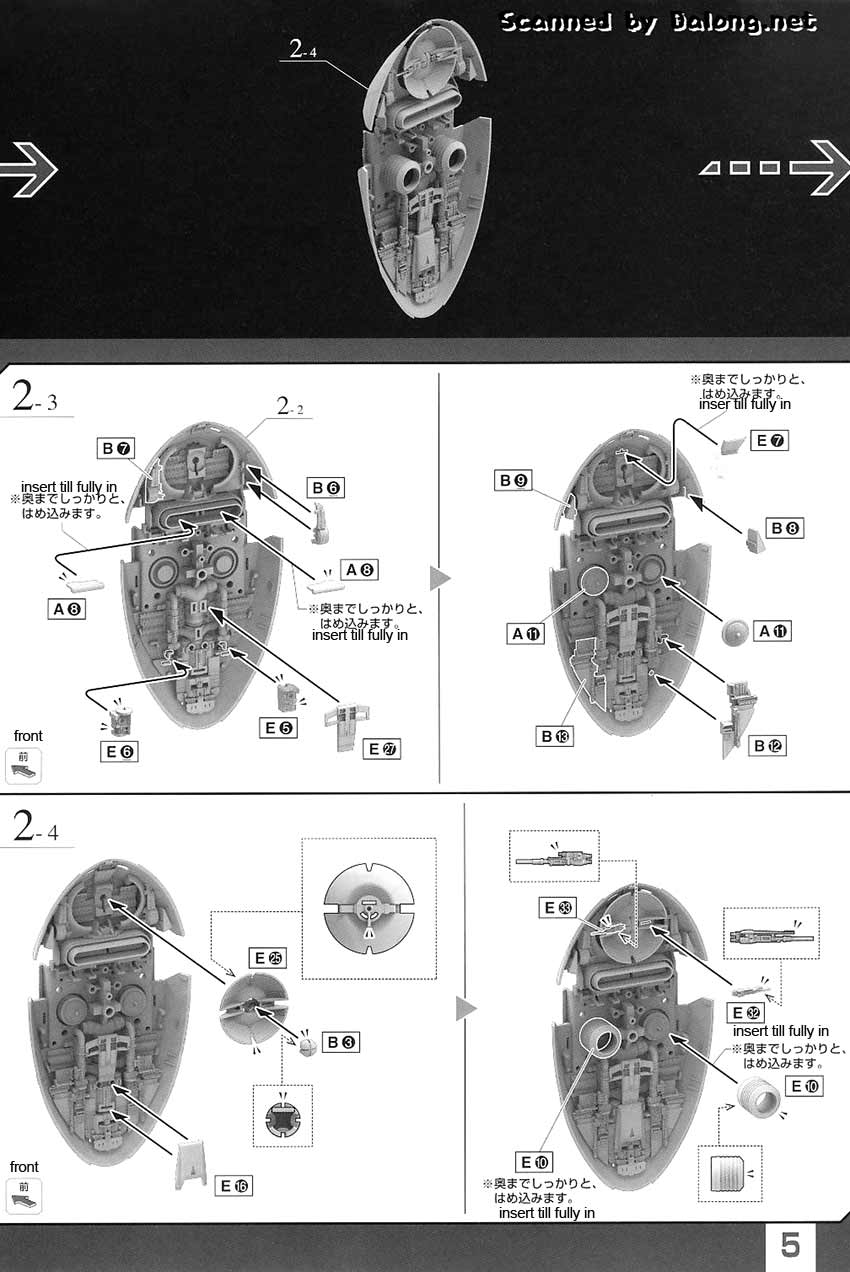

1/144 Bandai Slave 1 Construction Manual & Color Guide

Color Guide DescriptionPaint Ratios
main body, top side's white green partFlat White (H11)(75%) + Neutral Gray (H53)(15%) + Green (H6)(10%)
main body, top side, underside's light green partNeutral Gray (H53)(45%) + Flat White (H11)(40%) + Green (H6)(15%)
both wing roots, body's center green partNeutral Gray (H53)(50%) + Dark Green (H36)(25%) + Green (H6)(25%)
wing stabilizer, underside's light gray partFlat White (H11)(70%) + IJN Gray (H61)(30%) + Flat Black (H12)(small dose)
wing stabilizer's yellow partCream Yellow (H34)(100%) + Flat Base (H40)(small dose)
main body's outer edge red partCocoa Brown (H17)(90%) + Russet / Azuki (H33)(10%)
main body's outer edge center's black partFlat Black (H12)(80%) + Neutral Gray (H53)(20%)
Disclaimer


Construction Manual & Color Guide for the 1/144 Bandai Slave 1 of Boba Fett from Star Wars was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site.

1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide

1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide

1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide 1/144 Bandai Slave 1 Construction Manual & Color Guide

1/144 Bandai Slave 1 Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Flat White (H11)Flat White (C62)Flat White (XF2)White (70.951)White (71.001)MATT WHITE (A.MIG-0050)Flat White (RC004)Traffic White (HTK-_101)white (solid silk matt) (32105)White (Matte) (34)White FS 37875 (F) (1768)White (Matte) (X405)Matt White FS 37925 (LC01)Flat White (4769AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Dark Green (H36)IJN Green (Nakajima) (C15)J.N. Green (XF11)Deep Green (70.970)Olive Green (71.007)DEEP GREEN (A.MIG-0052)--Fir Green (HTK-_289)--Bronze Green (Matte) (75)--------
IJN Gray (H61)IJN Gray(Mitsubishi) (C35)J.N. Gray (XF12)Medium Sea Grey (70.870)Light Gray (71.050)--IJN J3 Hai-Iro (Grey) (RC302)--stone grey (solid matt) (32175)Light Grey (Matte) (64)--------
Flat Black (H12)Flat Black (C33)Flat Black (XF1)Black (70.950)Black (71.057)MATT BLACK (A.MIG-0046)Flat Black (RC001)Jet Black (HTK-_100)black (solid silk matt) (32108)Black (Matte) (33)Black FS 37038 (F) (1749)Night Black BS642 (X012)Black FS37038 (LC02)Flat Black (4768AP)
Cream Yellow (H34)------Yellow Ochre (71.033)--Maize Yellow (RC008)Traffic Yellow (HTK-_104)--Cream (Matte) (103)Deep Yellow (F) (2118)RAF Trainer Yellow (X011)----
Flat Base (H40)Flat Base (C30)Flat Base (X21)Matte Varnish (70.520)--MATT VARNISH (A.MIG-0089)----clear (solid silk matt) (32102)Varnish (Matte) (49)--------
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
