1/12 Sand Trooper English Manual & Color Guide

1/12 Sand Trooper Construction Manual & Color Guide

1/12 Sand Trooper Construction Manual & Color Guide

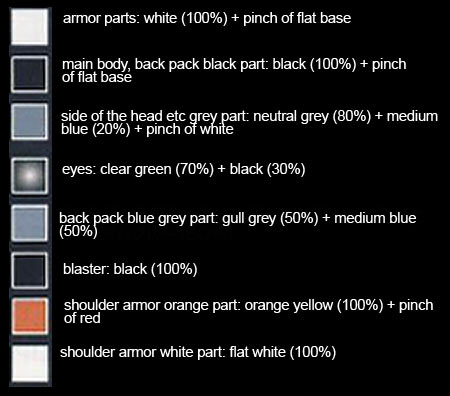

Color Guide DescriptionPaint Ratios
armor partsWhite (H1)(100%) + Flat Base (H40)(small dose)
main body, backpack black partBlack (H2)(100%) + Flat Base (H40)(small dose)
side of the head etc gray partNeutral Gray (H53)(80%) + Medium Blue/Intermediate Blue (H56)(20%) + White (H1)(small dose)
eyesClear Green (H94)(70%) + Black (H2)(30%)
backpack blue gray partGull Gray/Light Gull Gray (H51)(50%) + Medium Blue/Intermediate Blue (H56)(50%)
blasterBlack (H2)(100%)
shoulder armor orange partOrange Yellow (H24)(100%) + Red (H3)(small dose)
shoulder armor white partFlat White (H11)(100%)
Disclaimer


Construction Manual & Color Guide for the 1/12 Sand Trooper by Bandai was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

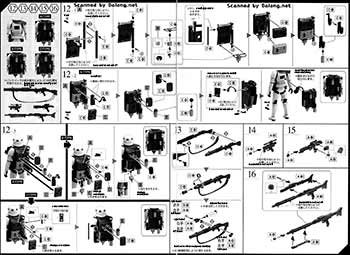

1/12 Sand Trooper Construction Manual & Color Guide

1/12 Sand Trooper Construction Manual & Color Guide





Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Flat Base (H40)Flat Base (C30)Flat Base (X21)Matte Varnish (70.520)--MATT VARNISH (A.MIG-0089)----clear (solid silk matt) (32102)Varnish (Matte) (49)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Gull Gray/Light Gull Gray (H51)Light Gull Gray/Gull Gray (C11)----USAF Light Gray (71.276)LIGHT GRAY (A.MIG-0209)----------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
