RG MSM-07S Z'Gok (Char version) English Manual & Color Guide

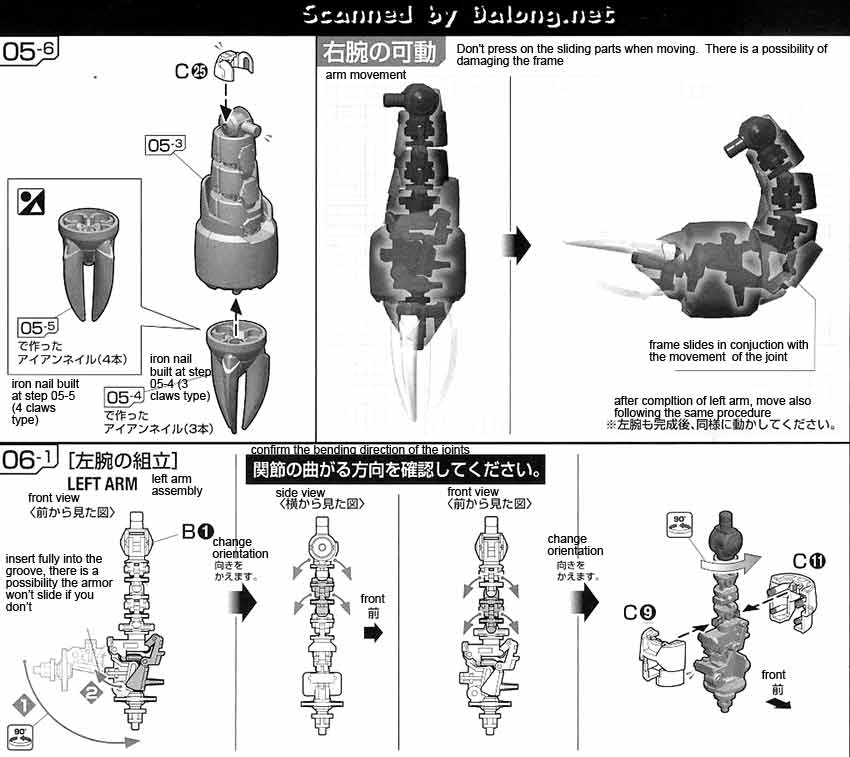

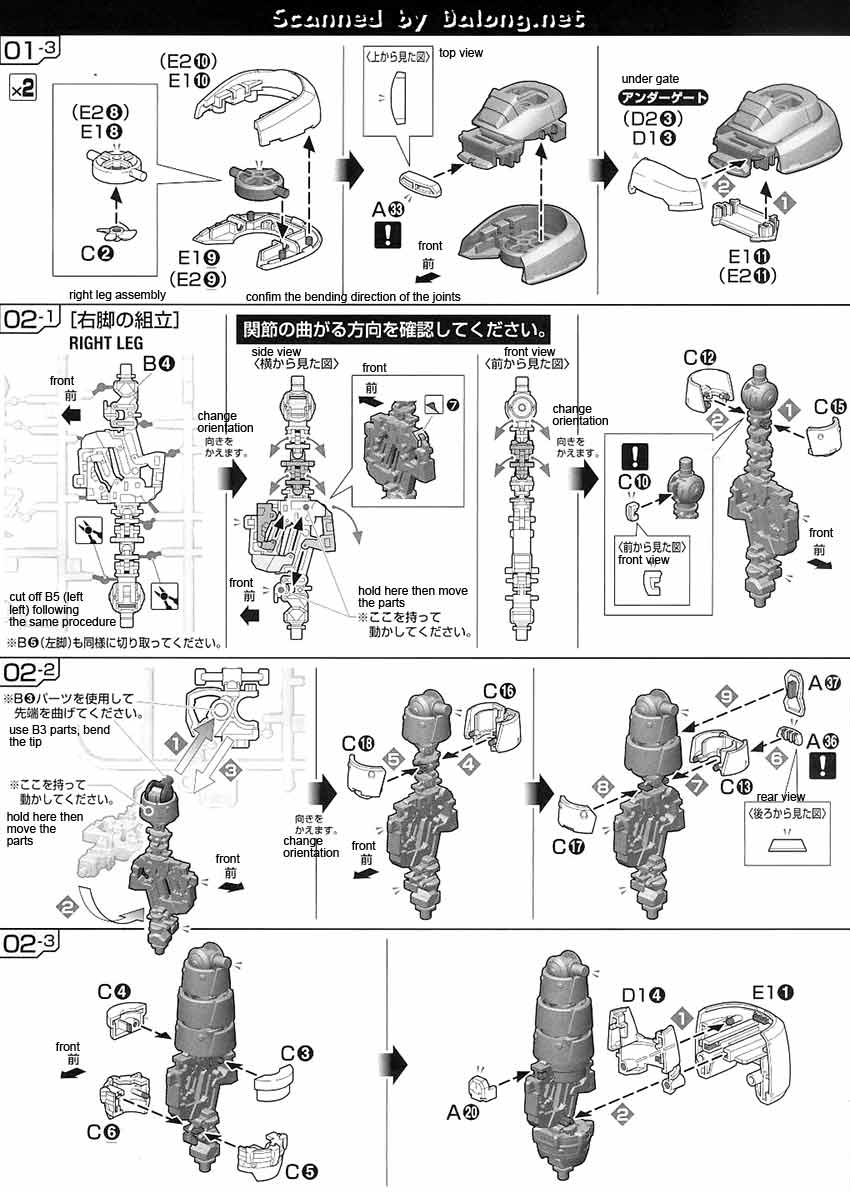

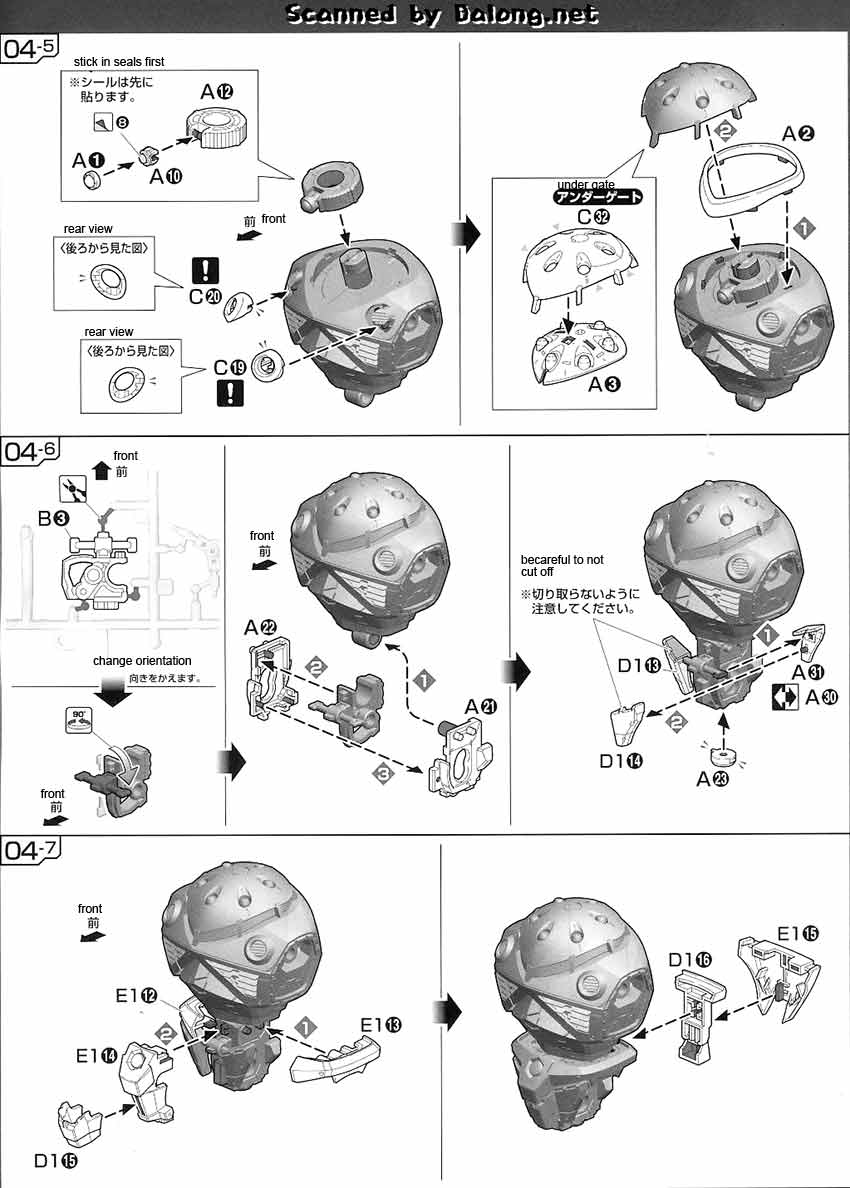

RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide

Char Aznable's Z'Gok finally gets the Real Grade treatment from Bandai. The Z'Gok was designed as an amphibious mobile suit but can definitely hold its own in out of water operations. Always loved the design of the amphibious mobile suits that are used by Principality of Zeon, quirky, cute but lethal would be apt to describe them in my book.

This model kit can be configured to have either a 3 claw or 4 claw option installed. As a real grade kit it offers the sliding modular inner frame that is a staple of the real grade design. And of course you get treated to the exquisite detailing that has been a trademark of the real grade line.

The 1/144 Real Grade Z'Gok (Char version) is selling for $ at Amazon

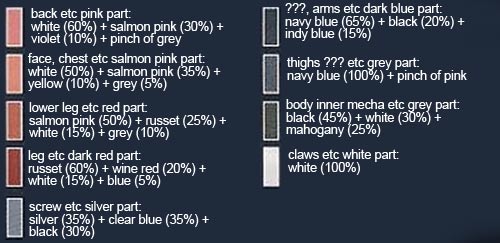

Color Guide DescriptionPaint Ratios
RG Z"Gok Char ver back etc pink partWhite (H1)(60%) + Salmon Pink (H29)(30%) + Violet (H49)(10%) + Gray/Nezumi (H22)(small dose)
RG Z"Gok Char ver face, chest etc salmon pink partWhite (H1)(50%) + Salmon Pink (H29)(35%) + Yellow (H4)(10%) + Gray/Nezumi (H22)(5%)
RG Z"Gok Char ver lower leg etc red partSalmon Pink (H29)(50%) + Russet / Azuki (H33)(25%) + White (H1)(15%) + Gray/Nezumi (H22)(10%)
RG Z"Gok Char ver leg etc dark red partRusset / Azuki (H33)(60%) + Wine Red/Maroon (H43)(20%) + White (H1)(15%) + Blue (H5)(5%)
RG Z"Gok Char ver screw etc silver partSilver (H8)(35%) + Clear Blue (H93)(35%) + Black (H2)(30%)
RG Z"Gok Char ver arms, etc dark blue partNavy Blue (H54)(65%) + Black (H2)(20%) + Bright Blue/Indy Blue (H15)(15%)
RG Z"Gok Char ver thighs, etc gray partNavy Blue (H54)(100%) + Pink (H19)(small dose)
RG Z"Gok Char ver body inner mecha etc gray partBlack (H2)(45%) + White (H1)(30%) + Mahogany (H84)(25%)
RG Z"Gok Char ver claws etc white partWhite (H1)(100%)
Char Aznable helmet etc white partWhite (H1)(100%)
Char Aznable mask etc blue gray partAircraft Gray (H57)(70%) + Medium Blue/Intermediate Blue (H56)(30%)
Char Aznable face etcFlesh/Pale Brown (H44)(50%) + White (H1)(50%)
Char Aznable shoulder etc yellow partOrange Yellow (H24)(100%)
Char Aznable uniform etc red partMonza Red/Red Madder (H86)(100%)
Char Aznable cloak etc black partMidnight Blue (H55)(100%)
Disclaimer

Construction Manual & Color Guide for the 1/144 Real Grade Z'Gok of Char Aznable was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.


RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide

RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide

RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide RG MSM-07S Z'Gok (Char version) Construction Manual & Color Guide
