HG Zaku I Thunderbolt Ver English Manual & Color Guide

HG Zaku I Thunderbolt Ver Construction Manual & Color Guide

From Gundam Thunderbolt manga comes the Zaku I Thunderbolt released as a 1/144 High Grade model kit by Bandai. For a 1/144 High Grade kit, this has got have one of the most complicated Color Guides. Reminds me of the color guides of the 1/72 VF-25F Messiah's that were released a couple of years back. But despite that I love the mobile suit designs that come out of the Thunderbolt series. And aside from the designs, one other thing that I like about them is the level of detail that Bandai is able to put into them despite their small size. I am assuming this was the technology that was much touted by Bandai during the release of the Real Grade series.

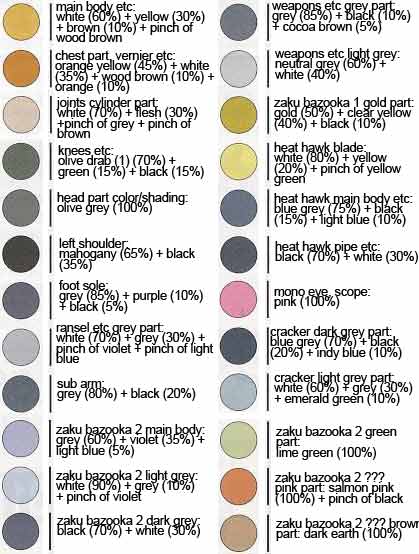

Color Guide DescriptionPaint Ratios
main body etcWhite (H1)(60%) + Yellow (H4)(30%) + Brown (H7)(10%) + Wood Brown (H37)(small dose)
chest part vernier etcOrange Yellow (H24)(45%) + White (H1)(35%) + Wood Brown (H37)(10%) + Orange (H14)(10%)
joints cylinder partWhite (H1)(70%) + Flesh/Pale Brown (H44)(30%) + Gray/Nezumi (H22)(small dose) + Brown (H7)(small dose)
knees etcOlive Drab (1) (H52)(70%) + Green (H6)(15%) + Black (H2)(15%)
head part color/shadingField Gray (2)/Olive Gray (H48)(100%)
left shoulderMahogany (H84)(65%) + Black (H2)(35%)
foot soleGray/Nezumi (H22)(85%) + Purple (H39)(10%) + Black (H2)(5%)
ransel(backpack) etc gray partWhite (H1)(70%) + Gray/Nezumi (H22)(30%) + Violet (H49)(small dose) + Light Blue/mizu (H45)(small dose)
sub armGray/Nezumi (H22)(80%) + Black (H2)(20%)
zaku bazooka 2 main bodyGray/Nezumi (H22)(60%) + Violet (H49)(35%) + Light Blue/mizu (H45)(5%)
zaku bazooka 2 light grayWhite (H1)(90%) + Gray/Nezumi (H22)(10%) + Violet (H49)(small dose)
zaku bazooka 2 dark grayBlack (H2)(70%) + White (H1)(30%)
weapons etc gray partGray/Nezumi (H22)(85%) + Black (H2)(10%) + Cocoa Brown (H17)(5%)
weapons etc light gray partNeutral Gray (H53)(60%) + White (H1)(40%)
zaku bazooka 1 gold partGold (H9)(50%) + Clear Yellow (H91)(40%) + Black (H2)(10%)
heat hawk bladeWhite (H1)(80%) + Yellow (H4)(20%) + Yellow Green/Roman Green/Le Mans Green (H16)(small dose)
heat hawk main body etcBlue Gray (H42)(75%) + Black (H2)(15%) + Light Blue/mizu (H45)(10%)
heat hawk pipe etcBlack (H2)(70%) + White (H1)(30%)
mono eye scopePink (H19)(100%)
cracker dark gray partBlue Gray (H42)(70%) + Black (H2)(20%) + Bright Blue/Indy Blue (H15)(10%)
cracker light gray partWhite (H1)(60%) + Gray/Nezumi (H22)(30%) + Emerald Green (H46)(10%)
zaku bazooka 2 green partLime Green/yomogi (H50)(100%)
zaku bazooka 2 pink partSalmon Pink (H29)(100%) + Black (H2)(small dose)
zaku bazooka 2 brown partDark Earth (H72)(100%)
Disclaimer


Construction Manual & Color Guide for the 1/144 HG Zaku I Thunderbolt Ver was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.
