1/72 HMM Lightning Saix Irvine Special English Manual & Color Guide

1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide

Released by Kotobukiya as a 1/72 Highend Master Model is Irvine's Lightning Saix from Zoids Guardian Force. Prior to this, Kotobukiya had already released a 1/72 HMM Lightning Saix. Most noticeable difference of this version is the mouth binder that grips between the fangs of the Lightning Saix. Always loved the design of the Lightning Saix, but then again, I've always been impressed with the way the creator of Zoids was able to "mechanize" animals.

The 1/72 HMM Lightning Saix Irvine Special is selling for $ at Amazon, 4930 yen at HobbyLink Japan, 4930 yen at Hobby Search

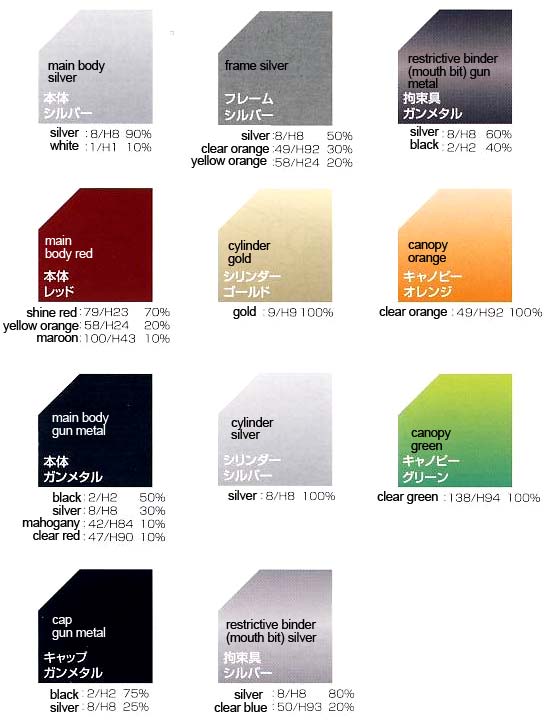

Color Guide DescriptionPaint Ratios
main body silverSilver (H8)(90%) + White (H1)(10%)
main body red partShine Red (H23)(70%) + Orange Yellow (H24)(20%) + Wine Red/Maroon (H43)(10%)
main body gun metalBlack (H2)(50%) + Silver (H8)(30%) + Mahogany (H84)(10%) + Clear Red (H90)(10%)
cap gun metalBlack (H2)(75%) + Silver (H8)(25%)
frame silverSilver (H8)(50%) + Clear Orange (H92)(30%) + Orange Yellow (H24)(20%)
cylinder goldGold (H9)(100%)
cylinder silverSilver (H8)(100%)
restrictive binder (mouth bit) silverSilver (H8)(80%) + Clear Blue (H93)(20%)
restrictive binder (mouth bit) gun metalSilver (H8)(60%) + Black (H2)(40%)
canopy orangeClear Orange (H92)(100%)
canopy greenClear Green (H94)(100%)
Disclaimer





Construction Manual & Color Guide for the 1/72 HMM Lightning Saix Irvine Special was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide z20i_m0012.jpg

1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide z20i_m0014.jpg 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide

1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide

1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide 1/72 HMM Lightning Saix Irvine Special Construction Manual & Color Guide


Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)----Flat Rust (4675AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)----Gloss Red (4605AP)
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)------
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)----Metal. Gloss Gold (4671AP)
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)------Gloss Light Blue (4650AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)------
