Thousand Sunny English Manual & Color Guide

Thousand Sunny by Bandai Plastic Model Kit Color Guide

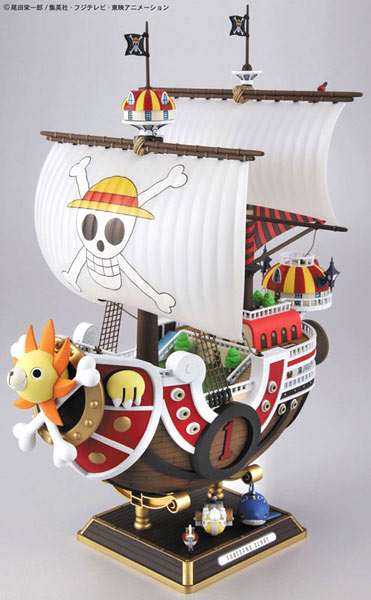

From the very popular anime series, One Piece, comes the Thousand Sunny ship released by Bandai in March of 2011. This is a plastic model kit that has to be assembled. The kit also comes with bonus Shiro Mukoba, Mini Merry and Shark Submerge.

The Thousand Sunny by Bandai is selling for $$$ at Amazon, 2790 yen at Amiami, 3040 yen at HobbyLink Japan

Thousand Sunny by Bandai Plastic Model Kit Color Guide Thousand Sunny by Bandai Plastic Model Kit Color Guide

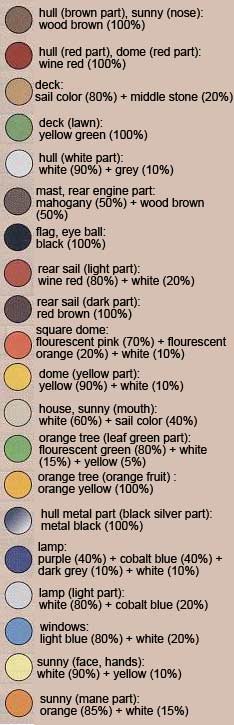

Color Guide DescriptionPaint Ratios
Thousand Sunny hull (brown part), sunny(nose)Wood Brown (H37)(100%)
Thousand Sunny hull (red part), dome (red part)Wine Red/Maroon (H43)(100%)
Thousand Sunny deckSail Color (H85)(80%) + Middle Stone (H71)(20%)
Thousand Sunny deck (lawn)Yellow Green/Roman Green/Le Mans Green (H16)(100%)
Thousand Sunny hull (white part)White (H1)(90%) + Gray/Nezumi (H22)(10%)
Thousand Sunny mast, red engine partMahogany (H84)(50%) + Wood Brown (H37)(50%)
Thousand Sunny flag, eye ballBlack (H2)(100%)
Thousand Sunny rear sail (light part)Wine Red/Maroon (H43)(80%) + White (H1)(20%)
Thousand Sunny rear sail (dark part)Red Brown (H47)(100%)
Thousand Sunny square domeFlourescent Pink (C174)(70%) + Flourescent Orange (C173)(20%) + White (C1)(10%)
Thousand Sunny dome (yellow part)Yellow (H4)(90%) + White (H1)(10%)
Thousand Sunny house, sunny (mouth)White (H1)(60%) + Sail Color (H85)(40%)
Thousand Sunny orange tree (leaf green part)Flourescent Green (C175)(80%) + White (C1)(15%) + Yellow (C4)(5%)
Thousand Sunny orange tree (orange fruit)Orange Yellow (H24)(100%)
Thousand Sunny hull metal part (black silver part)Metal Black (H28)(100%)
Thousand Sunny lampPurple (H39)(40%) + Cobalt Blue (H35)(40%) + Field Gray (1)/Dark Gray (H32)(10%) + White (H1)(10%)
Thousand Sunny lamp (light part)White (H1)(80%) + Cobalt Blue (H35)(20%)
Thousand Sunny windowsLight Blue/mizu (H45)(80%) + White (H1)(20%)
Thousand Sunny sunny (face, hands)White (H1)(90%) + Yellow (H4)(10%)
Thousand Sunny sunny (mane part)Orange (H14)(85%) + White (H1)(15%)

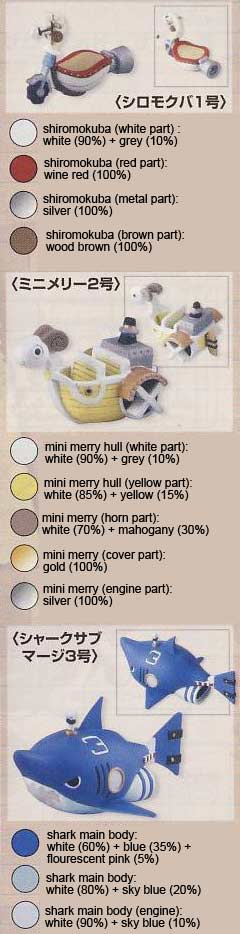

Shiromukuba white partWhite (H1)(90%) + Gray/Nezumi (H22)(10%)
Shiromukuba red partWine Red/Maroon (H43)(100%)
Shiromukuba metal partSilver (H8)(100%)
Shiromukuba wood brownWood Brown (H37)(100%)
Mini Merry hull white partWhite (H1)(90%) + Gray/Nezumi (H22)(10%)
Mini Merry hull yellow partWhite (H1)(85%) + Yellow (H4)(15%)
Mini Merry horn partWhite (H1)(70%) + Mahogany (H84)(30%)
Mini Merry cover partGold (H9)(100%)
Mini Merry engine partSilver (H8)(100%)
Shark Submerge main body blue partWhite (C1)(60%) + Blue (C5)(35%) + Flourescent Pink (C174)(5%)
Shark Submerge main bodyWhite (H1)(80%) + Sky Blue (H25)(20%)
Shark Submerge main body (engine)White (H1)(90%) + Sky Blue (H25)(10%)
Disclaimer

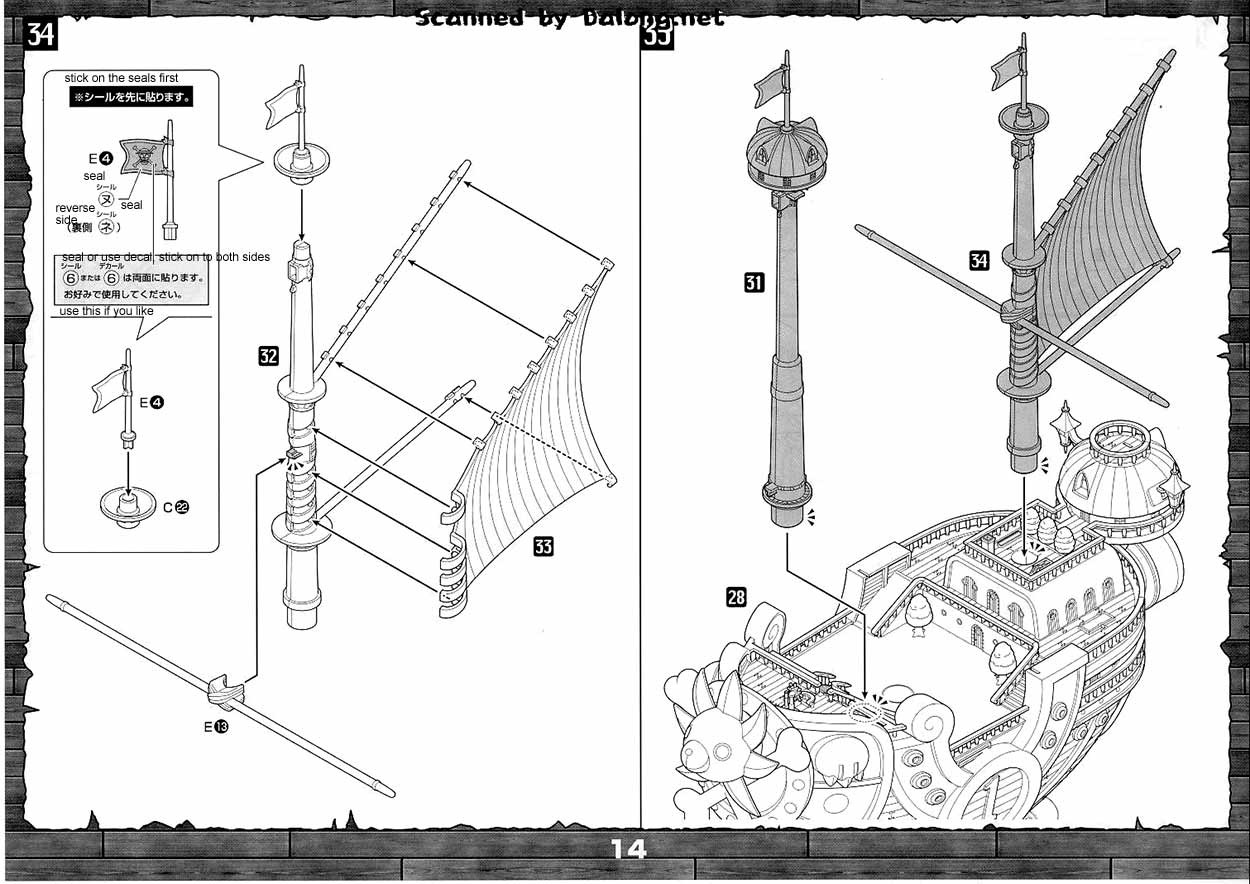

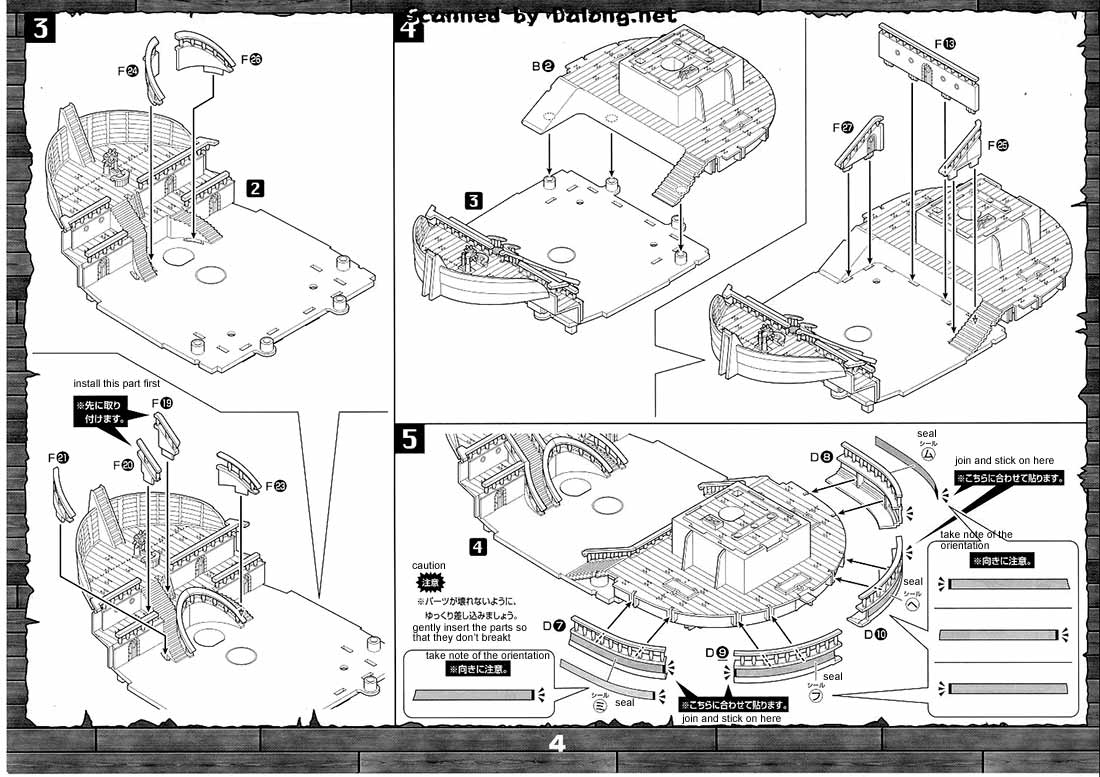

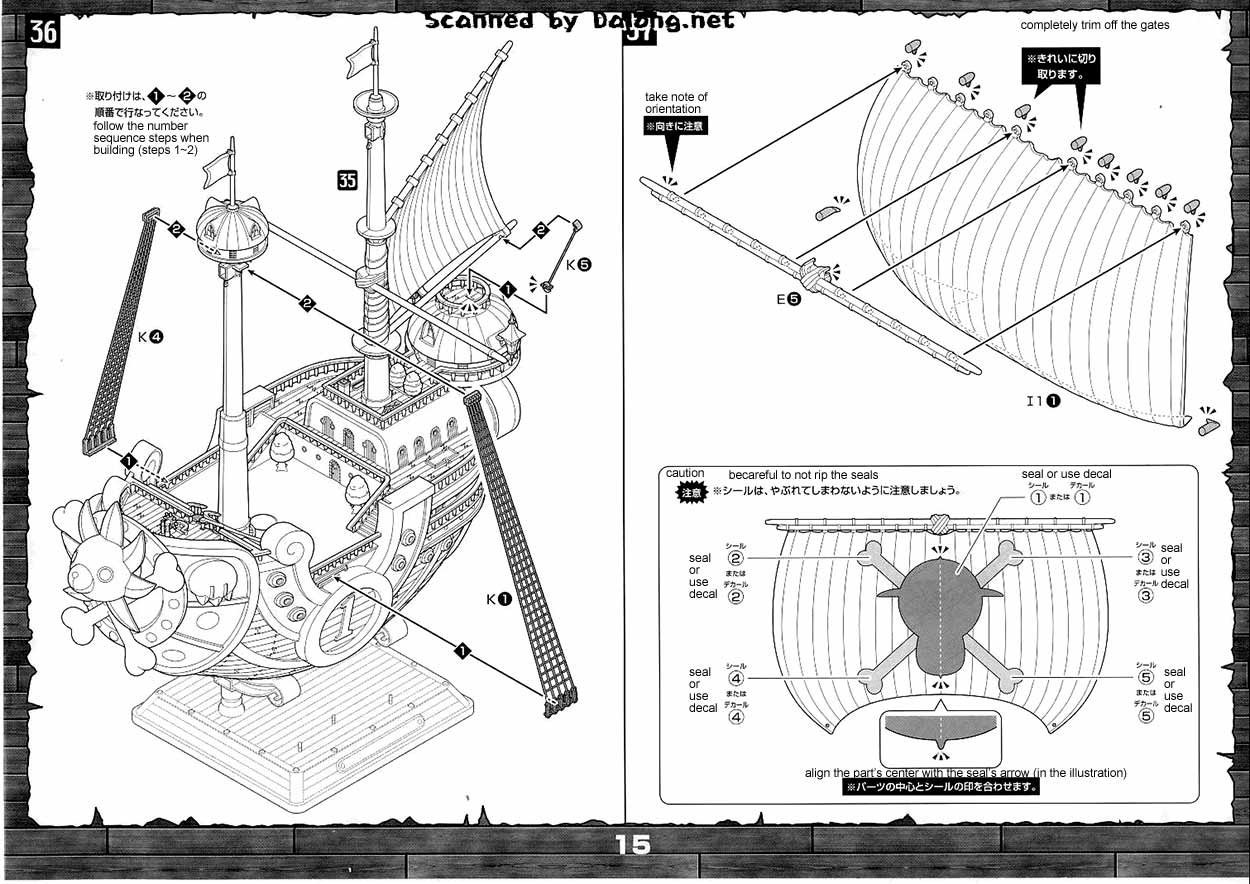

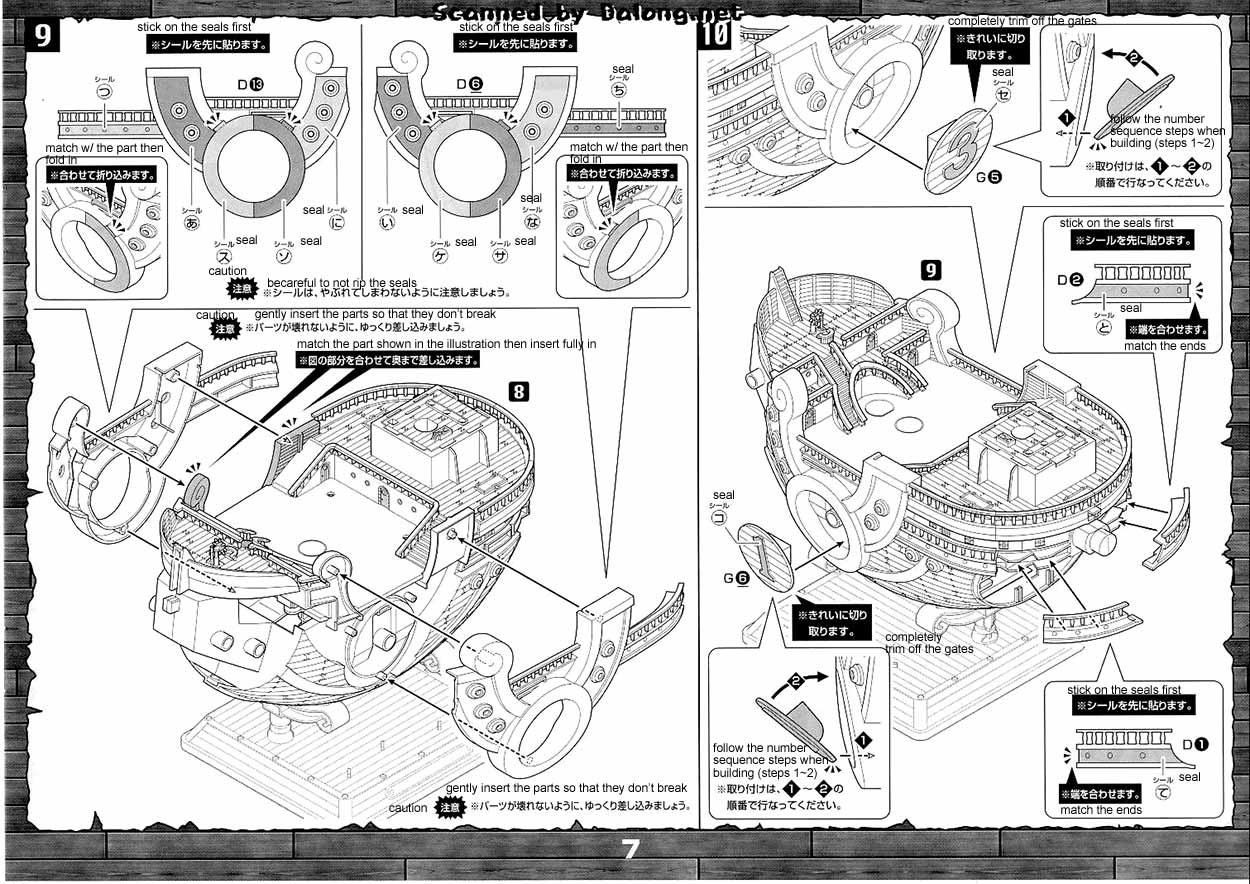

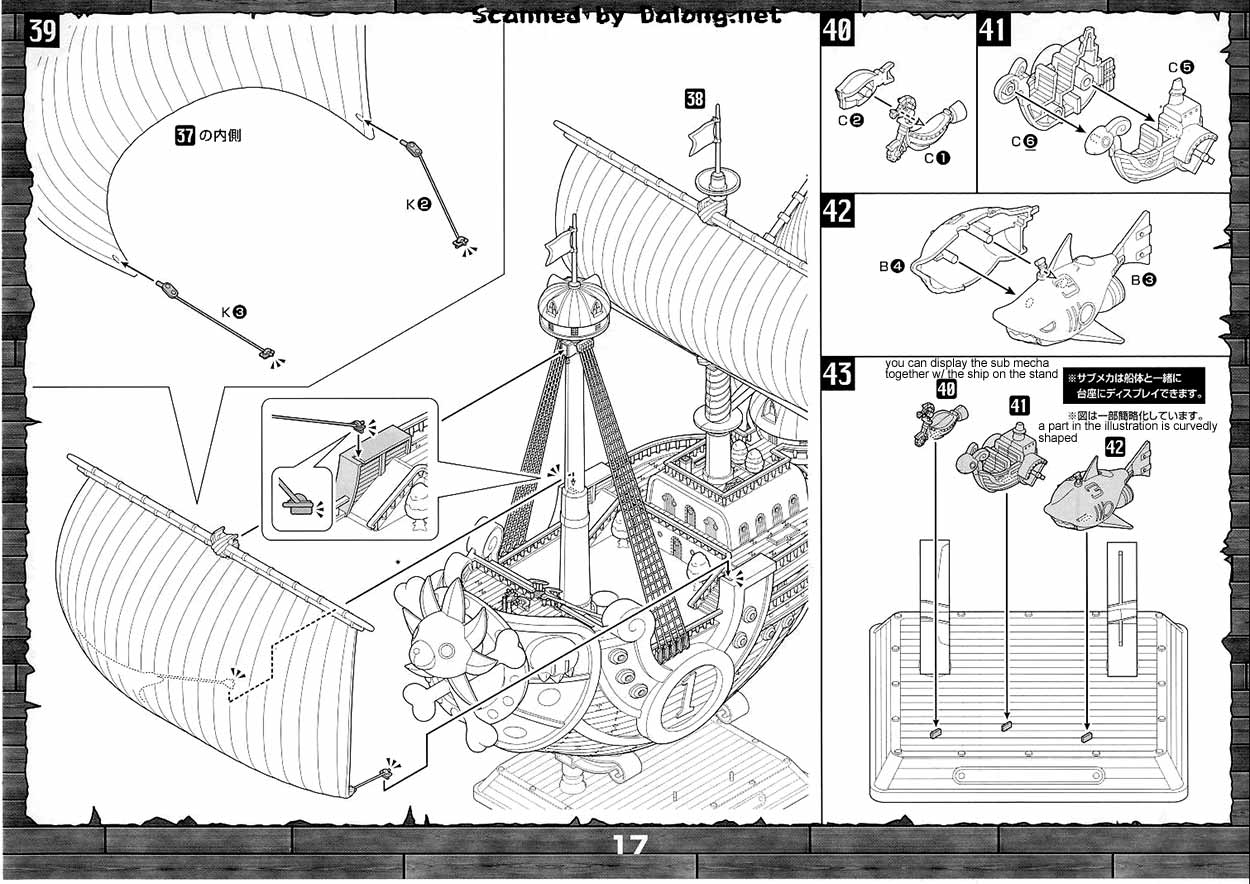

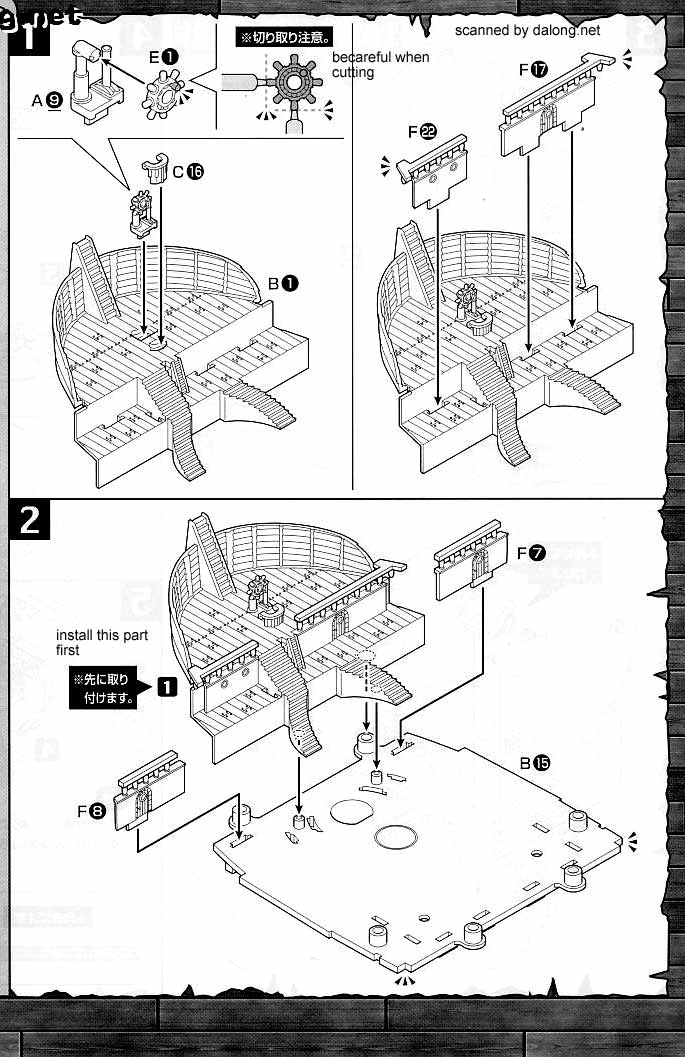

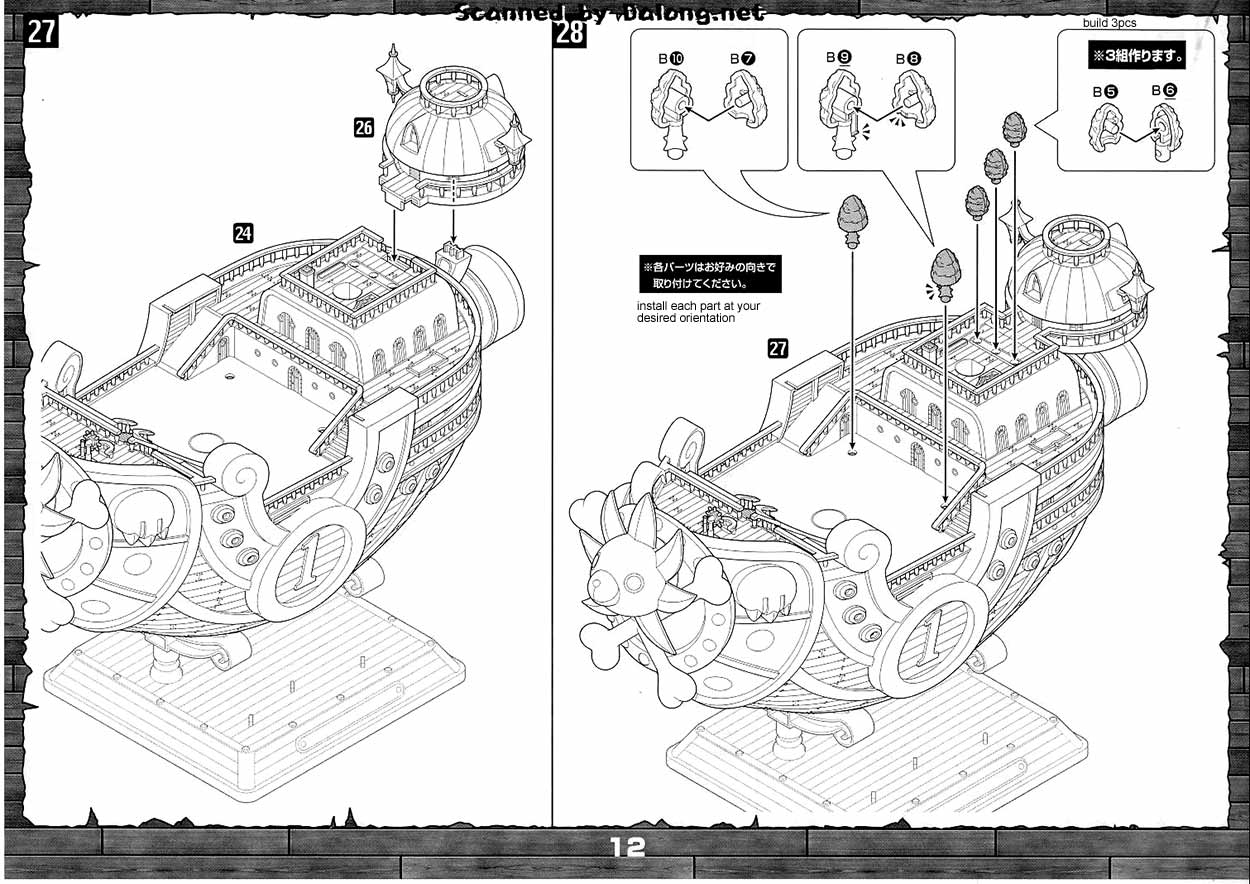

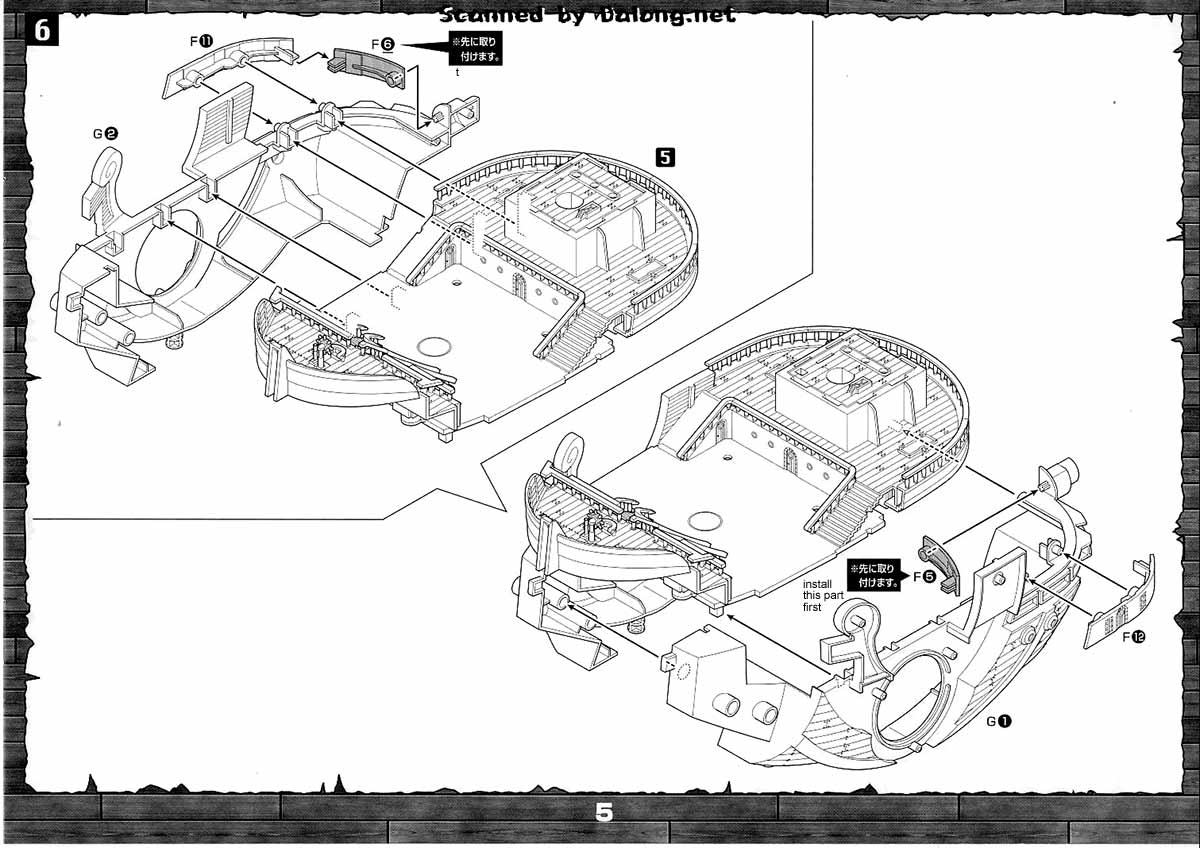

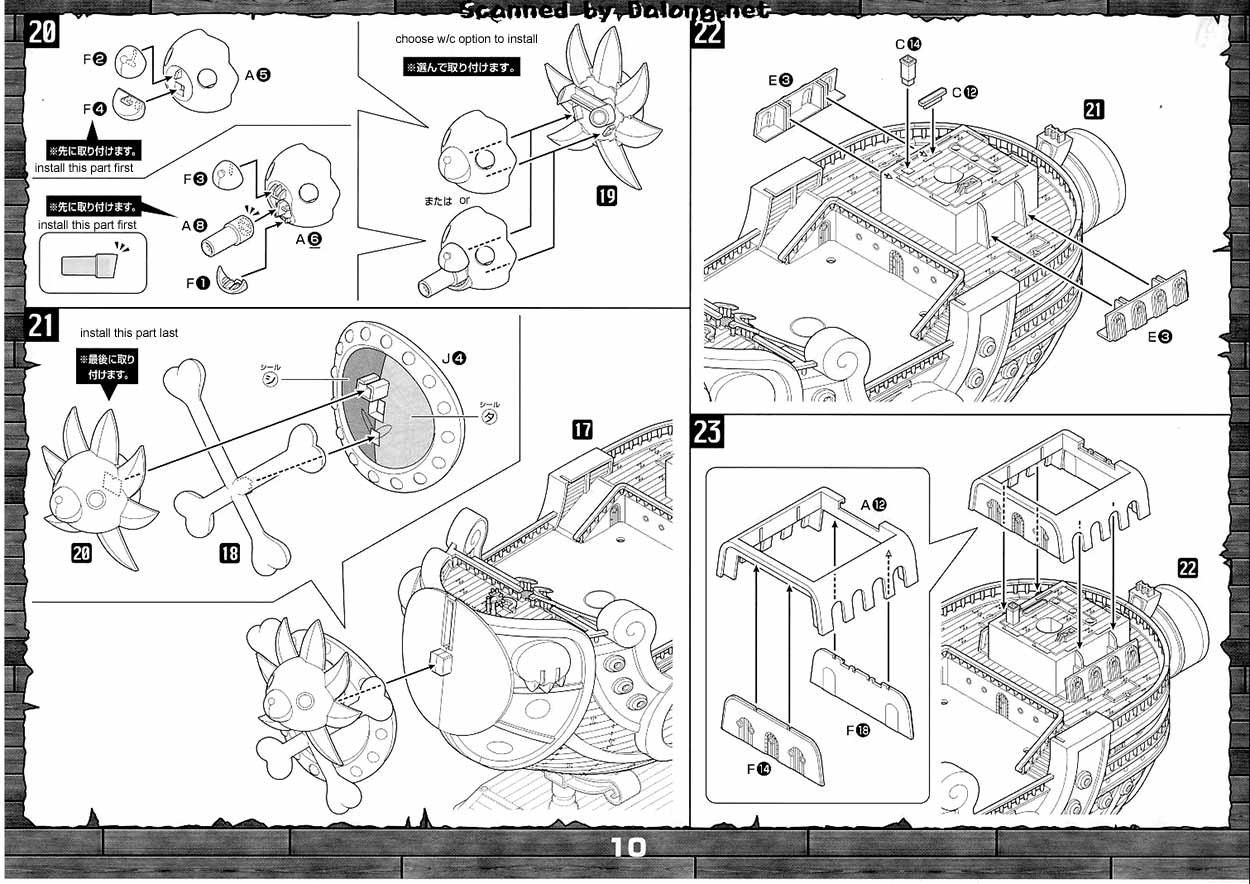

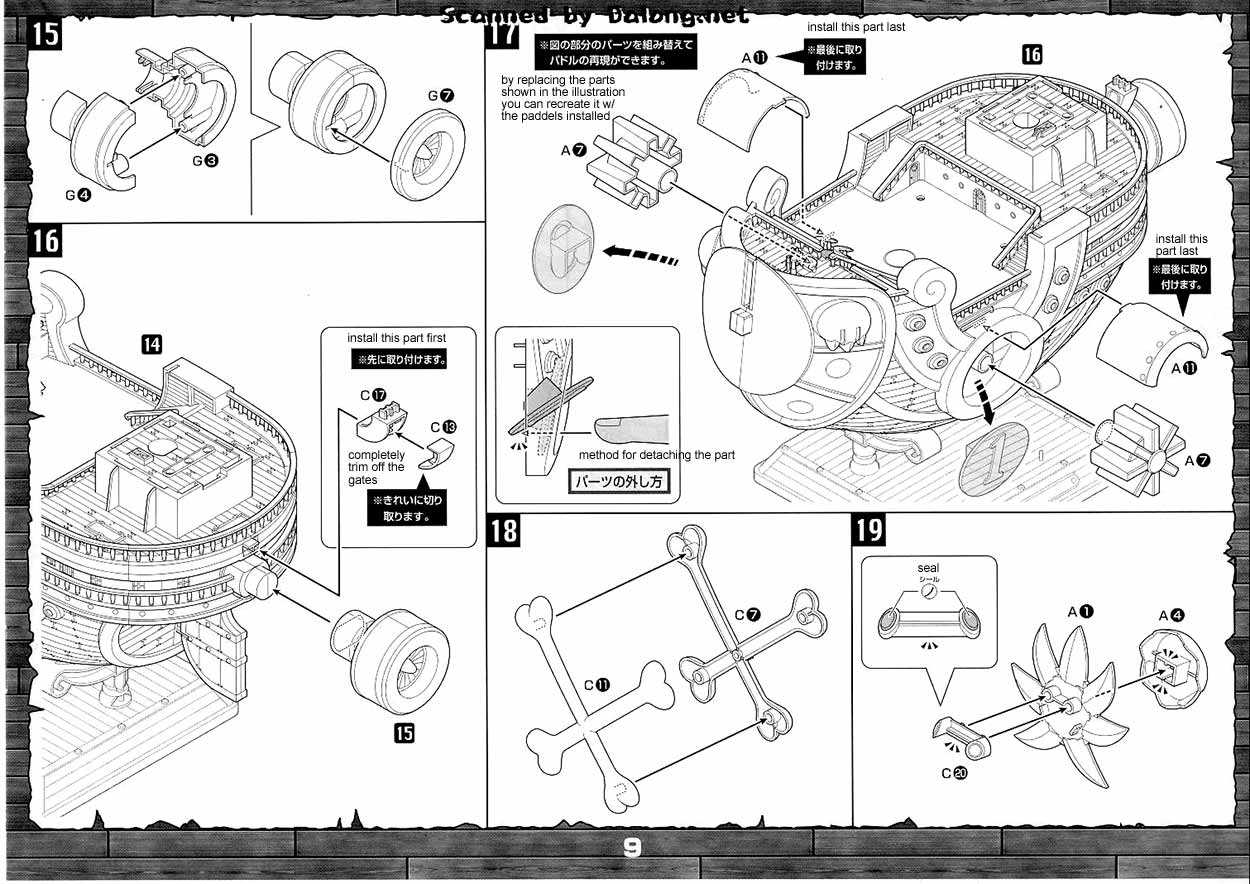

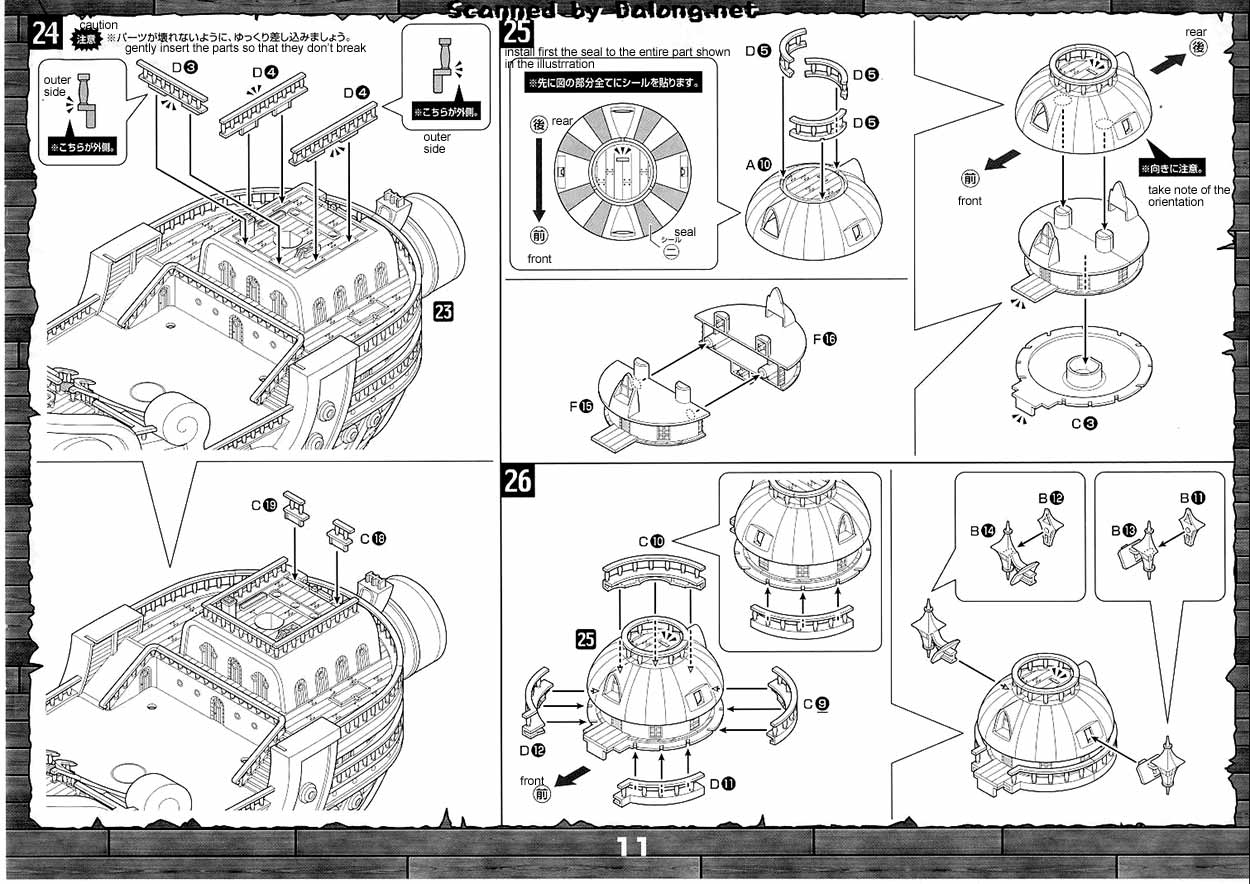

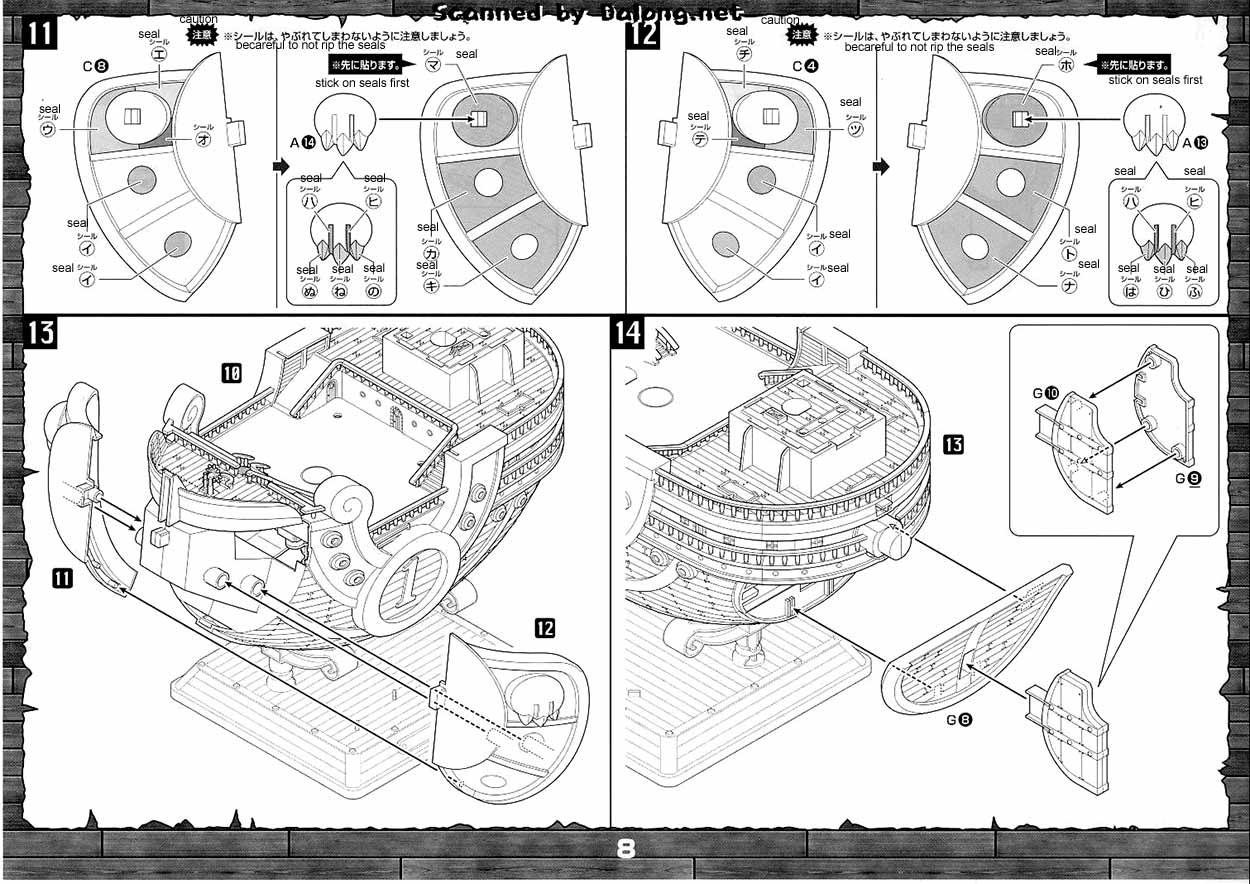

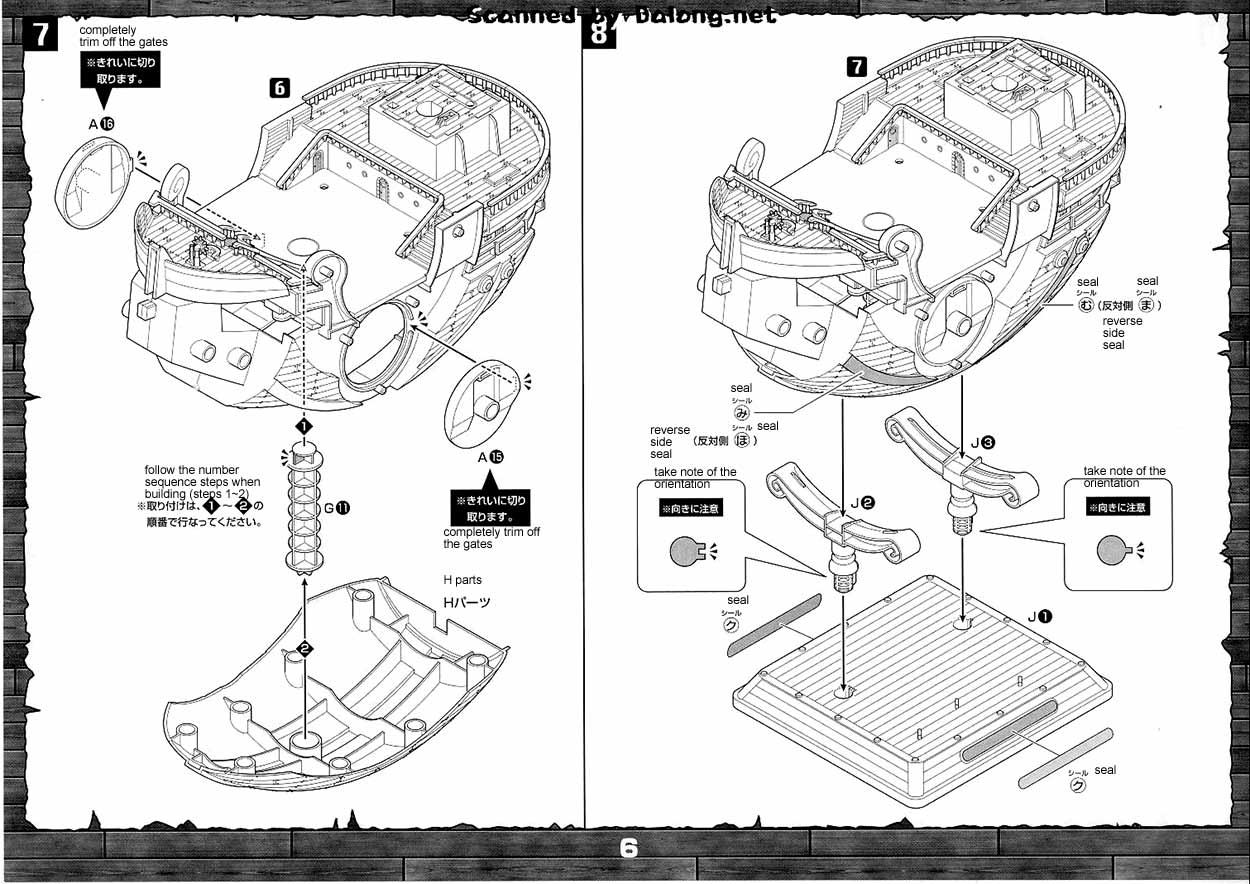

Color Guide & Manual for the Thousand Sunny was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

Thousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color Guide
Thousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color Guide
Thousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color Guide
Thousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color GuideThousand Sunny Bandai One Piece English Manual & Color Guide
Thousand Sunny Bandai One Piece English Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Sail Color (H85)Sail Color (C45)----IDF Sand Grey 73 (71.141)REAL IDF SAND GREY 73 (A.MIG-0132)IDF Sinai Grey 1973 (RC096)----Oak (Satin) (71)----Israeli Sandgrey 61-73 FS 30372 (UA020)--
Middle Stone (H71)Middle Stone (C21)--Middle Stone (70.882)Middlestone (71.031)DUNKELGELB BASE (A.MIG-0902)RAF Middle Stone (RC292)Mid Stone (HTK-_013)--Mid Stone (Matte) (84)RAF Middlestone ANA615 (F) (2052)--Middle Stone FS30266 (UA097)--
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
--Flourescent Pink (C174)------------------------
--Flourescent Orange (C173)------------------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
--Flourescent Green (C175)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Metal Black (H28)Metal Black (C78)Gun Metal (X10)Glossy Black (70.861)Black (Metallic) (71.073)--Gun Metal (Metallic) (RC015)Gunmetal (HTK-_106)--Metallic Black (metallic) (201)Gun Metal (F) (1795)Gunmetal (X506)Matt Gun Metal FS 37200 (LC26)--
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Field Gray (1)/Dark Gray (H32)German Gray/Field Gray (1) (C40)German Gray (XF63)German Grey Dark (70.995)Engine Grey (71.048)GRAUGRÜN (A.MIG-0253)Dark Eggplant Grey (RC242)Dark Grey (HTK-_230)Tank Grey (solid matt) (32178)Tank Grey (Matte) (67)Engine Gray FS36076 (2034)FS16076 Engine Grey (X128)--Graugrün RLM 74 (4784AP)
Light Blue/mizu (H45)----Sky Blue (70.961)AII SV. Gol Light Blue (71.317)SKY LINE BLUE A II (A.MIG-0224)Air Superiority Blue (RC239)Air Superiority Blue (HTK-_155)--Sea Blue (Gloss) (47)----Air Superiority Blue FS35450 (UA037)Gloss Light Blue (4650AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)------Metal. Gloss Gold (4671AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
