1/72 Rayleonard 03-Aaliyah English Manual & Color Guide

1/72 Rayleonard 03-Aaliyah English Construction Manual & Color Guide

Released in 2007 by Kotobukiya for their Armored Core line is the 1/72 Rayleonard 03-Aaliyah. Armored Core is the popular console based game where the player controls and armored mech. If I'm not mistaken, this particular kit is the first kit from the Armored Core NEXT line of Kotobukiya. A lot of the kits in the Armored Core line are configured to specifically accept some major components of the Rayleonard 03-Aaliyah, as stated in their individual manuals.

The 1/72 Rayleonard 03-Aaliyah is selling for $$$ at Amazon, 3000 yen at Amiami, 3800 yen at HobbyLink Japan, 3570 yen at Hobby Search

1/72 Rayleonard 03-Aaliyah English Construction Manual & Color Guide

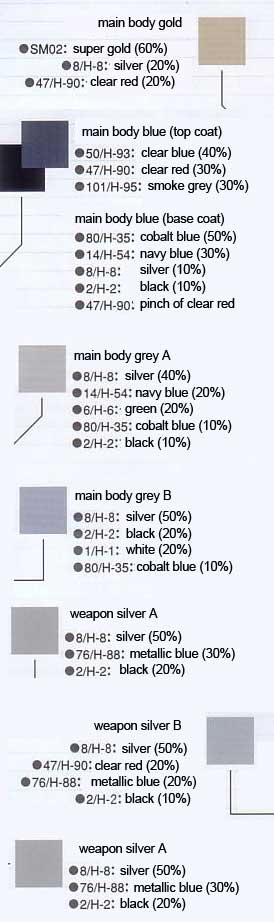

Color Guide DescriptionPaint Ratios
main body gold partSuper Metallic Super Gold (SM02)(60%) + Silver (H8)(20%) + Clear Red (H90)(20%)
main body blue part (top coat)Clear Blue (H93)(40%) + Clear Red (H90)(30%) + Smoke Gray (H95)(30%)
main body blue part (base coat)Cobalt Blue (H35)(50%) + Navy Blue (H54)(30%) + Silver (H8)(10%) + Black (H2)(10%) + Clear Red (H90)(small dose)
main body gray ASilver (H8)(40%) + Navy Blue (H54)(20%) + Green (H6)(20%) + Cobalt Blue (H35)(10%) + Black (H2)(10%)
main body gray BSilver (H8)(50%) + Black (H2)(20%) + White (H1)(20%) + Cobalt Blue (H35)(10%)
weapon Silver ASilver (H8)(50%) + Metallic Blue (H88)(30%) + Black (H2)(20%)
weapon Silver BSilver (H8)(50%) + Clear Red (H90)(20%) + Metallic Blue (H88)(20%) + Black (H2)(10%)
weapons silver ASilver (H8)(50%) + Metallic Blue (H88)(30%) + Black (H2)(20%)
Disclaimer





Construction Manual & Color Guide was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

Not much Japanese text can be found in the manual, so only the pages with the said Japanese text were translated.

1/72 Rayleonard 03-Aaliyah English Construction Manual & Color Guide 1/72 Rayleonard 03-Aaliyah English Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
--Super Metallic Super Gold (SM02)------------------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Smoke Gray (H95)Smoke Gray (C101)Smoke (X19)----CRYSTAL SMOKE (A.MIG-0095)Clear Smoke (RC508)--------------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Metallic Blue (H88)Metallic Blue (C76)Metallic Blue (X13)----WARHEAD METALLIC BLUE (A.MIG-0196)----[32198]Baltic Blue (metallic) (52)--------
