HMM Dark Horn Harry Special English Manual & Color Guide

1/72 HMM Dark Horn Harry Special English Translation Color Guide & Manual

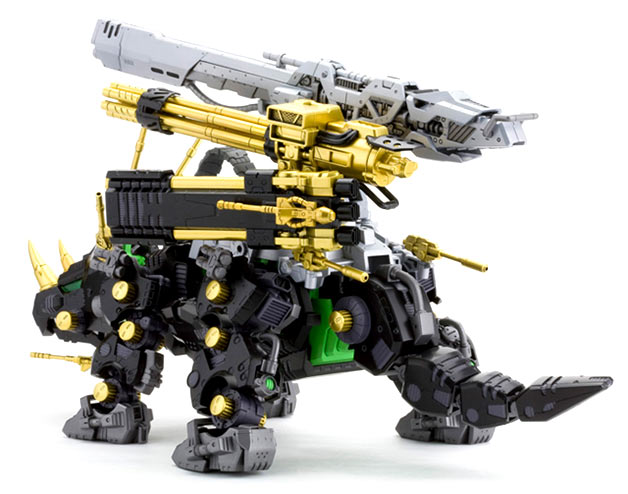

From Zoids New Century Zero, the eternally infatuated Harry Champ's custom Dark Horn that was released last month by Kotobukiya as a 1/72 scale HMM Model Kit. Despite professing eternal affection to Leena Toros of the Blitz team, this does not stop him from going up against them in his Dark Horn. Harry Champ is one part of the comedic aspect of the New Century Anime that makes it a fun and light-hearted series to watch.

1/72 HMM Dark Horn Harry Special English Translation Color Guide & Manual


The 1/72 HMM Dark Horn Harry Special is selling for $ at Amazon, 5050 yen at Amiami, 5840 yen at HobbyLink Japan, 6205 yen at Hobby Search.

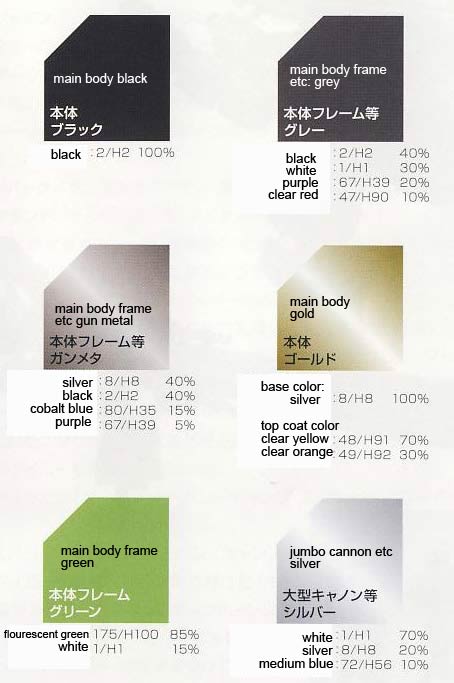

Color Guide DescriptionPaint Ratios
main body black partBlack (H2)(100%)
main body frame etc gun metal partSilver (H8)(40%) + Black (H2)(40%) + Cobalt Blue (H35)(15%) + Purple (H39)(5%)
main body frame etc green partFlourescent Green (C175)(85%) + White (C1)(15%)
main body frame etc gray partBlack (H2)(40%) + White (H1)(30%) + Purple (H39)(20%) + Clear Red (H90)(10%)
main body gold part base colorSilver (H8)(100%)
main body gold part top coatClear Yellow (H91)(70%) + Clear Orange (H92)(30%)
jumbo cannon etc silver partWhite (H1)(70%) + Silver (H8)(20%) + Medium Blue/Intermediate Blue (H56)(10%)
Disclaimer






Construction Manual and Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual

1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual

1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual

1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual 1/72 HMM Dark Horn Harry Special Color Guide & Manual

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Cobalt Blue (H35)Cobalt Blue (C80)----------------------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)------
--Flourescent Green (C175)----------------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)----Gloss Red (4605AP)
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)------------
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)Non Specular Intermediate Blue FS 35164 (UA045)--
