MG Full Armor Gundam English Manual and Color Guide

Bandai Master Grade MG FA-78-1 Full Armor Gundam English Construction Manual and Color Guide

FA-78-1 Full Armor Gundam from Mobile Suit Variations of the Universal Century timeline that never really made it into any Gundam Anime series but was considered part of the official Gundam mecha designs.

Quite cool looking really. What the FA-78-1 Full Armor Gundam lacks in mobility it tries to make up for it in firepower. Reminds me a lot of the GBP-1S equipped VF-1's from the Macross Universe.

The MG FA-78-1 Full Armor Gundam is selling for 3640 yen at Amiami, 5000 yen at HobbyLink Japan, 3500 yen at HWJapan, $$$$ in Amazon 3rd party sellers.

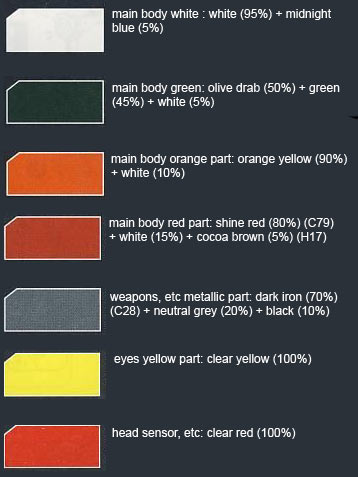

Color Guide DescriptionPaint Ratios
MG Full Armor Gundam main body white partWhite (H1)(95%) + Midnight Blue (H55)(5%)
MG Full Armor Gundam main body green partOlive Drab (1) (H52)(50%) + Green (H6)(45%) + White (H1)(5%)
MG Full Armor Gundam main body orange partOrange Yellow (H24)(90%) + White (H1)(10%)
MG Full Armor Gundam main body red partShine Red (H23)(80%) + White (H1)(15%) + Cocoa Brown (H17)(5%)
MG Full Armor Gundam weapons etc metallic partSteel (H18)(70%) + Neutral Gray (H53)(20%) + Black (H2)(10%)
MG Full Armor Gundam eyes yellow partClear Yellow (H91)(100%)
MG Full Armor Gundam head sensor etcClear Red (H90)(100%)

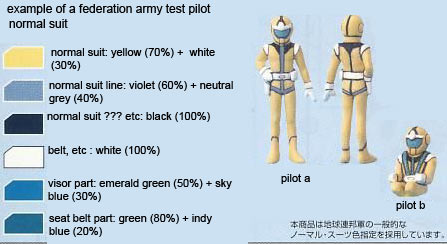

federation army test pilot normal suitYellow (H4)(70%) + White (H1)(30%)
federation army test pilot normal suit lineViolet (H49)(60%) + Neutral Gray (H53)(40%)
federation army test pilot normal suit shoulders etcBlack (H2)(100%)
federation army test pilot belt etcWhite (H1)(100%)
federation army test pilot visor partEmerald Green (H46)(50%) + Sky Blue (H25)(30%) + White (H1)(20%)
federation army test pilot seat belt partGreen (H6)(80%) + Bright Blue/Indy Blue (H15)(20%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Olive Drab (1) (H52)--------------------------
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Steel (H18)Steel (C28)--Oily Steel (Metallic) (70.865)Steel (Metallic) (71.065)STEEL (A.MIG-0191)----steel (solid metallic) (32191)Polished Steel (metalcote) (27003)------Metal. Flat Steel (4679AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)--------------
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)--------
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------

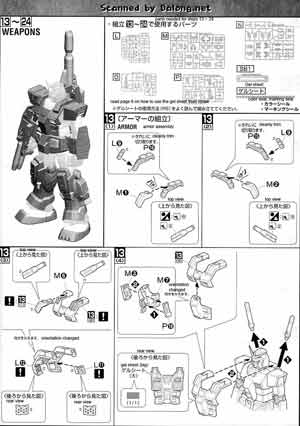

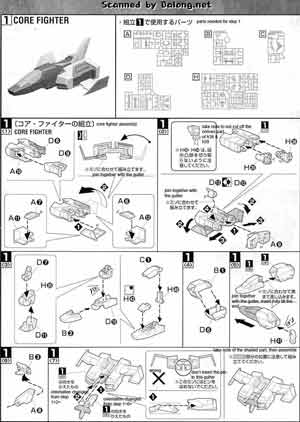

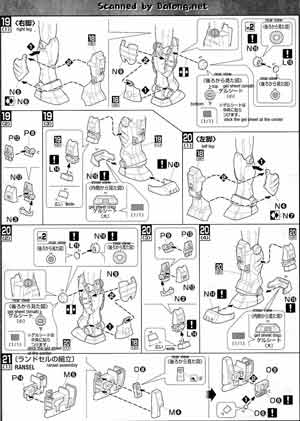

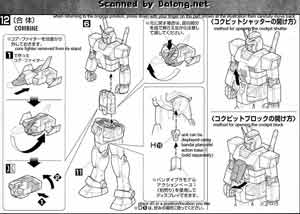

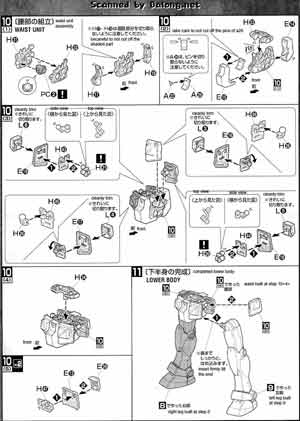

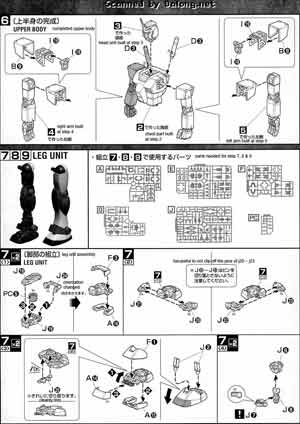

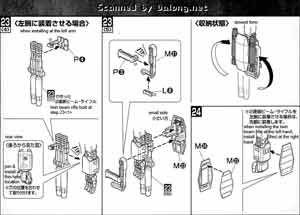

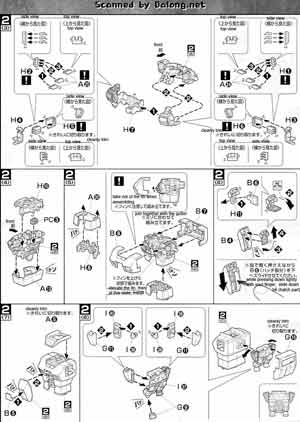

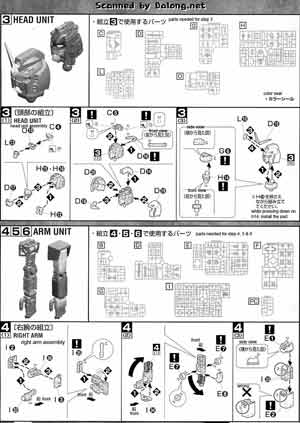

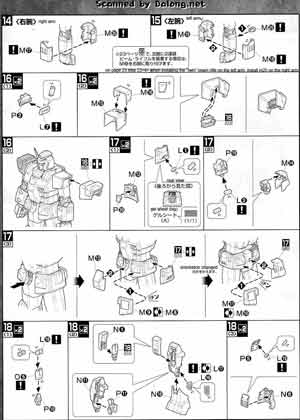

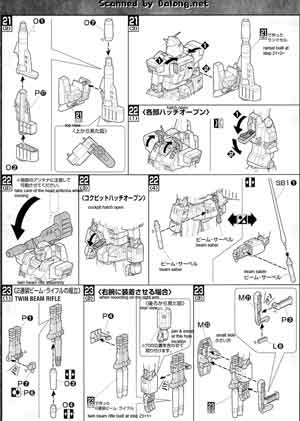

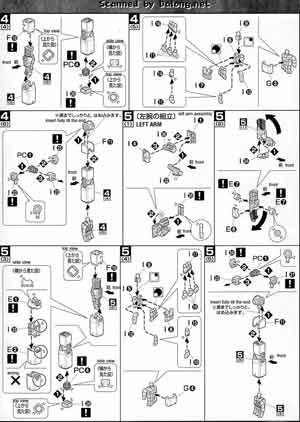

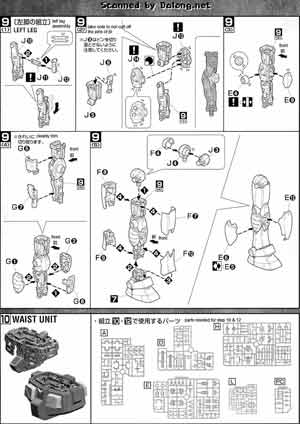

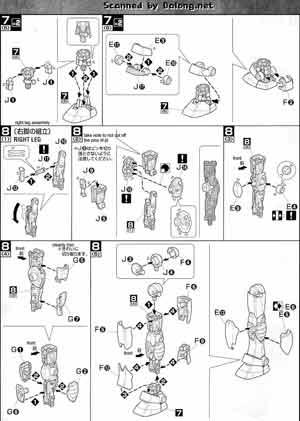

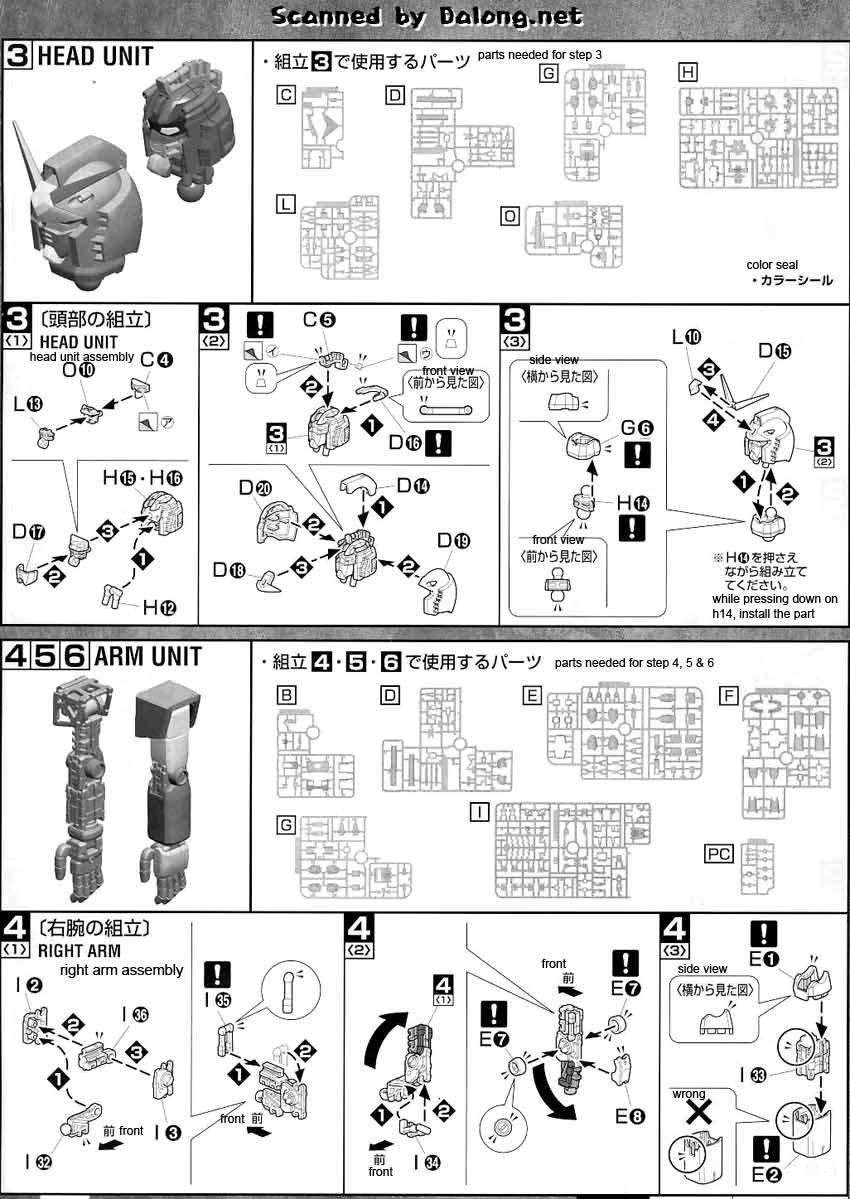

Construction Manual and Color Guide for the FA-78-1 Full Armor Gundam was translated to English from the Japanese manual posted at Dalong's Model kit review site. For the meaning of the symbols found in the model kit manual, kindly refer to this previous post.
