HG Gaplant TR-5 Hrairoo English Manual and Color Guide

HGUC ORX-005 Gaplant TR-5 Hrairoo Construction Manual and Color Guide

Never liked the Gaplant mobile armor that was first seen in Zeta Gundam, that was till I saw the Gaplant TR-5 Hrairoo variant that was made into a HGUC kit by Bandai. The Gaplant Hrairoo never made it into a Gundam anime series but rather was part of the Advance of Zeta: The Flag of Titans manga. Surprising what a coat of white paint and a little tweak here-and-there can do to shatter your long held paradigm *snicker*

Construction Manual and Color Guide were translated to English from the original Japanese color guide posted at Dalong.

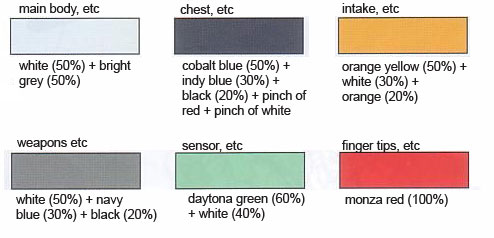

Color Guide DescriptionPaint Ratios
HG Gaplant TR-5 Hrairoo main body etc white partWhite (H1)(50%) + IJN Gray (H61)(50%)
HG Gaplant TR-5 Hrairoo weapons etcWhite (H1)(50%) + Navy Blue (H54)(30%) + Black (H2)(20%)
HG Gaplant TR-5 Hrairoo chest etcCobalt Blue (H35)(50%) + Bright Blue/Indy Blue (H15)(30%) + Black (H2)(20%) + Red (H3)(small dose) + White (H1)(small dose)
HG Gaplant TR-5 Hrairoo sensor etcBright Green/Daytona Green (H26)(60%) + White (H1)(40%)
HG Gaplant TR-5 Hrairoo intake etcOrange Yellow (H24)(50%) + White (H1)(30%) + Orange (H14)(20%)
HG Gaplant TR-5 Hrairoo finger tips etcMonza Red/Red Madder (H86)(100%)
Disclaimer






Paint Conversion Table:  (Disclaimer | How to Use)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Red
(H3)
Aqueous Hobby Color
Red
(C3)
Mr. Color
Red
(X7)
Tamiya Color Acrylic Paint
Carmine Red
(70.908)
Vallejo Model Color
Red RLM23
(71.003)
Vallejo Model Air
Bright Red (Gloss)
(19)
Humbrol Enamel
Bright Red (Gloss)
(19)
Humbrol Acrylic
Fiery Red (Gloss)
(36131)
Revell Aqua Color Acrylic
fiery red (solid matt)
(32131)
Revell Email Enamel
RED
(A.MIG-0049)
Ammo Acrylics
Traffic Red
(HTK-_103)
Hataka

Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Bright Blue/Indy Blue
(H15)
Aqueous Hobby Color
Bright Blue/Indy Blue
(C65)
Mr. Color
Blue
(X4)
Tamiya Color Acrylic Paint
Dark Blue
(70.930)
Vallejo Model Color
French Blue (Gloss)
(14)
Humbrol Enamel
French Blue (Gloss)
(14)
Humbrol Acrylic
Blue (Gloss)
(36152)
Revell Aqua Color Acrylic
blue (solid matt)
(32152)
Revell Email Enamel
MEDIUM BLUE
(A.MIG-0103)
Ammo Acrylics
Gloss French Blue
(4659AP)
Italeri
Ultramarine
(70.839)
Vallejo Model Color
Lufthansa Blue RAL 5022
(198)
Humbrol Enamel
Flat Blue
(XF8)
Tamiya Color Acrylic Paints (Flat)

Orange Yellow
(H24)
Aqueous Hobby Color
Orange Yellow
(C58)
Mr. Color
Light Orange
(70.911)
Vallejo Model Color
Orange Rust
(71.130)
Vallejo Model Air
LIGHT RUST
(A.MIG-0039)
Ammo Acrylics
Signal Orange
(HTK-_133)
Hataka

Bright Green/Daytona Green
(H26)
Aqueous Hobby Color
Bright Green/Daytona Green
(C66)
Mr. Color
Emerald (Gloss)
(2)
Humbrol Enamel
Emerald (Gloss)
(2)
Humbrol Acrylic
Emerald Green (Gloss)
(36161)
Revell Aqua Color Acrylic
emerald green (solid matt)
(32161)
Revell Email Enamel
SIGNAL GREEN
(A.MIG-0054)
Ammo Acrylics

Cobalt Blue
(H35)
Aqueous Hobby Color
Cobalt Blue
(C80)
Mr. Color

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Navy Blue
(AS8)
Tamiya Color Spray For Aircraft
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color

IJN Gray
(H61)
Aqueous Hobby Color
IJN Gray(Mitsubishi)
(C35)
Mr. Color
J.N. Gray
(XF12)
Tamiya Color Acrylic Paints (Flat)
Medium Sea Grey
(70.870)
Vallejo Model Color
Light Gray
(71.050)
Vallejo Model Air
Light Grey (Matte)
(64)
Humbrol Enamel
Light Grey (Matte)
(64)
Humbrol Acrylic
stone grey (solid matt)
(36175)
Revell Aqua Color Acrylic
stone grey (solid matt)
(32175)
Revell Email Enamel
IJN J3 Hai-Iro (Grey)
(RC302)
AK Real Color
IJN Gray (Mitsubishi)
(N61)
Acrysion
J.N. Gray
(XF-12)
Tamiya Enamel
Medium Grey
(69.038)
Vallejo Mecha Color
light gray (IJN) (Lacquer Paint)
(LP32)
Tamiya Lacquer Paint
Medium Sea Gray BS381C/637
(C335)
Mr. Color
Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color


The HGUC ORX-005 Gaplant TR-5 Hrairoo is selling for 1758 yen at Amiami, 2400 yen at Hobby Link Japan
