1/100 Nix Providence Gundam English Manual & Color Guide

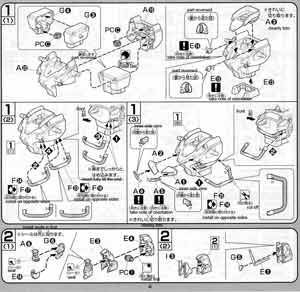

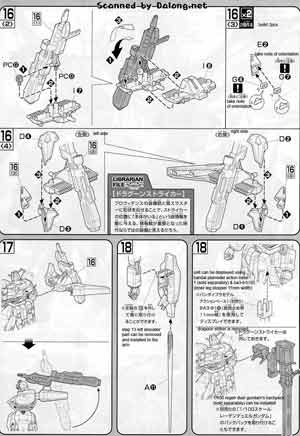

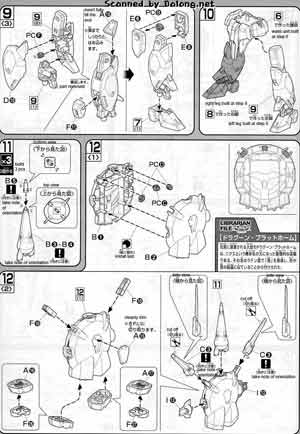

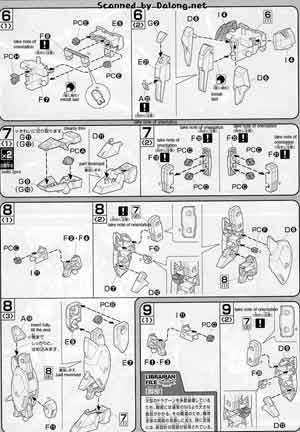

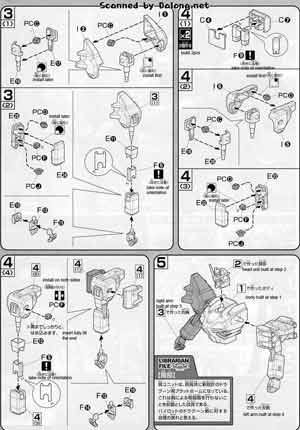

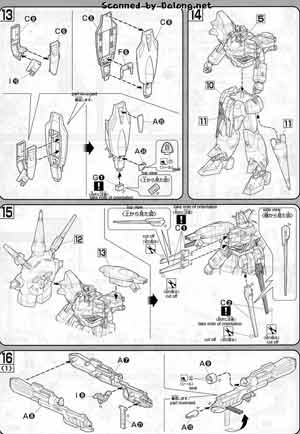

1/100 LN-2GMF-X13A Nix Providence Gundam Construction Manual and Color Guide

Prayer Reverie's LN-2GMF-X13A Nix Providence Gundam from the Gundam Seed vs Astray Manga series. I see the irony with the name of the pilot and this mobile suit because the look of Nix Providence just has "Bad Ass" written all over it. I used to hate the Providence Gundam but after seeing this variant in this pose, I feel that my paradigms have been erased and I'm starting to see the beauty in this kit.

Operated by the Librarian Works Organization, the Nix Providence is based off the Providence Gundam of Rau Le Creuset in the original Gundam Seed anime series. The Nix Providence also employs a Dragoon system of remotely controlled beam weapons that can be used to attack an enemy from multiple vectors.

The 1/100 LN-2GMF-X13A Nix Providence Gundam is selling for 1830 yen at Amiami, 2500 yen at Hobby Link Japan, 1750 yen at HWJapan, $$$ at Amazon 3rd party suppliers.

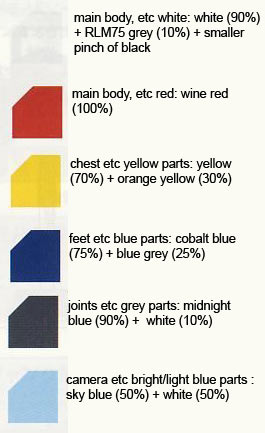

Color Guide DescriptionPaint Ratios
main body etc white partsWhite (H1)(90%) + RLM75 Gray Violet/RLM 75 Gray (H69)(10%) + Black (H2)(small dose)
main body etc red partsWine Red/Maroon (H43)(100%)
chest etc yellow partsYellow (H4)(70%) + Orange Yellow (H24)(30%)
feet etc blue partsCobalt Blue (H35)(75%) + Blue Gray (H42)(25%)
joints etc gray partsMidnight Blue (H55)(90%) + White (H1)(10%)
camera etc bright/light blue partsSky Blue (H25)(50%) + White (H1)(50%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
RLM75 Gray Violet/RLM 75 Gray (H69)RLM75 Gray Violet (C37)Dark Gray (XF24)Basalt Grey (70.869)Grey Violet RLM75 (71.259)GRAUVIOLETT (A.MIG-0254)RLM 75 (RC279)Grey-Violet (HTK-_007)dark grey (solid silk matt) (32378)Extra Dark Sea Grey (Satin) (123)Grauviolett RLM75 (SG) (2085)Grauviolett RLM 75 (UA508)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
Cobalt Blue (H35)Cobalt Blue (C80)----------------------
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)----Flat Non Specular Interm. Blue (4639AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)------

Construction Manual and Color Guide for the LN-2GMF-X13A Nix Providence Gundam was translated to English from the Japanese manual posted at Dalong.
