1/100 GN-008 Gundam Seravee English Manual & Color Guide

Bandai 1/100 GN-008 Gundam Seravee from Gundam 00 Translated English Construction Manual

The GN-008 Gundam Seravee made its appearance in the first episode of Gundam 00 Season 2. Piloted by Tiera Erde it is the heavy weapons specialist of Celestial Being. Aside from packing a whallop with the myriad of GN Bazooka configurations it can do, it is the only Gundam equipped with a GN Shield to protect it from attack.

The Seravee also supercedes the GN-005 Gundam Virtue that was also piloted by Tiera in Gundam 00 Season 1. Like the Gundam Virtue, the Gundam Seravee also plays host to another Gundam. For the Virtue it was the Gundam Nadleeh, for the Seravee it is the super secrative GN-009 Gundam Seraphim.

The Gundam Seravee costs $$$ at Amazon, 3420 yen at Hobby Search, 2520 yen at HWJapan. At Amiami it costs 2637 yen. At Hobby Link Japan it costs 3600 yen.

Color Guide DescriptionPaint Ratios
1/100 Gundam Seravee main body white parts White (H1)(100%) + Navy Blue (H54)(small dose)
1/100 Gundam Seravee main body etc blue parts Navy Blue (H54)(55%) + Bright Blue/Indy Blue (H15)(30%) + White (H1)(15%)
1/100 Gundam Seravee abdomen etc red parts Monza Red/Red Madder (H86)(100%)
1/100 Gundam Seravee head antenna etc yellow parts Yellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
1/100 Gundam Seravee joints gray parts Neutral Gray (H53)(90%) + Black (H2)(10%)
1/100 Gundam Seraphim main body etc dark gray parts Midnight Blue (H55)(100%) + Red (H3)(small dose)
1/100 Gundam Seravee arms internal lens dark green parts Navy Blue (H54)(80%) + Bright Green/Daytona Green (H26)(20%)
1/100 Gundam Seravee eyes clear green part Clear Blue (H93)(80%) + Clear Green (H94)(20%)
1/100 Gundam Seravee forehead clear red parts Clear Red (H90)(80%) + Clear Orange (H92)(20%)
1/100 Gundam Seravee GN Bazooka II blue gray parts Medium Blue/Intermediate Blue (H56)(60%) + Black (H2)(20%) + White (H1)(10%) + Red (H3)(10%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--

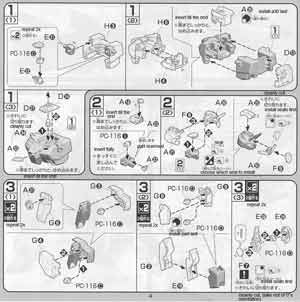

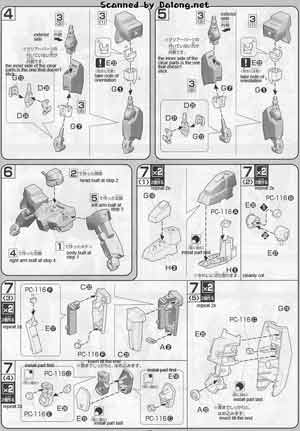

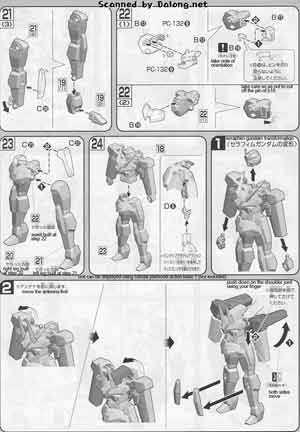

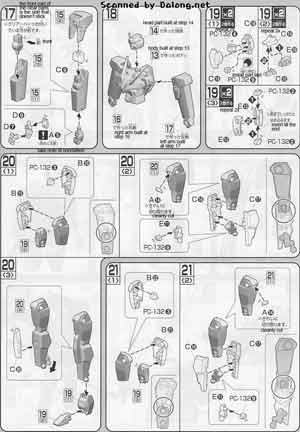

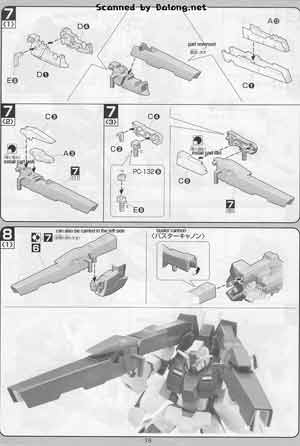

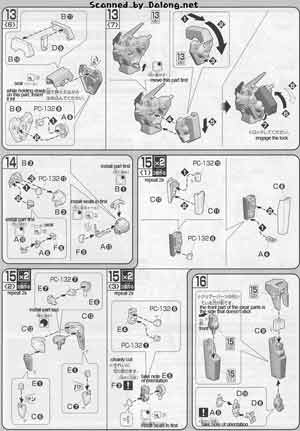

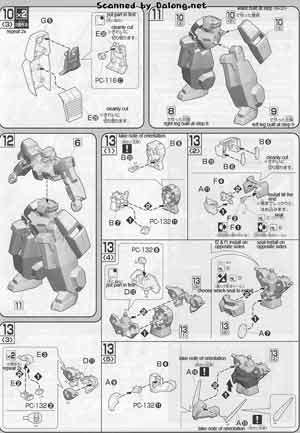

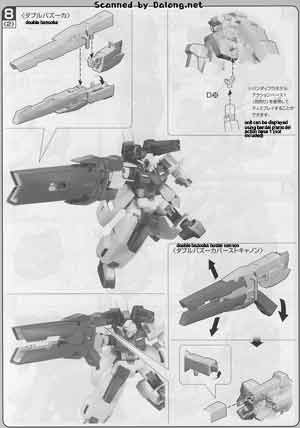

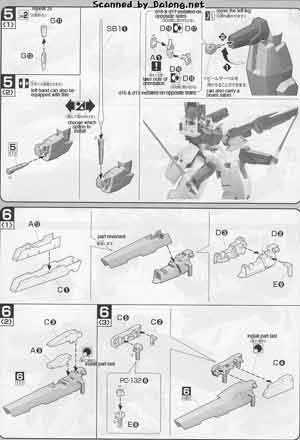

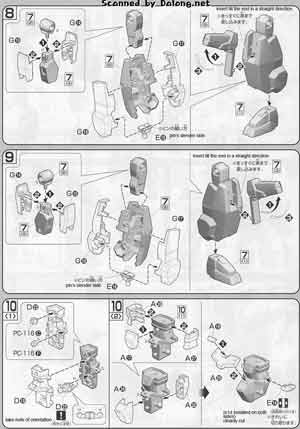

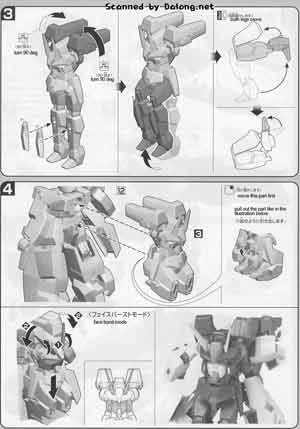

Construction Manual of GN-008 Gundam Seravee was translated to English from the Japanese manual posted at Dalong. Color Guide for the Gundam Seravee can be found here. More translated Color Guides & Construction Manuals can be found here.

In the translated manual there is a line that says "the inner side of the clear parts is the one that doesn't stick", Looking at it now, it seems that the better translation for this is: "the inner side is where the clear parts aren't attached."
