MG Zaku II of Johnny Ridden v2.0 English Color Guide & Manual

MS-06R-2 Zaku II of Johnny Ridden v2.0

I posted before that Shin "the White Wolf" Matsunaga's Zaku II custom was a model kit I'd buy if I were basing it on box art alone. Johnny Ridden's Zaku II is a model kit I'd buy If I were buying it based on "name" alone. I mean how cool is a name like "Johnny Ridden"? Its like being the Clint Eastwood of Zaku pilots... and when I mean Clint Eastwood, I mean "Josey Wales" Clint Eastwood.... hehehe


The 1/100 Master Grade Zaku II of Johnny Ridden v2.0 is selling for $$$$ at Amazon

MS-06R-2 Zaku II of Johnny Ridden v2.0
Construction Manual & Color Guide was translated to English from the manual posted over at Dalong. For the meaning of the symbols found in the model kit's manual, kindly refer to this post

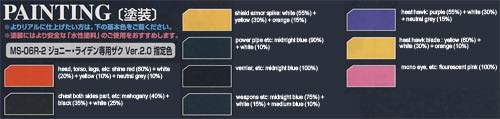

Color Guide DescriptionPaint Ratios
Zaku II of Johnny Ridden head, torso, legs etcShine Red (H23)(60%) + White (H1)(20%) + Yellow (H4)(10%) + Neutral Gray (H53)(10%)
Zaku II of Johnny Ridden chest both sides etcMahogany (H84)(40%) + Black (H2)(35%) + White (H1)(25%)
Zaku II of Johnny Ridden shield armor spikeWhite (H1)(55%) + Yellow (H4)(30%) + Orange (H14)(15%)
Zaku II of Johnny Ridden power pipe etcMidnight Blue (H55)(90%) + White (H1)(10%)
Zaku II of Johnny Ridden vernier etcMidnight Blue (H55)(100%)
Zaku II of Johnny Ridden weapons etcMidnight Blue (H55)(75%) + White (H1)(15%) + Medium Blue/Intermediate Blue (H56)(10%)
Zaku II of Johnny Ridden heat hawkPurple (H39)(55%) + White (H1)(30%) + Neutral Gray (H53)(15%)
Zaku II of Johnny Ridden heat hawk bladeYellow (H4)(60%) + Orange (H14)(10%) + White (H1)(30%)
Zaku II of Johnny Ridden mono eye etcFlourescent Pink (C174)(100%)

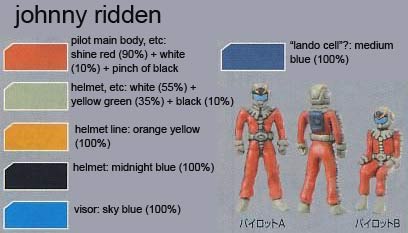

Johnny Ridden pilot main body etcShine Red (H23)(90%) + White (H1)(10%) + Black (H2)(small dose)
Johnny Ridden helmet etcWhite (H1)(55%) + Yellow Green/Roman Green/Le Mans Green (H16)(35%) + Black (H2)(10%)
Johnny Ridden helmet lineOrange Yellow (H24)(100%)
Johnny Ridden helmetMidnight Blue (H55)(100%)
Johnny Ridden visorSky Blue (H25)(100%)
Johnny Ridden ransel(backpack)Medium Blue/Intermediate Blue (H56)(100%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
--Flourescent Pink (C174)------------------------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------

Johnny Ridden, like Shin Matsunaga and Char Aznable, were notable Ace pilots for Zeon during the One Year War. More model kit color guide translations can be found here.
