1/100 Chaos Gundam English Color Guide

1/100 ZGMF-X24S Chaos Gundam Color Guide
Sting Oakley's ZGMF-X24S Chaos Gundam. Ok so its not exactly Sting Oakley's since he stole it from the ZAFT armory during the opening of Gundam Seed Destiny... hehehe. As a member of Phantom Pain, he snuck in together with Auel and Stellar to steal the Chaos, Abyss and Gaia Gundam. Its a nice looking Gundam though, with the mobile missile pods on its back that can detach and fly separately to attack an enemy. I can't seem to understand though why Bandai only rendered the Chaos Gundam in 1/100 grade and not the Abyss and Gaia. Maybe their 1/144 scale counterparts did not have enough sales volume to merit a 1/100 scale version?

Color Guide was translated to English from the manual posted at Hobby Search.

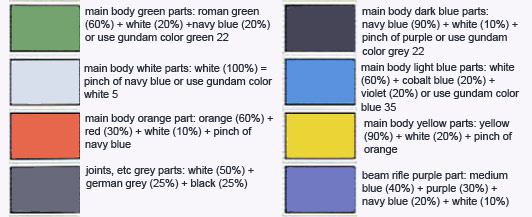

Color Guide DescriptionPaint Ratios
chaos gundam main body green partsYellow Green/Roman Green/Le Mans Green (H16)(60%) + White (H1)(20%) + Navy Blue (H54)(20%) or use gundam color green 22
chaos gundam main body white partsWhite (H1)(100%) + Navy Blue (H54)(small dose) or use gundam color white 5
chaos gundam main body orange partOrange (H14)(60%) + Red (H3)(30%) + White (H1)(10%) + Navy Blue (H54)(small dose)
chaos gundam joints etc gray partsWhite (H1)(50%) + Field Gray (1)/Dark Gray (H32)(25%) + Black (H2)(25%)
chaos gundam main body dark blue partsNavy Blue (H54)(90%) + White (H1)(10%) + Purple (H39)(small dose) or use gundam color gray 22
chaos gundam main body light blue partsWhite (H1)(60%) + Cobalt Blue (H35)(20%) + Violet (H49)(20%) or use gundam color blue 35
chaos gundam main body yellow partsYellow (H4)(90%) + White (H1)(20%) + Orange (H14)(small dose)
chaos gundam beam rifle purple partMedium Blue/Intermediate Blue (H56)(40%) + Purple (H39)(30%) + Navy Blue (H54)(20%) + White (H1)(10%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Field Gray (1)/Dark Gray (H32)German Gray/Field Gray (1) (C40)German Gray (XF63)German Grey Dark (70.995)Engine Grey (71.048)GRAUGR√úN (A.MIG-0253)Dark Eggplant Grey (RC242)Dark Grey (HTK-_230)Tank Grey (solid matt) (32178)Tank Grey (Matte) (67)Engine Gray FS36076 (2034)FS16076 Engine Grey (X128)----
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--

The 1/100 ZGMF-X24S Chaos Gundam is selling for 1695 yen at Amiami, 2300 yen at Hobby Search, 1610 yen at HWJapan while 3rd party sellers at Amazon are selling it for $$$$
