1/100 MG GN-X English Color Guide

1/100 MG GN-X Color Guide
Update: Translated English Construction Manual of the Master Grade GN-X can be found here.

Posted at Dalong already was the manual for the Bandai Master Grade GN-X from Gundam 00 Season 1.

The GN-X was a mobile suit with a fake GN drive that was given to the 3 main Earth governments to help them fight the Gundams of Celestial Being in the Gundam 00 Season 1 anime series. In this lovingly rendered Master Grade model by Bandai one can build his/her GN-X (Jinx) to the spec of the different Earth pilots (Sergei, Soma, Patrick or Daryl) by the application of their designation stickers on the model kit. Included in the kit are figures of Soma Peries and Sergei Smirnov.

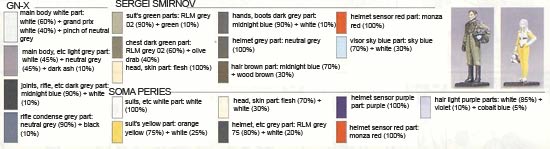

Color Guide DescriptionPaint Ratios
MG GN-X main body white partWhite (H1)(60%) + Off White / Grand Prix White (H21)(40%) + Neutral Gray (H53)(small dose)
MG GN-X main body etc light gray partWhite (H1)(45%) + Neutral Gray (H53)(45%) + Dark Earth (H72)(10%)
MG GN-X joints, rifle, etc dark gray partMidnight Blue (H55)(90%) + White (H1)(10%)
MG GN-X rifle condenser gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
sergei smirnov suit's green partsRLM02 Gray (H70)(90%) + Green (H6)(10%)
sergei smirnov chest dark green partRLM02 Gray (H70)(60%) + Olive Drab (1) (H52)(40%)
sergei smirnov headFlesh/Pale Brown (H44)(100%)
sergei smirnov hands, boots, dark gray partMidnight Blue (H55)(90%) + White (H1)(10%)
sergei smirnov helmet gray partNeutral Gray (H53)(100%)
sergei smirnov hair brown partMidnight Blue (H55)(70%) + Wood Brown (H37)(30%)
sergei smirnov helmet sensor red partMonza Red/Red Madder (H86)(100%)
sergei smirnov visor sky blue partSky Blue (H25)(70%) + White (H1)(30%)
soma peries suit's etc white partWhite (H1)(100%)
soma peries suit's yellow partWhite (H1)(25%) + Orange Yellow (H24)(75%)
soma peries head, skin partFlesh/Pale Brown (H44)(70%) + White (H1)(30%)
soma peries helmet, etc gray partRLM75 Gray Violet/RLM 75 Gray (H69)(80%) + White (H1)(20%)
soma peries helmet sensor purple partPurple (H39)(100%)
soma peries helmet sensor red partMonza Red/Red Madder (H86)(100%)
soma peries hair light purple partsWhite (H1)(85%) + Violet (H49)(10%) + Cobalt Blue (H35)(5%)
Disclaimer






Paint Conversion Table:  (Disclaimer | How to Use)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Green
(H6)
Aqueous Hobby Color
Green
(C6)
Mr. Color
Green
(X5)
Tamiya Color Acrylic Paint
Black Green
(70.980)
Vallejo Model Color
Brunswick Green (Gloss)
(3)
Humbrol Enamel
Brunswick Green (Gloss)
(3)
Humbrol Acrylic
Sea Green (Gloss)
(36162)
Revell Aqua Color Acrylic
sea green (solid matt)
(32162)
Revell Email Enamel
Off White / Grand Prix White
(H21)
Aqueous Hobby Color
Off White/Grand Prix White
(C69)
Mr. Color
Ivory
(70.918)
Vallejo Model Color
Off-White
(71.270)
Vallejo Model Air
Ivory (Gloss)
(41)
Humbrol Enamel
Ivory (Gloss)
(41)
Humbrol Acrylic
Aged White
(4874)
Testors Model Master Acrylic
CREMEWEISS
(A.MIG-0017)
Ammo Acrylics
Off White
(RC013)
AK Real Color
Off White
(N21)
Acrysion
Panzer Interior Buff
(2104)
Testors Model Master Enamel
Cream White
(RC002)
AK Real Color
Cream
(HTK-_307)
Hataka
WWII German Tank Interior
(X818)
Xtracolor

Orange Yellow
(H24)
Aqueous Hobby Color
Orange Yellow
(C58)
Mr. Color
Light Orange
(70.911)
Vallejo Model Color
Orange Rust
(71.130)
Vallejo Model Air
LIGHT RUST
(A.MIG-0039)
Ammo Acrylics
Signal Orange
(HTK-_133)
Hataka

Sky Blue
(H25)
Aqueous Hobby Color
Sky Blue
(C34)
Mr. Color
Sky Blue
(X14)
Tamiya Color Acrylic Paint
Mediterranean Blue (Gloss)
(48)
Humbrol Enamel

Cobalt Blue
(H35)
Aqueous Hobby Color
Cobalt Blue
(C80)
Mr. Color

Wood Brown
(H37)
Aqueous Hobby Color
Wood Brown
(C43)
Mr. Color
Sand Brown
(71.034)
Vallejo Model Air
Brown (Matte)
(186)
Humbrol Enamel
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
Earth Red FS30117 (F)
(4707)
Testors Model Master Acrylic
Military Brown FS30117
(1701)
Testors Model Master Enamel
Earth Red FS30117
(UA306)
Lifecolor
CLAY BROWN
(A.MIG-0079)
Ammo Acrylics
No.8 Earth Red
(RC031)
AK Real Color
Earth Red
(HTK-_213)
Hataka
Flat Wood
(4673AP)
Italeri
US Earth Red
(71.293)
Vallejo Model Air

Purple
(H39)
Aqueous Hobby Color
Purple
(C67)
Mr. Color
Purple
(X16)
Tamiya Color Acrylic Paint
Purple
(70.959)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
PURPLE
(A.MIG-0127)
Ammo Acrylics

Flesh/Pale Brown
(H44)
Aqueous Hobby Color
Flesh
(C51)
Mr. Color
Flat Flesh
(XF15)
Tamiya Color Acrylic Paints (Flat)
Cork Brown
(70.843)
Vallejo Model Color
Skin Tone
(71.076)
Vallejo Model Air
Flesh (Matte)
(61)
Humbrol Enamel
Leather (Matte)
(62)
Humbrol Acrylic
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
SAND BROWN
(A.MIG-0026)
Ammo Acrylics
Flesh
(N44)
Acrysion
Flat Light Flesh
(4390AP)
Italeri
Flat Flesh
(XF-15)
Tamiya Enamel
Flat Flesh (Lacquer Paint)
(LP66)
Tamiya Lacquer Paint
Desert Yellow
(70.977)
Vallejo Model Color
Camouflage Brown
(71.117)
Vallejo Model Air
Pale Sand
(70.837)
Vallejo Model Color
LIGHT SKIN TONE
(A.MIG-0115)
Ammo Acrylics
Pale Sand
(RC018)
AK Real Color
Leather (Matte)
(62)
Humbrol Enamel
Flat Skin Tone Tint Base - Light
(4601AP)
Italeri
Flat Skin Tone Warm Tint
(4603AP)
Italeri
Flat Flesh 2
(TS77)
Tamiya Color Spray Paints
flesh (solid matt)
(36135)
Revell Aqua Color Acrylic
flesh (solid silk matt)
(32135)
Revell Email Enamel

Violet
(H49)
Aqueous Hobby Color
Purple
(X16)
Tamiya Color Acrylic Paint
Violet
(70.960)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
VIOLET
(A.MIG-0126)
Ammo Acrylics
Violet
(N49)
Acrysion

Olive Drab (1)
(H52)
Aqueous Hobby Color

Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color

Midnight Blue
(H55)
Aqueous Hobby Color
Midnight Blue
(C71)
Mr. Color
Royal Blue
(X3)
Tamiya Color Acrylic Paint
USN Sea Blue
(71.295)
Vallejo Model Air
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
Sea Blue
(RC257)
AK Real Color
Semi-Gloss Sea Blue
(HTK-_006)
Hataka
Midnight Blue
(N55)
Acrysion
Sea Blue
(XF17)
Tamiya Color Acrylic Paints (Flat)
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel

RLM75 Gray Violet/RLM 75 Gray
(H69)
Aqueous Hobby Color
RLM75 Gray Violet
(C37)
Mr. Color
Dark Gray
(XF24)
Tamiya Color Acrylic Paints (Flat)
Basalt Grey
(70.869)
Vallejo Model Color
Grey Violet RLM75
(71.259)
Vallejo Model Air
Extra Dark Sea Grey (Satin)
(123)
Humbrol Enamel
Dark Camouflage Grey (Satin)
(156)
Humbrol Acrylic
Dark grey (solid silk matt)
(36378)
Revell Aqua Color Acrylic
dark grey (solid silk matt)
(32378)
Revell Email Enamel
Grauviolett RLM75
(4785)
Testors Model Master Acrylic
Grauviolett RLM75 (SG)
(2085)
Testors Model Master Enamel
Grauviolett RLM 75
(UA508)
Lifecolor
GRAUVIOLETT
(A.MIG-0254)
Ammo Acrylics
RLM 75
(RC279)
AK Real Color
Grey-Violet
(HTK-_007)
Hataka
RLM75 Gray Violet
(N69)
Acrysion
Medium Gunship Gray
(71.097)
Vallejo Model Air
Blue Grey (Matte)
(79)
Humbrol Enamel
Basaltgrau – Basalt Grey
(RC212)
AK Real Color
Basalt Grey
(HTK-_192)
Hataka
RAL7012 Basaltgrau
(X254)
Xtracolor
RLM 75 Grauviolett
(246)
Humbrol Enamel
RLM02 Gray
(H70)
Aqueous Hobby Color
RLM02 Gray
(C60)
Mr. Color
RLM Gray
(XF22)
Tamiya Color Acrylic Paints (Flat)
Green Grey
(70.886)
Vallejo Model Color
Grey RLM02
(71.044)
Vallejo Model Air
RLM 02 Grau Matt
(240)
Humbrol Enamel
Sea Green (solid matt)
(36148)
Revell Aqua Color Acrylic
sea green (solid silk matt)
(32148)
Revell Email Enamel
Grau RLM02
(4770)
Testors Model Master Acrylic
Grau RLM 02 (SG)
(2071)
Testors Model Master Enamel
Grau RLM 02
(UA504)
Lifecolor
GREEN SLATE
(A.MIG-0217)
Ammo Acrylics
RLM 02 RLM-Grau (1938)
(RC265)
AK Real Color
Grey
(HTK-_023)
Hataka
RLM02 Gray
(N70)
Acrysion
Grau RLM 02
(4770AP)
Italeri
Medium Gray
(XF20)
Tamiya Color Acrylic Paints (Flat)

Dark Earth
(H72)
Aqueous Hobby Color
Dark Earth
(C22)
Mr. Color
Flat Earth
(XF52)
Tamiya Color Acrylic Paints (Flat)
English Uniform
(70.921)
Vallejo Model Color
Dark Earth
(71.029)
Vallejo Model Air
Dark Earth (Matte)
(29)
Humbrol Enamel
Dark Earth (Matte)
(29)
Humbrol Acrylic
Earth Brown (solid matt)
(36187)
Revell Aqua Color Acrylic
Earth Brown (solid matt)
(32187)
Revell Email Enamel
Dark Earth ANA617
(4846)
Testors Model Master Acrylic
Dark Earth ANA617 (F)
(2054)
Testors Model Master Enamel
RAF Dark Earth FS 30118
(UA547)
Lifecolor
MEDIUM BROWN
(A.MIG-0070)
Ammo Acrylics
RAF Dark Earth
(RC287)
AK Real Color
Dark Earth
(HTK-_009)
Hataka
RAF Dark Earth BS450
(X002)
Xtracolor
Dark Earth
(N72)
Acrysion
Flat Field Drab
(4708AP)
Italeri
US Earth Brown
(71.290)
Vallejo Model Air
US Tank Earth Brown FS30099
(UA087)
Lifecolor
(BRITISH 1941-42 SERVICE DRAB)
(A.MIG-0111)
Ammo Acrylics
No.5 Earth Brown
(RC029)
AK Real Color
Flat Dark Earth
(4303AP)
Italeri
BS Dark Earth
(71.323)
Vallejo Model Air
Flat Marrone Mimetico 2
(4641AP)
Italeri
Flat Bruno Mimetico
(4644AP)
Italeri
Dark Earth BS381C/450
(C369)
Mr. Color
Flat Dark Earth Ana 617
(4846AP)
Italeri
Earth Brown
(HTK-_256)
Hataka
BS Dark Earth
(HTK-_206)
Hataka
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color


The GN-X is selling for $$$$ at Amazon, 3420 yen at Hobby Search, 2520 yen at HWJapan, 3600 yen at Hobby Link Japan, 2640 yen at Amiami.

Daryl's markings
1/100 MG GN-X Color Guide
Soma Peries markings
1/100 MG GN-X Color Guide
Sergei Smirnov markings
1/100 MG GN-X Color Guide
Patrick markings
1/100 MG GN-X Color Guide
