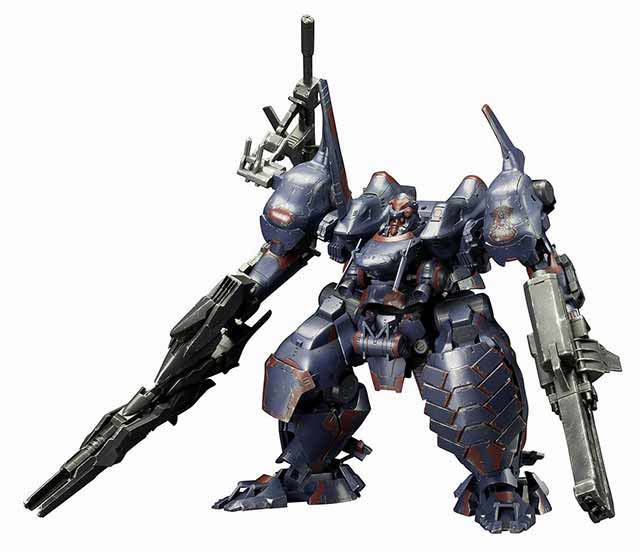

Armored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart

Armored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core V

Color Guide DescriptionPaint Ratios
hanger colorNeutral Gray (H53)(70%) + Silver (H8)(30%)
weapon main colorBlack (H2)(40%) + White (H1)(20%) + Silver (H8)(15%) + Purple (H39)(13%) + Orange Yellow (H24)(12%)
glow color base coatSuper Metallic Super Fine Silver (SM01)
glow color top coatClear Orange (H92)(70%) + Clear Red (H90)(30%)
sub colorOrange (H14)(40%) + Red (H3)(25%) + Black (H2)(15%) + White (H1)(10%) + Silver (H8)(10%)
weapon sub colorBlack (H2)(75%) + Cobalt Blue (H35)(10%) + Silver (H8)(10%) + White (H1)(5%)
joint colorCobalt Blue (H35)(30%) + Black (H2)(20%) + White (H1)(20%) + Shine Red (H23)(15%) + Silver (H8)(15%)
main colorCobalt Blue (H35)(65%) + Medium Blue/Intermediate Blue (H56)(15%) + Shine Red (H23)(10%) + Silver (H8)(10%)
Disclaimer

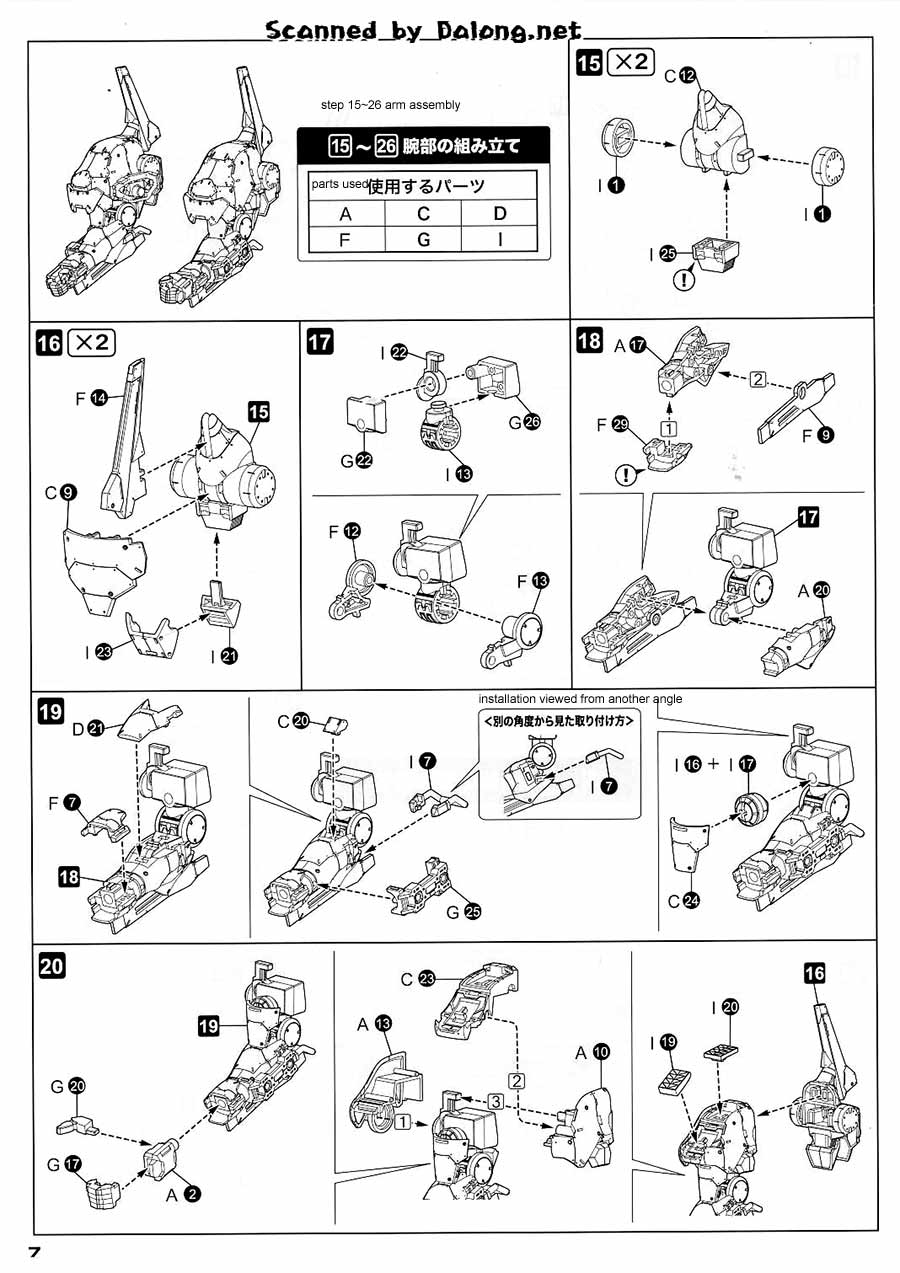

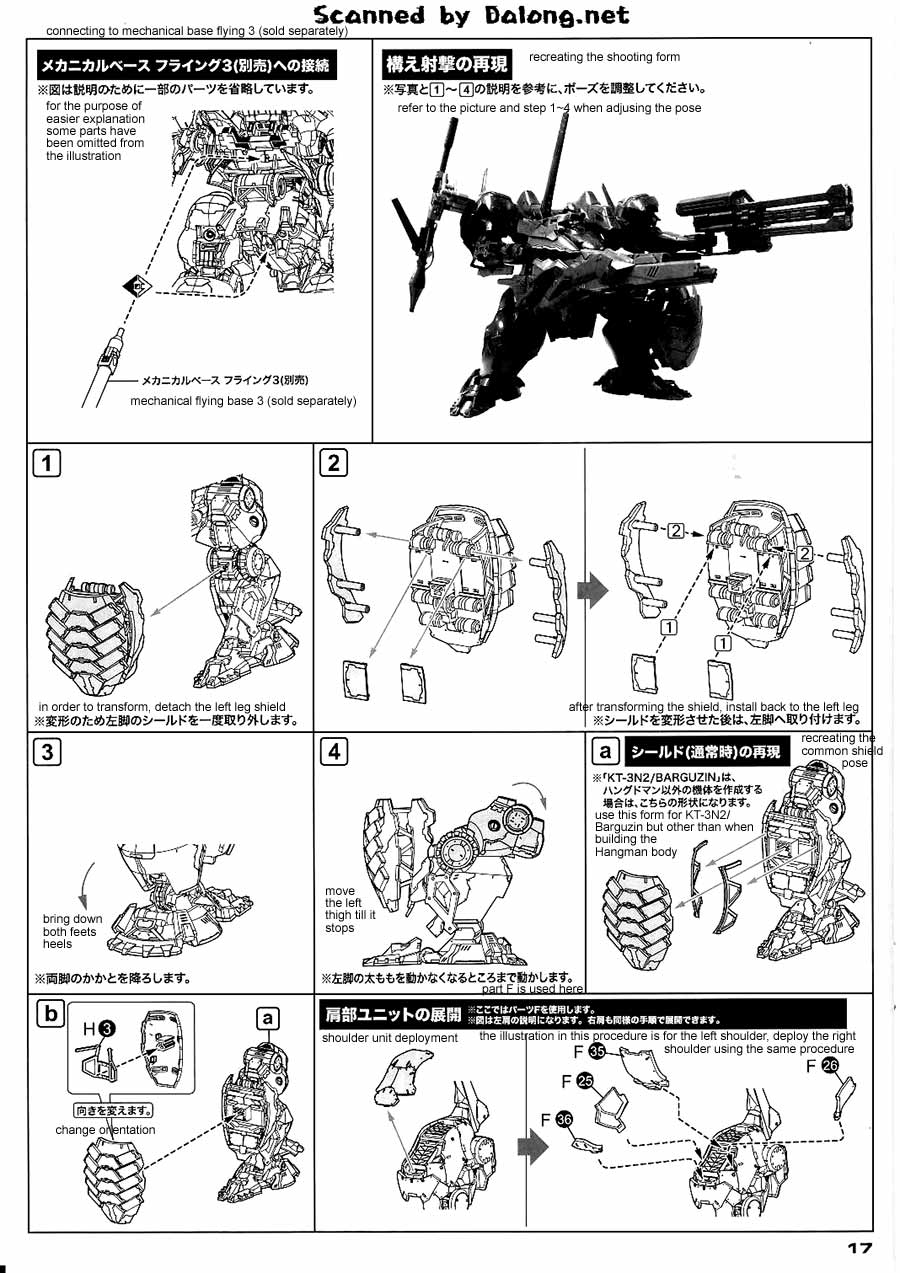

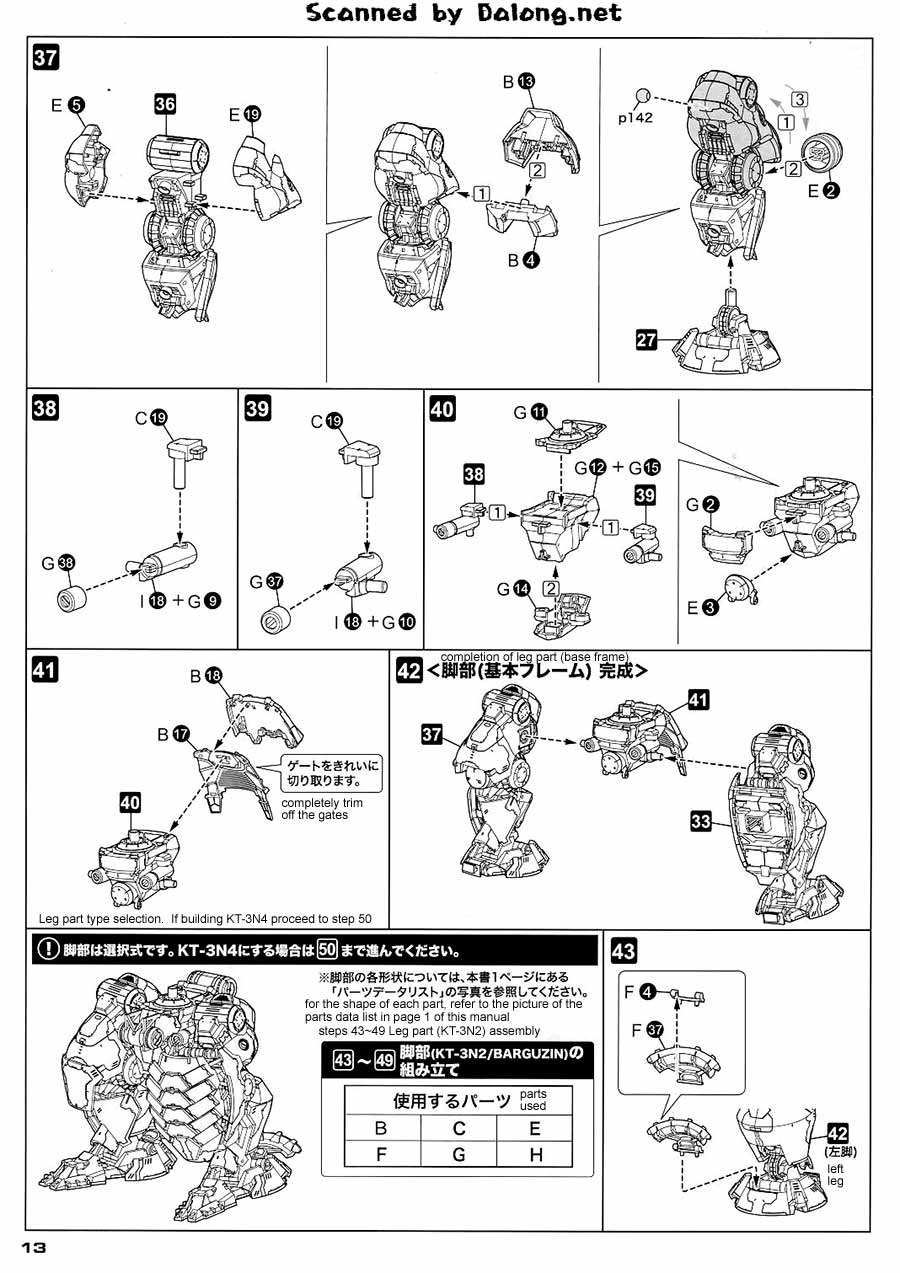

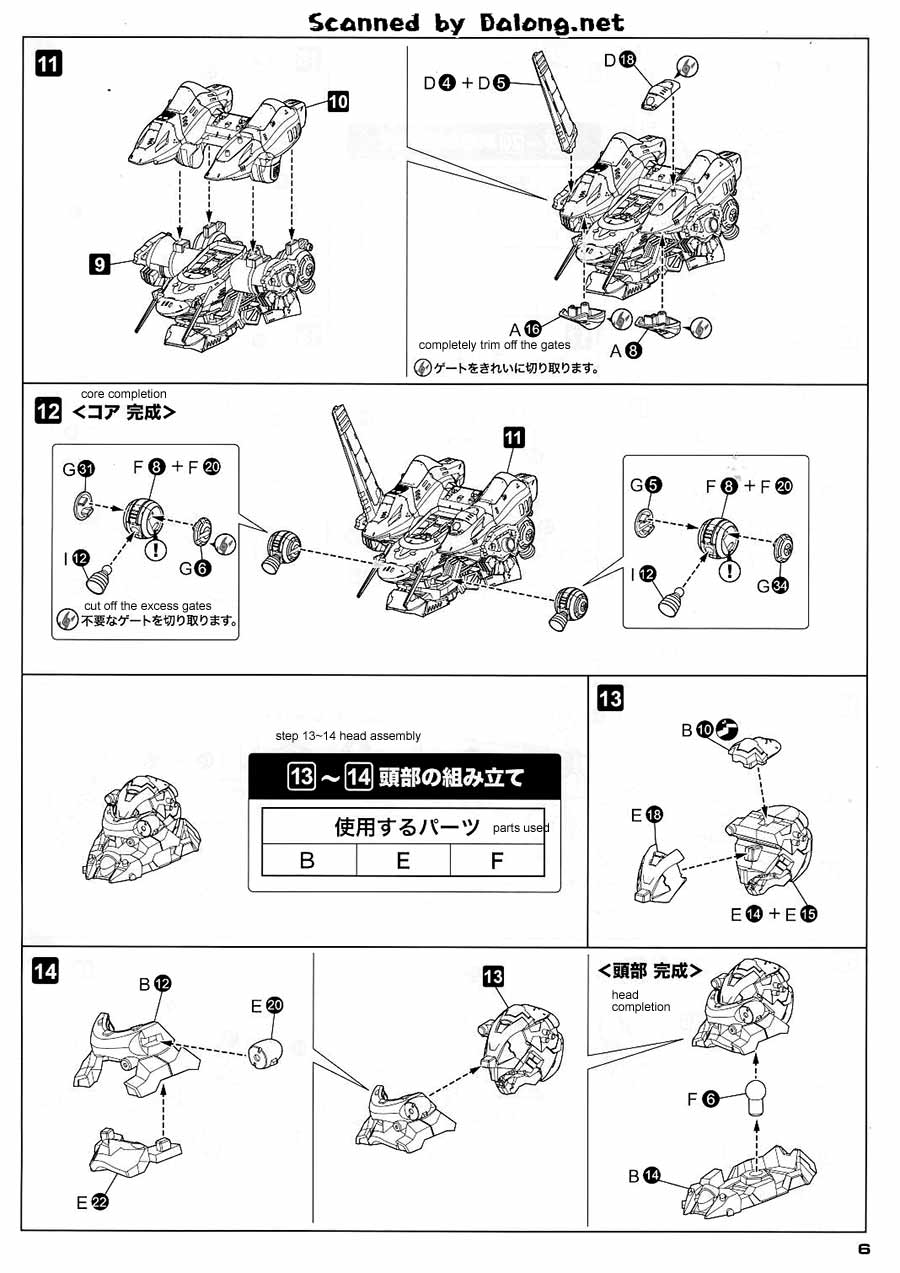

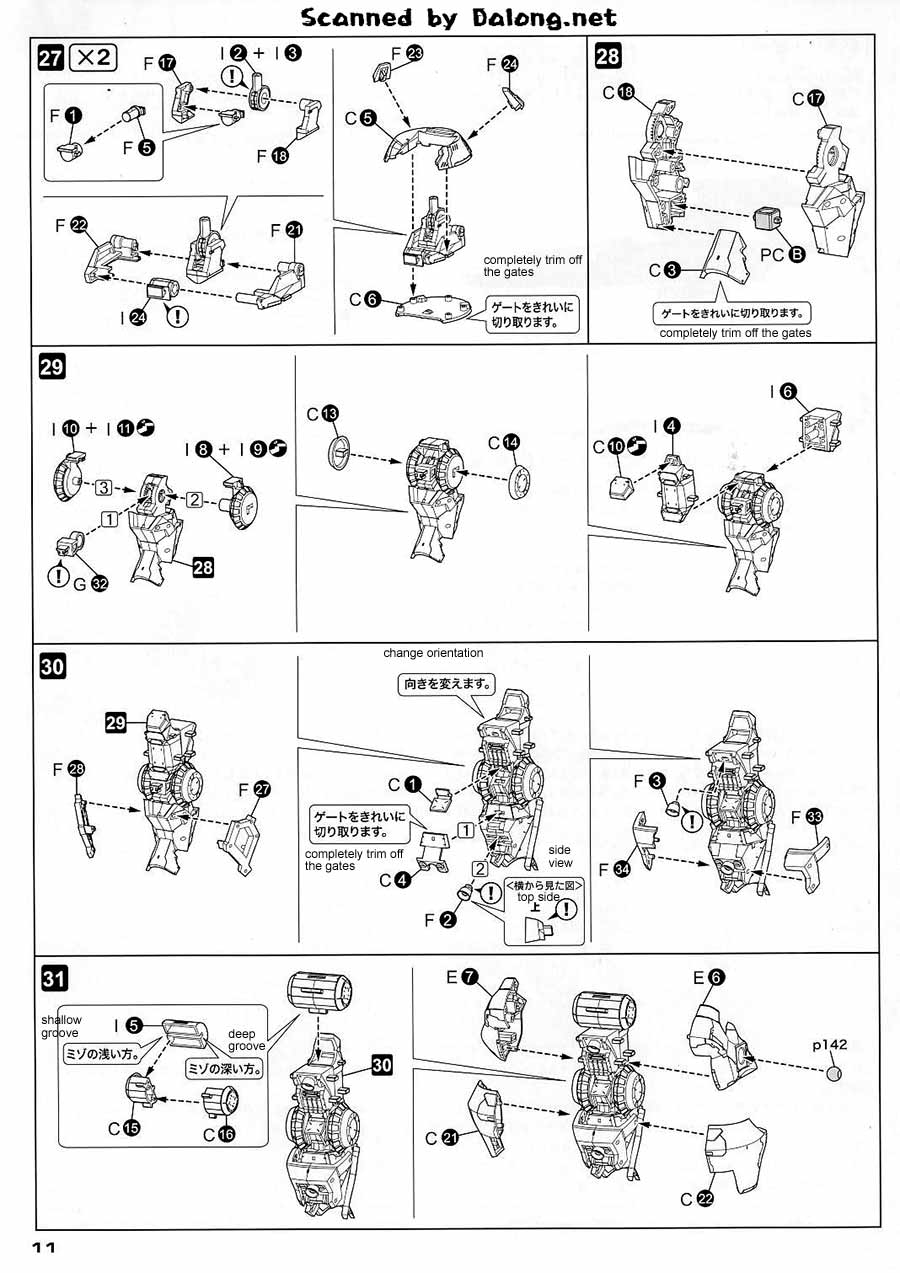

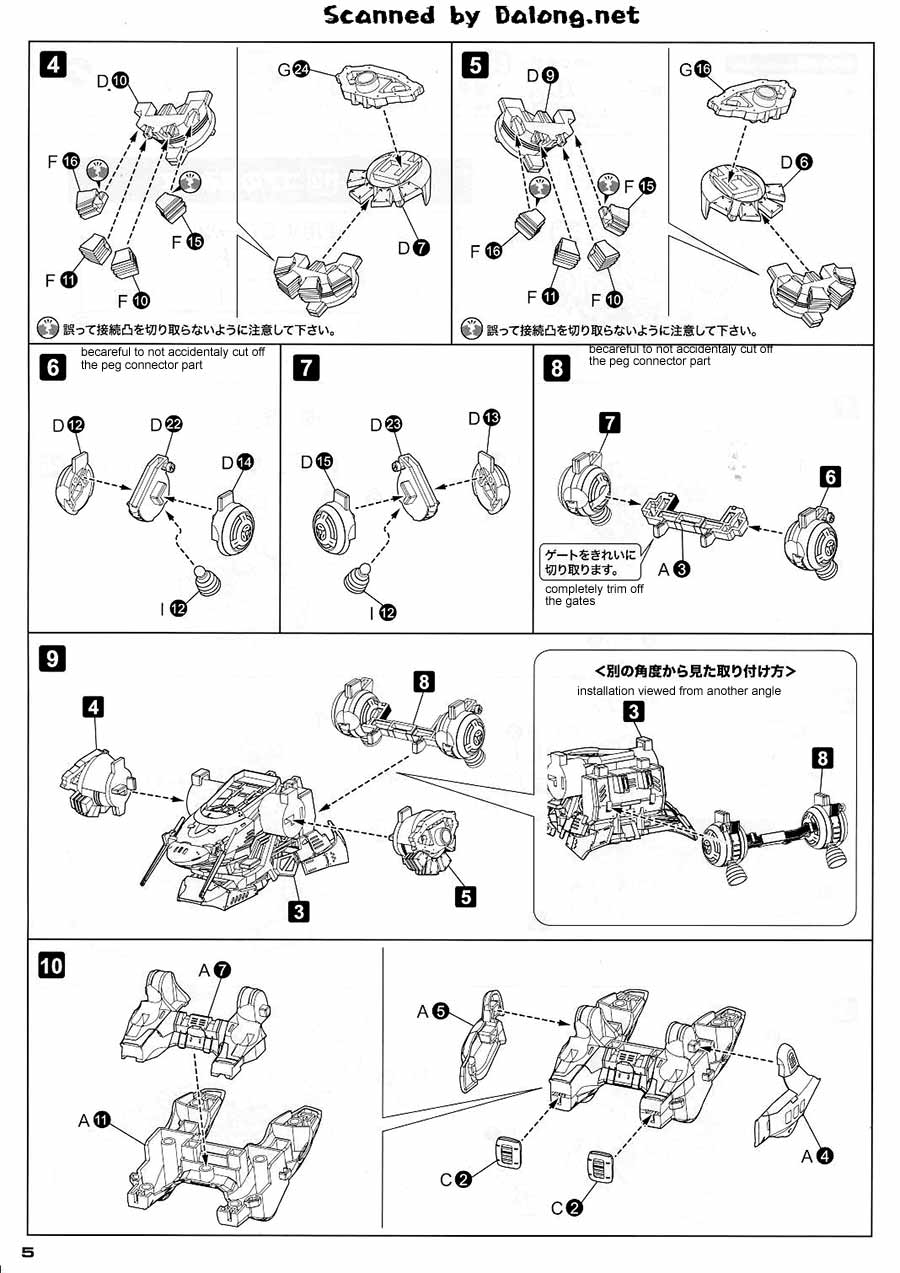

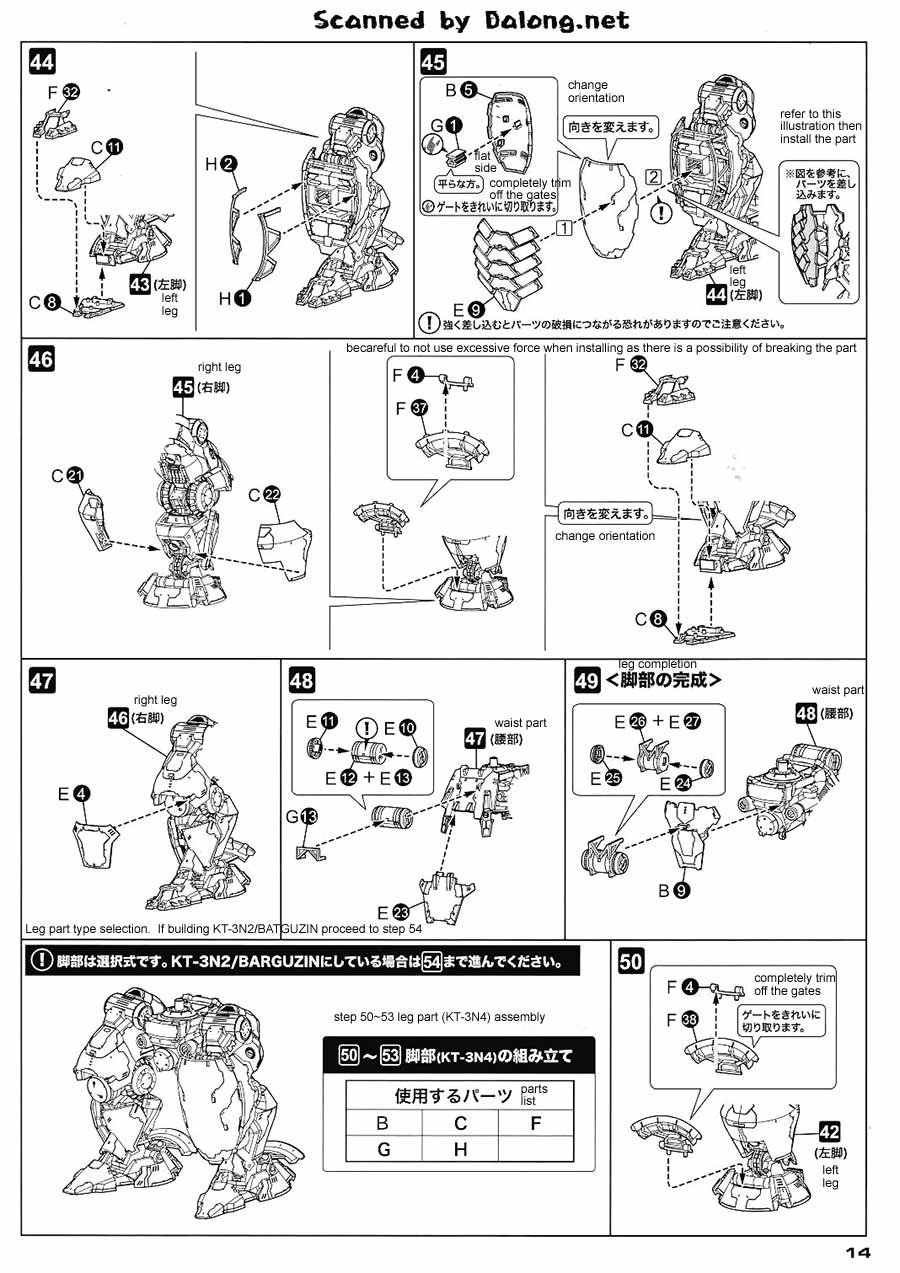

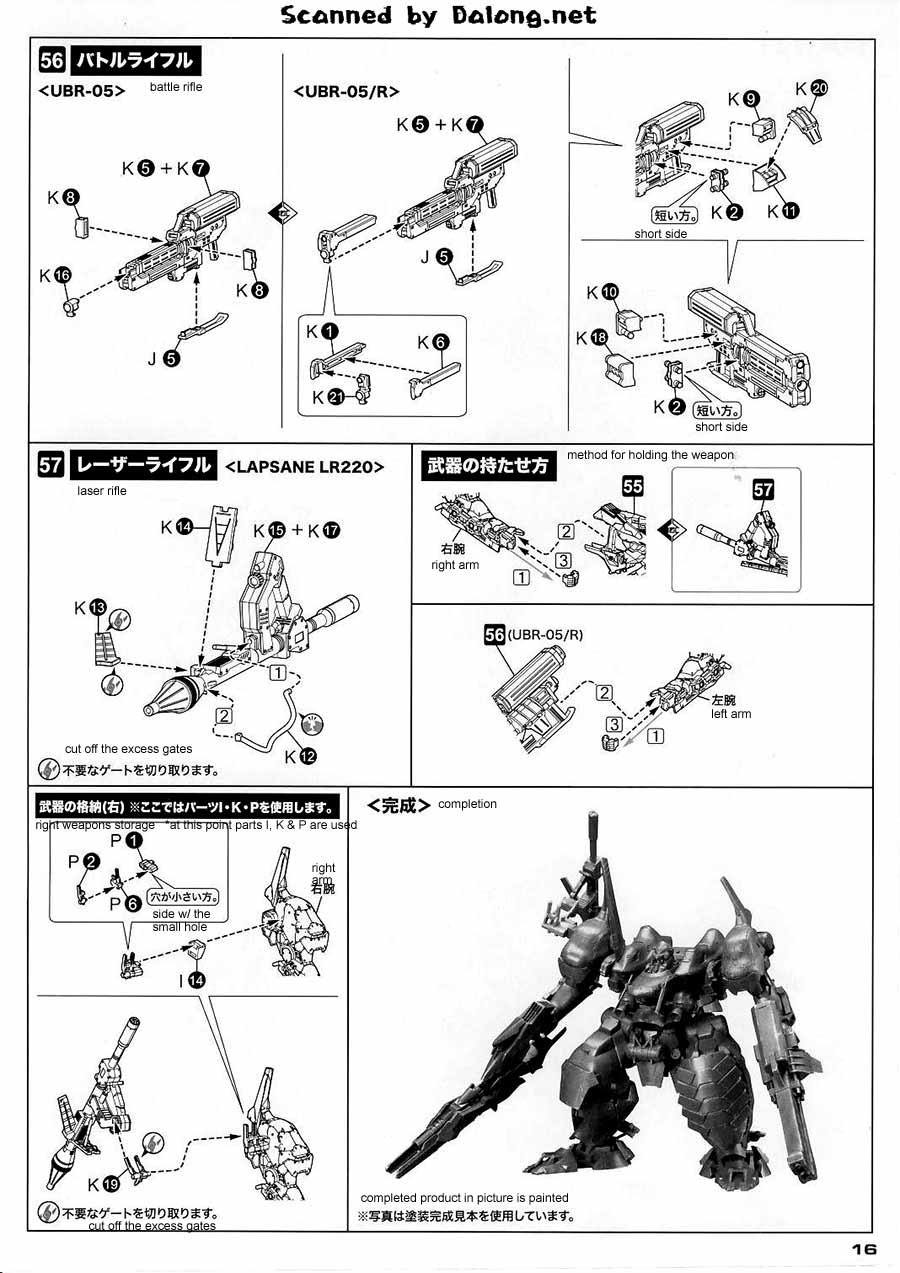

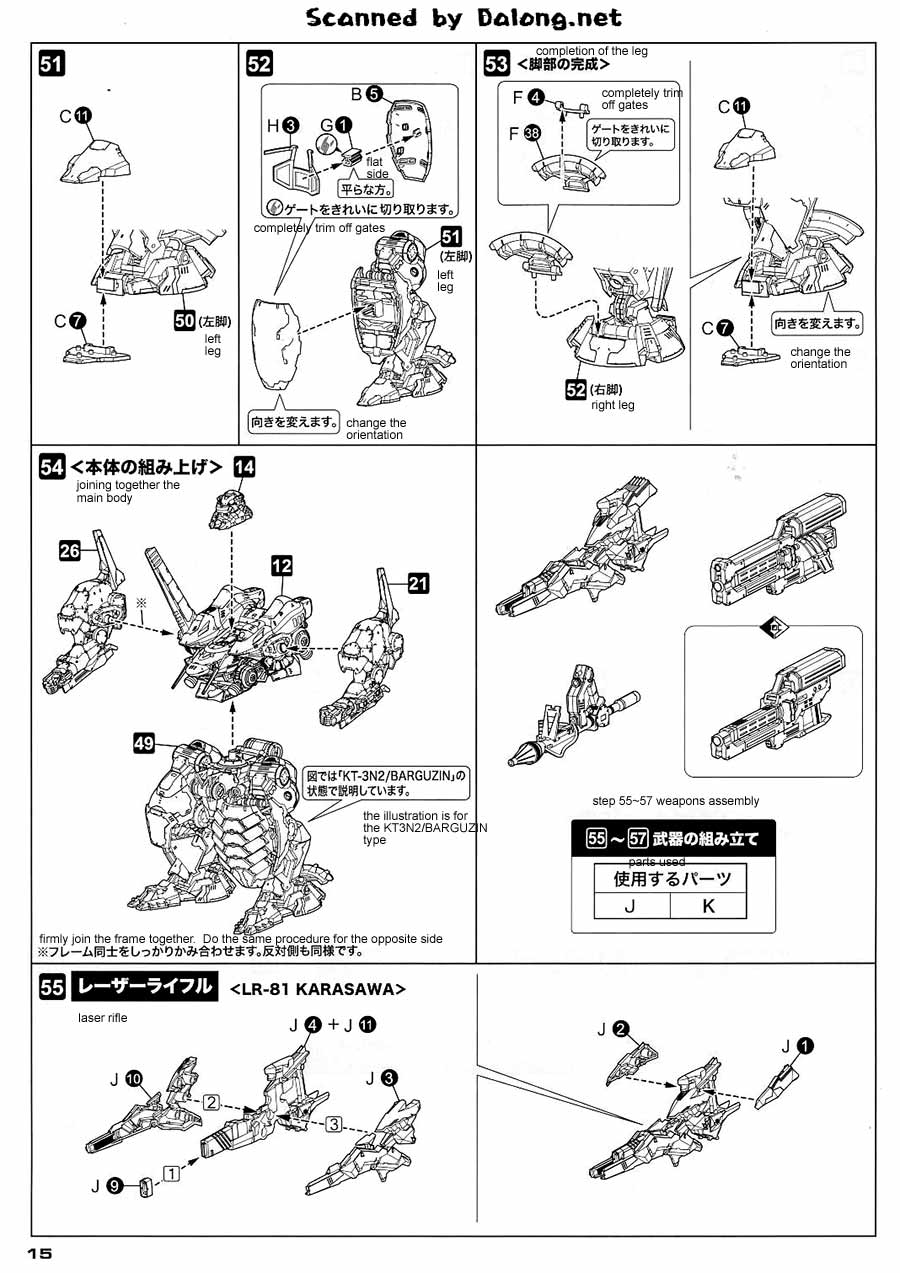

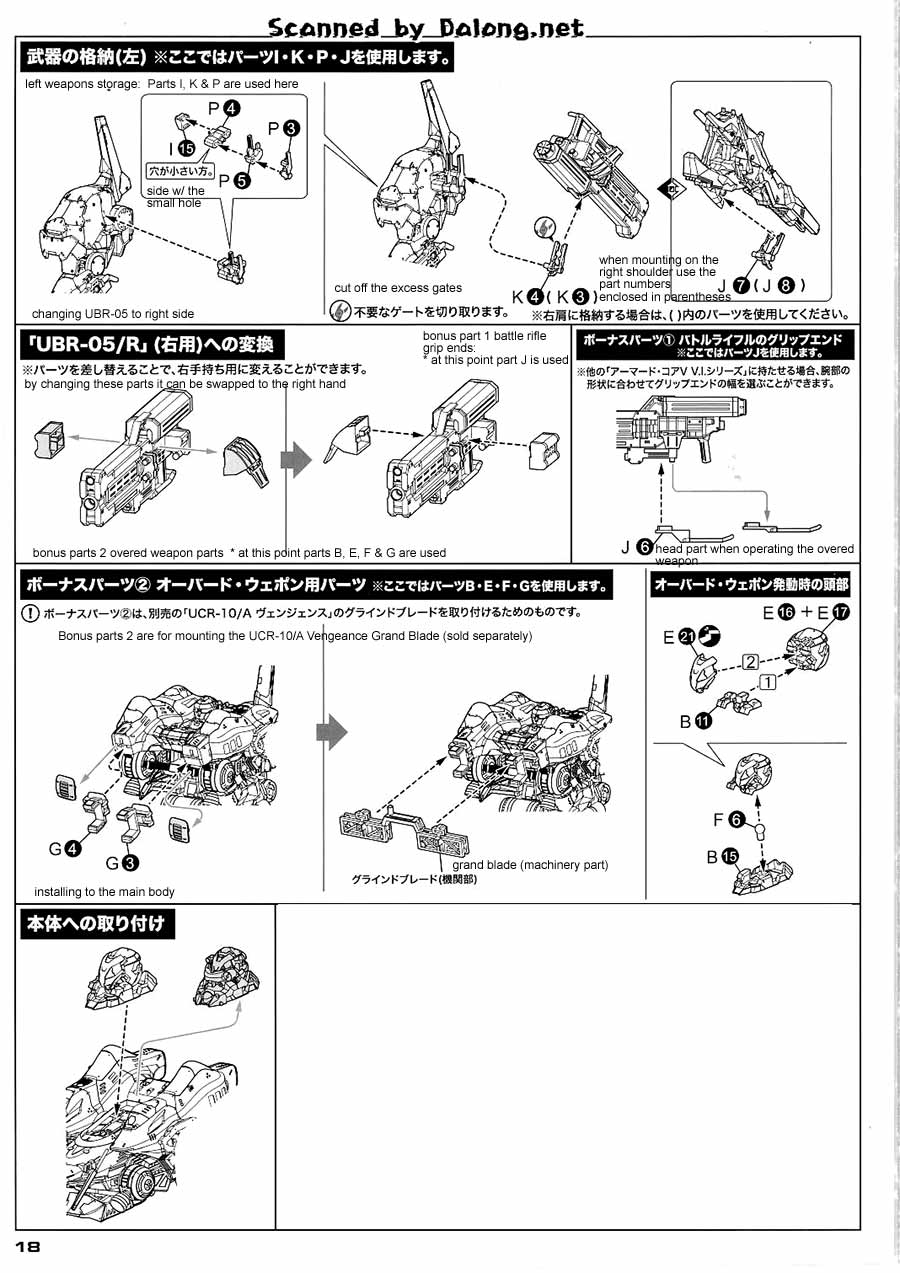

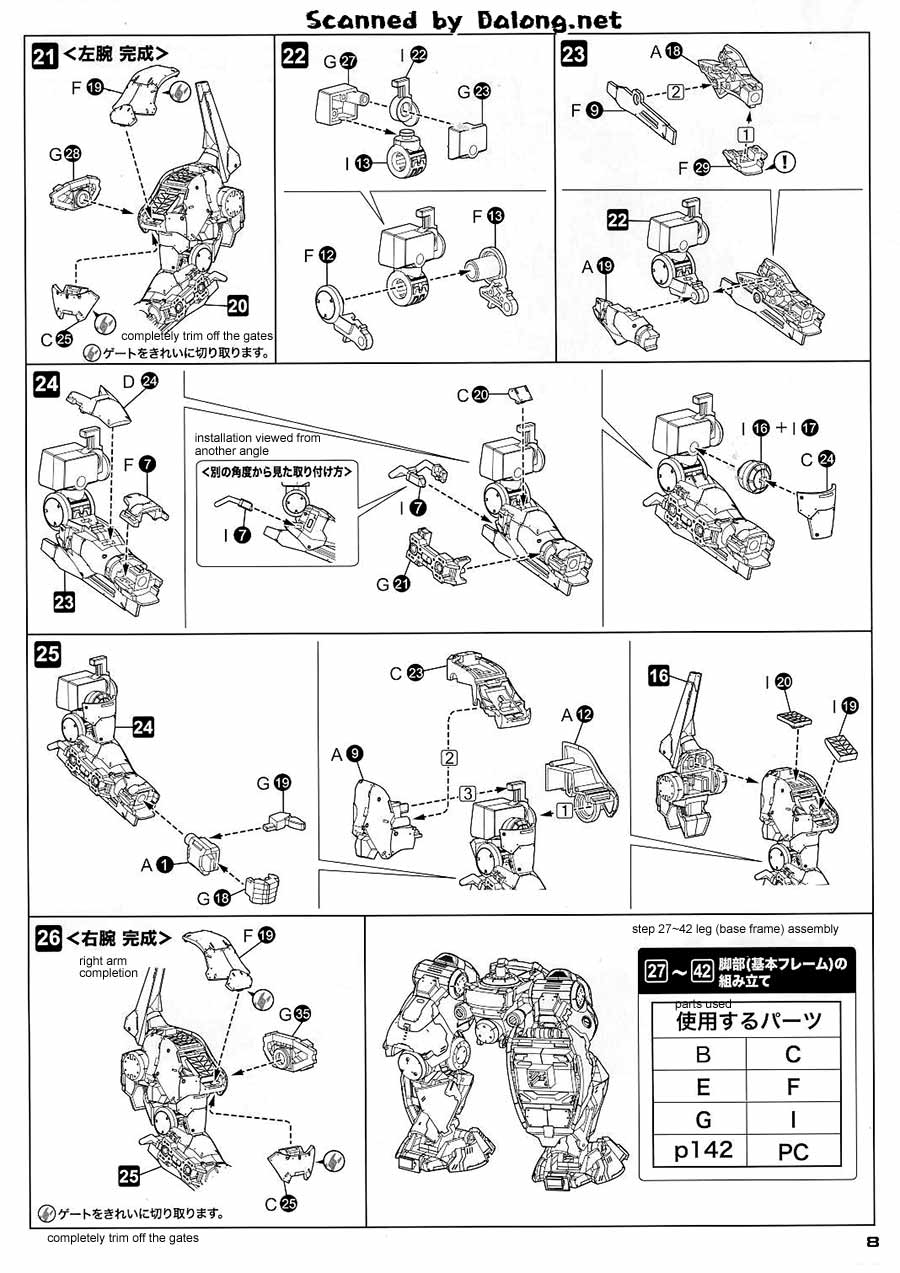

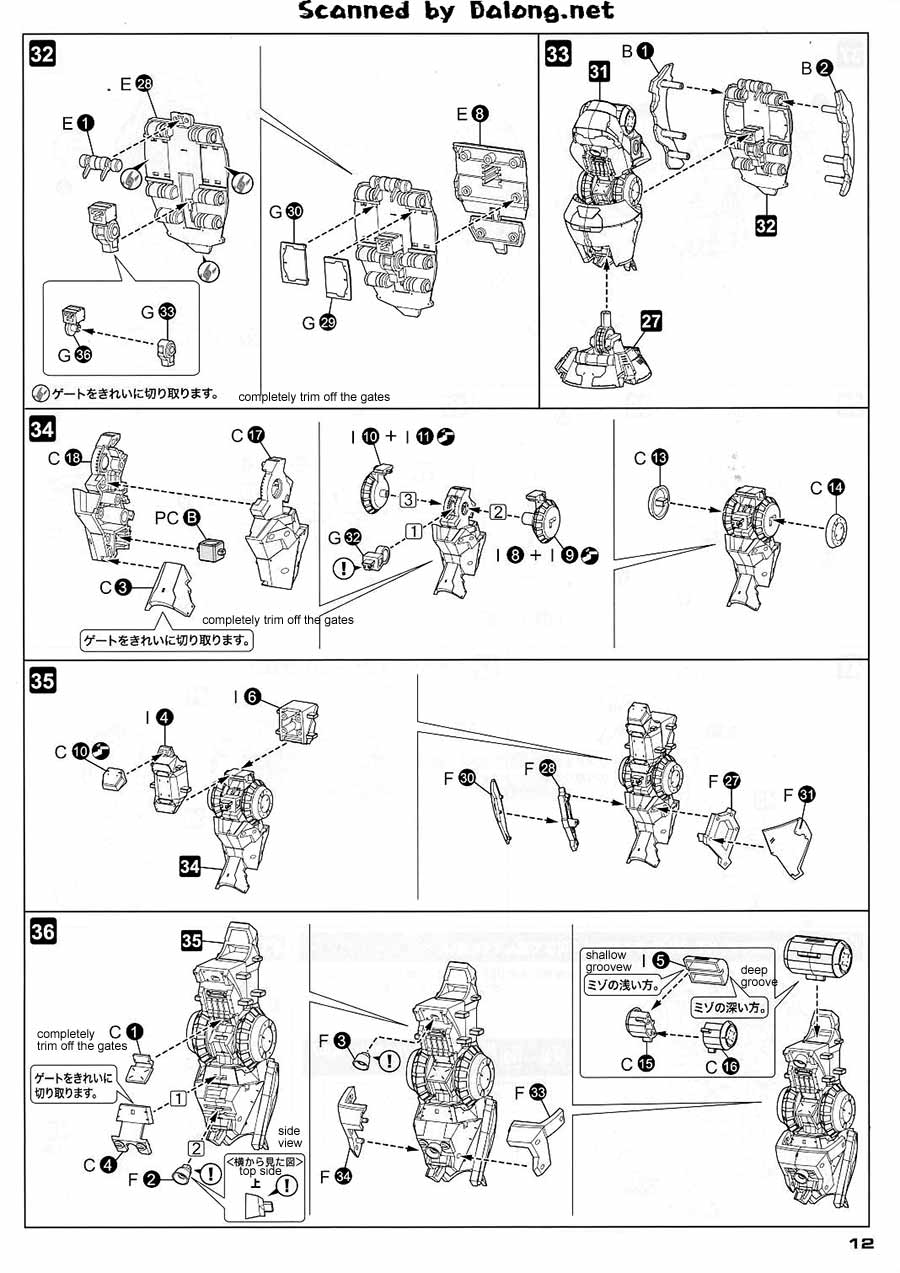

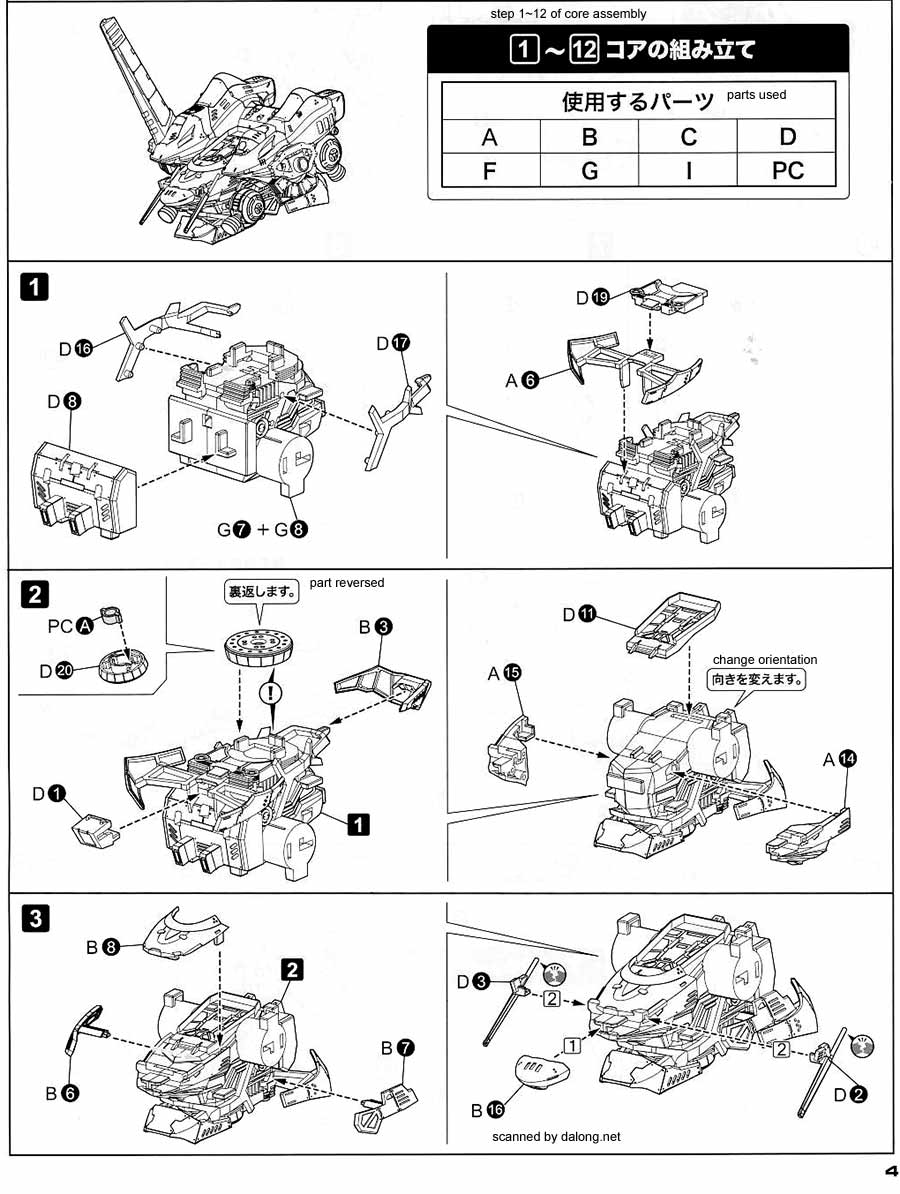

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's. For the meaning of the symbols found in the manual, kindly refer to this post.

Armored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core V
Armored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core V
Armored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core VArmored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core V
Armored Core V Hanged Man Rematch Ver. English Manual, Color Guide & Paint Conversion Chart by Kotobukiya from Armored Core V



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
--Super Metallic Super Fine Silver (SM01)------------------------
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
