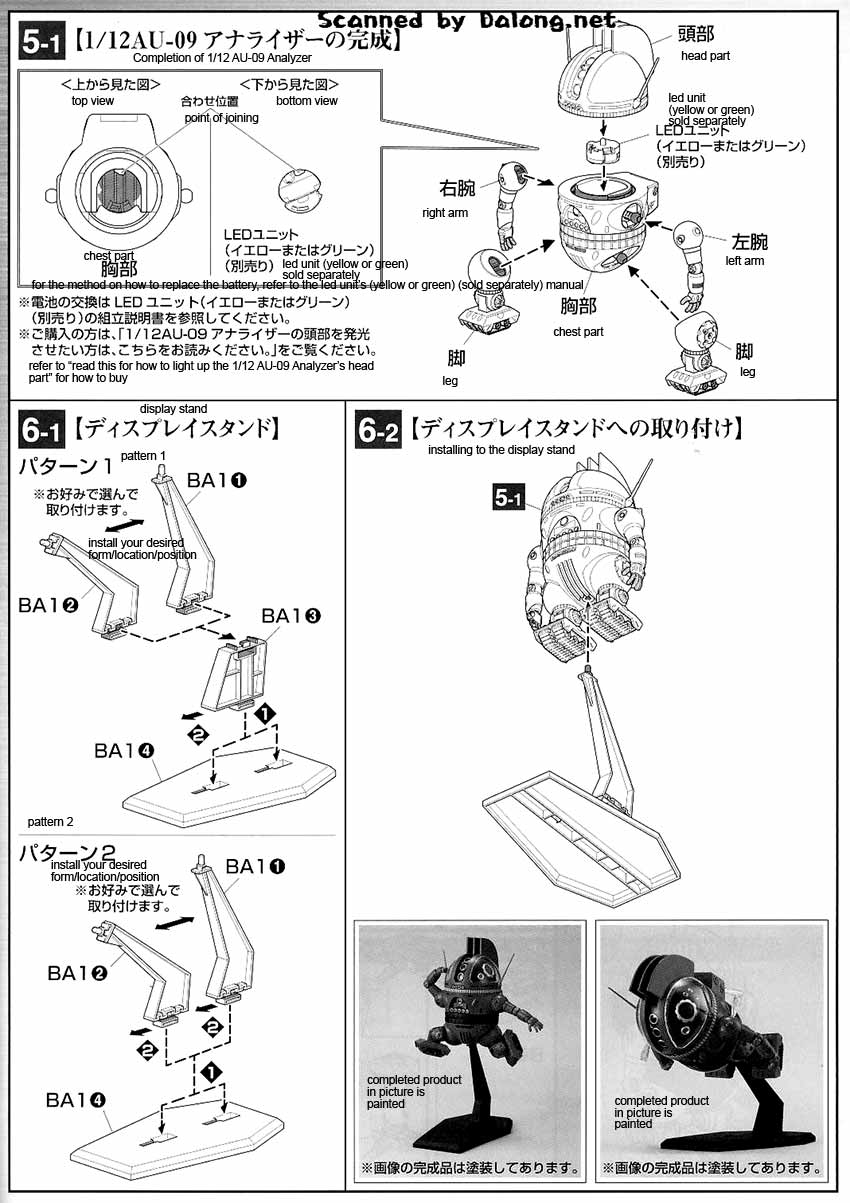

1/12 AU-09 Analyzer English Manual & Color Guide

1/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 2199
1/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 2199
1/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 2199

Color Guide DescriptionPaint Ratios
AU-09 Analyzer body etc red partMonza Red/Red Madder (H86)(40%) + Orange Yellow (H24)(40%) + White (H1)(20%) + Black (H2)(small dose)
AU-09 Analyzer body black partBlack (H2) (100%)
AU-09 Analyzer fingers, antenna etc orange partCream Yellow (H34)(40%) + White (H1)(30%) + Orange (H14)(30%)
AU-09 Analyzer infiinty trackSandy Yellow (Dark Yellow) (H79)(80%) + Orange Yellow (H24)(10%) + Wood Brown (H37)(10%) + Black (H2)(small dose)
AU-09 Analyzer neck yellow partWhite (H1)(50%) + Orange Yellow (H24)(30%) + Yellow (H4)(20%)
AU-09 Analyzer guagesSilver (H8)(100%)
AU-09 Analyzer waist brown partRed Brown (H47)(100%)
AU-09 Analyzer thruster fire ???Clear Blue (H93)(100%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.
1/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 21991/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 21991/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 21991/12 AU-09 Analyzer English Manual & Color Guide Translation Space Battleship Yamato 2199


Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Cream Yellow (H34)------Yellow Ochre (71.033)--Maize Yellow (RC008)Traffic Yellow (HTK-_104)--Cream (Matte) (103)Deep Yellow (F) (2118)RAF Trainer Yellow (X011)----
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Sandy Yellow (Dark Yellow) (H79)Dark Yellow (Sandy Yellow) (C39)Deck Tan Wooden (XF78)--Sand Yellow (71.028)LIGHT WOOD (A.MIG-0038)--Grey Beige (HTK-_287)--Desert Yellow (Matte) (93)------Flat Middle Stone (4304AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
