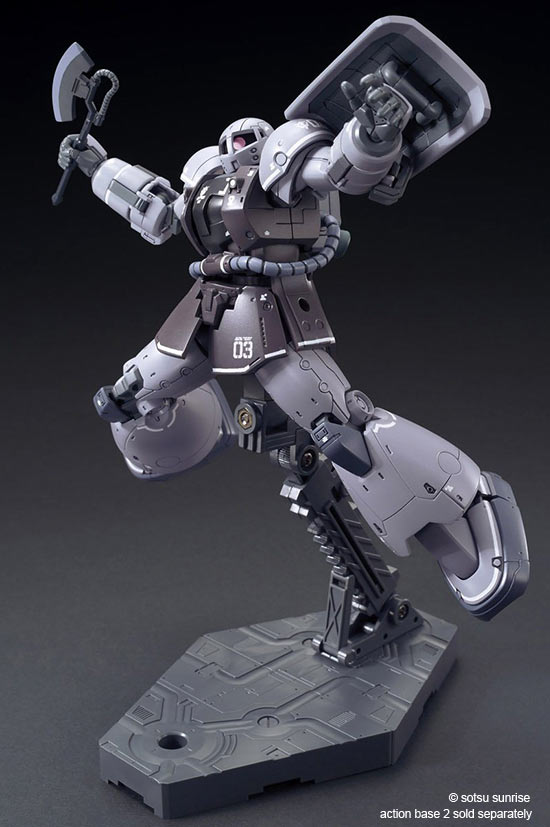

HG Waff English Manual & Color Guide (Gundam The Origin)

HG Waff English Manual & Color Guide (Gundam The Origin) High Grade Bandai

HG Waff English Manual & Color Guide (Gundam The Origin) High Grade Bandai

HG Waff English Manual & Color Guide (Gundam The Origin) High Grade Bandai

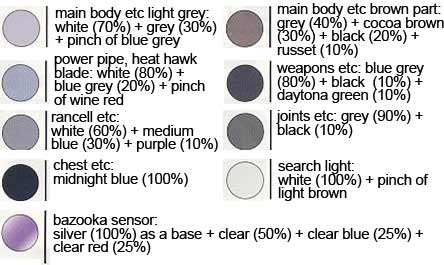

Color Guide DescriptionPaint Ratios
main body etc light gray partWhite (H1)(70%) + Gray/Nezumi (H22)(30%) + Blue Gray (H42)(small dose)
power pipe, heat hawk bladeWhite (H1)(80%) + Blue Gray (H42)(20%) + Wine Red/Maroon (H43)(small dose)
ransel (backpack) etcWhite (H1)(60%) + Medium Blue/Intermediate Blue (H56)(30%) + Purple (H39)(10%)
chest etcMidnight Blue (H55)(100%)
bazooka sensorSilver (H8)(100%) as a base and as a top coat Clear (H30)(50%) + Clear Blue (H93)(25%) + Clear Red (H90)(25%)
main body etc brown partGray/Nezumi (H22)(40%) + Cocoa Brown (H17)(30%) + Black (H2)(20%) + Russet / Azuki (H33)(10%)
weapons etcBlue Gray (H42)(80%) + Black (H2)(10%) + Bright Green/Daytona Green (H26)(10%)
joints etcGray/Nezumi (H22)(90%) + Black (H2)(10%)
search lightWhite (H1)(100%) + Light Brown/Tan (H27)(small dose)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG Waff English Manual & Color Guide (Gundam The Origin) High Grade BandaiHG Waff English Manual & Color Guide (Gundam The Origin) High Grade BandaiHG Waff English Manual & Color Guide (Gundam The Origin) High Grade BandaiHG Waff English Manual & Color Guide (Gundam The Origin) High Grade Bandai


Available at these Online Shops:




Related Products



Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(S1)
Mr. Color Spray
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
WHITE
(N1)
Acrysion
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints
Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(S2)
Mr. Color Spray
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
BLACK
(N2)
Acrysion
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black/Semi-Gross Black
(S92)
Mr. Color Spray
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Silver
(H8)
Aqueous Hobby Color
Silver
(C8)
Mr. Color
Silver
(S8)
Mr. Color Spray
Flat Aluminium
(XF16)
Tamiya Color Acrylic Paints (Flat)
Silver (Metallic)
(70.997)
Vallejo Model Color
Silver RLM01 (Metallic)
(71.063)
Vallejo Model Air
Silver (metallic)
(11)
Humbrol Enamel
Silver (metallic)
(11)
Humbrol Acrylic
Silver (solid metallic)
(36190)
Revell Aqua Color Acrylic
silver (solid metallic)
(32190)
Revell Email Enamel
Aluminum (F)
(4677)
Testors Model Master Acrylic
Aluminum (F)
(1781)
Testors Model Master Enamel
Matt Natural Metal FS37178
(LC24)
Lifecolor
MATT ALUMINUM
(A.MIG-0194)
Ammo Acrylics
Aluminium (Metallic)
(RC020)
AK Real Color
SILVER
(N8)
Acrysion
Metal. Gloss Silver
(4678AP)
Italeri
Flat Aluminum
(XF-16)
Tamiya Enamel
Light Steel
(69.064)
Vallejo Mecha Color
Flat Aluminum (Lacquer Paint)
(LP38)
Tamiya Lacquer Paint
Aluminum (Metallic)
(71.062)
Vallejo Model Air
Aluminium
(HTK-_078)
Hataka
FS17178 Aluminium
(X142)
Xtracolor
Metallic Gray
(XF56)
Tamiya Color Acrylic Paints (Flat)
Oily Steel (Metallic)
(70.865)
Vallejo Model Color
Chrome (Metallic
(71.064)
Vallejo Model Air
Aluminum (metallic)
(56)
Humbrol Enamel
Aluminum (solid metallic)
(36199)
Revell Aqua Color Acrylic
aluminum (solid metallic)
(32199)
Revell Email Enamel
POLISHED METAL
(A.MIG-0192)
Ammo Acrylics
Metal. Flat Aluminum
(4677AP)
Italeri
Metallic Grey
(XF-56)
Tamiya Enamel
Dark Steel
(69.065)
Vallejo Mecha Color
Metallic gray (Lacquer Paint)
(LP61)
Tamiya Lacquer Paint
SILVER
(A.MIG-0195)
Ammo Acrylics
Shine Silver
(C90)
Mr. Color
Shine Silver
(S90)
Mr. Color Spray
Chrome Silver (metallic)
(191)
Humbrol Enamel
White Aluminium
(HTK-_190)
Hataka
RAL9001 Weissaluminium
(X252)
Xtracolor
Bare Metal Silver
(AS12)
Tamiya Color Spray For Aircraft

Cocoa Brown
(H17)
Aqueous Hobby Color
Hull Red
(C29)
Mr. Color
Hull Red
(S29)
Mr. Color Spray
Hull Red
(XF9)
Tamiya Color Acrylic Paints (Flat)
Hull Red
(70.985)
Vallejo Model Color
Mahogany
(71.036)
Vallejo Model Air
Wine (Matte)
(73)
Humbrol Enamel
reddish brown (solid matt)
(36137)
Revell Aqua Color Acrylic
reddish brown (solid matt)
(32137)
Revell Email Enamel
RED BROWN SHADOW
(A.MIG-0912)
Ammo Acrylics
Mahogany Brown
(HTK-_130)
Hataka
Hull Red
(N17)
Acrysion
Flat Rust
(4675AP)
Italeri
Camouflage Medium Brown
(71.038)
Vallejo Model Air
SCC 2 Brown
(UA273)
Lifecolor
S.C.C. 2 Brown
(RC035)
AK Real Color
S.C.C. No. 2 Khaki Brown
(HTK-_076)
Hataka
Braun – Brown
(RC065)
AK Real Color
Braun
(HTK-_299)
Hataka
Rust (solid matt)
(36183)
Revell Aqua Color Acrylic
Rust (solid matt) (solid silk matt)
(32183)
Revell Email Enamel

Gray/Nezumi
(H22)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(S13)
Mr. Color Spray
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Light Gray
(71.050)
Vallejo Model Air
Grey Primer (Matte)
(1)
Humbrol Enamel
Dark Grey (Gloss)
(32171)
Revell Email Enamel
GREY
(A.MIG-0059)
Ammo Acrylics
Neutral Gray
(N22)
Acrysion
Flat Dark Gray
(4754AP)
Italeri
Dark Admiralty Grey (Gloss)
(5)
Humbrol Enamel

Bright Green/Daytona Green
(H26)
Aqueous Hobby Color
Bright Green/Daytona Green
(C66)
Mr. Color
Bright Green
(S66)
Mr. Color Spray
Emerald (Gloss)
(2)
Humbrol Enamel
Emerald (Gloss)
(2)
Humbrol Acrylic
Emerald Green (Gloss)
(36161)
Revell Aqua Color Acrylic
emerald green (solid matt)
(32161)
Revell Email Enamel
SIGNAL GREEN
(A.MIG-0054)
Ammo Acrylics
Bright Green
(N26)
Acrysion

Light Brown/Tan
(H27)
Aqueous Hobby Color
Tan
(C44)
Mr. Color
Tan
(S44)
Mr. Color Spray
Buff
(XF57)
Tamiya Color Acrylic Paints (Flat)
Green Brown
(70.879)
Vallejo Model Color
German Yellow Brown
(71.272)
Vallejo Model Air
Brown Yellow (Matte)
(94)
Humbrol Enamel
Ochre Brown (solid matt)
(36188)
Revell Aqua Color Acrylic
Ochre Brown (solid matt)
(32188)
Revell Email Enamel
Africa Grunbraun RAL 8000 (F)
(2099)
Testors Model Master Enamel
Grunbraun/Gelbbraun RAL 8000
(UA203)
Lifecolor
GELBBRAUN
(A.MIG-0013)
Ammo Acrylics
Gelbraun – Yellow Brown
(RC063)
AK Real Color
Green Brown
(HTK-_303)
Hataka
RAL8000 Grunbraun
(X803)
Xtracolor
Tan
(N27)
Acrysion
Flat US Army/Mar.Gulf Arm Sand
(4812AP)
Italeri
Tan (Gloss)
(9)
Humbrol Enamel

Clear
(H30)
Aqueous Hobby Color
Clear
(C46)
Mr. Color
Clear
(S46)
Mr. Color Spray
Clear
(X22)
Tamiya Color Acrylic Paint
Glossy Varnish
(70.510)
Vallejo Model Color
Varnish (Gloss)
(35)
Humbrol Enamel
Varnish (Gloss)
(35)
Humbrol Acrylic
Clear (Gloss)
(36101)
Revell Aqua Color Acrylic
Clear (solid gloss)
(32101)
Revell Email Enamel
Gloss Clear Acrylic
(4638)
Testors Model Master Acrylic
Gloss Clear Acrylic
(2017)
Testors Model Master Enamel
Gloss Clear
(LC73)
Lifecolor
GLOSSY VARNISH
(A.MIG-0091)
Ammo Acrylics
Gloss Varnish
(RC502)
AK Real Color
Gloss Lacquer Clear Coat
(HTK-XP09)
Hataka
Clear
(N30)
Acrysion
Gloss Clear Acryl 35 ml
(4638AP)
Italeri
Clear
(X-22)
Tamiya Enamel
Clear (Lacquer Paint)
(LP9)
Tamiya Lacquer Paint
Clear
(TS13)
Tamiya Color Spray Paints

Russet / Azuki
(H33)
Aqueous Hobby Color
Russet/Azuki
(C81)
Mr. Color
Russet
(S81)
Mr. Color Spray
Brown (Satin)
(133)
Humbrol Enamel
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
Russet
(N33)
Acrysion
Flat Wood
(4673AP)
Italeri
Purple
(H39)
Aqueous Hobby Color
Purple
(C67)
Mr. Color
Purple
(S67)
Mr. Color Spray
Purple
(X16)
Tamiya Color Acrylic Paint
Purple
(70.959)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
PURPLE
(A.MIG-0127)
Ammo Acrylics
Purple
(N39)
Acrysion
Blue Gray
(H42)
Aqueous Hobby Color
Intermediate Blue/Medium Blue
(C72)
Mr. Color
Medium Blue
(XF18)
Tamiya Color Acrylic Paints (Flat)
French Mirage Blue
(70.900)
Vallejo Model Color
IDF Blue
(71.113)
Vallejo Model Air
Intermediate Blue (Matte)
(144)
Humbrol Enamel
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
FRENCH BLUE
(A.MIG-0062)
Ammo Acrylics
Intermediate Blue
(N56)
Acrysion
Flat Non Specular Interm. Blue
(4639AP)
Italeri

Wine Red/Maroon
(H43)
Aqueous Hobby Color
Wine Red/Maroon
(C100)
Mr. Color
Red
(70.926)
Vallejo Model Color
Crimson (Gloss)
(20)
Humbrol Enamel
Red
(36132)
Revell Aqua Color Acrylic
Red
(32132)
Revell Email Enamel
Wine Red
(N43)
Acrysion
Dark Red
(69.011)
Vallejo Mecha Color
Midnight Blue
(H55)
Aqueous Hobby Color
Midnight Blue
(C71)
Mr. Color
Royal Blue
(X3)
Tamiya Color Acrylic Paint
USN Sea Blue
(71.295)
Vallejo Model Air
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
Sea Blue
(RC257)
AK Real Color
Semi-Gloss Sea Blue
(HTK-_006)
Hataka
Midnight Blue
(N55)
Acrysion
Sea Blue
(XF17)
Tamiya Color Acrylic Paints (Flat)
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel

Medium Blue/Intermediate Blue
(H56)
Aqueous Hobby Color
Intermediate Blue/Medium Blue
(C72)
Mr. Color
Medium Blue
(XF18)
Tamiya Color Acrylic Paints (Flat)
Intermediate Blue
(70.903)
Vallejo Model Color
Intermediate Blue
(71.299)
Vallejo Model Air
Intermediate Blue (Matte)
(144)
Humbrol Enamel
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Intermediate Blue FS 35164 (F)
(4744)
Testors Model Master Acrylic
Intermediate Blue FS35164
(1720)
Testors Model Master Enamel
Non Specular Intermediate Blue FS 35164
(UA045)
Lifecolor
FRENCH BLUE
(A.MIG-0062)
Ammo Acrylics
Intermediate Blue
(RC235)
AK Real Color
Intermediate Blue
(HTK-_027)
Hataka
Intermediate Blue
(N56)
Acrysion
IDF Blue
(71.113)
Vallejo Model Air
RAF Blue (Matte)
(96)
Humbrol Enamel
INTERMEDIATE BLUE
(A.MIG-0228)
Ammo Acrylics
Flat Blue
(XF8)
Tamiya Color Acrylic Paints (Flat)
Dark Blue
(70.930)
Vallejo Model Color
Blue
(71.004)
Vallejo Model Air
Blue (Matte)
(25)
Humbrol Enamel
Blue (Matte)
(25)
Humbrol Acrylic
MARINE BLUE
(A.MIG-0123)
Ammo Acrylics
Pure Blue
(RC010)
AK Real Color
Signal Blue
(HTK-_102)
Hataka
Light Gray
(XF66)
Tamiya Color Acrylic Paints (Flat)
Flat Medium Sea Grey
(4313AP)
Italeri
UK PRU Blue
(71.109)
Vallejo Model Air
PRU Blue (Matte)
(230)
Humbrol Enamel
RAF P.R.U. Blue
(2061)
Testors Model Master Enamel
RAF PRU Blue
(RC297)
AK Real Color
BS PRU Blue
(HTK-_207)
Hataka

Clear Red
(H90)
Aqueous Hobby Color
Clear Red
(C47)
Mr. Color
Clear Red
(S47)
Mr. Color Spray
Clear Red
(X27)
Tamiya Color Acrylic Paint
Transparent Red (Transparent)
(70.934)
Vallejo Model Color
Red (Clear)
(1321)
Humbrol Enamel
Red (Clear)
(36731)
Revell Aqua Color Acrylic
red (clear)
(32731)
Revell Email Enamel
Transparent Red (G)
(4630)
Testors Model Master Acrylic
CRYSTAL RED
(A.MIG-0093)
Ammo Acrylics
Clear Red
(RC503)
AK Real Color
Clear Red
(N90)
Acrysion
Gloss Red
(4605AP)
Italeri
Clear Red
(X-27)
Tamiya Enamel
clear red (Lacquer Paint)
(LP52)
Tamiya Lacquer Paint
Clear Red
(TS74)
Tamiya Color Spray Paints

Clear Blue
(H93)
Aqueous Hobby Color
Clear Blue
(C50)
Mr. Color
Clear Blue
(S50)
Mr. Color Spray
Clear Blue
(X23)
Tamiya Color Acrylic Paint
Transparent Blue (Transparent)
(70.938)
Vallejo Model Color
Blue (clear)
(36752)
Revell Aqua Color Acrylic
blue (clear)
(32752)
Revell Email Enamel
Transparent Blue (G)
(4658)
Testors Model Master Acrylic
CRYSTAL LIGHT BLUE
(A.MIG-0098)
Ammo Acrylics
Clear Blue
(RC504)
AK Real Color
Clear Blue
(N93)
Acrysion
Gloss Light Blue
(4650AP)
Italeri
Clear Blue
(X-23)
Tamiya Enamel
Clear Blue (Lacquer Paint)
(LP68)
Tamiya Lacquer Paint
CRYSTAL BLACK BLUE (AND TAIL LIGHT OFF)
(A.MIG-0099)
Ammo Acrylics
Clear Blue
(TS72)
Tamiya Color Spray Paints
