1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide

1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide

1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide

1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide

1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide

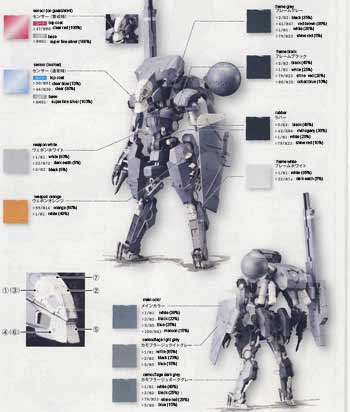

Color Guide DescriptionPaint Ratios
sensor (on guard/alert) top coatClear Red (H90)(100%)
sensor (on guard/alert) base coatSuper Metallic Super Fine Silver (SM01)(100%)
sensor (normal) top coatClear Blue (H93)(100%)
sensor (normal) base coatSuper Metallic Super Fine Silver (SM01)(100%)
weapon white partWhite (H1)(90%) + Dark Earth (H72)(5%) + Black (H2)(5%)
weapon orangeOrange (H14)(60%) + White (H1)(40%)
main colorWhite (H1)(38%) + Black (H2)(22%) + Blue (H5)(25%) + Wine Red/Maroon (H43)(15%)
camouflage light gray partWhite (H1)(65%) + Black (H2)(20%) + Blue (H5)(15%)
camouflage dark gray partWhite (H1)(40%) + Black (H2)(25%) + Shine Red (H23)(20%) + Blue (H5)(15%)
frame gray partBlack (H2)(35%) + Red Brown (H47)(30%) + White (H1)(30%) + Shine Red (H23)(5%)
frame black partBlack (H2)(45%) + White (H1)(25%) + Shine Red (H23)(20%) + Cobalt Blue (H35)(10%)
rubber partBlack (H2)(40%) + Mahogany (H84)(30%) + White (H1)(20%) + Shine Red (H23)(10%)
frame white partWhite (H1)(95%) + Dark Earth (H72)(5%)
Disclaimer

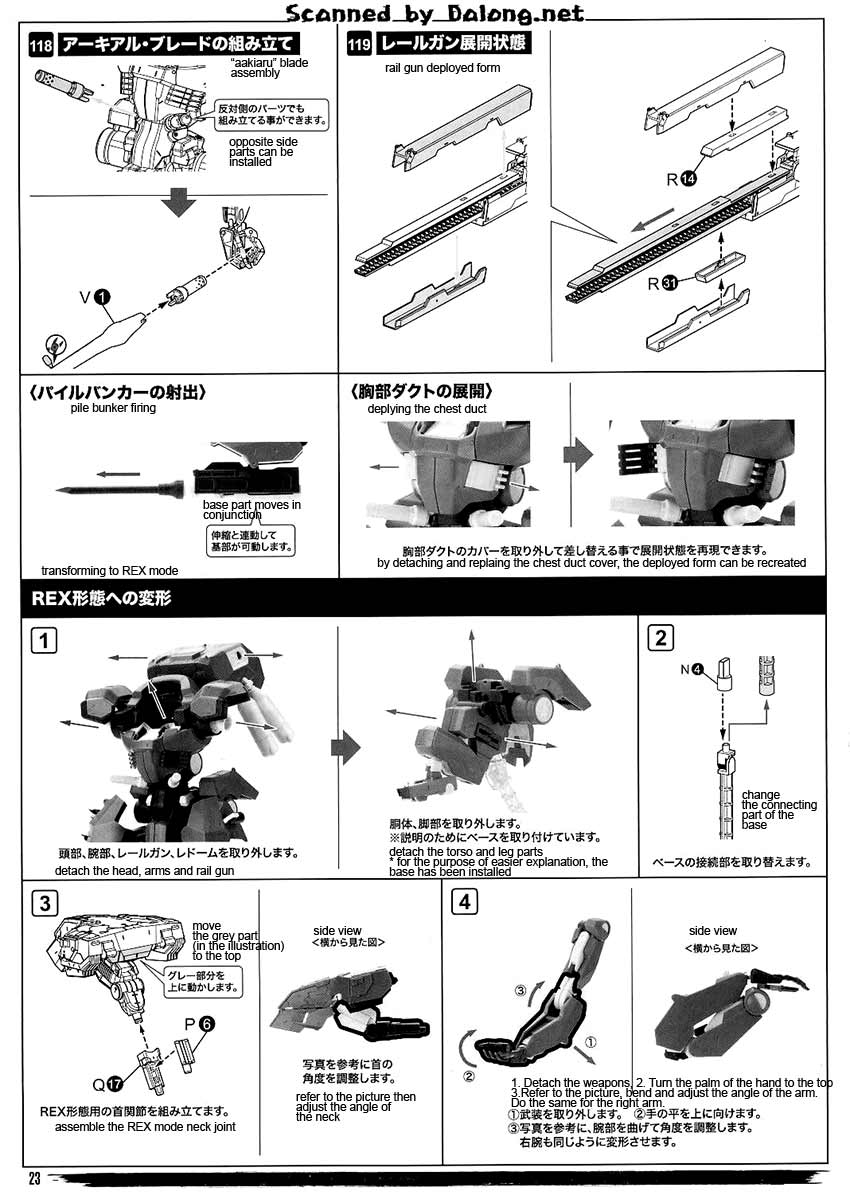

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the manual, kindly refer to this post.

1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide
1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide
1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide
1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide
1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide
1/100 Sahelanthropus (Metal Gear) English Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
--Super Metallic Super Fine Silver (SM01)------------------------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
