HG Hyakuri English Manual & Color Guide

HG Hyakuri Construction Manual & Color Guide

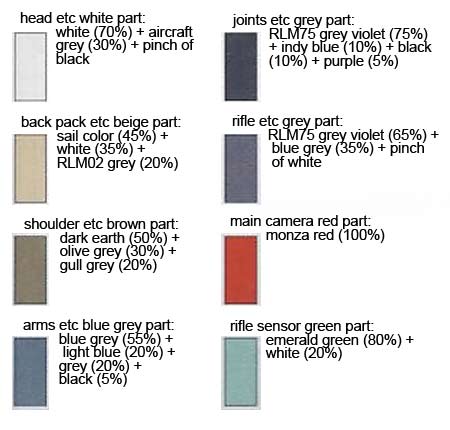

Color Guide DescriptionPaint Ratios
head etc white partWhite (H1)(70%) + Aircraft Gray (H57)(30%) + Black (H2)(small dose)
backpack etc beige partSail Color (H85)(45%) + White (H1)(35%) + RLM02 Gray (H70)(20%)
shoulder etc brown partDark Earth (H72)(50%) + Field Gray (2)/Olive Gray (H48)(30%) + Gull Gray/Light Gull Gray (H51)(20%)
arms etc blue gray partBlue Gray (H42)(55%) + Light Blue/mizu (H45)(20%) + Gray/Nezumi (H22)(20%) + Black (H2)(5%)
joints etc gray partRLM75 Gray Violet/RLM 75 Gray (H69)(75%) + Bright Blue/Indy Blue (H15)(10%) + Black (H2)(10%) + Purple (H39)(5%)
rifle etc gray partRLM75 Gray Violet/RLM 75 Gray (H69)(65%) + Blue Gray (H42)(35%) + White (H1)(small dose)
main camera red partMonza Red/Red Madder (H86)(100%)
rifle sensor green partEmerald Green (H46)(80%) + White (H1)(20%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG Hyakuri Construction Manual & Color GuideHG Hyakuri Construction Manual & Color GuideHG Hyakuri Construction Manual & Color GuideHG Hyakuri Construction Manual & Color Guide
HG Hyakuri Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Sail Color (H85)Sail Color (C45)----IDF Sand Grey 73 (71.141)REAL IDF SAND GREY 73 (A.MIG-0132)IDF Sinai Grey 1973 (RC096)----Oak (Satin) (71)----Israeli Sandgrey 61-73 FS 30372 (UA020)--
RLM02 Gray (H70)RLM02 Gray (C60)RLM Gray (XF22)Green Grey (70.886)Grey RLM02 (71.044)GREEN SLATE (A.MIG-0217)RLM 02 RLM-Grau (1938) (RC265)Grey (HTK-_023)--RLM 02 Grau Matt (240)Grau RLM 02 (SG) (2071)--Grau RLM 02 (UA504)Grau RLM 02 (4770AP)
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
Field Gray (2)/Olive Gray (H48)Field Gray (2) (C52)Field Gray (XF65)Retractive Green (70.890)Medium Olive (71.092)OLIVGRÜN OPT.2 (A.MIG-0002)----------------
Gull Gray/Light Gull Gray (H51)Light Gull Gray/Gull Gray (C11)----USAF Light Gray (71.276)LIGHT GRAY (A.MIG-0209)----------------
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Light Blue/mizu (H45)----Sky Blue (70.961)AII SV. Gol Light Blue (71.317)SKY LINE BLUE A II (A.MIG-0224)Air Superiority Blue (RC239)Air Superiority Blue (HTK-_155)--Sea Blue (Gloss) (47)----Air Superiority Blue FS35450 (UA037)Gloss Light Blue (4650AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
RLM75 Gray Violet/RLM 75 Gray (H69)RLM75 Gray Violet (C37)Dark Gray (XF24)Basalt Grey (70.869)Grey Violet RLM75 (71.259)GRAUVIOLETT (A.MIG-0254)RLM 75 (RC279)Grey-Violet (HTK-_007)dark grey (solid silk matt) (32378)Extra Dark Sea Grey (Satin) (123)Grauviolett RLM75 (SG) (2085)--Grauviolett RLM 75 (UA508)--
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
