EX SCV-70 White Base English Manual & Color Guide

EX SCV-70 White Base Construction Manual & Color Guide

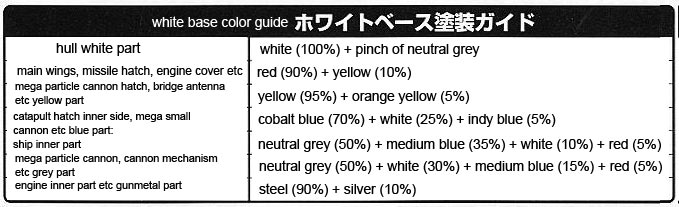

Color Guide DescriptionPaint Ratios
hull white partWhite (H1)(100%) + Neutral Gray (H53)(small dose)
main wings, missile hatch, engine cover etcRed (H3)(90%) + Yellow (H4)(10%)
mega particle cannon hatch, bridge antenna etc yellow partYellow (H4)(95%) + Orange Yellow (H24)(5%)
catapult hatch inner side, mega small cannon etc blue partCobalt Blue (H35)(70%) + White (H1)(25%) + Bright Blue/Indy Blue (H15)(5%)
ship inner partNeutral Gray (H53)(50%) + Medium Blue/Intermediate Blue (H56)(35%) + White (H1)(10%) + Red (H3)(5%)
mega particle cannon, cannon mechanism etc gray partNeutral Gray (H53)(50%) + White (H1)(30%) + Medium Blue/Intermediate Blue (H56)(15%) + Red (H3)(5%)
engine inner part etc gun metal partSteel (H18)(90%) + Silver (H8)(10%)
Disclaimer






Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

EX SCV-70 White Base Construction Manual & Color GuideEX SCV-70 White Base Construction Manual & Color GuideEX SCV-70 White Base Construction Manual & Color GuideEX SCV-70 White Base Construction Manual & Color Guide
EX SCV-70 White Base Construction Manual & Color GuideEX SCV-70 White Base Construction Manual & Color Guide




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Steel (H18)Steel (C28)--Oily Steel (Metallic) (70.865)Steel (Metallic) (71.065)STEEL (A.MIG-0191)----steel (solid metallic) (32191)Polished Steel (metalcote) (27003)------Metal. Flat Steel (4679AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
