1/12 Battle Droid & Stap English Manual & Color Guide

1/12 Battle Droid and Strap English Construction Manual & Color Guide

1/12 Battle Droid and Strap English Construction Manual & Color Guide

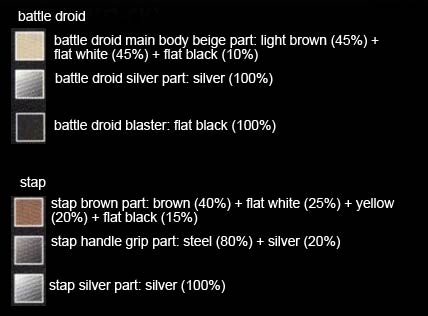

Color Guide DescriptionPaint Ratios
battle droid main body beige partLight Brown/Tan (H27)(45%) + Flat White (H11)(45%) + Flat Black (H12)(10%)
battle droid silver partSilver (H8)(100%)
battle droid blasterFlat Black (H12)(100%)
stap brown partBrown (H7)(40%) + Flat White (H11)(25%) + Yellow (H4)(20%) + Flat Black (H12)(15%)
stap handle grip partSilver (H8)(20%) + Steel (H18)(80%)
stap silver partSilver (H8)(100%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Hobby Search. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

1/12 Battle Droid and Strap English Construction Manual & Color Guide1/12 Battle Droid and Strap English Construction Manual & Color Guide1/12 Battle Droid and Strap English Construction Manual & Color Guide1/12 Battle Droid and Strap English Construction Manual & Color Guide
1/12 Battle Droid and Strap English Construction Manual & Color Guide1/12 Battle Droid and Strap English Construction Manual & Color Guide1/12 Battle Droid and Strap English Construction Manual & Color Guide1/12 Battle Droid and Strap English Construction Manual & Color Guide
1/12 Battle Droid and Strap English Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Light Brown/Tan (H27)Tan (C44)Buff (XF57)Green Brown (70.879)German Yellow Brown (71.272)GELBBRAUN (A.MIG-0013)Gelbraun – Yellow Brown (RC063)Green Brown (HTK-_303)Ochre Brown (solid matt) (32188)Brown Yellow (Matte) (94)Africa Grunbraun RAL 8000 (F) (2099)RAL8000 Grunbraun (X803)Grunbraun/Gelbbraun RAL 8000 (UA203)Flat US Army/Mar.Gulf Arm Sand (4812AP)
Flat White (H11)Flat White (C62)Flat White (XF2)White (70.951)White (71.001)MATT WHITE (A.MIG-0050)Flat White (RC004)Traffic White (HTK-_101)white (solid silk matt) (32105)White (Matte) (34)White FS 37875 (F) (1768)White (Matte) (X405)Matt White FS 37925 (LC01)Flat White (4769AP)
Flat Black (H12)Flat Black (C33)Flat Black (XF1)Black (70.950)Black (71.057)MATT BLACK (A.MIG-0046)Flat Black (RC001)Jet Black (HTK-_100)black (solid silk matt) (32108)Black (Matte) (33)Black FS 37038 (F) (1749)Night Black BS642 (X012)Black FS37038 (LC02)Flat Black (4768AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Steel (H18)Steel (C28)--Oily Steel (Metallic) (70.865)Steel (Metallic) (71.065)STEEL (A.MIG-0191)----steel (solid metallic) (32191)Polished Steel (metalcote) (27003)------Metal. Flat Steel (4679AP)
