Kotobukiya 1/100 Metal Gear Ray English Manual & Color Guide

Color Guide (#Ads) (#Disclaimer)

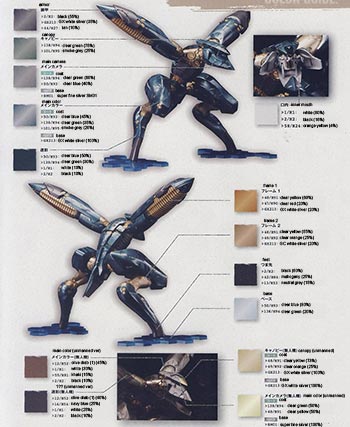

armor:

Black (C2)(55%) + White Silver (GX213)(35%) + Tan (C44)(10%)

canopy:

Clear Green (C138)(75%) + Smoke Gray (C101)(25%)

main camera top coat:

Clear Green (C138)(60%) + Clear Blue (C50)(40%)

main camera base coat:

Super Metallic Super Fine Silver (SM01)(100%)

main color top coat:

Clear Blue (C50)(45%) + Clear Green (C138)(35%) + Smoke Gray (C101)(20%)

main color base coat:

White Silver (GX213)(100%)

camouflage color:

Clear Blue (C50)(50%) + Clear Green (C138)(30%) + White (C1)(10%) + Black (C2)(10%)

inner mouth:

White (C1)(80%) + Black (C2)(16%) + Orange Yellow (C58)(4%)

frame 1:

Clear Yellow (C48)(60%) + Clear Red (C47)(20%) + White Silver (GX213)(20%)

frame 2:

Clear Yellow (C48)(55%) + Clear Orange (C49)(25%) + White Silver (GX213)(20%)

feet:

Black (C2)(60%) + Mahogany (C42)(25%) + Neutral Gray (C13)(15%)

base:

Clear Blue (C50)(80%) + Clear Green (C138)(20%)

canopy (unmanned) top coat:

Clear Yellow (C48) + Clear Orange (C49) + White Silver (GX213)(2%)

canopy (unmanned) base coat:

White Silver (GX213)(100%)

main color (unmanned) top coat:

Clear Green (C138)(50%) + Clear Yellow (C48)(50%)

main color (unmanned) base coat:

Super Metallic Super Fine Silver (SM01)(100%)

main color (unmanned ver):

Olive Drab (1) (C12)(45%) + White (C1)(30%) + Khaki (C55)(15%) + Black (C2)(10%)

camouflage color (unmanned ver):

Olive Drab (1) (C12)(40%) + Navy Blue (C14)(25%) + White (C1)(25%) + Black (C2)(10%)

Useful Pages

Gunpla Symbols  |   Tamiya Paint Conversion Chart  |   Humbrol Paint Conversion Chart  |   Model Paint Conversion Chart  |   Revell Paint Conversion Chart  |   Vallejo Paint Conversion Chart  |   Mr Color Paint Chart  |   Revell Colour Chart  |   Tamiya Paint Chart  |   Mr Hobby Color Chart  |   Vallejo Colour Chart  |   Italeri Paint Conversion Chart  |   Mr Color Paint Conversion Chart  |   Testors Model Master Paint Conversion Chart  |   Mission Models Paint Conversion Chart  |   Gundam Manual PDF  |   Vallejo Equivalent Chart

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

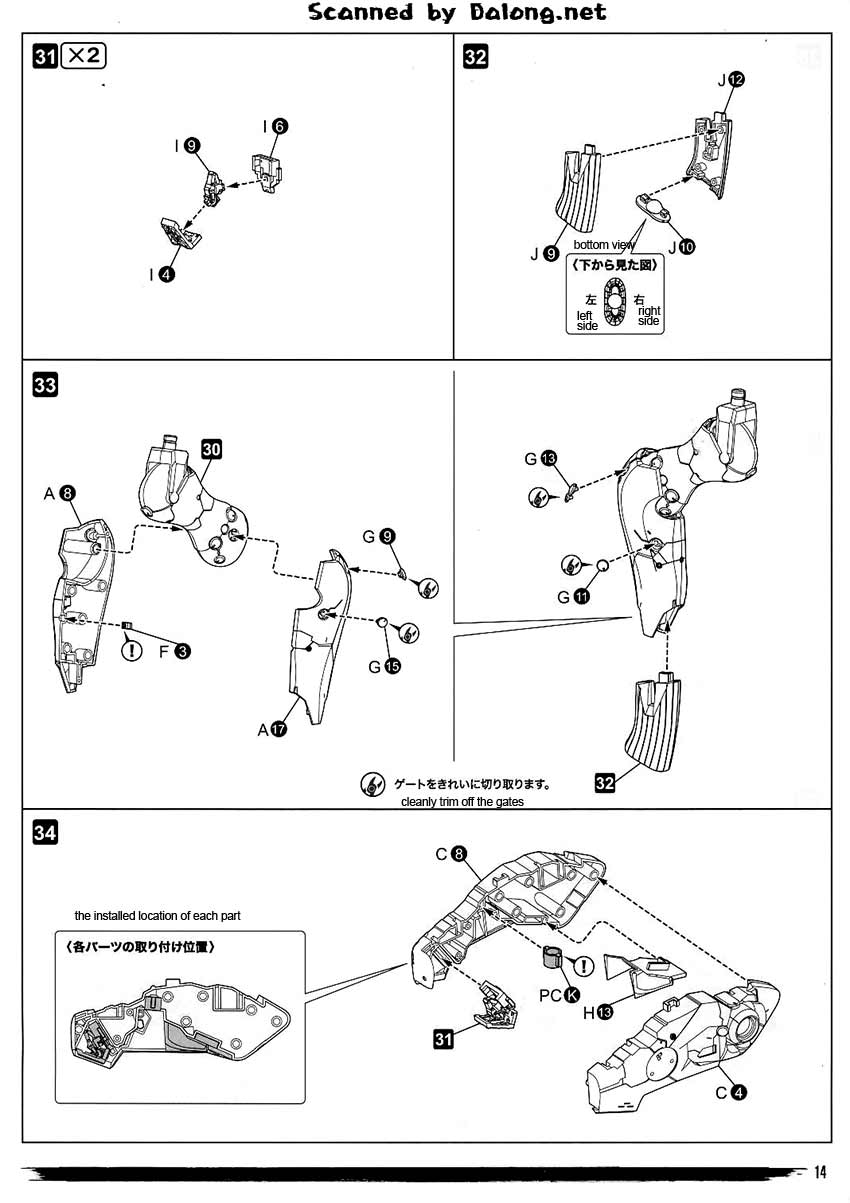

Instruction Manual
