HG R-Gyagya English Manual & Color Guide

HG R-Gyagya Construction Manual & Color Guide

From Gundam Build Fighters comes the 1/144 High Grade R-Gyagya released by Bandai. In the anime series this particular mecha was used by Kaoruko Sazaki. I never liked the design of the Gyan, from which this mecha is based, but I have to say that this is a fresh concept that truly impressed me. Aside from the Gyan I thought it had shades of the Jagd Doga but upon checking I found out I was wrong or maybe it was the Sazabi? Hehehe... who cares, just as long as it looks great we shouldn't care about where it got its inspiration from.

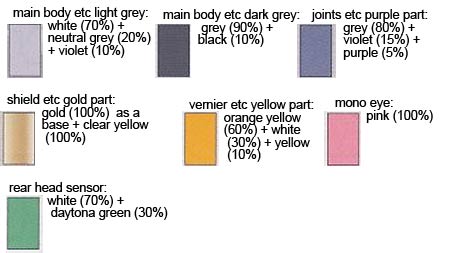

Color Guide DescriptionPaint Ratios
main body etc light gray partWhite (H1)(70%) + Neutral Gray (H53)(20%) + Violet (H49)(10%)
shield etc gold partGold (H9)(100%) as a base and as a top coat Clear Yellow (H91)(100%)
rear head sensorWhite (H1)(70%) + Bright Green/Daytona Green (H26)(30%)
main body etc dark gray partGray/Nezumi (H22)(90%) + Black (H2)(10%)
vernier etc yellow partOrange Yellow (H24)(60%) + White (H1)(30%) + Yellow (H4)(10%)
joints etc purple partGray/Nezumi (H22)(80%) + Violet (H49)(15%) + Purple (H39)(5%)
mono eyePink (H19)(100%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products





The 1/144 High Grade R-Gyagya is selling for $ at Amazon

Construction Manual & Color Guide for the 1/144 High Grade R-Gyagya was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG R-Gyagya Construction Manual & Color Guide HG R-Gyagya Construction Manual & Color Guide HG R-Gyagya Construction Manual & Color Guide HG R-Gyagya Construction Manual & Color Guide

Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Gold
(H9)
Aqueous Hobby Color
Gold
(C9)
Mr. Color
Gold Leaf
(X12)
Tamiya Color Acrylic Paint
Gold (Metallic)
(70.996)
Vallejo Model Color
Gold (Metallic)
(71.066)
Vallejo Model Air
Gold (metallic)
(16)
Humbrol Enamel
Gold (metallic)
(16)
Humbrol Acrylic
Gold (solid metallic)
(36194)
Revell Aqua Color Acrylic
gold (solid metallic)
(32194)
Revell Email Enamel
GOLD
(A.MIG-0198)
Ammo Acrylics
Metal. Gloss Gold
(4671AP)
Italeri

Pink
(H19)
Aqueous Hobby Color
Pink
(C63)
Mr. Color
Pink
(X17)
Tamiya Color Acrylic Paint
Old Rose
(70.944)
Vallejo Model Color
Pink (Gloss)
(200)
Humbrol Enamel

Gray/Nezumi
(H22)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Light Gray
(71.050)
Vallejo Model Air
Grey Primer (Matte)
(1)
Humbrol Enamel
Dark Grey (Gloss)
(32171)
Revell Email Enamel
GREY
(A.MIG-0059)
Ammo Acrylics
Flat Dark Gray
(4754AP)
Italeri
Dark Admiralty Grey (Gloss)
(5)
Humbrol Enamel

Orange Yellow
(H24)
Aqueous Hobby Color
Orange Yellow
(C58)
Mr. Color
Light Orange
(70.911)
Vallejo Model Color
Orange Rust
(71.130)
Vallejo Model Air
LIGHT RUST
(A.MIG-0039)
Ammo Acrylics
Signal Orange
(HTK-_133)
Hataka

Bright Green/Daytona Green
(H26)
Aqueous Hobby Color
Bright Green/Daytona Green
(C66)
Mr. Color
Emerald (Gloss)
(2)
Humbrol Enamel
Emerald (Gloss)
(2)
Humbrol Acrylic
Emerald Green (Gloss)
(36161)
Revell Aqua Color Acrylic
emerald green (solid matt)
(32161)
Revell Email Enamel
SIGNAL GREEN
(A.MIG-0054)
Ammo Acrylics

Purple
(H39)
Aqueous Hobby Color
Purple
(C67)
Mr. Color
Purple
(X16)
Tamiya Color Acrylic Paint
Purple
(70.959)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
PURPLE
(A.MIG-0127)
Ammo Acrylics

Violet
(H49)
Aqueous Hobby Color
Purple
(X16)
Tamiya Color Acrylic Paint
Violet
(70.960)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
VIOLET
(A.MIG-0126)
Ammo Acrylics
Violet
(N49)
Acrysion

Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color

Clear Yellow
(H91)
Aqueous Hobby Color
Clear Yellow
(C48)
Mr. Color
Clear Yellow
(X24)
Tamiya Color Acrylic Paint
Clear Yellow
(RC507)
AK Real Color
Clear Yellow
(X-24)
Tamiya Enamel
Clear Yellow (Lacquer Paint)
(LP69)
Tamiya Lacquer Paint
