1/35 HAW206 Prototype English Manual & Color Guide

1/35 HAW206 Prototype Construction Manual & Color Guide

From Ghost in the Shell Stand Alone Complex comes the HAW206 spider tank released as a 1/35 Model Kit by Kotobukiya. Ghost in the Shell Stand Alone Complex has got to be one of the most original and innovative anime series to ever come out of Japan. I remembered watching the two movies and being impressed with the designs and imagery, it was only when I started watching Stand Alone Complex that I became a true fan of the franchise. The episode where the HAW206 comes out is one of the more impactful episodes to come out of the series.

Warning Spoilers!!! : In the episode, Takeshi Kago, the talented designer of the HAW206 passed away and his brain was placed in control of the tank by one of his colleagues. Kago had been a sickly person for most of his life and it was because of his parent's beliefs that he was not allowed any cybernetic implants or treatments to correct his afflictions. Section 9 works to stop the tank's journey to Kago's parent's house as they think it is on a mission of revenge. In the end it turns out that the conscience of Kago just wanted to introduce his new body to his parents.

1/35 HAW206 Prototype Construction Manual & Color Guide


1/35 HAW206 Prototype Construction Manual & Color Guide

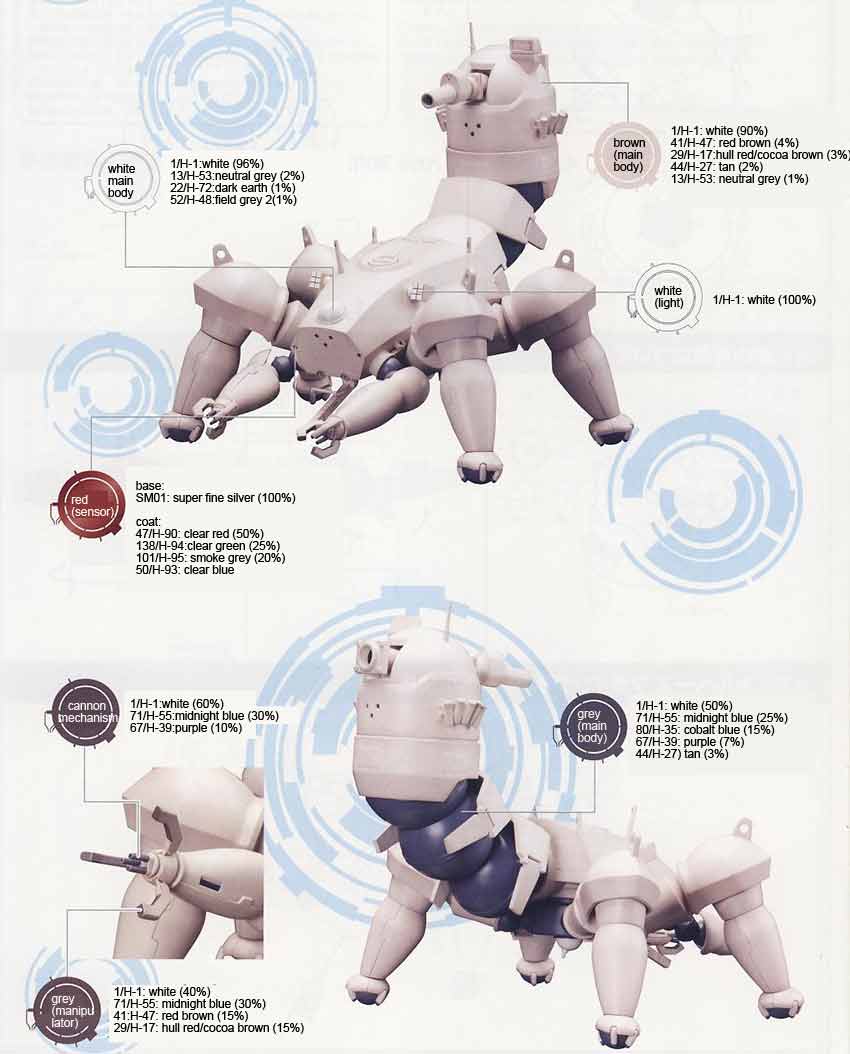

Color Guide DescriptionPaint Ratios
white main bodyWhite (H1)(96%) + Neutral Gray (H53)(2%) + Dark Earth (H72)(1%) + Field Gray (2)/Olive Gray (H48)(1%)
brown main bodyWhite (H1)(90%) + Red Brown (H47)(4%) + Cocoa Brown (H17)(3%) + Light Brown/Tan (H27)(2%) + Neutral Gray (H53)(1%)
white (light) partWhite (H1)(100%)
red sensor base colorSuper Metallic Super Fine Silver (SM01)
red sensor top coatClear Red (H90)(50%) + Clear Green (H94)(25%) + Smoke Gray (H95)(20%) + Clear Blue (H93)(small dose)
cannon mechanismWhite (H1)(60%) + Midnight Blue (H55)(30%) + Purple (H39)(10%)
gray main bodyWhite (H1)(50%) + Midnight Blue (H55)(25%) + Cobalt Blue (H35)(15%) + Purple (H39)(7%) + Light Brown/Tan (H27)(3%)
gray (manipulator)White (H1)(40%) + Midnight Blue (H55)(30%) + Red Brown (H47)(15%) + Cocoa Brown (H17)(15%)
gray monitorBlack (H2)(50%) + White (H1)(30%) + Field Gray (2)/Olive Gray (H48)(10%)
yellow cockpitFlourescent Yellow (C172)(70%) + Yellow (C4)(20%) + White (C1)(10%)
purple lensPurple (H39)(50%) + Black (H2)(35%) + Wine Red/Maroon (H43)(15%)
blue cockpitCobalt Blue (H35)(60%) + White (H1)(25%) + Midnight Blue (H55)(15%)
red cockpitShine Red (H23)(65%) + White (H1)(25%) + Orange Yellow (H24)(7%) + Red Brown (H47)(3%)
brown cockpitRed Brown (H47)(80%) + Black (H2)(15%) + White (H1)(5%)
gray cockpitWhite (H1)(55%) + Midnight Blue (H55)(30%) + Cobalt Blue (H35)(14%) + Purple (H39)(1%)
ivory electronic brain setWhite (H1)(75%) + Light Brown/Tan (H27)(15%) + Neutral Gray (H53)(9%) + Red Brown (H47)(1%)
green electronic brain setField Gray (2)/Olive Gray (H48)(40%) + White (H1)(30%) + Midnight Blue (H55)(20%) + Cobalt Blue (H35)(10%)
gray electronic brain setWhite (H1)(70%) + Midnight Blue (H55)(20%) + Cobalt Blue (H35)(10%)
