MG Turn X English Manual & Color Guide

MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide

It finally happened, Gym Ghingnham's Turn X Gundam from ∀ Gundam gets released as a 1/100 Master Grade model kit by Bandai. I like what they did with this mobile suit, especially the concept of the parts breaking up to function as independent weapons. Talk about innovating the concept of fin funnel weapons. I love the design and color scheme of this model kit, much more than the titular Turn A Gundam. Nothing new there, as I usually prefer the designs of the antagonist mobile suits in the Universal Century storyline.

The 1/100 MG Concept-X 6-1-2 Turn X is selling for $ at Amazon, 4480 yen at Amiami, 4800 yen at HobbyLink Japan

Color Guide DescriptionPaint Ratios

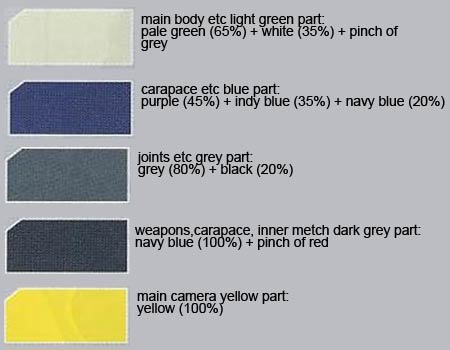

MG Turn X main body etc light green partPale Green (H41)(65%) + White (H1)(35%) + Gray/Nezumi (H22)(small dose)
MG Turn X carapace etc blue partPurple (H39)(45%) + Bright Blue/Indy Blue (H15)(35%) + Navy Blue (H54)(20%)
MG Turn X joints etc gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
MG Turn X weapons, carapace, inner mech dark gray partNavy Blue (H54)(100%) + Red (H3)(small dose)
MG Turn X main camera yellow partYellow (H4)(100%)

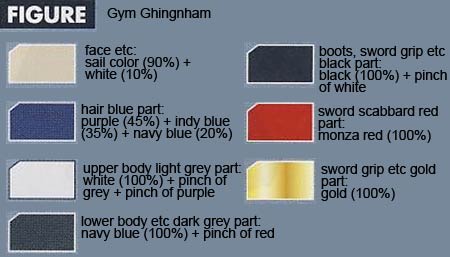

Gym Ghingnham face etcSail Color (H85)(90%) + White (H1)(10%)
Gym Ghingnham hair blue partPurple (H39)(45%) + Bright Blue/Indy Blue (H15)(35%) + Navy Blue (H54)(20%)
Gym Ghingnham upper body light gray partWhite (H1)(100%) + Gray/Nezumi (H22)(small dose) + Purple (H39)(small dose)
Gym Ghingnham lower body etc dark gray partNavy Blue (H54)(100%) + Red (H3)(small dose)
Gym Ghingnham boots, sword grip etc black partBlack (H2)(100%) + White (H1)(small dose)
Gym Ghingnham sword scabbard red partMonza Red/Red Madder (H86)(100%)
Gym Ghingnham sword grip etc gold partGold (H9)(100%)
Disclaimer

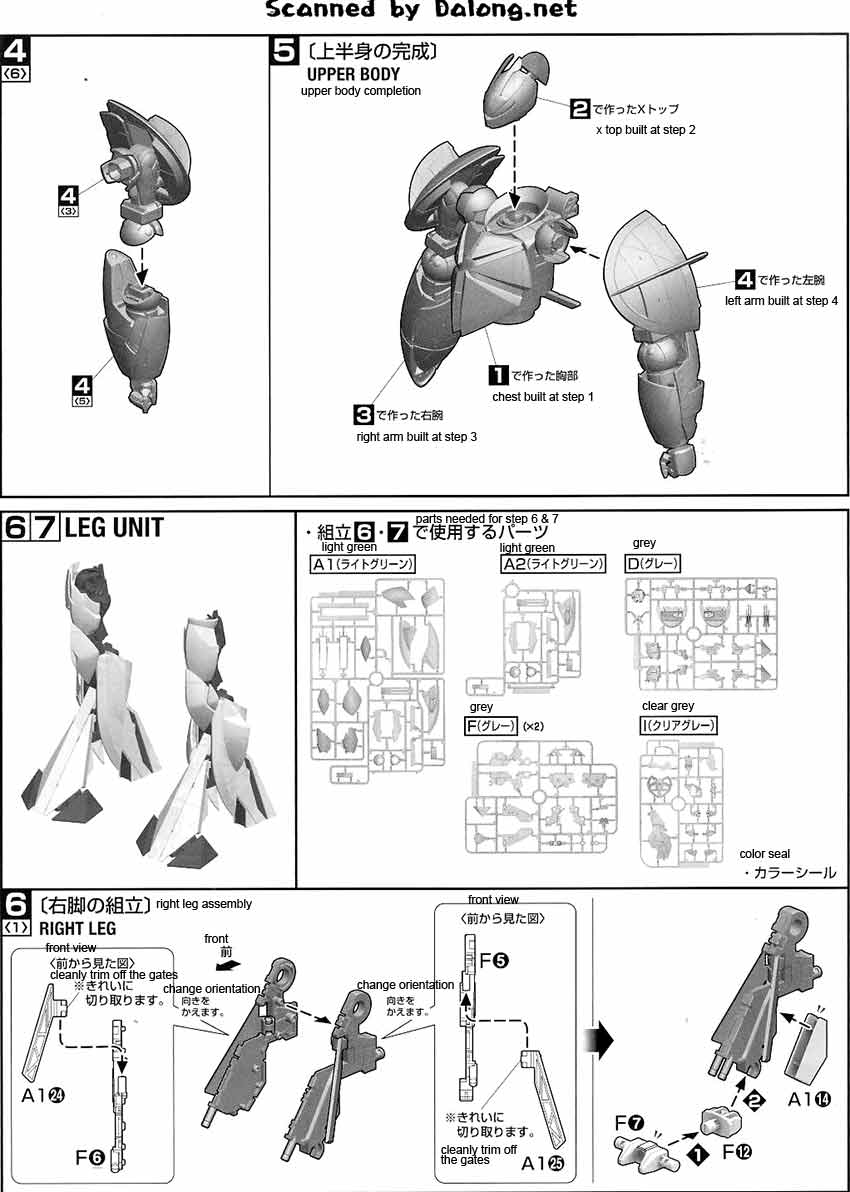

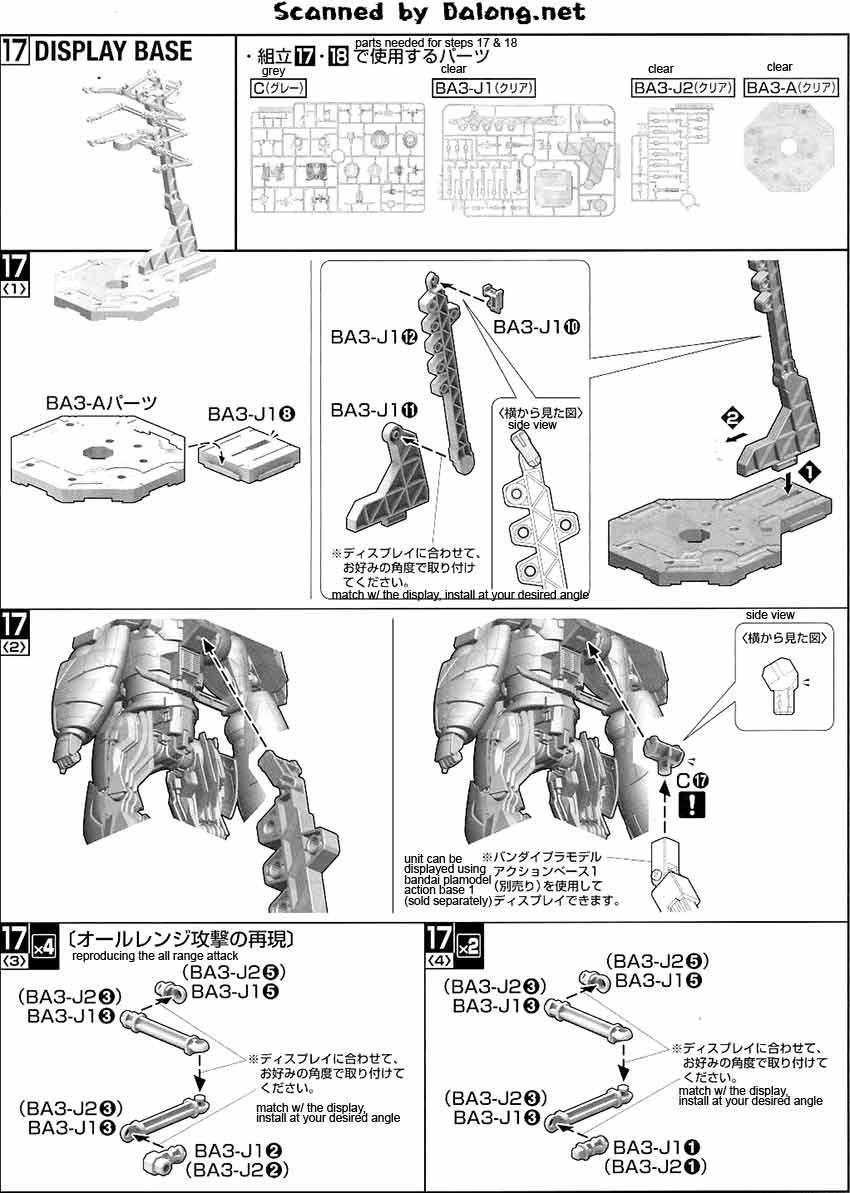

Construction Manual & Color Guide for the 1/100 Concept-X 6-1-2 Turn X was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide

MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide

MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide

MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide

MG Concept-X 6-1-2 Turn X Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelXtracolorLife ColorItaleri
Pale Green (H41)------------------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Sail Color (H85)Sail Color (C45)----IDF Sand Grey 73 (71.141)REAL IDF SAND GREY 73 (A.MIG-0132)IDF Sinai Grey 1973 (RC096)----Oak (Satin) (71)--Israeli Sandgrey 61-73 FS 30372 (UA020)--
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)----Metal. Gloss Gold (4671AP)
