Frame Arms Type 38 Model 1 Ryurai Kai English Manual & Color Guide

Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual

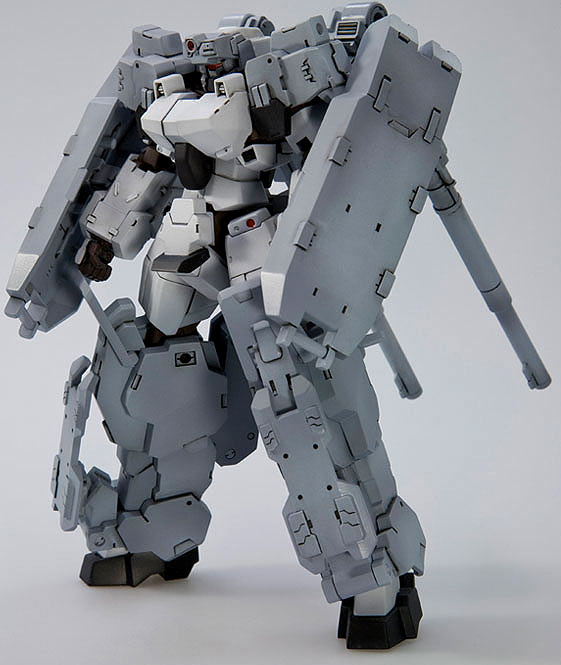

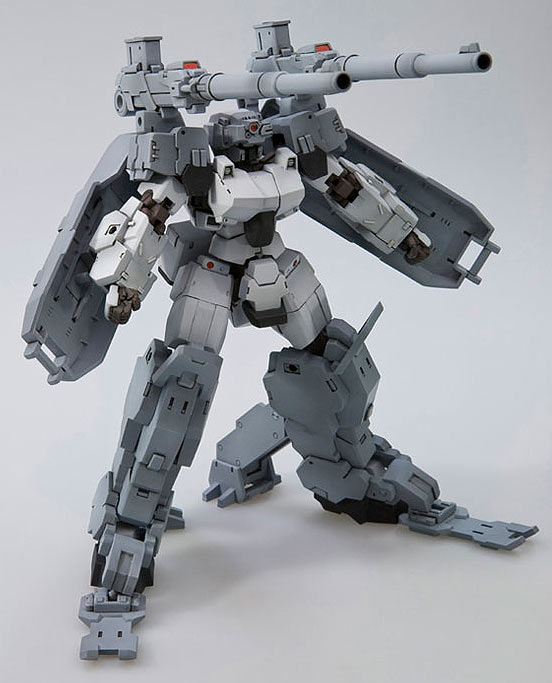

1/100 scale Type 38 Model 1 Ryurai Kai by Kotobukiya for their original series line dubbed as Frame Arms. The Ryurai Kai is a heavily armored artillery piece that is based off the Type 32 frame.


Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual

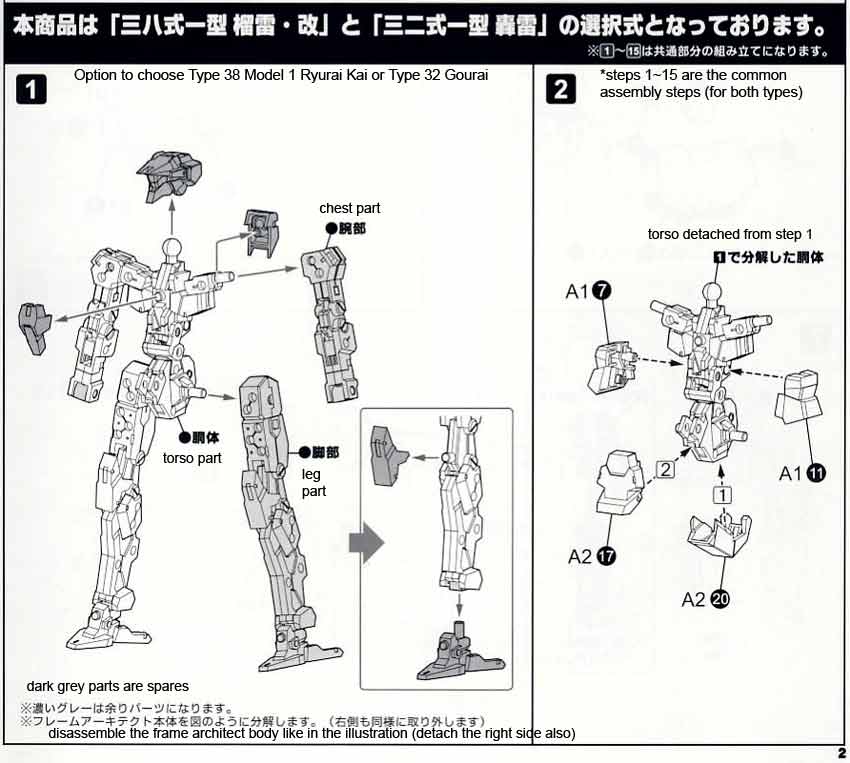

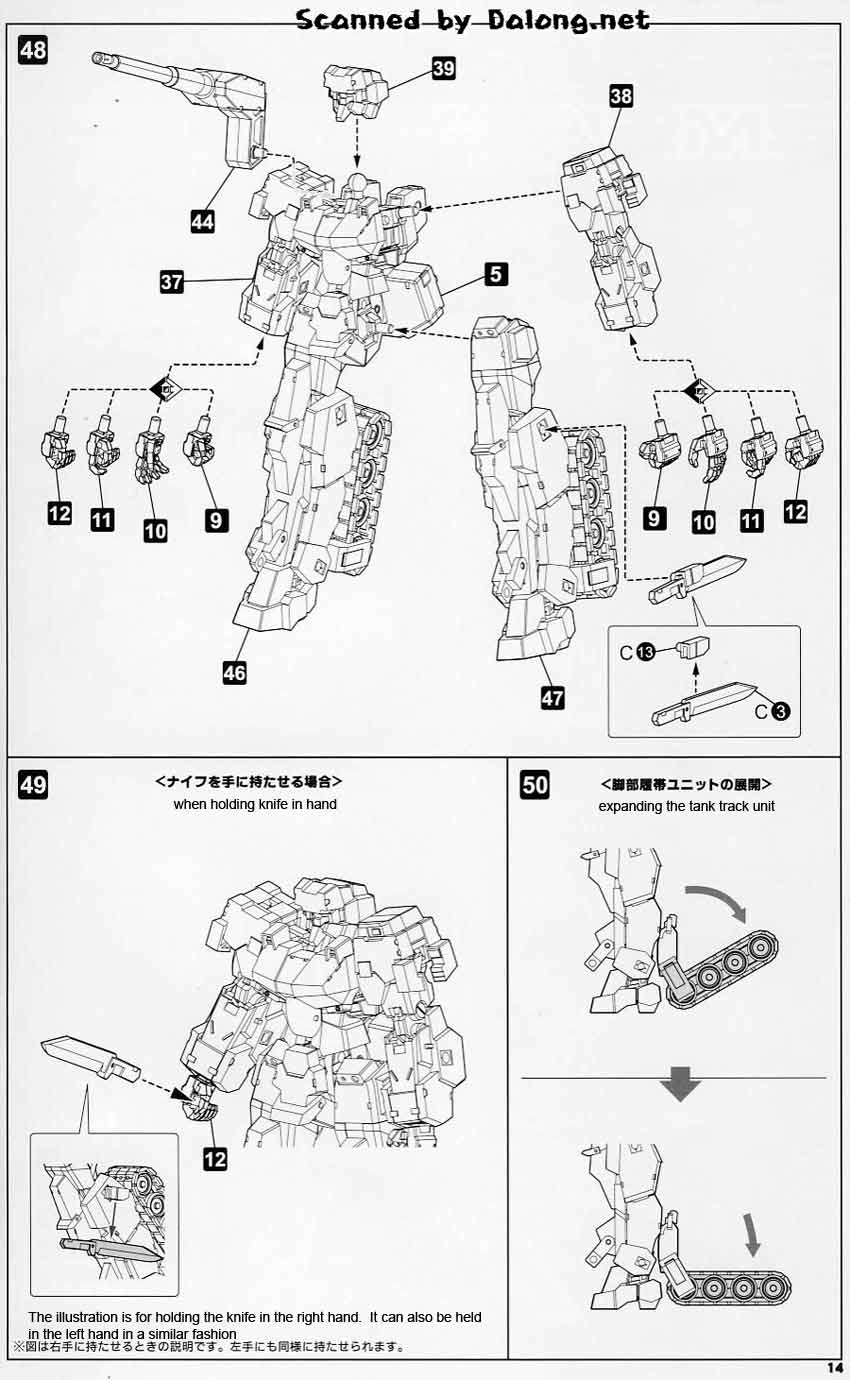

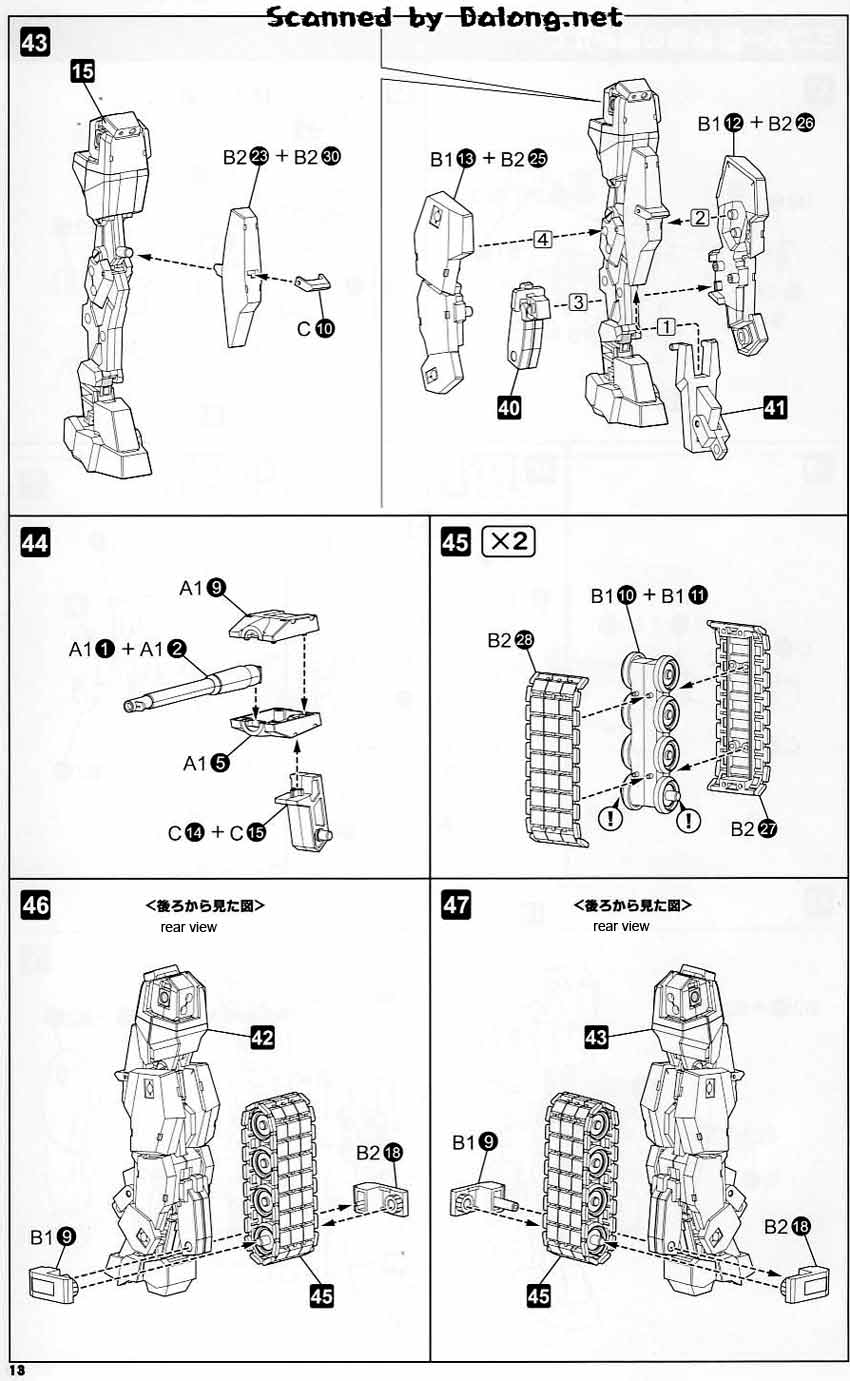

Actually this model kit can be assembled as either the Type 38 Model 1 Ryurai Kai or as the Type 32 Gourai. The difference being that the latter doesn't have the long piece artillery and the side shields. It has however tank tracks in place of the normal recoil stoppers found at the back of the leg.

The design of the twin cannons of the Ryurai Kai remind me so much of the infamous German 88mm cannon during World War II that made life hell for the American GI's during the European Campaign of World War II. It was a very feared gun because of its caliber and multi functionality. Aside from being an artillery piece, it also functioned as an anti-aircraft flak gun and an anti-tank cannon, chiefly because it could depress its barrel to below the horizontal position.

The Frame Arms 1/100 Type 38 Model 1 Ryurai Kai is selling for $$$ at Amazon, 2600 yen at Amiami, 2880 yen at HobbyLink Japan

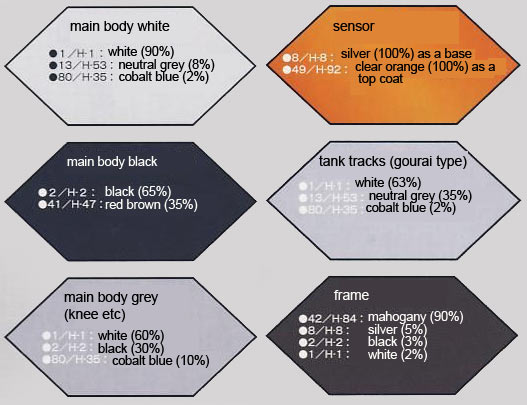

Color Guide DescriptionPaint Ratios
main body white partWhite (H1)(90%) + Neutral Gray (H53)(8%) + Cobalt Blue (H35)(2%)
main body black partBlack (H2)(65%) + Red Brown (H47)(35%)
main body gray part (knee etc)White (H1)(60%) + Black (H2)(30%) + Cobalt Blue (H35)(10%)
sensorSilver (H8)(100%) as a base and as a top coat Clear Orange (H92)(100%)
tank track (gourai type)White (H1)(63%) + Neutral Gray (H53)(35%) + Cobalt Blue (H35)(2%)
frameMahogany (H84)(90%) + Silver (H8)(5%) + Black (H2)(3%) + White (H1)(2%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products

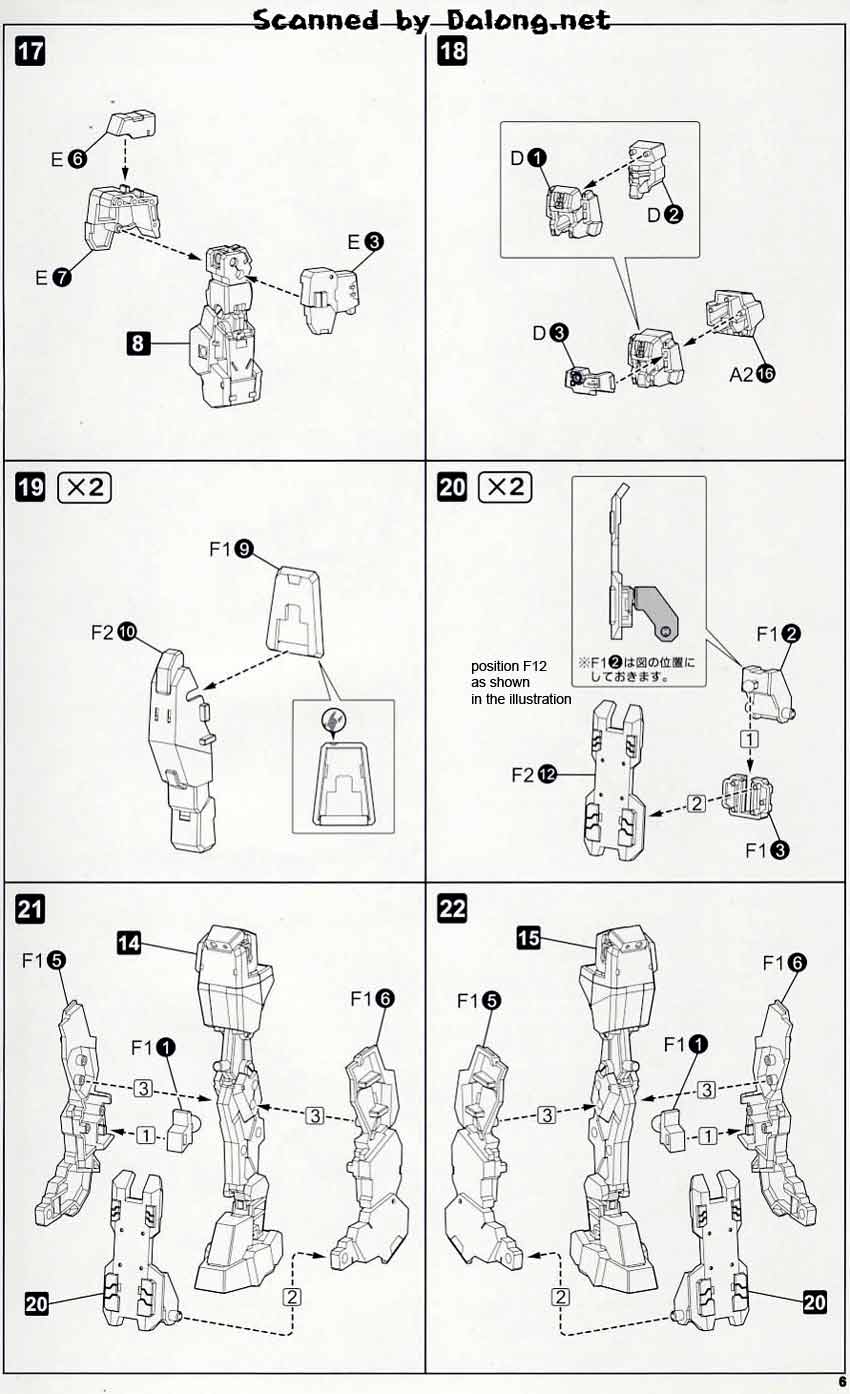

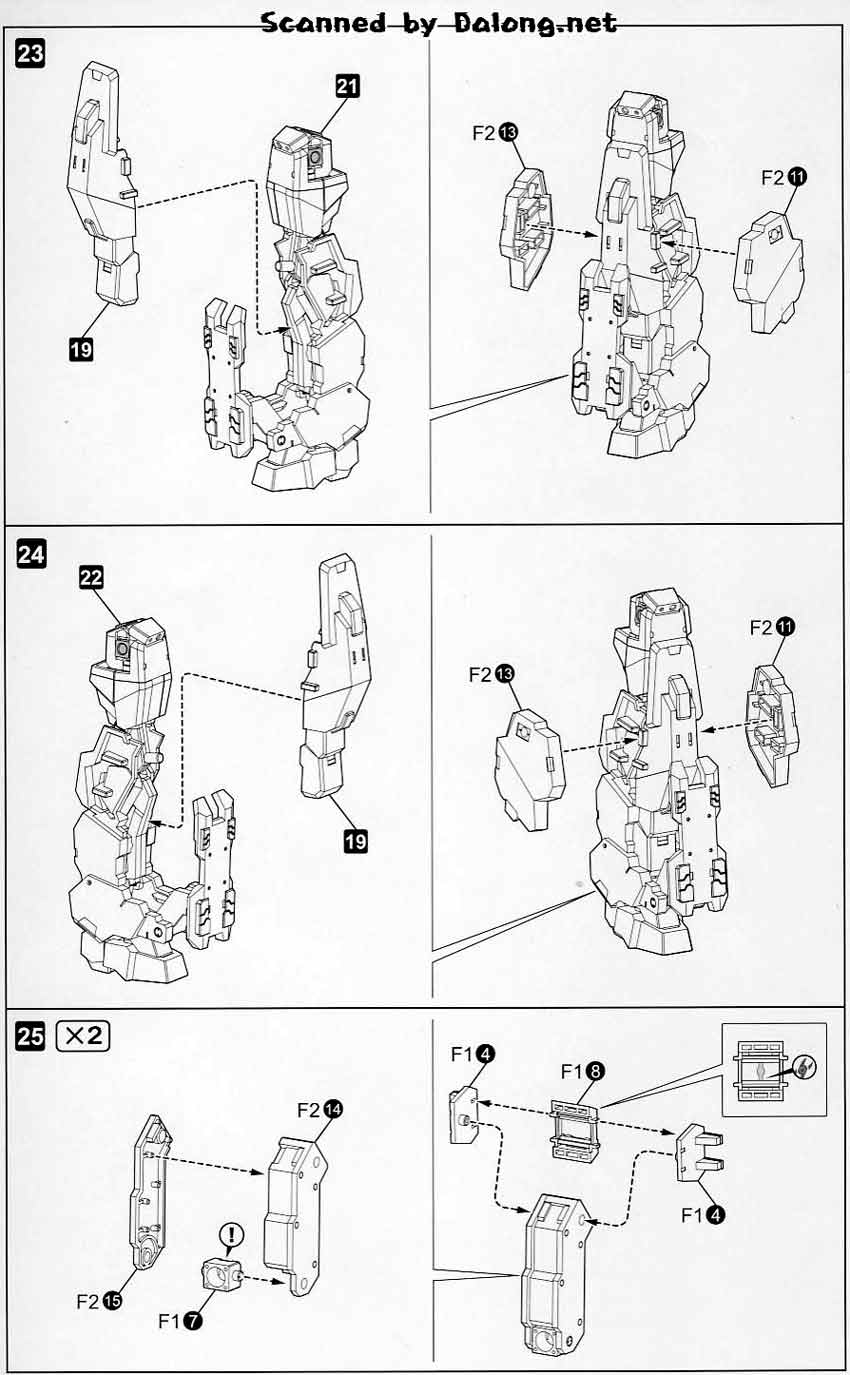

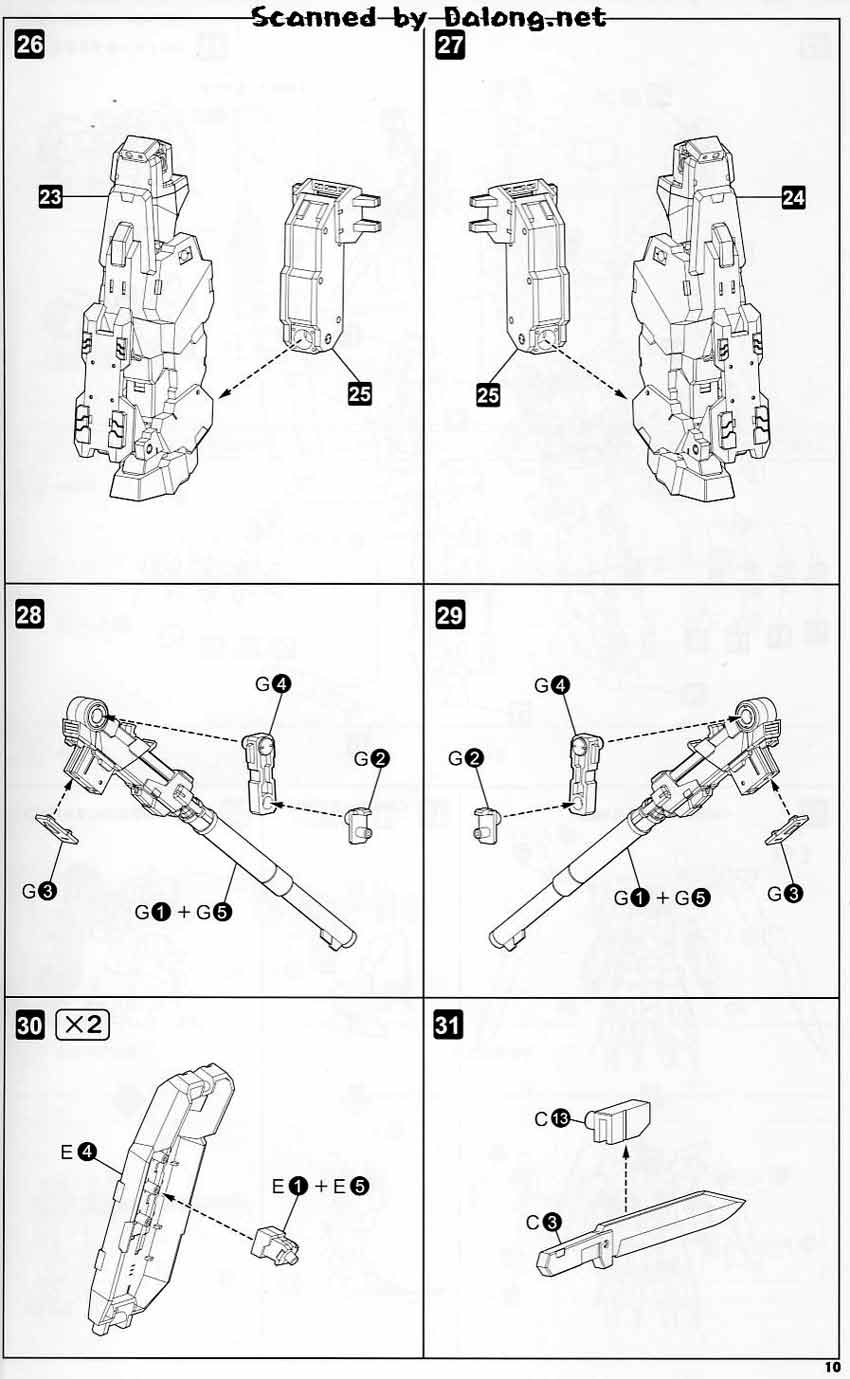

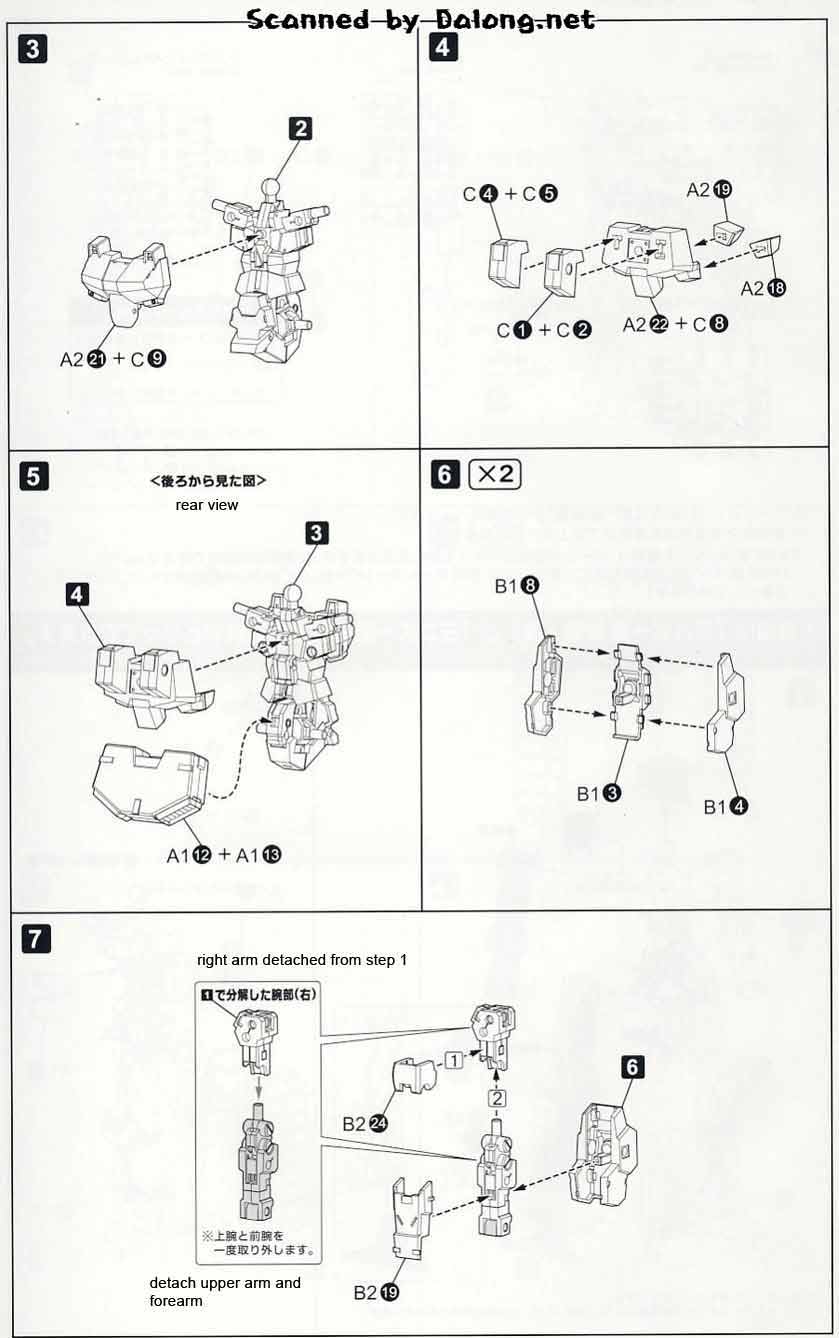

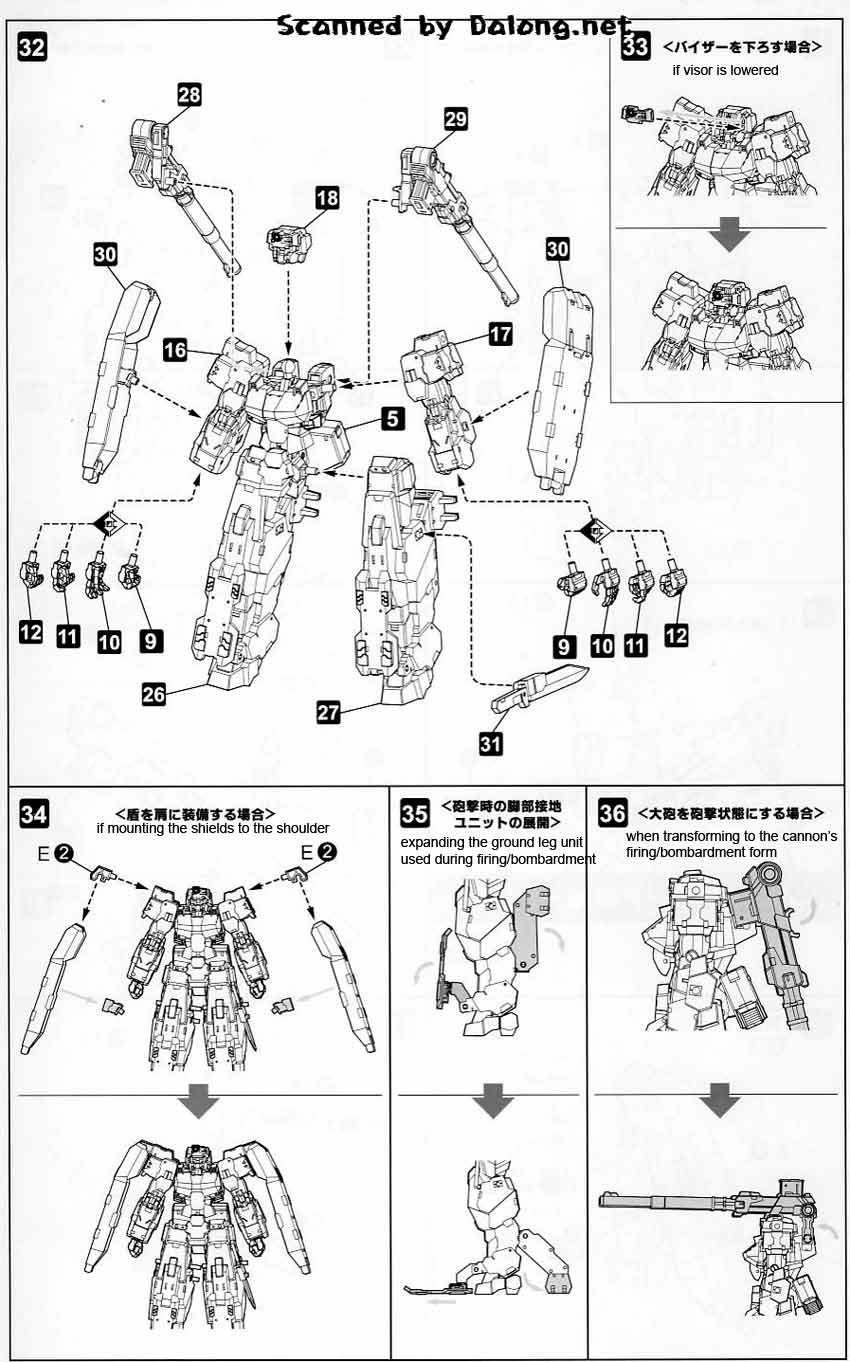

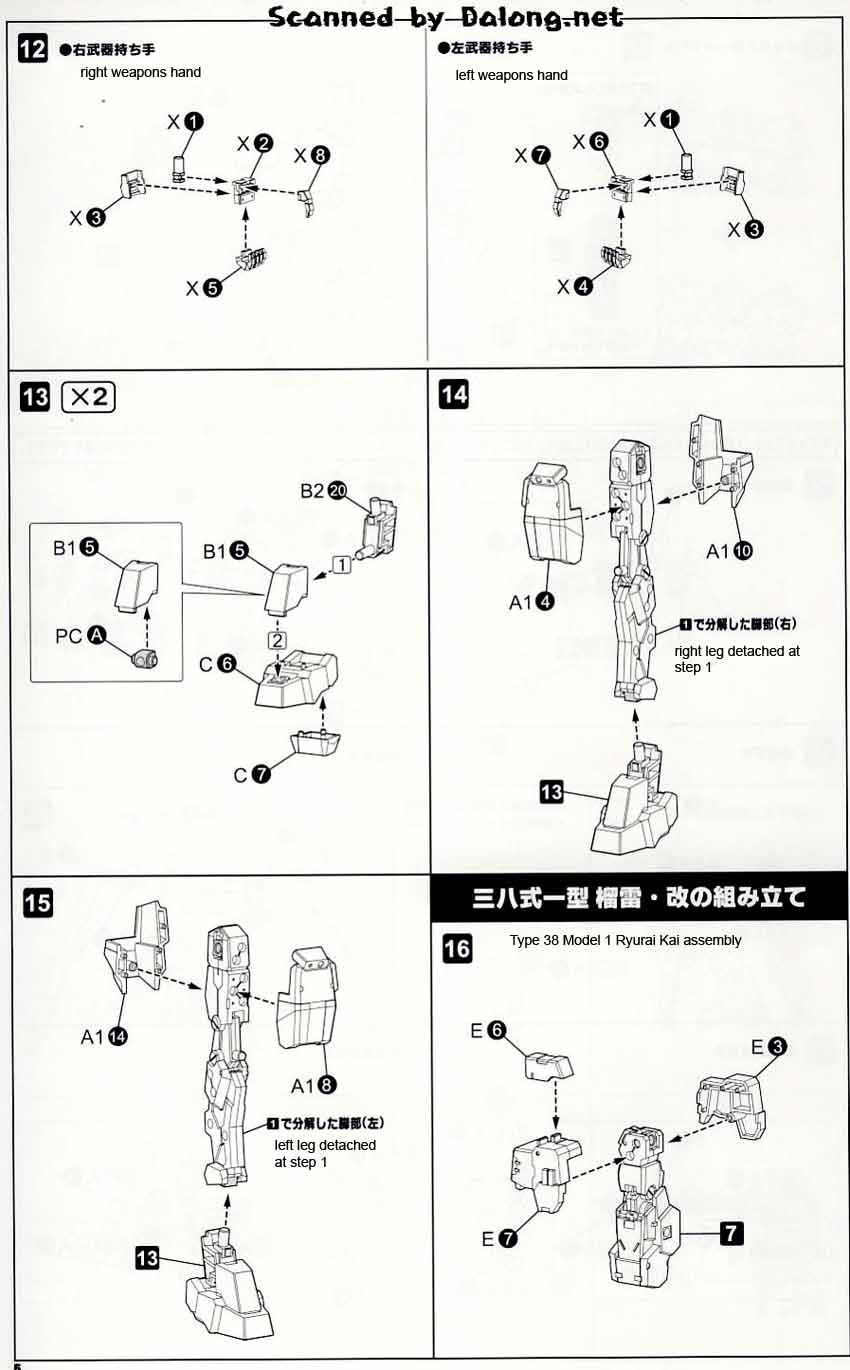

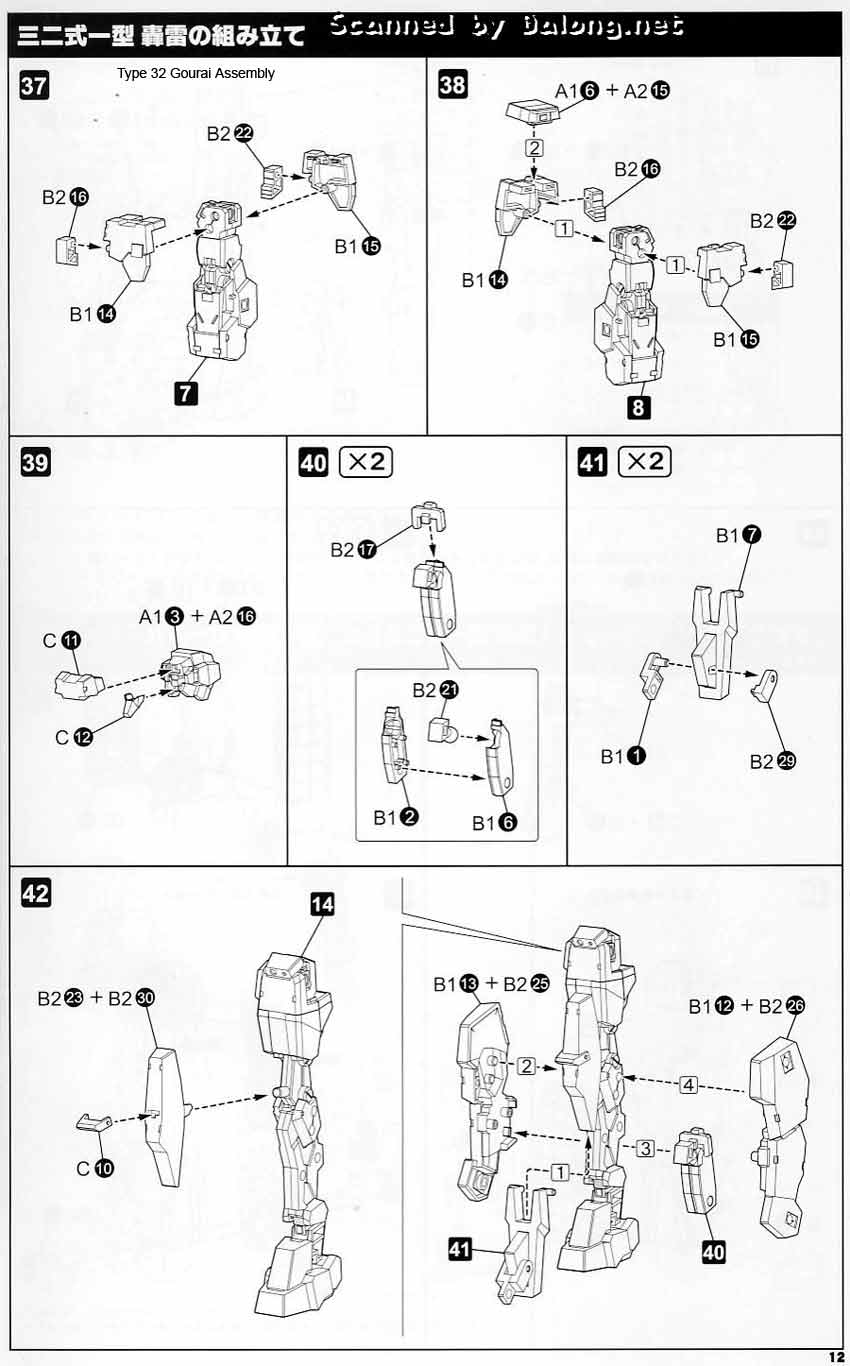

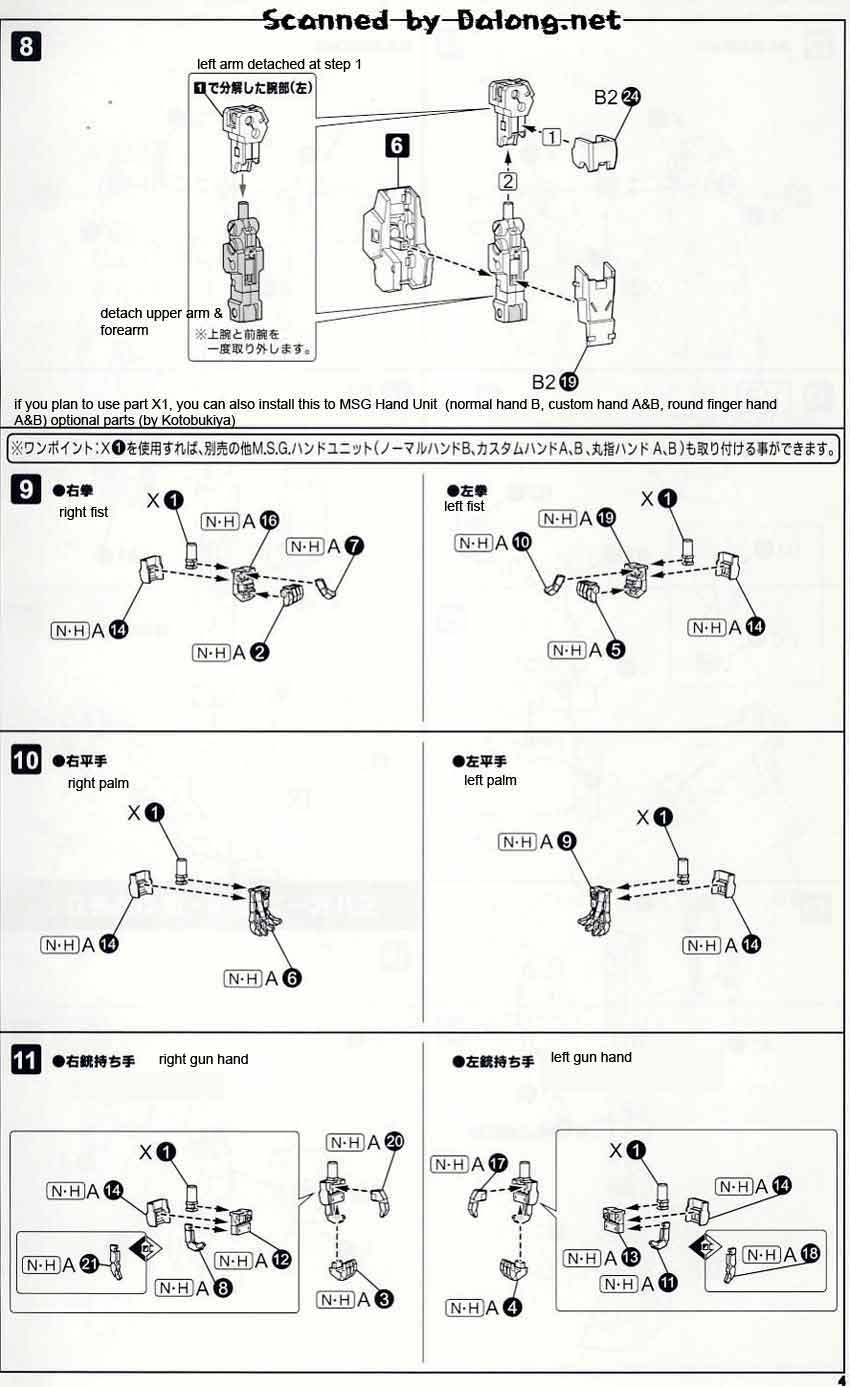

Construction Manual and Color Guide was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the Kotobukiya kit's manual, kindly refer to this older post.

Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual

Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual

Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual Frame Arms 1/100 Type 38 Model 1 Ryurai Kai English Translation Color Guide & Manual
