Monday, March 21, 2011

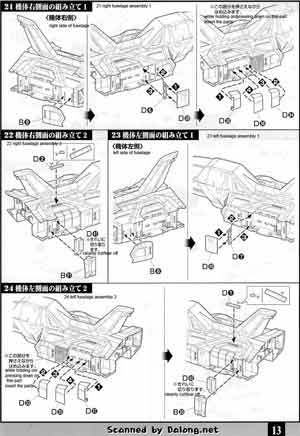

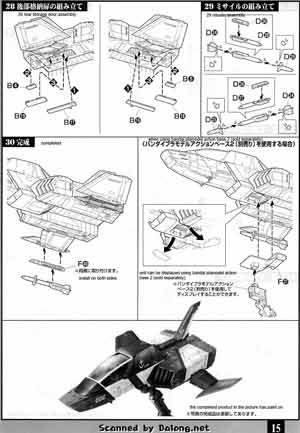

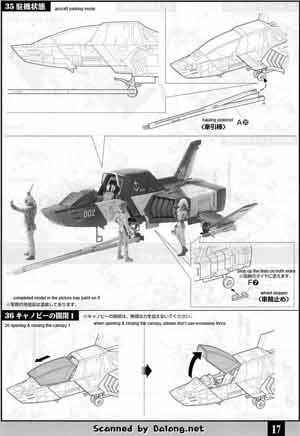

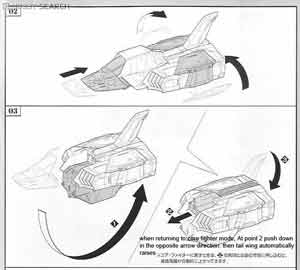

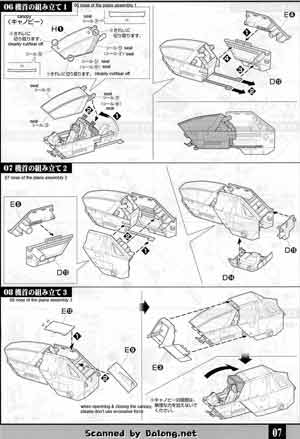

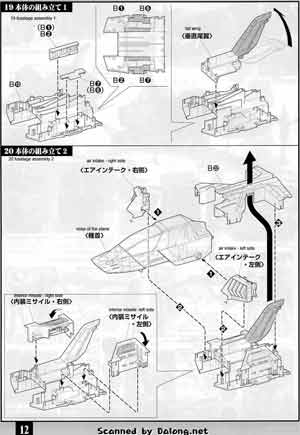

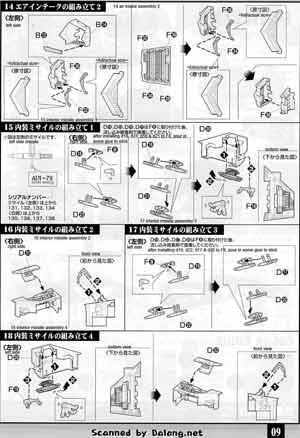

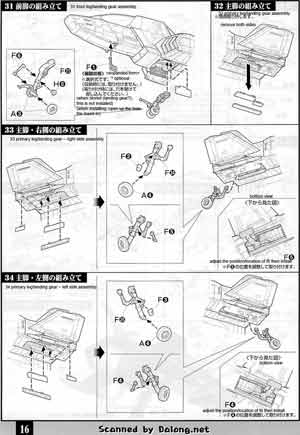

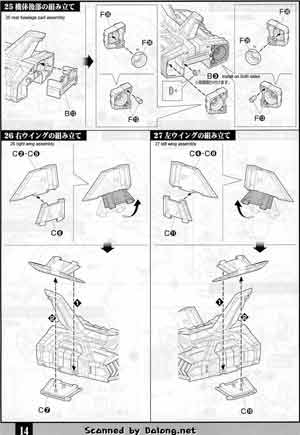

1/35 U.C. Hard Graph Core Fighter English Manual & Color Guide

1/35 FF-X7 Core Fighter Color Guide & Manual

I was truly impressed with this kit the moment that I saw it. Highly detailed rendition of the iconic Core Fighter from the first ever Mobile Suit Gundam. Include in the 1/35 kit is a figure of Amuro Ray, Sayla Mass and a token Deck Crew *snicker* The Core Fighter also transforms to Core Block mode which fits in the chest part of the Gundam.

I can't help but think that the Core Fighter is how the Mobile Suit Gundam establishes its roots to the Giant Robot Series that preceded it before blazing a trail to the Real Robot Series that it anchored.

I remember in almost all of the Giant Robot Series of the 70's there was always a personal craft that the hero used in order to "connect" with the robot. From a logical perspective it doesn't make practical sense since it could be considered as a time waster. But hey!, this is entertainment and the act of boarding the robot via another craft added to the dramatic effect...blah blah blah... old man rambling *snicker*

The 1/35 U.C. Hard Graph FF-X7 Core Fighter is selling for $$$ at Amazon, 3280 yen at Amiami, 3690 yen at HobbyLink Japan, 3825 yen at Hobby Search

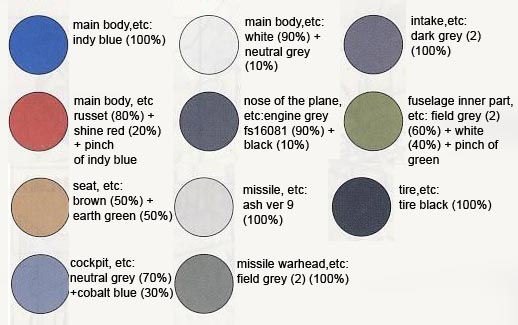

Color Guide DescriptionPaint Ratios
Core Fighter main body blue part etcBright Blue/Indy Blue (C65)(100%)
Core Fighter main body red part etcRusset/Azuki (C81)(80%) + Shine Red (C79)(20%) + Bright Blue/Indy Blue (C65)(small dose)
Core Fighter seat etcBrown (C7)(50%) + Earth Green (C132)(50%)
Core Fighter cockpit etcNeutral Gray (C13)(70%) + Cobalt Blue (C80)(30%)
Core Fighter main body etc white partWhite (C1)(90%) + Neutral Gray (C13)(10%)
Core Fighter nose of the planeEngine Gray FS16081 (C339)(90%) + Black (C2)(10%)
Core Fighter missile etcLight Gray (C97)(100%)
Core Fighter missile warhead etcField Gray (2) (C52)(100%)
Core Fighter intake etcDark Gray(2) (C32)(100%)
Core Fighter fuselage inner partField Gray (2) (C52)(60%) + White (C1)(40%) + Green (C6)(small dose)
Core Fighter tire etcTire Black (C137)(100%)

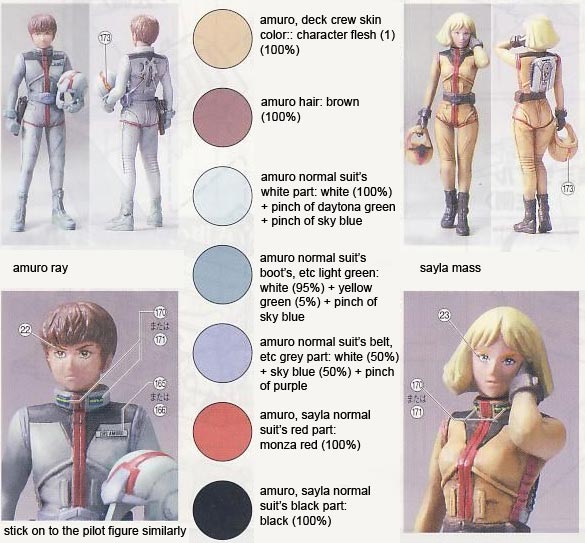

Amuro, deck crew skin colorCharacter Flesh (1) (C111)(100%)
Amuro hairBrown (C7)(100%)
Amuro normal suit's white partWhite (C1)(100%) + Sky Blue (C34)(small dose) + Bright Green/Daytona Green (C66)(small dose)
Amuro normal suit's boots etc light green partWhite (C1)(95%) + Yellow Green/Roman Green (C64)(5%) + Sky Blue (C34)(small dose)
Amuro normal suit's belt etc gray partWhite (C1)(50%) + Sky Blue (C34)(50%) + Purple (C67)(small dose)
Amuro, Sayla normal suit's red partMonza Red/Red Madder (C68)(100%)
Amuro, Sayla normal suit's black partBlack (C2)(100%)

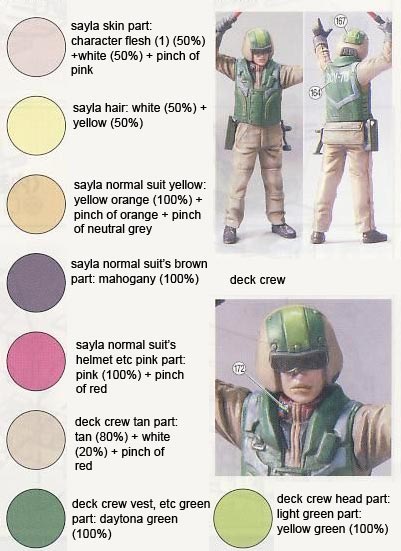

Sayla skin partCharacter Flesh (1) (C111)(50%) + White (C1)(50%) + Pink (C63)(small dose)
Sayla hairWhite (C1)(50%) + Yellow (C4)(50%)
Sayla normal suit's yellow partOrange Yellow (C58)(100%) + Orange (C59)(small dose) + Neutral Gray (C13)(small dose)
Sayla normal suit's brown partMahogany (C42)(100%)
Sayla normal suit's helmet etc pink partPink (C63)(100%) + Red (C3)(small dose)
deck crew tan partTan (C44)(80%) + White (C1)(20%) + Red (C3)(small dose)
deck crew vest etc green partBright Green/Daytona Green (C66)(100%)
deck crew head light green partYellow Green/Roman Green (C64)(100%)
