MG MS-06K Zaku Cannon English Manual & Color Guide

Bandai Master Grade MG MS-06K Zaku Cannon English Color Guide & Manual

MS-06K Zakucannon from Mobile Suit Variations that was made into a Master Grade kit by Bandai in 2008. The Zaku Cannon is a heavy weapons type. Aside from the usual fare of a Zaku Machine Gun and Zaku Bazooka, this mobile suit sports a shoulder cannon and a pair of "big guns" on its waist area.

There is also an option to assemble this as "rabbit type" with two antenna's on its head instead of one that make it look like a rabbit. Then along with that is a different "green" color scheme.

The MS-06K ZakuCannon is selling for 3298 yen at Amiami, 3600 yen at HobbyLink Japan, 3600 yen at Hobby Search

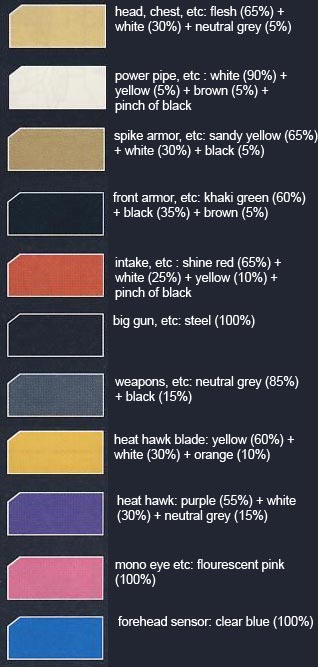

Color Guide DescriptionPaint Ratios
MG Zaku Cannon head, chest etcFlesh/Pale Brown (H44)(65%) + White (H1)(30%) + Neutral Gray (H53)(5%)
MG Zaku Cannon power pipe etcWhite (H1)(90%) + Yellow (H4)(5%) + Brown (H7)(5%) + Black (H2)(small dose)
MG Zaku Cannon spike armor etcSandy Yellow (Dark Yellow) (H79)(65%) + White (H1)(30%) + Black (H2)(5%)
MG Zaku Cannon front armor etcKhaki Green (H80)(60%) + Black (H2)(35%) + Brown (H7)(5%)
MG Zaku Cannon intake etcShine Red (H23)(65%) + White (H1)(25%) + Yellow (H4)(10%) + Black (H2)(small dose)
MG Zaku Cannon big gun etcSteel (H18)(100%)
MG Zaku Cannon weapons etcNeutral Gray (H53)(85%) + Black (H2)(15%)
MG Zaku Cannon heat hawk bladeYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG Zaku Cannon heat hawkPurple (H39)(55%) + White (H1)(30%) + Neutral Gray (H53)(15%)
MG Zaku Cannon mono eye etcFlourescent Pink (C174)(100%)
MG Zaku Cannon forehead sensorClear Blue (H93)(100%)

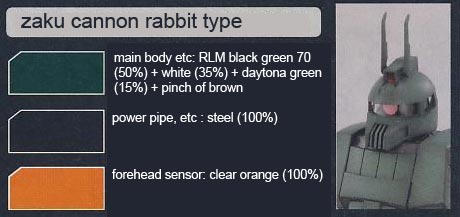

MG Zaku Cannon Rabbit Type main body etcRLM70 Black Green (H65)(50%) + White (H1)(35%) + Bright Green/Daytona Green (H26)(15%) + Brown (H7)(small dose)
MG Zaku Cannon Rabbit Type power pipeSteel (H18)(100%)
MG Zaku Cannon Rabbit Type forehead sensorClear Orange (H92)(100%)

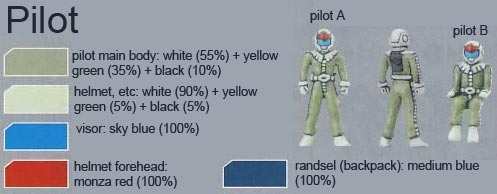

Pilot main bodyWhite (H1)(55%) + Yellow Green/Roman Green/Le Mans Green (H16)(35%) + Black (H2)(10%)
Pilot helmet etcWhite (H1)(90%) + Yellow Green/Roman Green/Le Mans Green (H16)(5%) + Black (H2)(5%)
Pilot visorSky Blue (H25)(100%)
Pilot helmet foreheadMonza Red/Red Madder (H86)(100%)
Pilot ransel (backpack)Medium Blue/Intermediate Blue (H56)(100%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Sandy Yellow (Dark Yellow) (H79)Dark Yellow (Sandy Yellow) (C39)Deck Tan Wooden (XF78)--Sand Yellow (71.028)LIGHT WOOD (A.MIG-0038)--Grey Beige (HTK-_287)--Desert Yellow (Matte) (93)------Flat Middle Stone (4304AP)
Khaki Green (H80)Khaki Green (C54)Nato Green (XF67)--NATO Green (71.093)NATO GREEN (A.MIG-0084)NATO Green (RC080)NATO Green (HTK-_152)----Tricolor Green NATO (SG) (2173)--Green FS34094 (UA303)--
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Steel (H18)Steel (C28)--Oily Steel (Metallic) (70.865)Steel (Metallic) (71.065)STEEL (A.MIG-0191)----steel (solid metallic) (32191)Polished Steel (metalcote) (27003)------Metal. Flat Steel (4679AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
--Flourescent Pink (C174)------------------------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
RLM70 Black Green (H65)RLM70 Black Green (C18)Black Green (XF27)Bronce Green (70.897)Black Green RLM70 (71.021)SCHWARTZGRÜN (A.MIG-0232)RLM 70 (RC274)Black-Green (HTK-_015)greenish grey (solid matt) (32167)Black Green (Matte) (91)Schwarzgrun RLM70 (SG) (2080)--Schwarzgrun RLM 70 (UA501)Schwarzgrün RLM 70 (4780AP)
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--

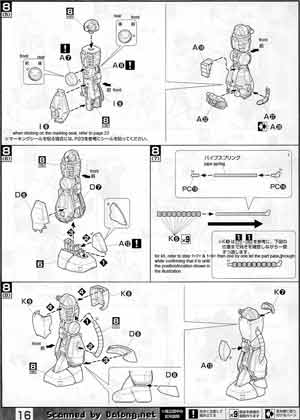

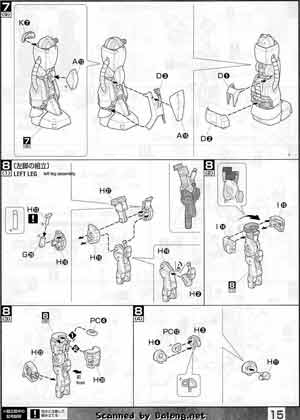

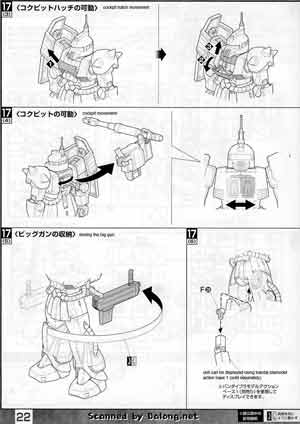

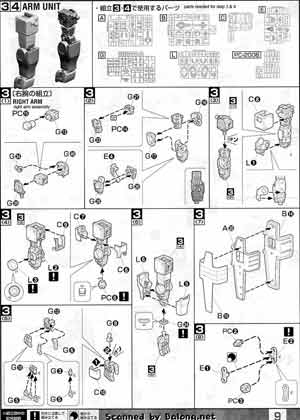

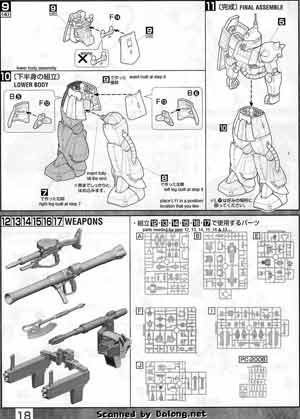

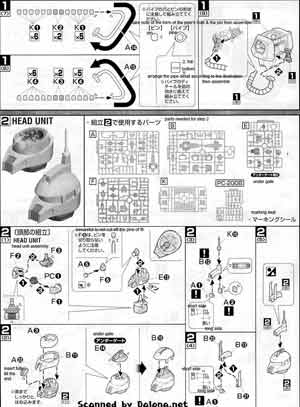

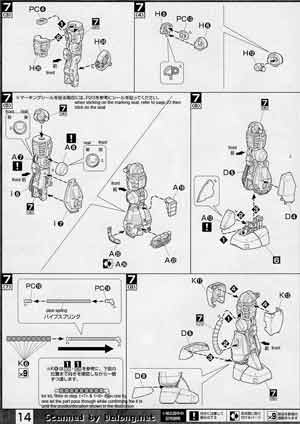

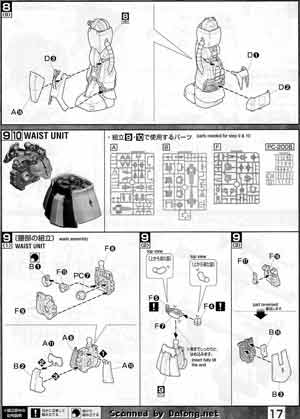

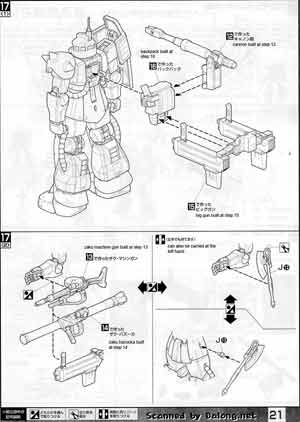

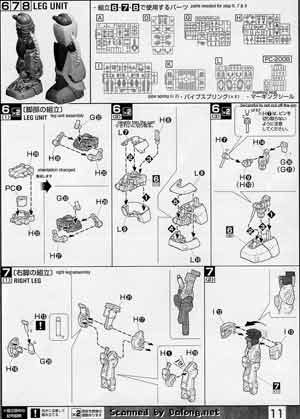

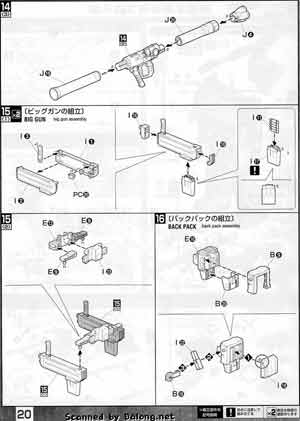

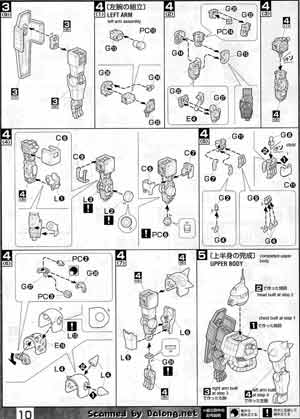

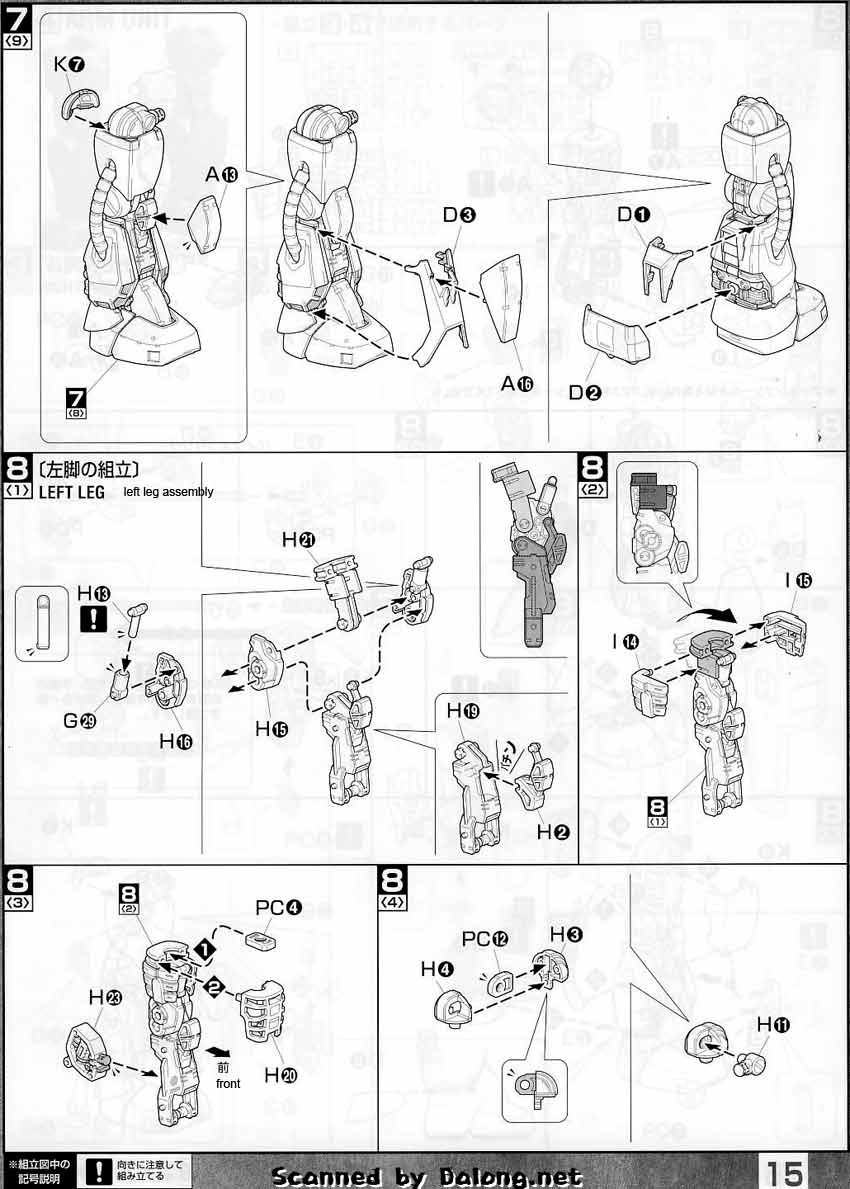

Construction Manual and Color Guide for the was translated to English from the Japanese manual posted at Dalong's Model Kit Review site. For the meaning of the symbols littered around the construction manual, kindly refer to this older post.
