HG CB-001.5 1.5 Gundam English Manual and Color Guide

HG CB-001.5 1.5 Gundam Aizu Gundam Construction Manual and Color Guide

Recently released this May is the 1.5 Gundam (Aizu Gundam) in High Grade scale (1/144) as part of the Gundam 00 line of kits of Bandai. In the Gundam 00 side stories the 1.5 Gundam is piloted by Leif Recitativo of the Innovators.

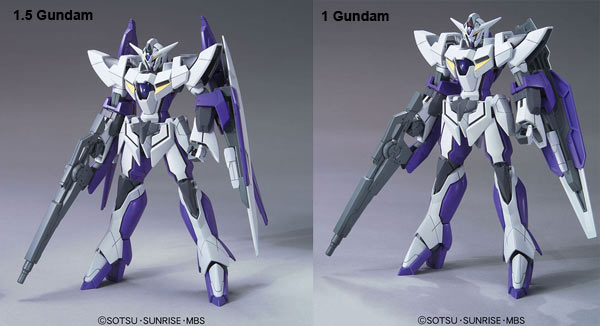

Based from the manual, the kit can be assembled as either the 1.5 (Aizu) Gundam or the 1 (Ai) Gundam. The difference it seems is in the presence of the Binders on the back of the 1.5 which the 1 doesn't have as well as some different set of color seals to stick on and some minor colors.

HG CB-001.5 1.5 Gundam Construction Manual and Color Guide

The High Grade 1/144 CB-001.5 1.5 Gundam is selling for 1320 yen at Amiami, 1800 yen at HobbyLink Japan, 1260 yen at HWJapan

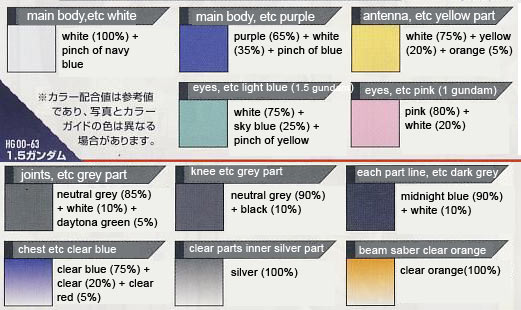

Color Guide DescriptionPaint Ratios
main body etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
joints etc gray partNeutral Gray (H53)(85%) + White (H1)(10%) + Bright Green/Daytona Green (H26)(5%)
chest etc clear blue partClear Blue (H93)(75%) + Clear (H30)(20%) + Clear Red (H90)(5%)
main body etc purple partPurple (H39)(65%) + White (H1)(35%) + Blue (H5)(small dose)
eyes etc light blue (1.5 Gundam)White (H1)(75%) + Sky Blue (H25)(25%) + Yellow (H4)(small dose)
knee etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
clear parts inner silver partSilver (H8)(100%)
antenna etc yellow partWhite (H1)(75%) + Yellow (H4)(20%) + Orange (H14)(5%)
eyes etc pink (1 gundam)Pink (H19)(80%) + White (H1)(20%)
each part line etc dark gray partMidnight Blue (H55)(90%) + White (H1)(10%)
beam saber clear orangeClear Orange (H92)(100%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)--------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------

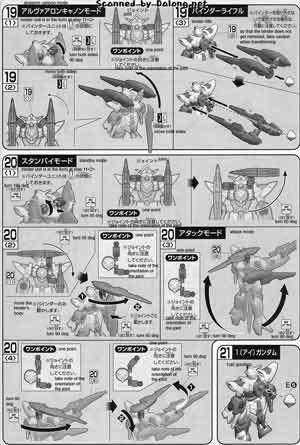

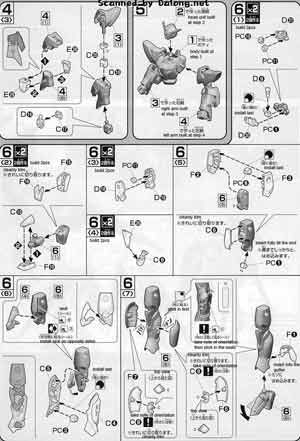

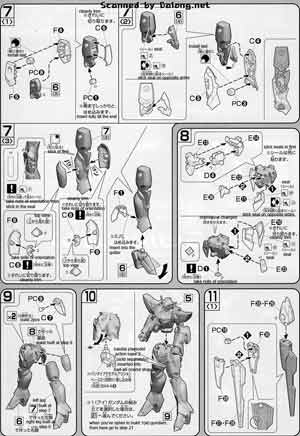

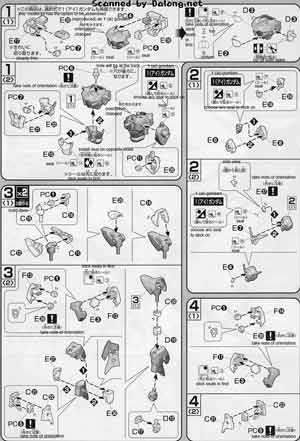

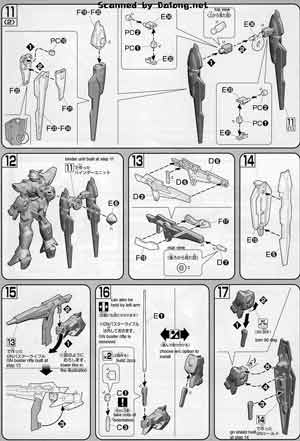

Construction Manual and Color Guide for the HG CB-001.5 Aizu Gundam was translated to English from the Japanese Manual posted at Dalong.
