HG Masurao English Color Guide and Manual

HG 1/144 Masurao Color Guide

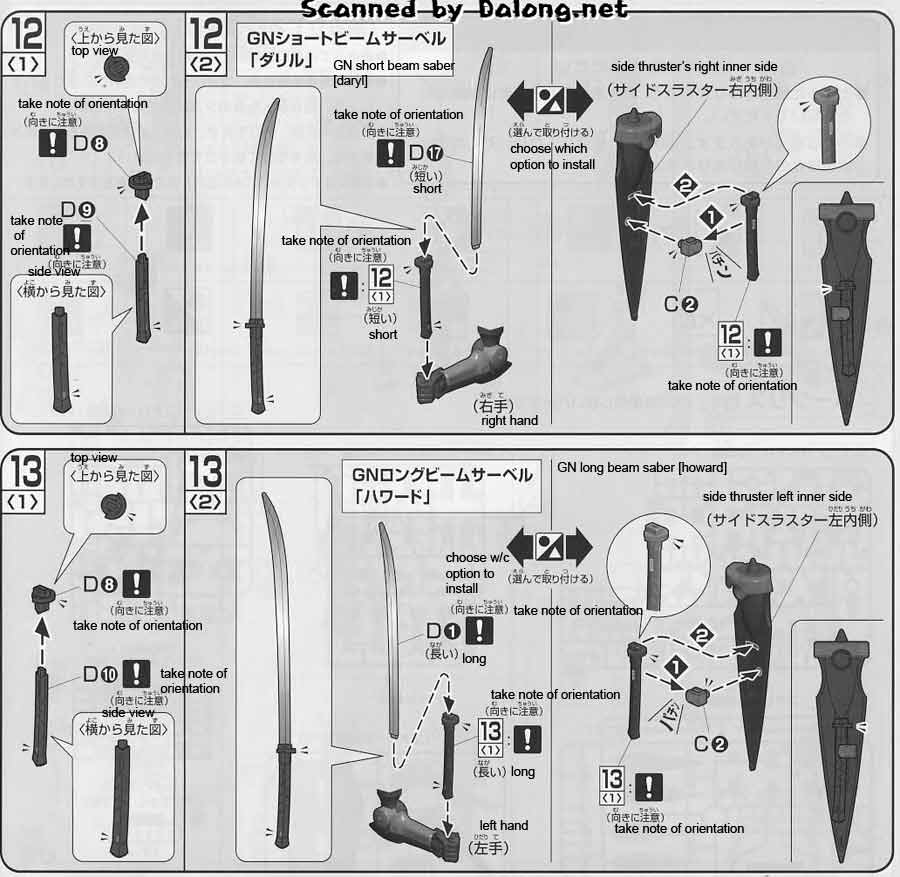

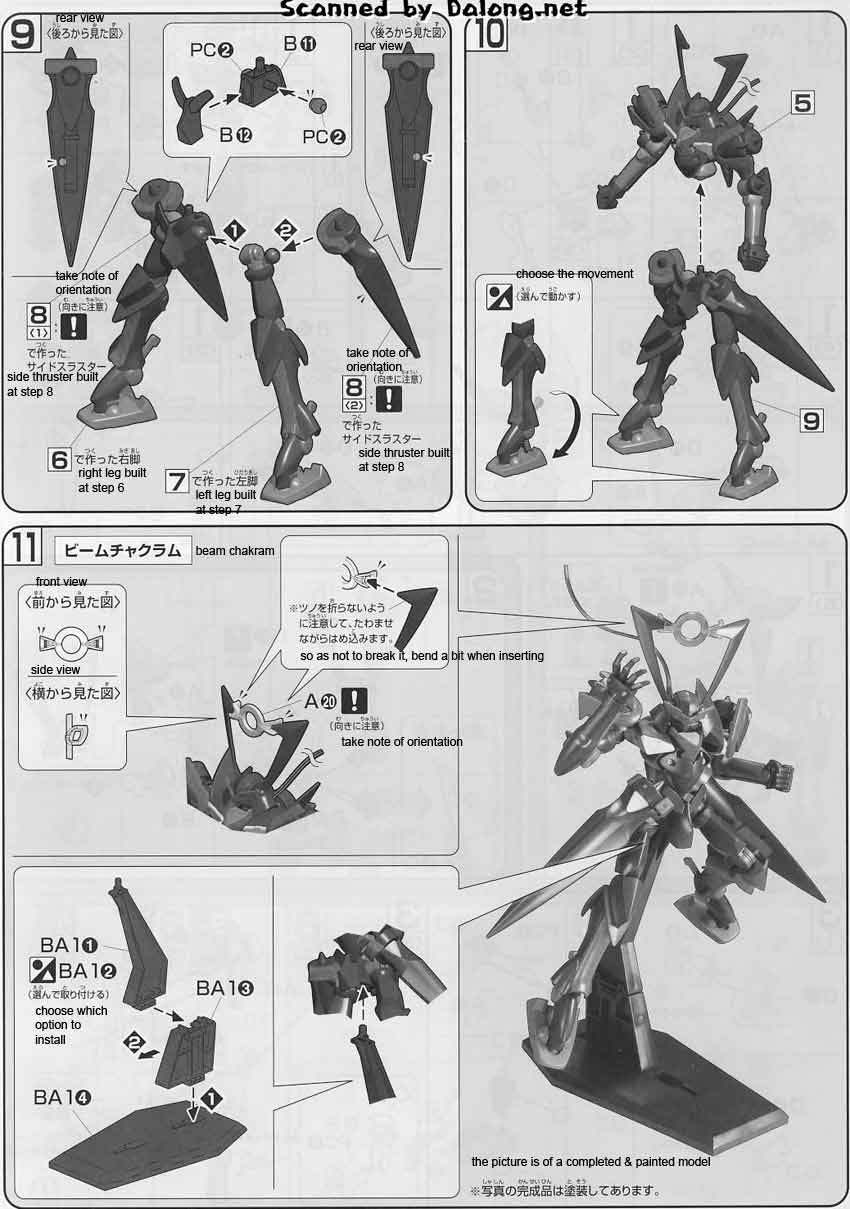

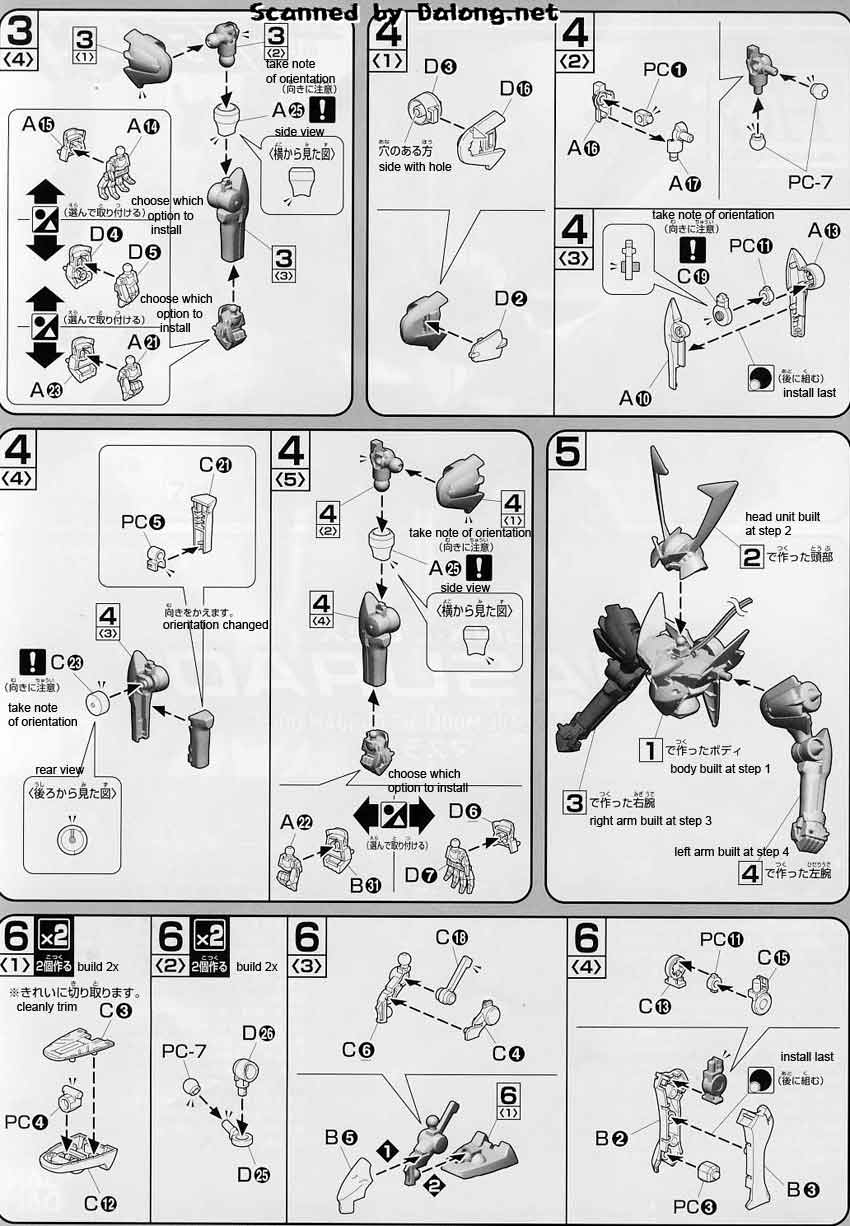

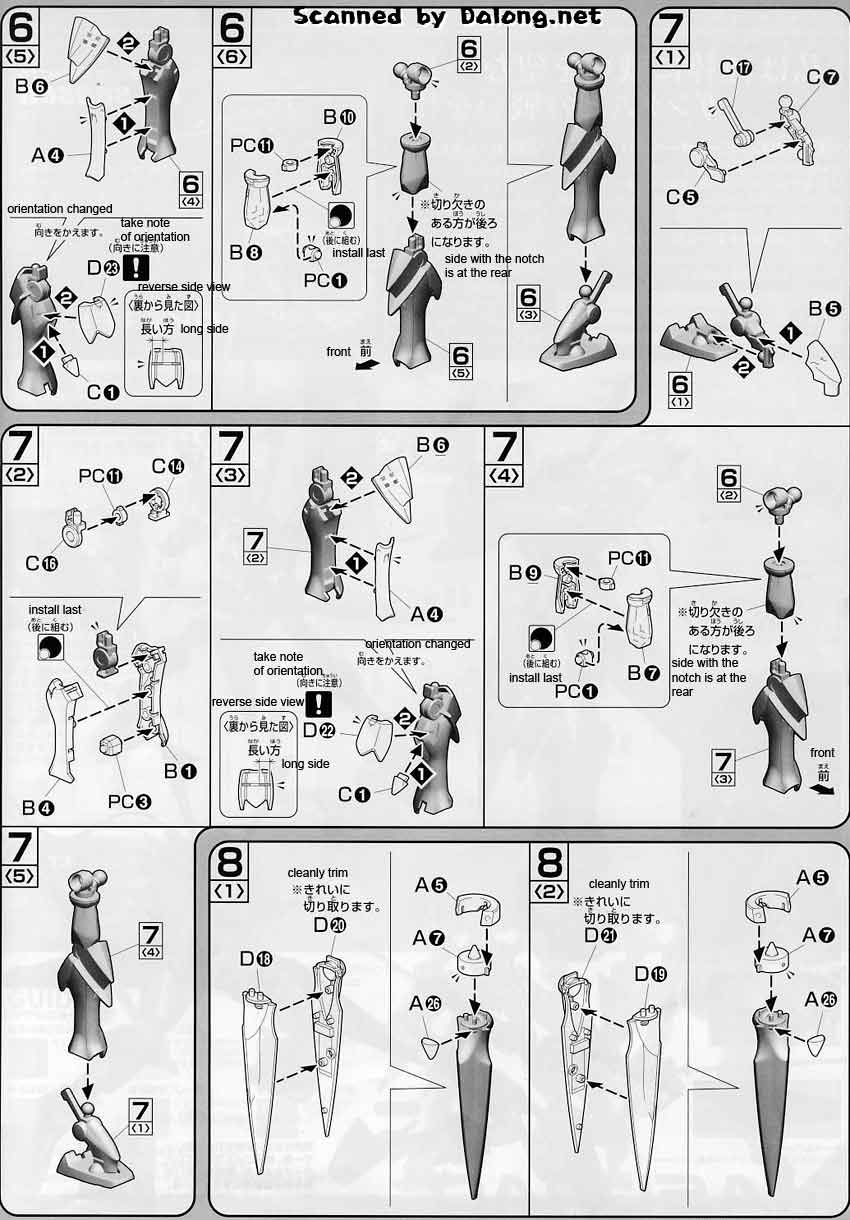

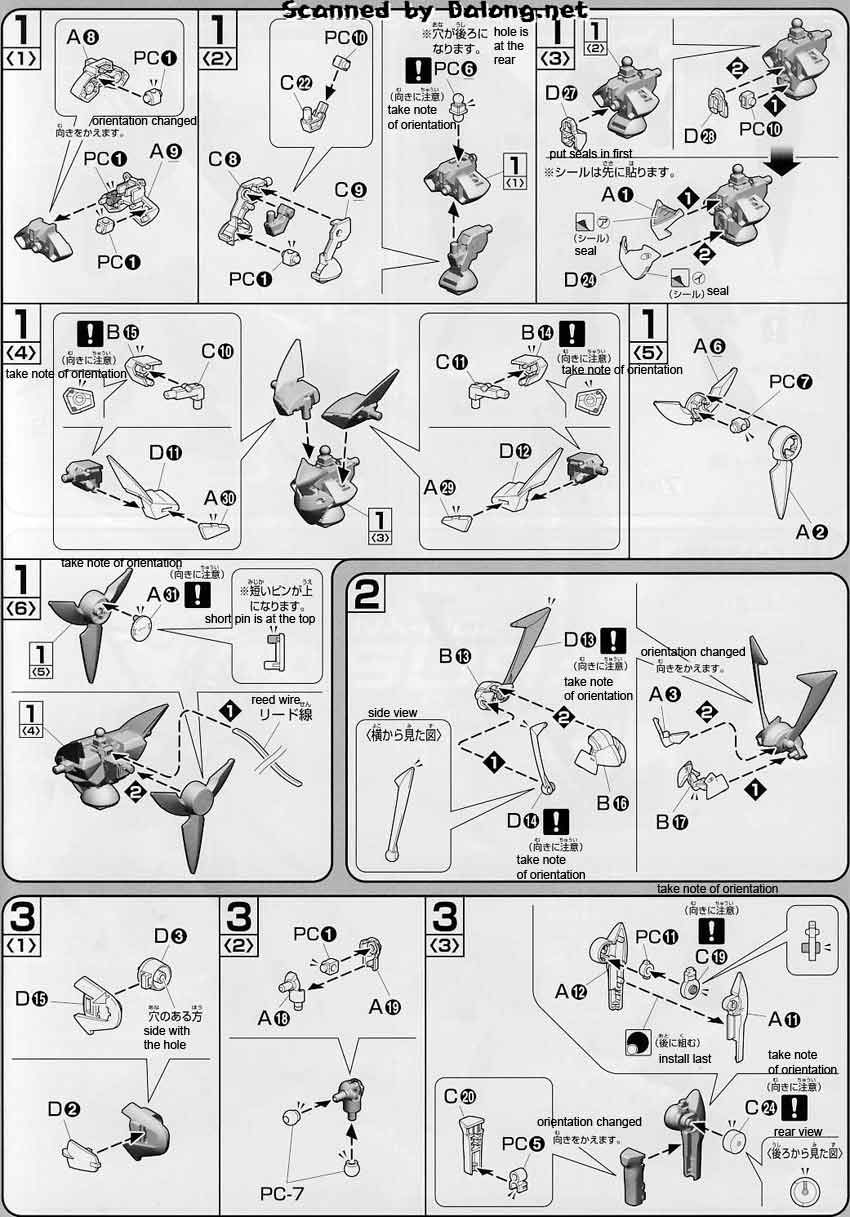

Color Guide and Construction Manual was translated to English from the manual posted at Dalong.

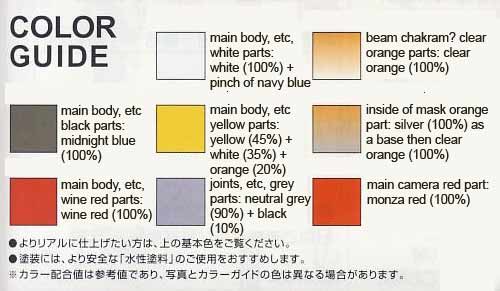

Color Guide DescriptionPaint Ratios
main body etc black partsMidnight Blue (H55)(100%)
main body etc wine red partsWine Red/Maroon (H43)(100%)
main body etc white partsWhite (H1)(100%) + Navy Blue (H54)(small dose)
main body etc yellow partsYellow (H4)(45%) + White (H1)(35%) + Orange (H14)(20%)
joints etc gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
beam charkram clear orange partsClear Orange (H92)(100%)
inside of mask orange partSilver (H8)(100%) as a base and on top Clear Orange (H92)(100%)
main camera red partMonza Red/Red Madder (H86)(100%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
