Bandai MG 1/100 MS-06F Zaku Minelayer English Manual & Color Guide

The MS-06F Zaku Minelayer was released in 2008 by Bandai as a beautiful 1/100 Master Grade model kit. The Zaku minelayer is a variant of the popular mass produced Zaku mobile suit of the Zeon forces from the original Mobile Suit Gundam Anime series.

Like with its name, the purpose of the Zaku minelayer is to lay mines. To do this it has a custom backpack where the mines are located, but aside from that, it still carries the common Zaku weapons such as the heat hawk, machine gun and bazooka.

Instruction Manual

 DOWNLOAD MANUAL

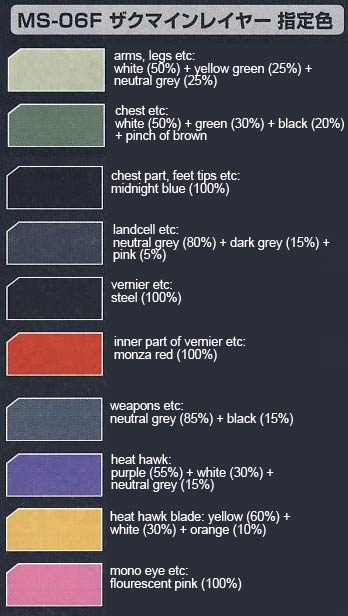

Color Guide

Color Guide Description	Paint Ratios
MG Zaku Minelayer arms, legs etc	White (H1)(50%) + Yellow Green/Roman Green/Le Mans Green (H16)(25%) + Neutral Gray (H53)(25%)
MG Zaku Minelayer chest etc	White (H1)(50%) + Green (H6)(30%) + Black (H2)(20%) + Brown (H7)(small dose)
MG Zaku Minelayer chest, feet tips etc	Midnight Blue (H55)(100%)
MG Zaku Minelayer ransel (backpack) etc	Neutral Gray (H53)(80%) + Field Gray (1)/Dark Gray (H32)(15%) + Pink (H19)(5%)
MG Zaku Minelayer vernier etc	Steel (H18)(100%)
MG Zaku Minelayer inner vernier part etc	Monza Red/Red Madder (H86)(100%)
MG Zaku Minelayer weapons etc	Neutral Gray (H53)(85%) + Black (H2)(15%)
MG Zaku Minelayer heat hawk	Purple (H39)(55%) + White (H1)(30%) + Neutral Gray (H53)(15%)
MG Zaku Minelayer heat hawk blade	Yellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG Zaku Minelayer mono eye etc	Fluorescent Pink (C174)(100%)

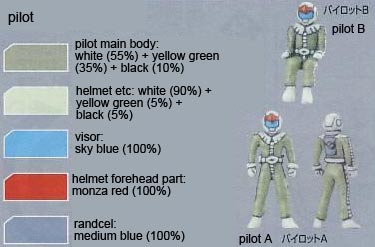

pilot figure main body	White (H1)(55%) + Yellow Green/Roman Green/Le Mans Green (H16)(35%) + Black (H2)(10%)
pilot figure helmet etc	White (H1)(90%) + Yellow Green/Roman Green/Le Mans Green (H16)(5%) + Black (H2)(5%)
pilot figure visor	Sky Blue (H25)(100%)
pilot figure helmet forehead part	Monza Red/Red Madder (H86)(100%)
pilot figure ransel (backpack)	Medium Blue/Intermediate Blue (H56)(100%)
Disclaimer | Gunpla Symbols | Tamiya Paint Conversion Chart | Humbrol Paint Conversion Chart | Model Paint Conversion Chart | Revell Paint Conversion Chart | Vallejo Paint Conversion Chart | Mr Color Paint Chart | Revell Colour Chart | Tamiya Paint Chart | Mr Hobby Color Chart | Vallejo Colour Chart | Italeri Paint Conversion Chart | Mr Color Paint Conversion Chart | Model Master Paint Conversion Chart | Mission Models Paint Conversion Chart

Available at these Online Shops:

Amazon

Similar Zaku

Related Products

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.
