Friday, December 9, 2011

Bandai EX Model 1/144 : MP-02A Oggo English Manual & Color Guide

EX Model: MP-02A Oggo English Translation Color Guide & Manual
Made into an EX Model by Bandai and released in 2007 was the Mobile Pod Oggo from MS IGLOO. If you haven't watched MS IGLOO yet its a great CGI anime that dwells on the prototype weapons of the Principality of Zeon. I have to warn you however that most of the episodes end in tragedy. On my part, it kinda changed my perspective of the forces of Zeon after watching it.

After seeing the success of the Ball mobile suit of the Earth Federation forces, Zeon tried to replicate this with the Oggo. You can see also that Zeon was really scrapping the bottom of the barrel of their armory as most of the weapons are taken from the Zaku weapon suit (machine gun, bazooka, sturmm faust, etc)

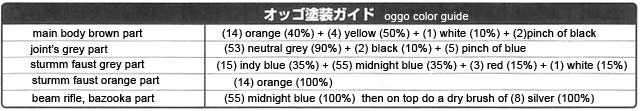

Color Guide DescriptionPaint Ratios
main body brown partOrange (H14)(40%) + Yellow (H4)(50%) + White (H1)(10%) + Black (H2)(small dose)
joint'ts gray partNeutral Gray (H53)(90%) + Black (H2)(10%) + Blue (H5)(small dose)
sturmm faust gray partBright Blue/Indy Blue (H15)(35%) + Midnight Blue (H55)(35%) + Red (H3)(15%) + White (H1)(15%)
sturmm faust orange partOrange (H14)(100%)
beam, rifle bazooka partMidnight Blue (H55)(100%) as a base then do a dry brush on top with Silver (H8)(100%)
Disclaimer


Available at these Online Shops:




Related Products




Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

EX Model: MP-02A Oggo English Translation Color Guide & Manual EX Model: MP-02A Oggo English Translation Color Guide & Manual EX Model: MP-02A Oggo English Translation Color Guide & Manual EX Model: MP-02A Oggo English Translation Color Guide & Manual EX Model: MP-02A Oggo English Translation Color Guide & Manual
