Monday, December 12, 2011

Bandai 1/35 UC Hard Graph: Zeon Mobile Scout Set English Manual & Color Guide

1/35 UC Hard Graph: Zeon Mobile Scout Set English Translation Color Guide & Manual

From the UC Hard Graph line of model kits by Bandai was the Zeon Mobile Scout set that was released in 2006. This is a 1/35 scale model kit that comes with a Wappa bike-like hover craft that can fit 1 person sitting. The kit also comes with another figure in a standing position with binoculars on a tripod. This particular unit was used during the One Year War when Zeon forces descended on Earth for an invasion.

The primary role of the scout in a mechanized army is reconnaissance. To forge ahead to look for either paths that the main force can pass through, scout the terrain ahead, or worse, to seek the location of the enemy. Although the scout looks like he is in a suicide mission because he acts as the spearhead of the main force he is in fact well reinforced (usually) by being able to call an airstrike or artillery whenever he meets any resistance. Attributes that scouts will usually need to complete their mission of gathering information is speed, stealth and good communcations with the main force.

A good example of the role of a scout was with the Pathfinders of the Airborne during the D-Day drop in Normandy

1/35 UC Hard Graph: Zeon Mobile Scout Set English Translation Color Guide & Manual

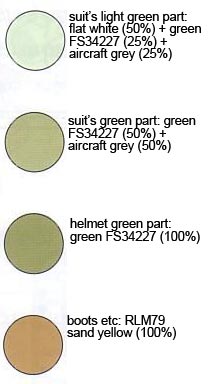

Color Guide for the Figure
1/35 UC Hard Graph: Zeon Mobile Scout Set English Translation Color Guide & Manual

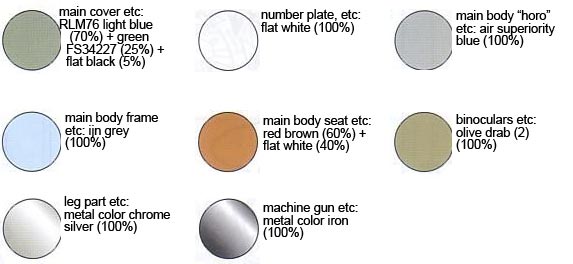

Color Guide


Color Guide DescriptionPaint Ratios
main cover etcRLM76 Light Blue (C117)(70%) + Green FS34227 (C312)(25%) + Flat Black (C33)(5%)
main body frame etcIJN Gray(Mitsubishi) (C35)(100%)
leg part etcChrome Silver (metallic) Mr. Metal Color (MC211)(100%)
number plate etcFlat White (C62)(100%)
main body seat etcRed Brown (C41)(60%) + Flat White (C62)(40%)
machine gun etcIron Mr. Metal Color (MC212)(100%)
main body "horo" etcAir Superiority Blue (C74)(100%)
binoculars etcOlive Drab (2) (C38)(100%)
pilot figure suit's light green partFlat White (C62)(50%) + Green FS34227 (C312)(25%) + Aircraft Gray (C73)(25%)
pilot figure suit's green partGreen FS34227 (C312)(50%) + Aircraft Gray (C73)(50%)
pilot figure helmet green partGreen FS34227 (C312)(100%)
pilot figure boots etcDark Yellow (Sandy Yellow) (C39)(100%)
Armored Assault Force variantIntermediate Blue/Medium Blue (C72)(100%) + Bright Blue/Indy Blue (C65)(small dose) + Red (C3)(small dose)
Disclaimer


Available at these Online Shops:




Related Products




There is an option to color it as an Armored Assault Force variant, this was the color guide provided for the main body.
1/35 UC Hard Graph: Zeon Mobile Scout Set English Translation Color Guide & Manual

Construction Manual and Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

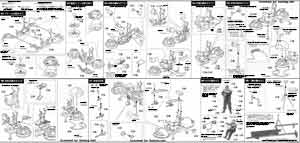

Instruction Manual



1/35 UC Hard Graph: Zeon Mobile Scout Set English Translation Color Guide & Manual
