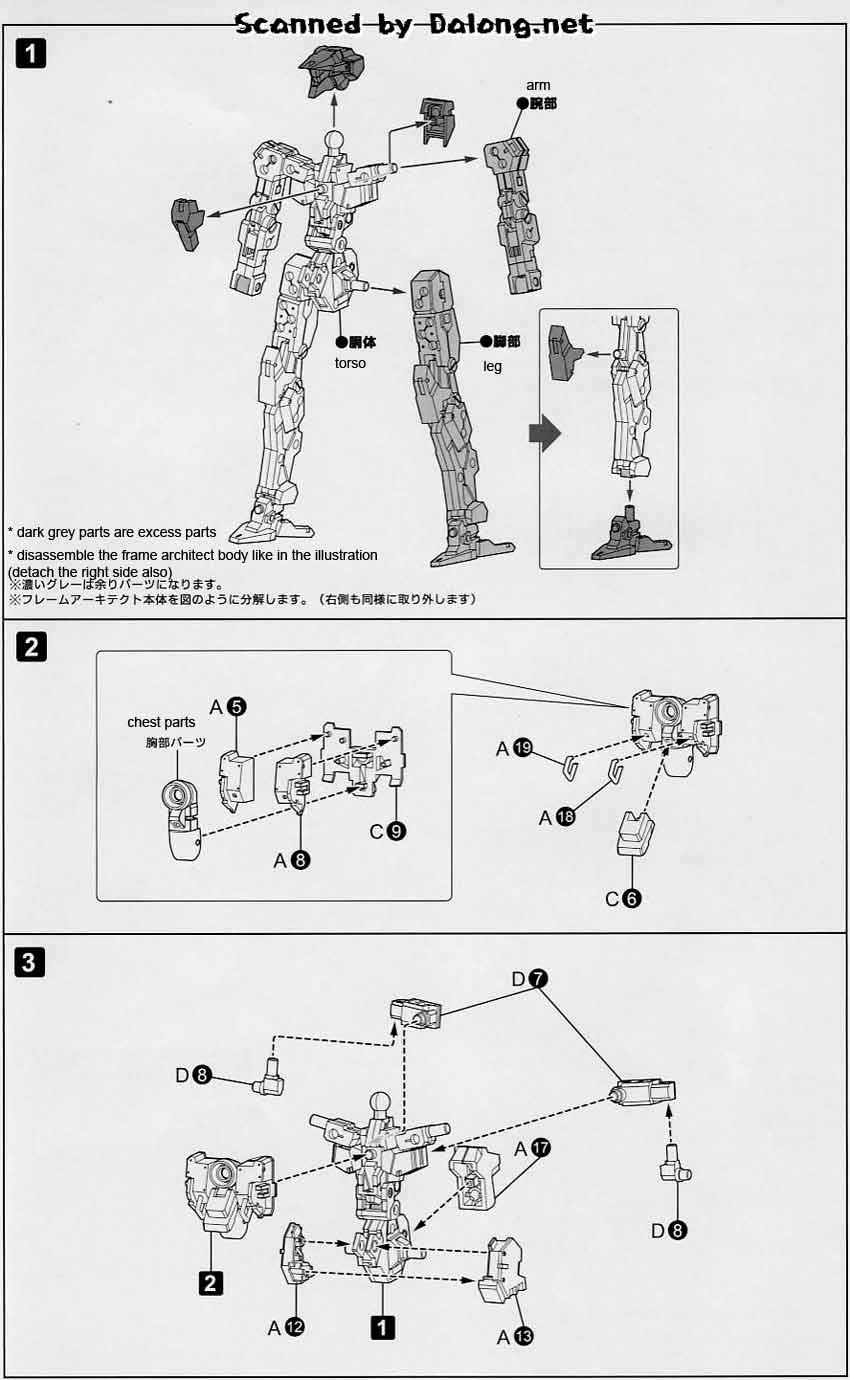

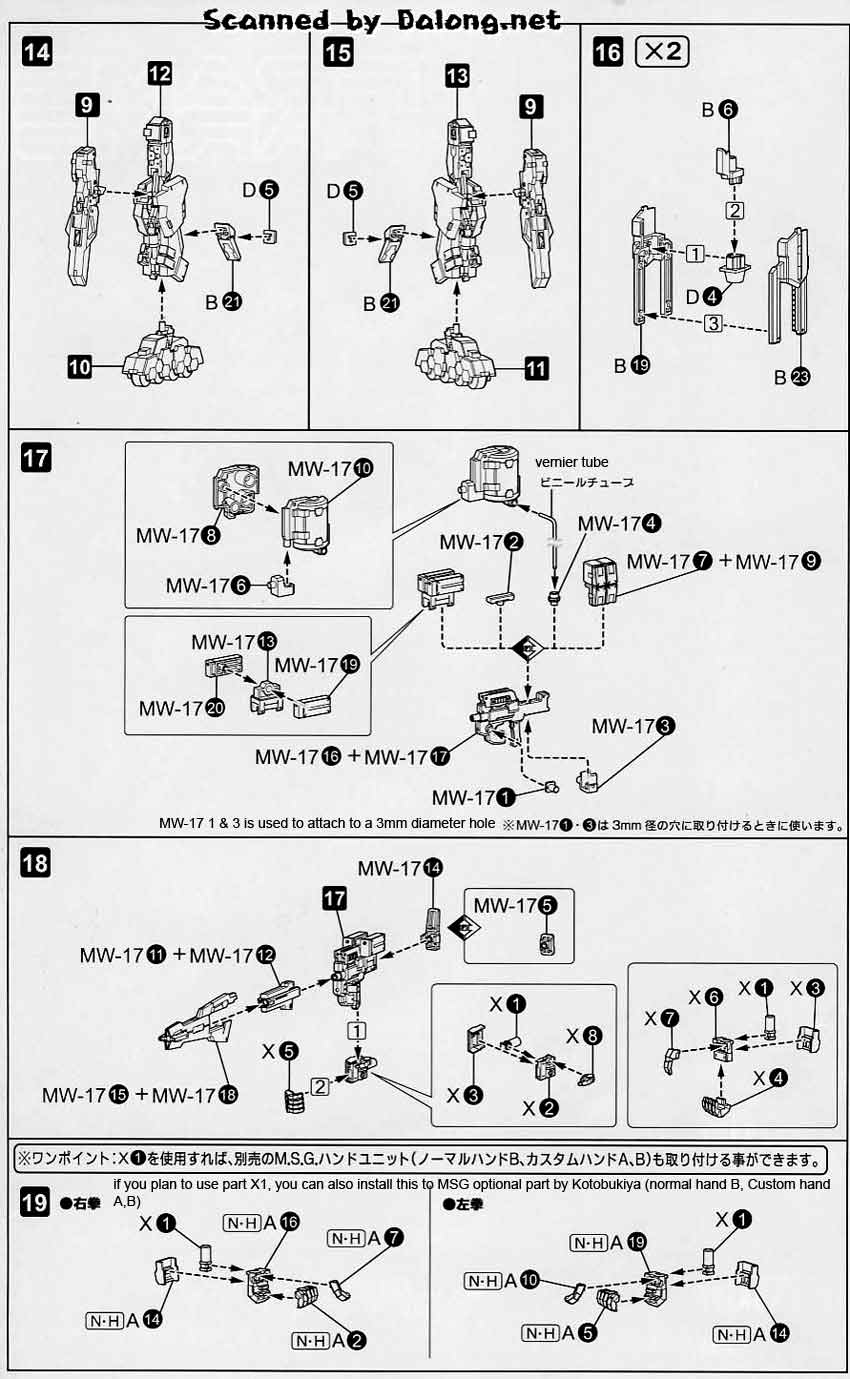

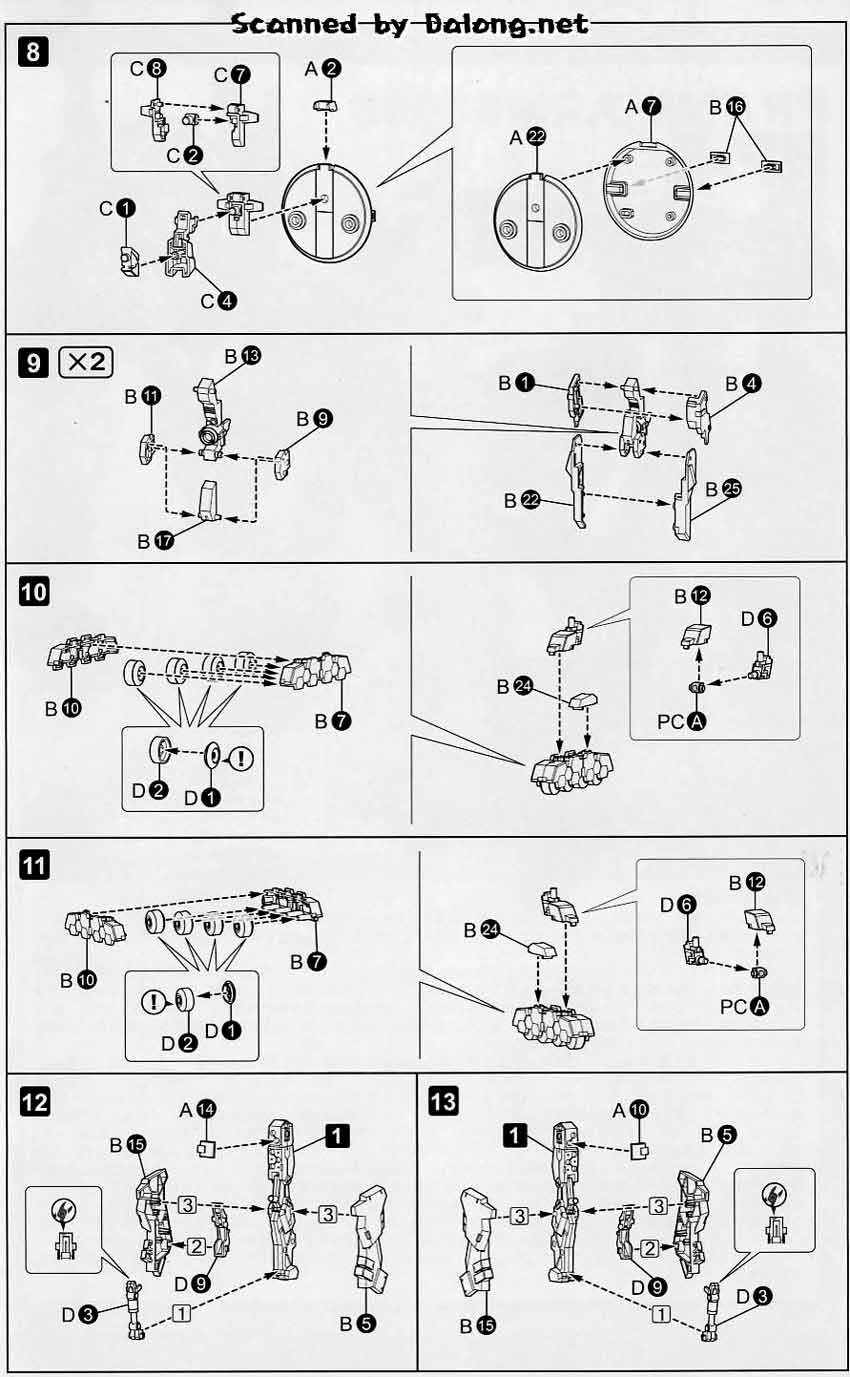

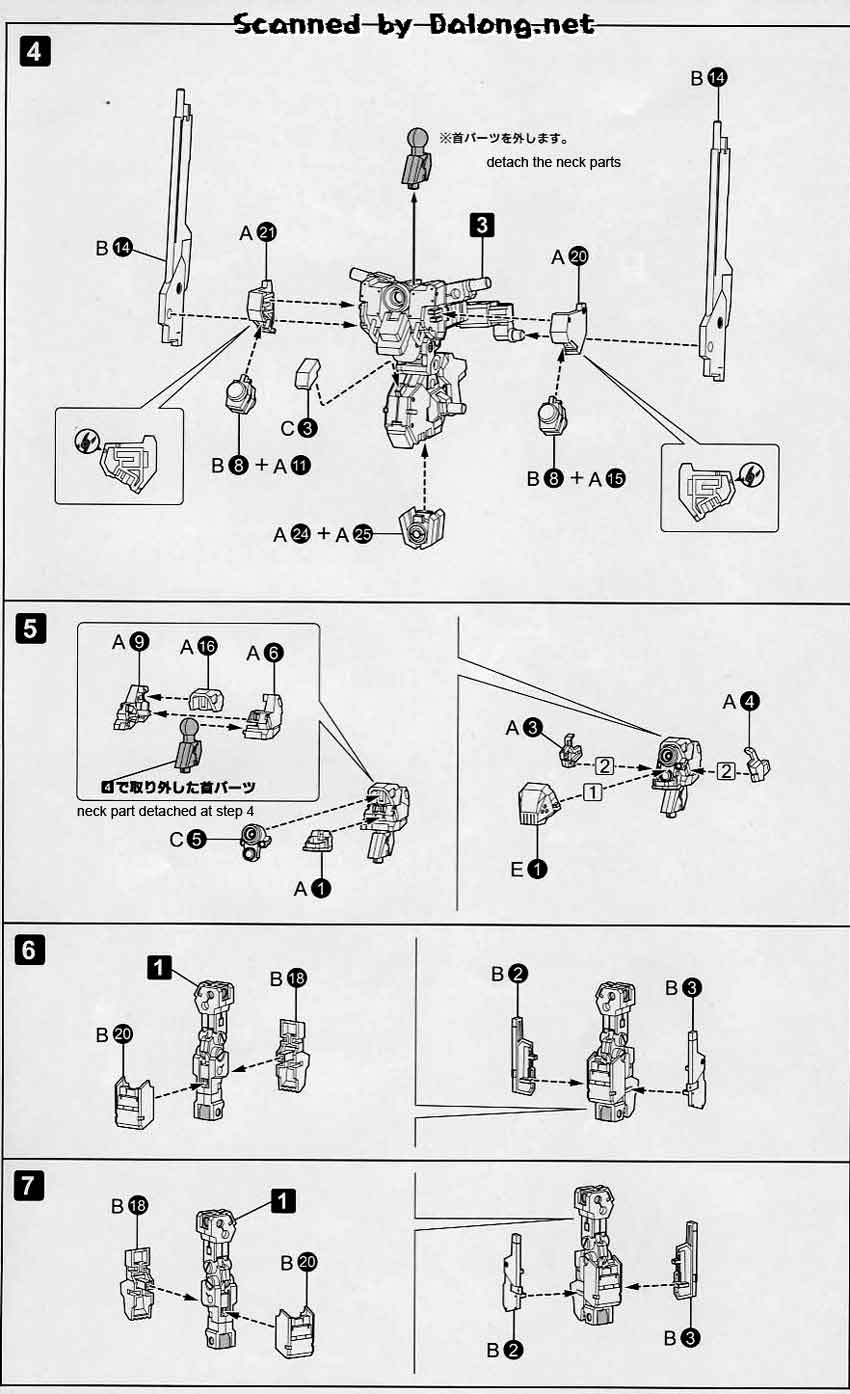

Frame Arms RF-9 Revenant Eye English Manual & Color Guide

1/100 Frame Arms RF-9 Revenant Eye English Translation Color Guide & Manual

Another issue from the original Kotobukiya Frame Arms line is the 1/100 RF-9 Revenant Eye. This particular model kit was released in the latter part of last year. Like all kits in the Frame Arms line, they use the common Architect Frame to put parts on in order to form their unique mecha frame.

1/100 Frame Arms RF-9 Revenant Eye English Translation Color Guide & Manual

1/100 Frame Arms RF-9 Revenant Eye is selling for $$$ at Amazon, 2620 yen at Amiami, 2880 yen at HobbyLInk Japan

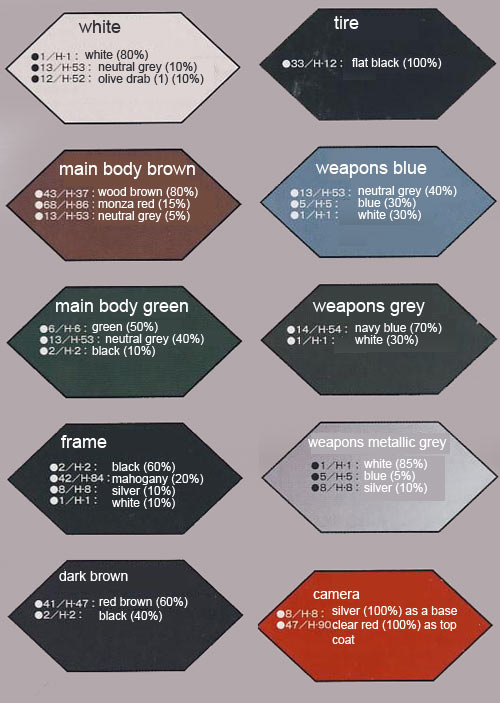

Color Guide DescriptionPaint Ratios
main body white partWhite (H1)(80%) + Neutral Gray (H53)(10%) + Olive Drab (1) (H52)(10%)
main body brown partWood Brown (H37)(80%) + Monza Red/Red Madder (H86)(15%) + Neutral Gray (H53)(5%)
main body green partGreen (H6)(50%) + Neutral Gray (H53)(40%) + Black (H2)(10%)
frameBlack (H2)(60%) + Mahogany (H84)(20%) + Silver (H8)(10%) + White (H1)(10%)
dark brown partRed Brown (H47)(60%) + Black (H2)(40%)
tire partFlat Black (H12)(100%)
weapons blue partNeutral Gray (H53)(40%) + Blue (H5)(30%) + White (H1)(30%)
weapons gray partNavy Blue (H54)(70%) + White (H1)(30%)
weapons metallic gray partWhite (H1)(85%) + Blue (H5)(5%) + Silver (H8)(10%)
camera base colorSilver (H8)(100%)
camera top colorClear Red (H90)(100%)
